SKU:WSAL19635

PoE Ethernet / USB HUB HAT for Raspberry Pi Zero, 3x USB 2.0 Ports, 802.3af-compliant

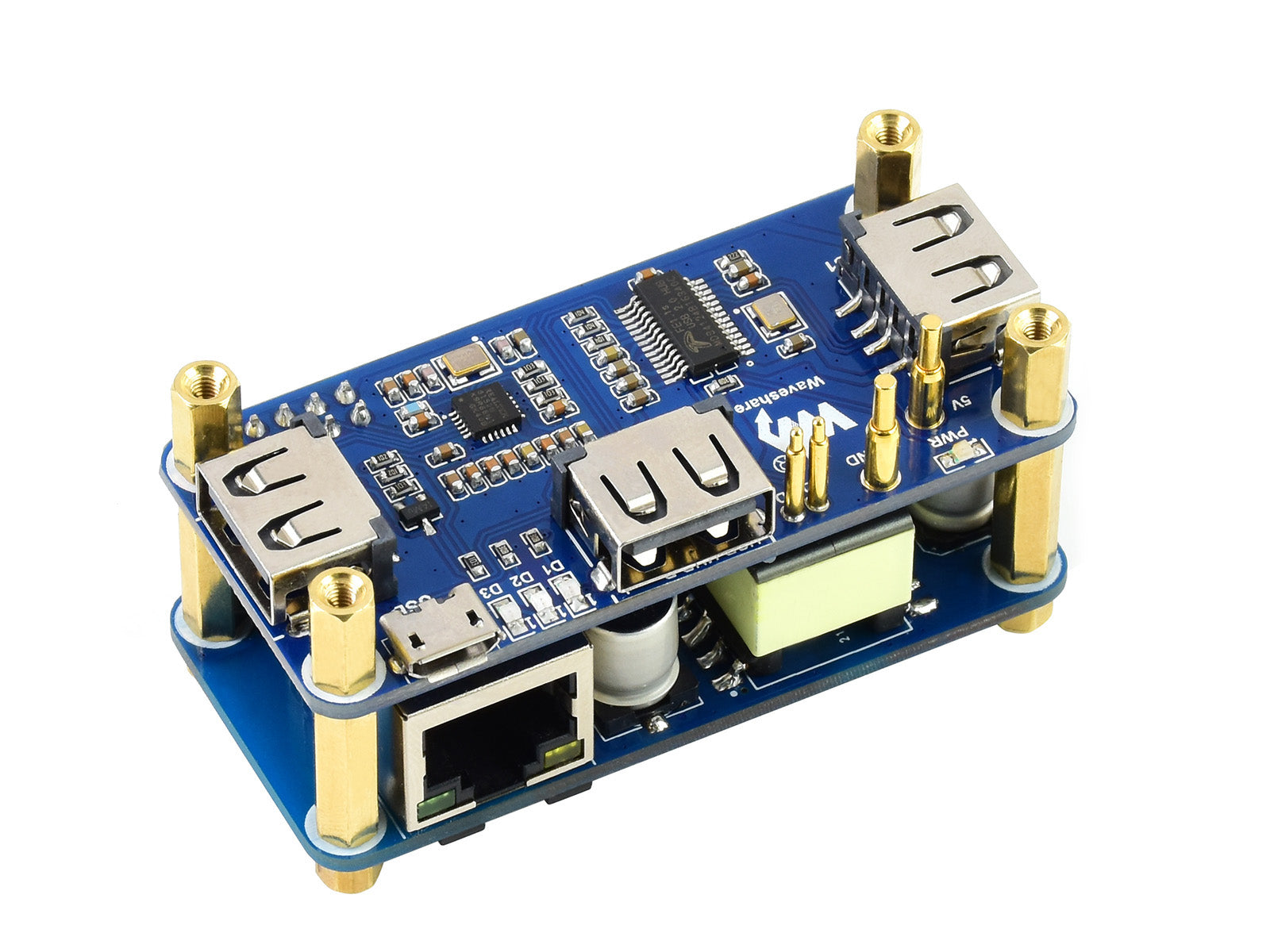

PoE Ethernet / USB HUB HAT

suitable for Raspberry Pi Zero / Zero 2W / Zero W / Zero WH, 802.3af-compliant

Features at a glance

ThePoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with 3x extended USB ports.

• Designed for Raspberry Pi Zero, compatible with Zero series boards
• Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port

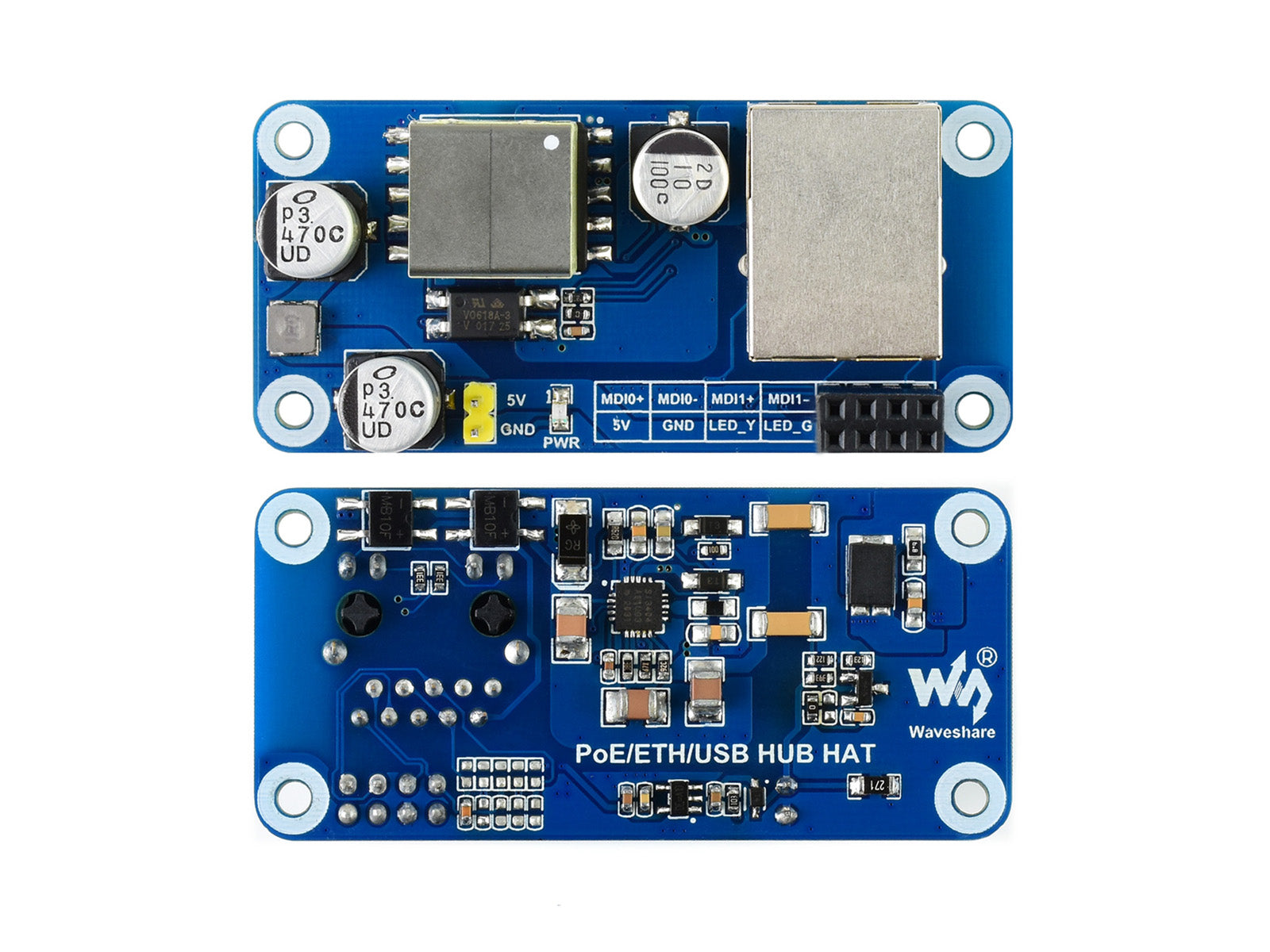

• PoE (Power over Ethernet) feature, 802.3af-compliant
• Fully isolated SMPS (Switch Mode Power Supply)
• 3x extended USB ports, compatible with USB 2.0 / 1.1

Specifications

PoE power input	37V ~ 57V DC in
Power output	5V 2.5A DC out
Network standard	IEEE 802.3af-compliant PoE
Dimensions	23.10 × 65.00 mm

Compatible with Raspberry Pi Zero series

Designed for Raspberry Pi Zero, compatible with Zero / Zero 2W / Zero W / Zero WH

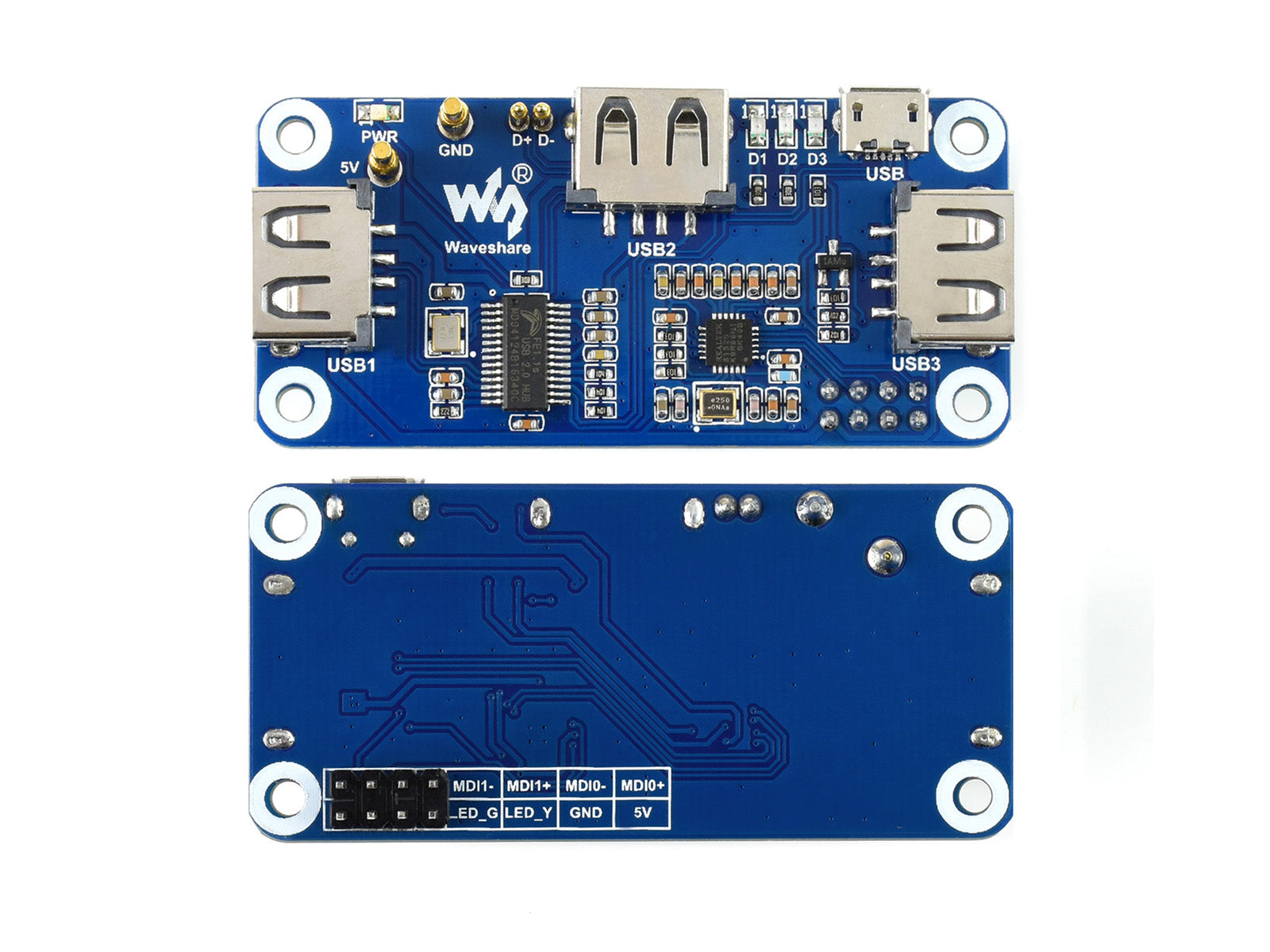

3x extended USB 2.0 ports

USB1 ~ USB3, compatible with USB 2.0 / 1.1

Extended Ethernet port

USB to Ethernet conversion by the RTL8152B chip, 10M / 100M auto-negotiation

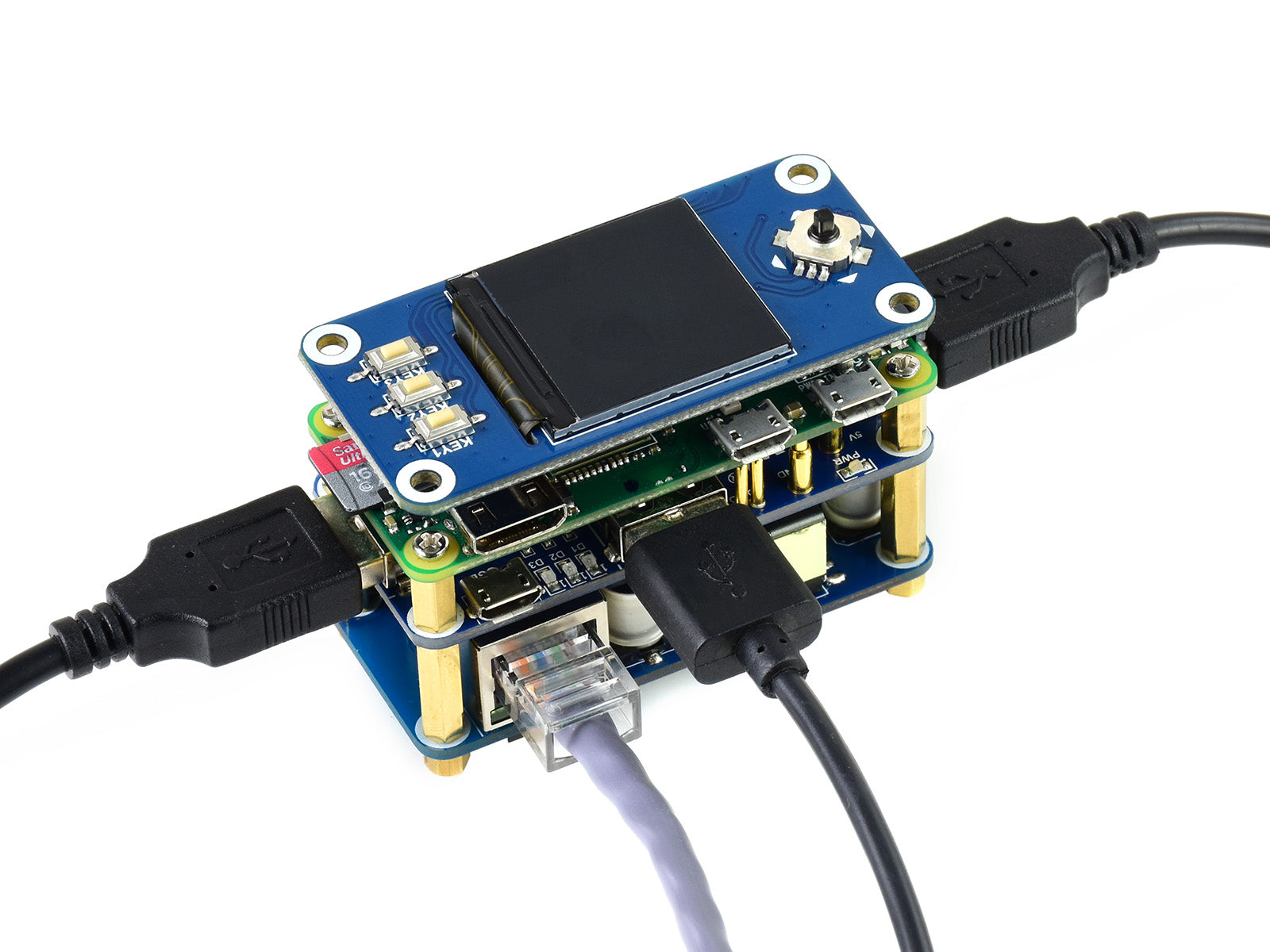

Application example

For reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.

Outline dimensions

Resources & Services

Wiki:PoE/ETH/USB_HUB_HAT

Lieferumfang

1. PoE/ETH/USB HUB HAT x1
2. USB HUB Board x1
3. Screws pack x1
4. Screwdriver x1
