SKU:WSAL19598

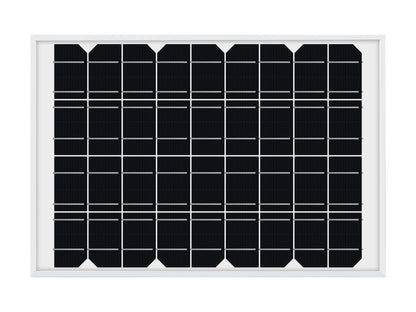

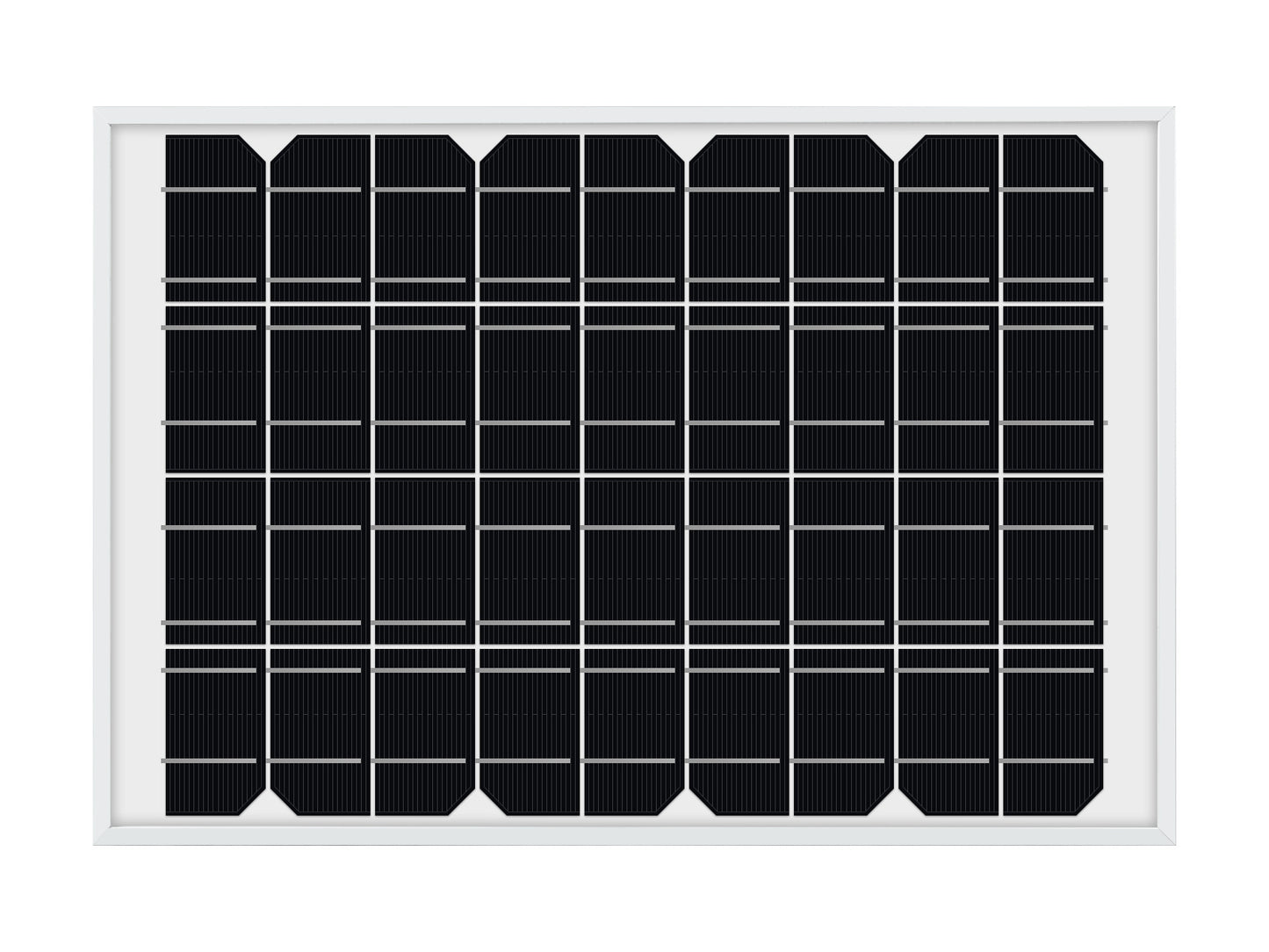

Kurzbeschreibung: Polysilicon Solar Panel (18V 10W), 10Wp Power Photovoltaic Panel, High Conversion Efficiency

Polysilicon solar panel (18V 10W), 10Wp power photovoltaic panel, high conversion efficiency

Specifications

Key specifications
Solar cell type	polysilicon	Power	10 Wp (Max)
Output power tolerance	±3%	Conversion efficiency	>20%
Operating voltage	17.6 V	Operating current	0.57 A
Open circuit voltage	21.6 V	Short circuit current	0.61 A
Cell quantity	36 (4×9)	Standard system voltage	1000 V (Max)
Others
Operating temperature	-40℃ ～ +85℃
Pressure on panel	30m/s(200kg/sq.m) (Max)

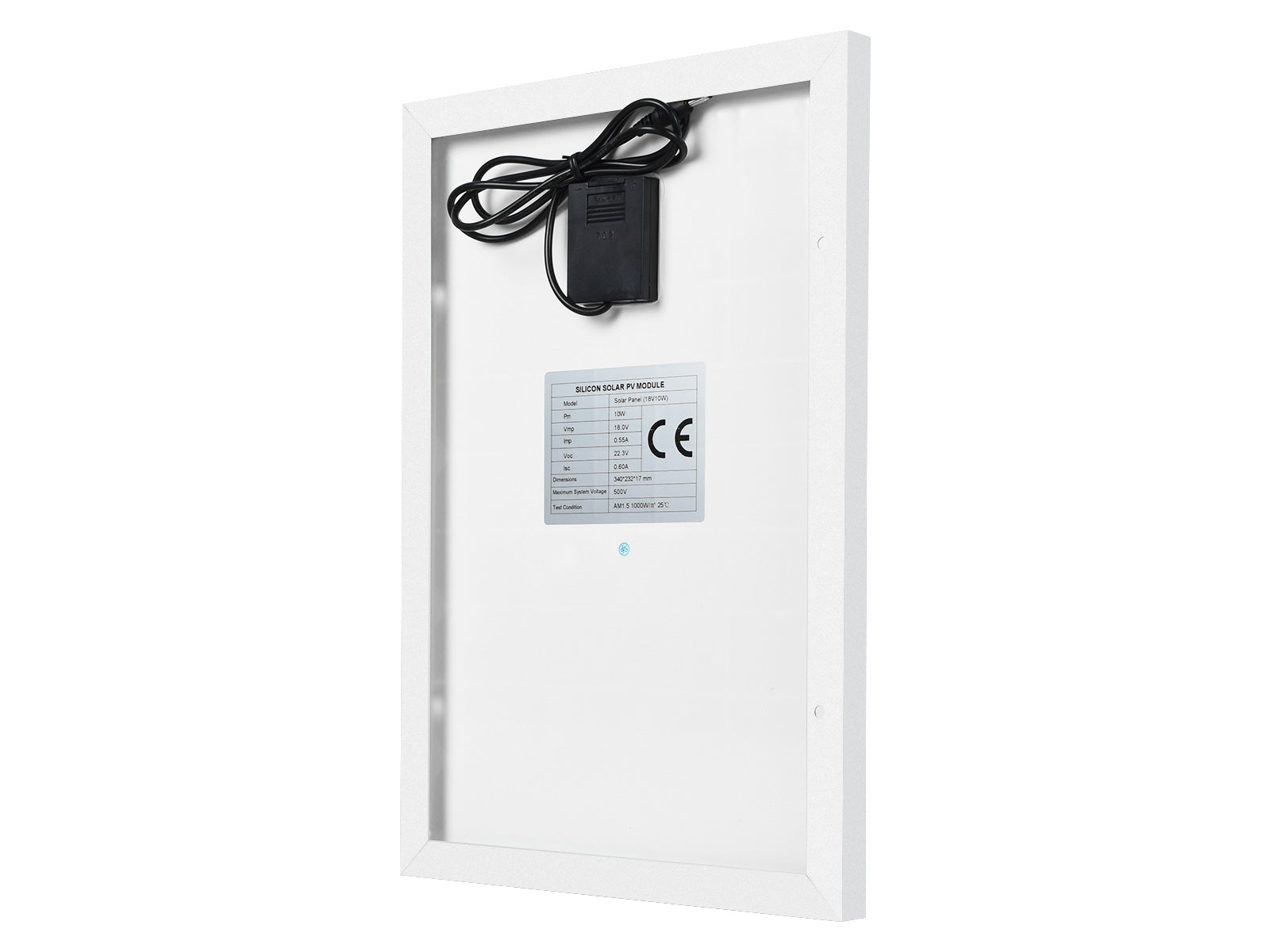

Cable	length 90 cm, DC plug, OD 3.5mm ID 1.35mm
Frame material	anodic oxidation aluminum alloy
Dimensions	340 × 232 × 17 mm
Weight	0.935 kg

conversion efficiency > 20%

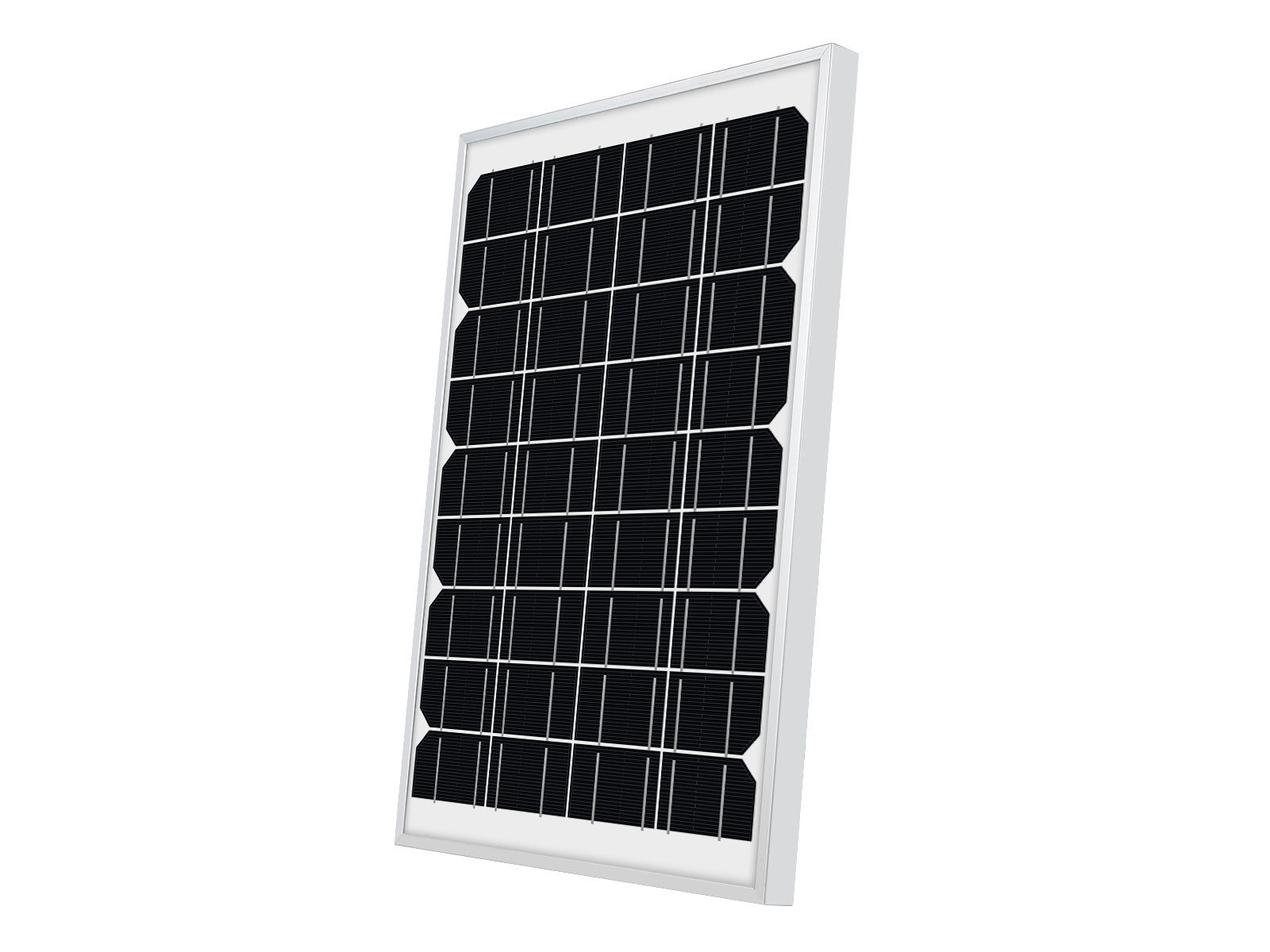

polysilicon solar panel, widened chips, larger receiving area, capturing trivial source

high strength frame

anodic oxidation aluminum alloy material, multi layers structure, waterproof and durable

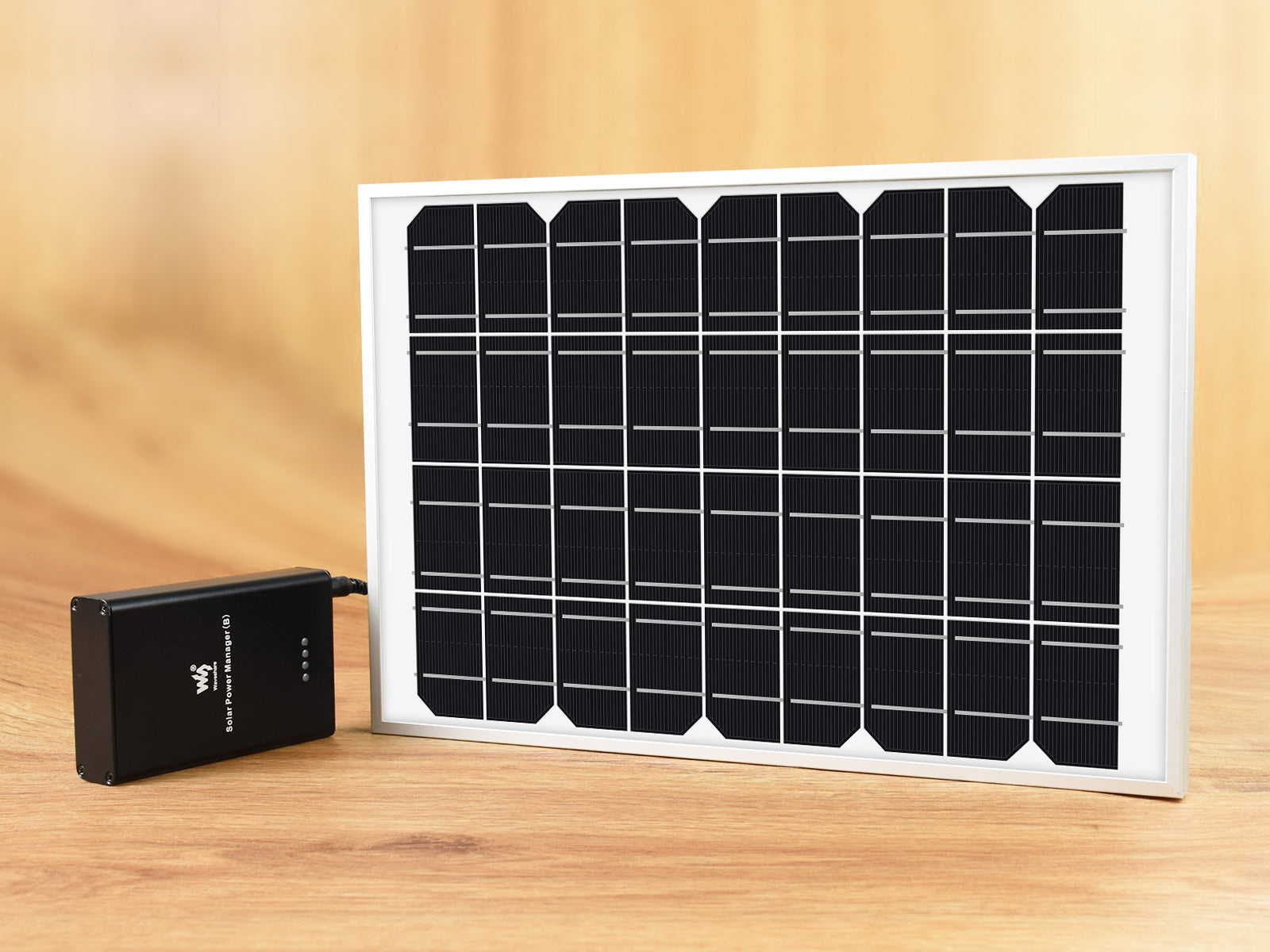

Application example

for reference ONLY, the Raspberry Pi, display, solar power manager are NOT included.

Outline Dimensions

* measured manually, for reference ONLY

Lieferumfang

1. Solar Panel (18V 10W) x1
