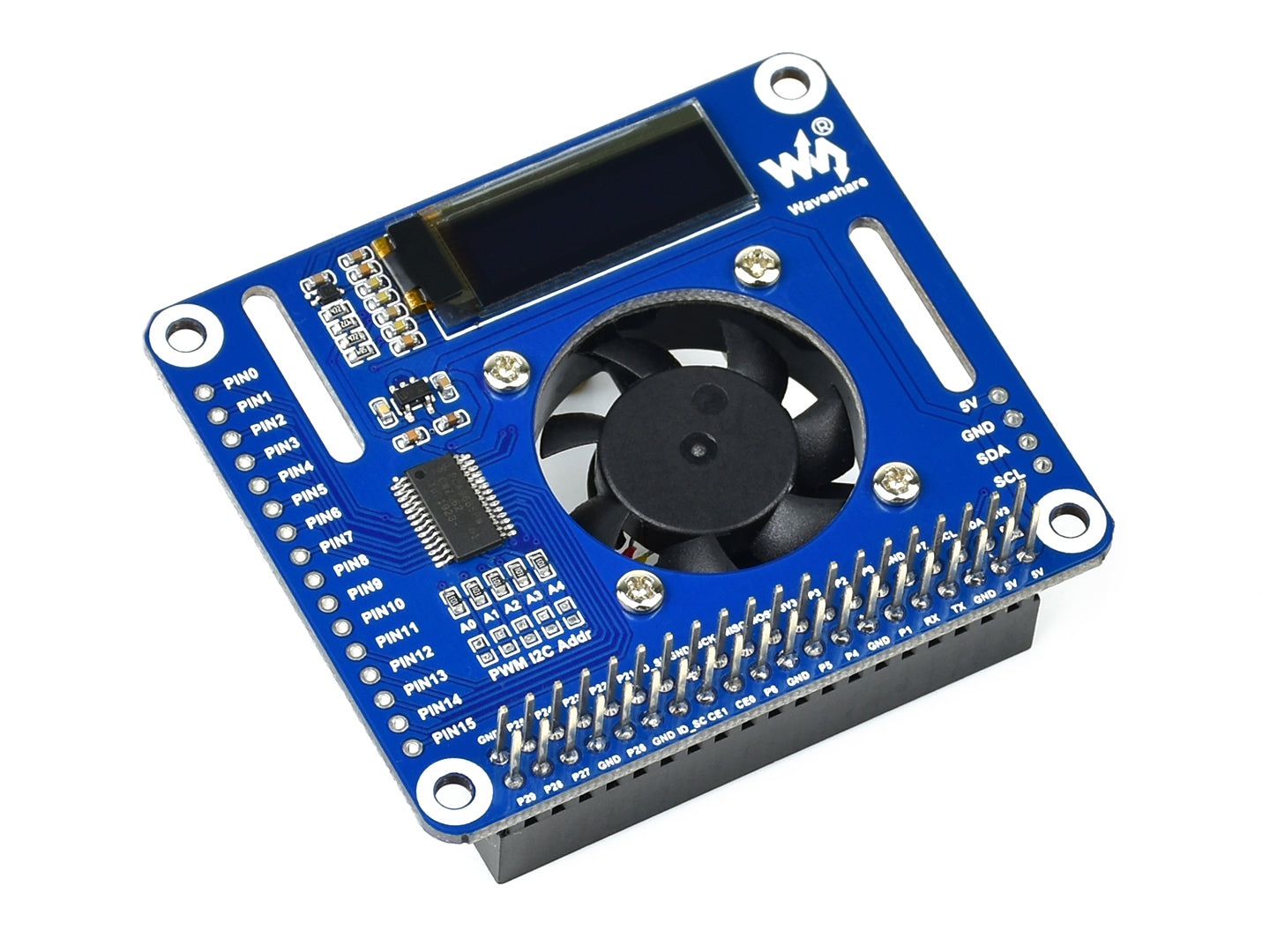

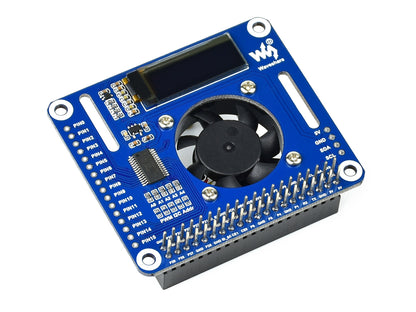

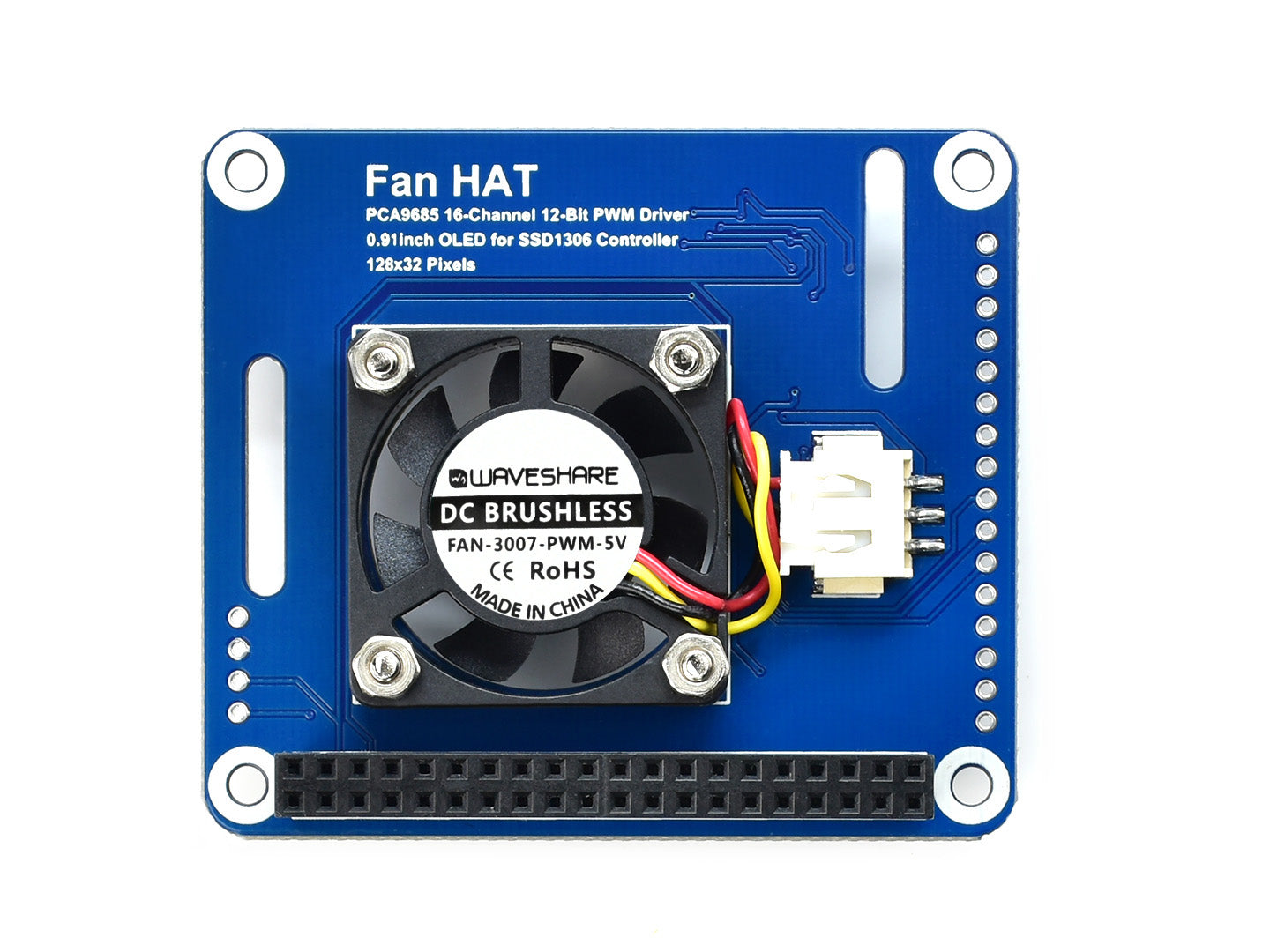

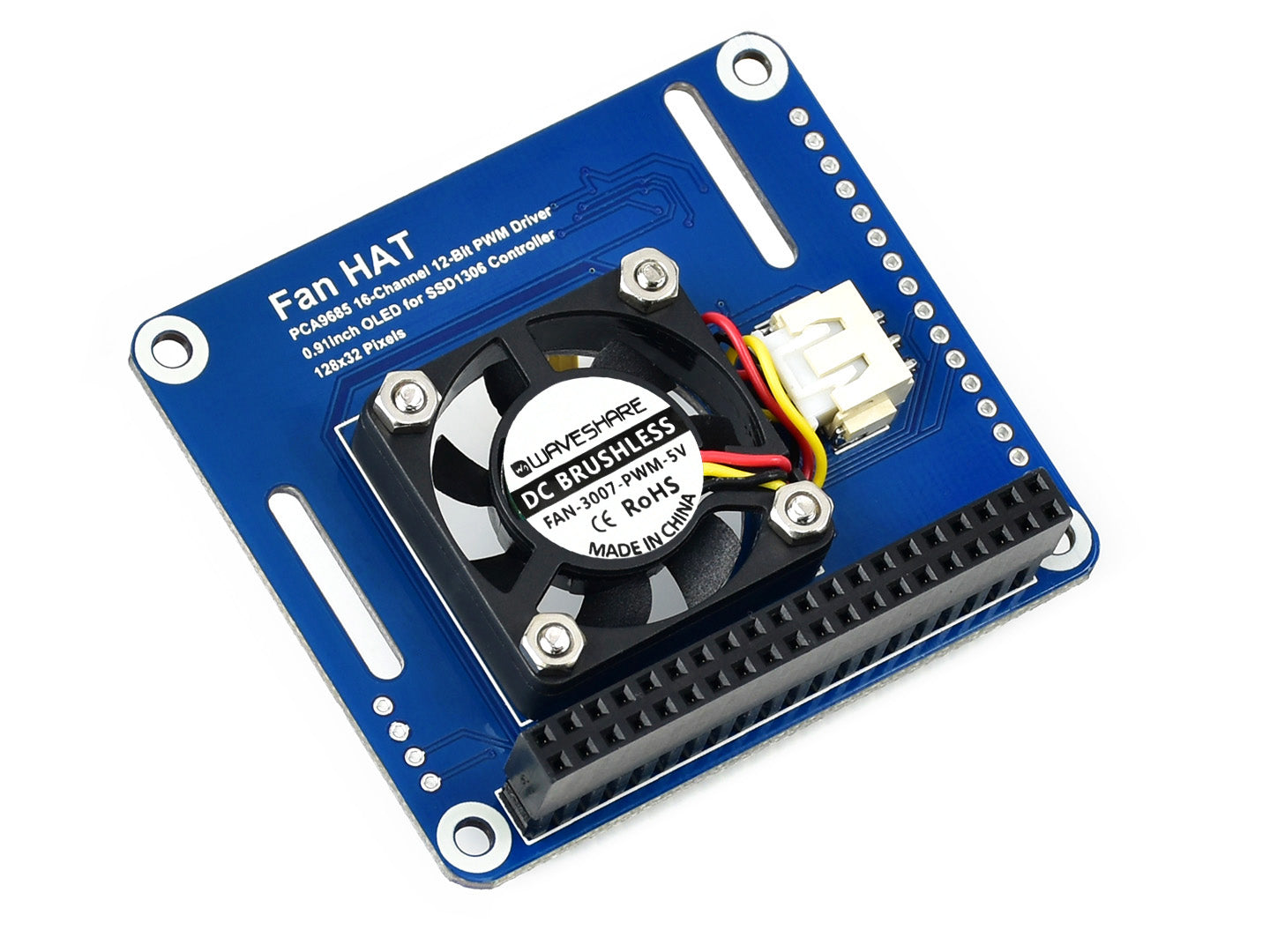

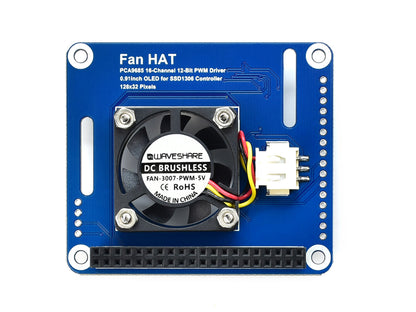

PWM Controlled Fan HAT for Raspberry Pi, I2C Bus, PCA9685 Driver, Temperature Monitor

Fan HAT for Raspberry Pi

PWM controlled fan speed via I2C bus, real time temperature monitor

Designed for Raspberry Pi series

Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards

Features at a glance

• PCA9685 PWM driver as the fan controller, powerful driving capability, auto PWM adjustment
• 0.91" OLED, 128x32 pixels, displays board temperature or other user-defined content in real time
• Adopts 3007 size PWM controlled fan, up to 8000rpm speed, brings strong airflow
• Supports retrieving temperature data in real time, and then adjusting the speed automatically, programmable configuration
• I2C pins, for connecting other host control boards
• 16-ch PWM outputs, for driving other external PWM devices
• Comes with heat sinks, better cooling effect

PCA9685 Fan Controller

up to 16-ch PWM outputs, powerful driving capability, auto PWM adjustmentcombined with the included heat sinks, achieving better cooling effect

0.91" OLED mini display

128×32 pixels, I2C controlleddisplays board temperature or other user-defined content in real time

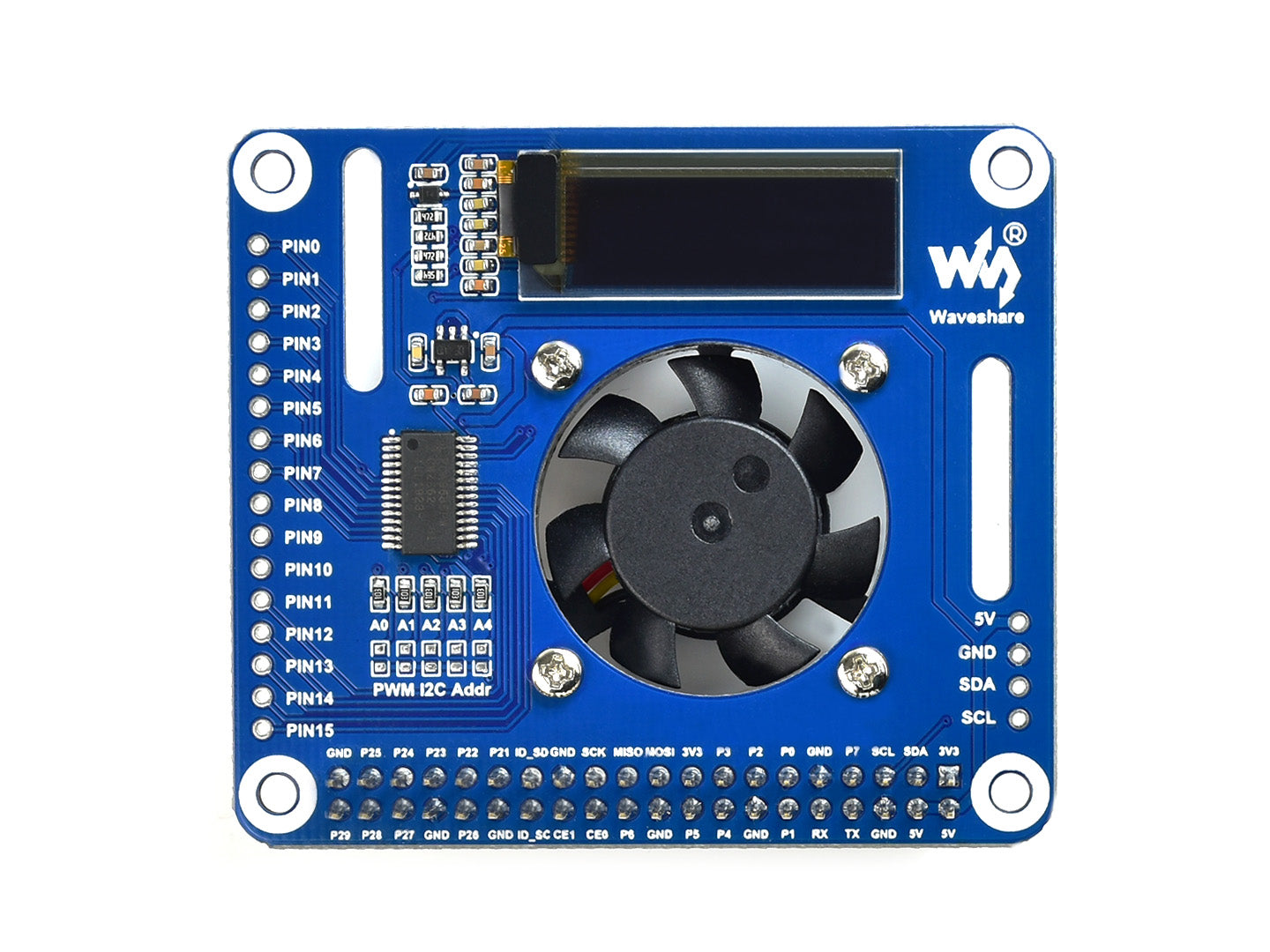

What's On Board

1. Standard Raspberry Pi 40PIN GPIO header
2. PCA9685 PWM driver
3. 3007 size PWM controlled adjustable fan
4. PCA9685 I2C address configuration

5. Reserved I2C control pins
6. Reserved PCA9685 output channels
7. 0.91" OLED display

Pinout definition

Specifications

Power supply voltage	5V	Logic level voltage	3.3V
Fan Driver	PCA9685	OLED driver	1306
Control bus	I2C	OLED resolution	128×32
Fan PWM driver duty cycle	≥25%	OLED display color	White
Fan speed (Max)	8000rpm	OLED viewing angle	>160°

Outline dimensions

Resources & Services

Comes with manual and examples in C / Python

---

WIKI:www.waveshare.com/wiki/Fan_HAT

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

1. Fan HAT x1
2. PI4-HEATSINK-SET x1
3. 20PIN male header x2
4. Standoffs pack x1
