SKU:WSAL15423

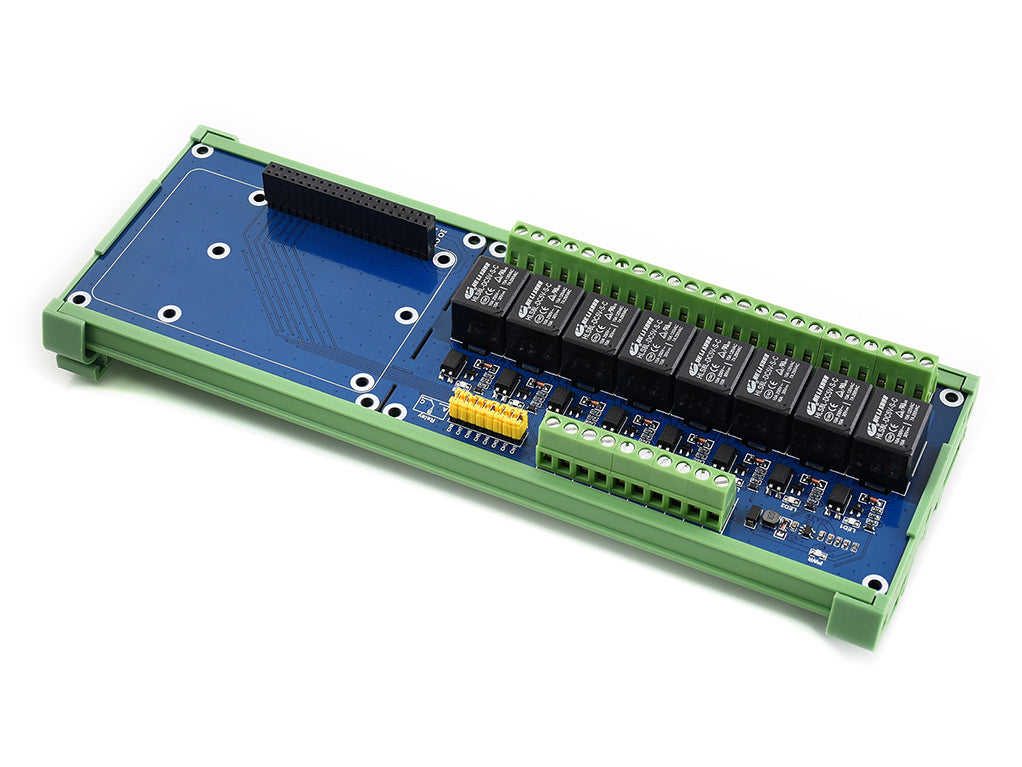

Raspberry Pi Expansion Board, 8-ch Relays

Overview

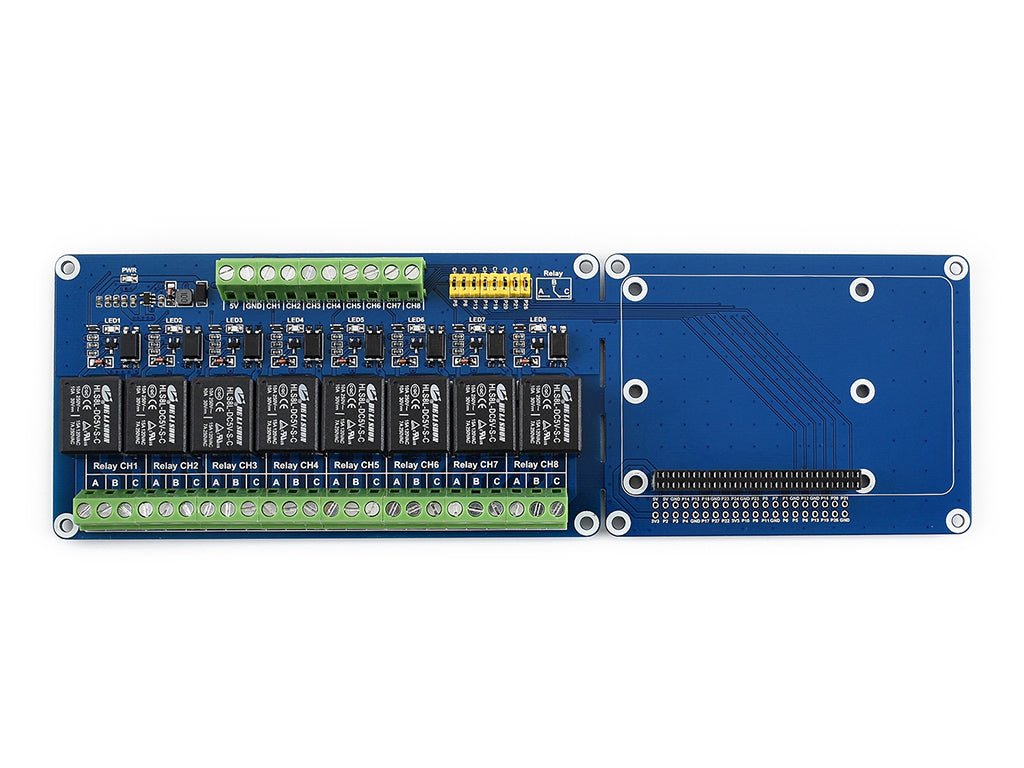

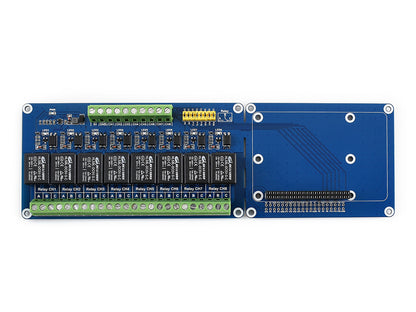

The RPi Relay Board (B) is an expansion board with 8-ch relays for Raspberry Pi. It gives your Pi the ability to control high voltage products such as home appliances.

Features

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
• High quality relays, loads up to 5A 250V AC or 5A 30V DC
• Photo coupling isolation, prevent interference from high voltage circuit

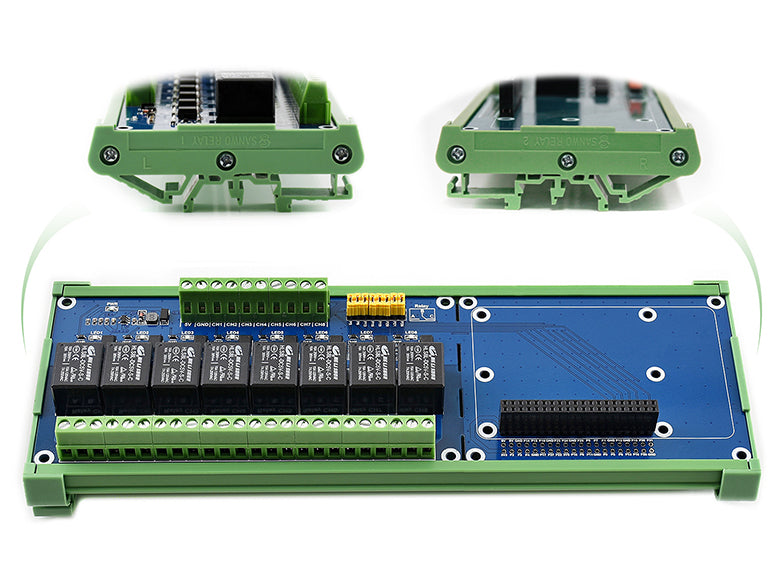

• Standard rail mount bottom case
• Onboard LEDs for indicating relays status
• Relay control pin selection jumper, allows to control the relays by custom pins other than the default pins
• Reserved control Interface, allows to work with controllers like PLC
• Comes with development resources, including examples in wiringPi, bcm2835, python, python-bottle (webpage control), and crontab (cron job)

Specifications

• Power supply voltage: 5V
• Trigger signal: 3.3V/5V
• Relay channels: 8-ch
• Contact form: SPDT-NO,NC
• Closed current: 6mA (per channel)
• Connector: screw terminal block
• Dimension: 232 × 72 (mm)
• Mounting hole size: 3.0mm

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/RPi_Relay_Board_(B)

Lieferumfang

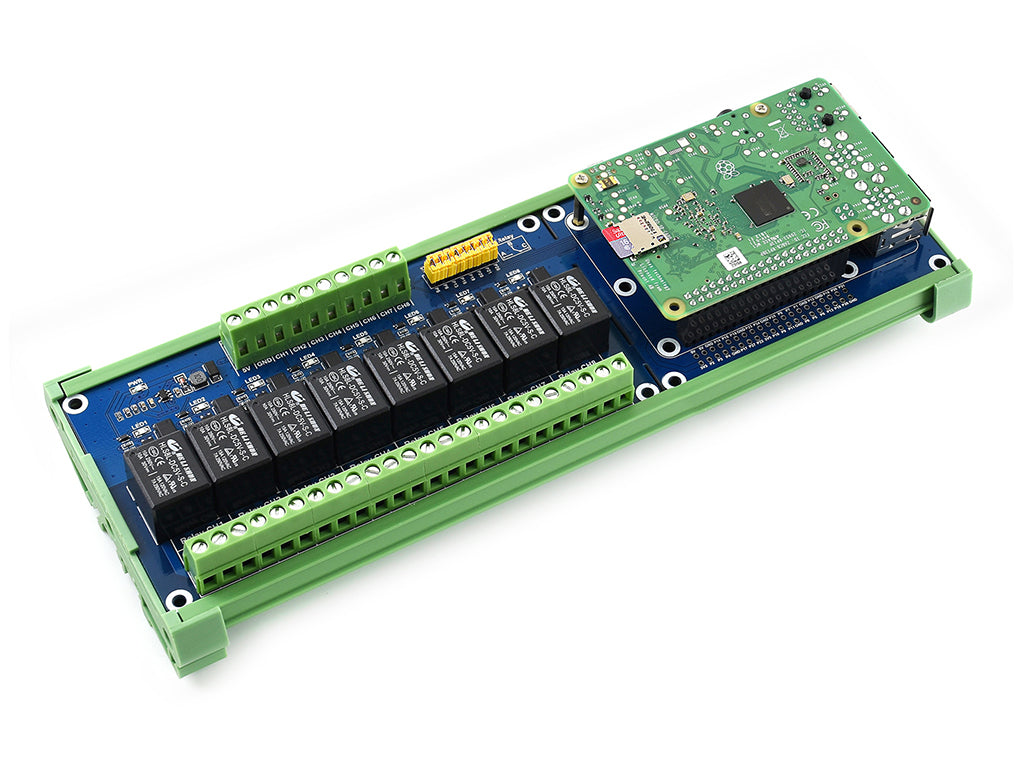

Note: Raspberry Pi in the photos is NOT included.

1. RPi Relay Board (B) x1
2. Rail mount bottom case x1
3. Screws pack x1

1+2+3
