SKU:WSAL16740

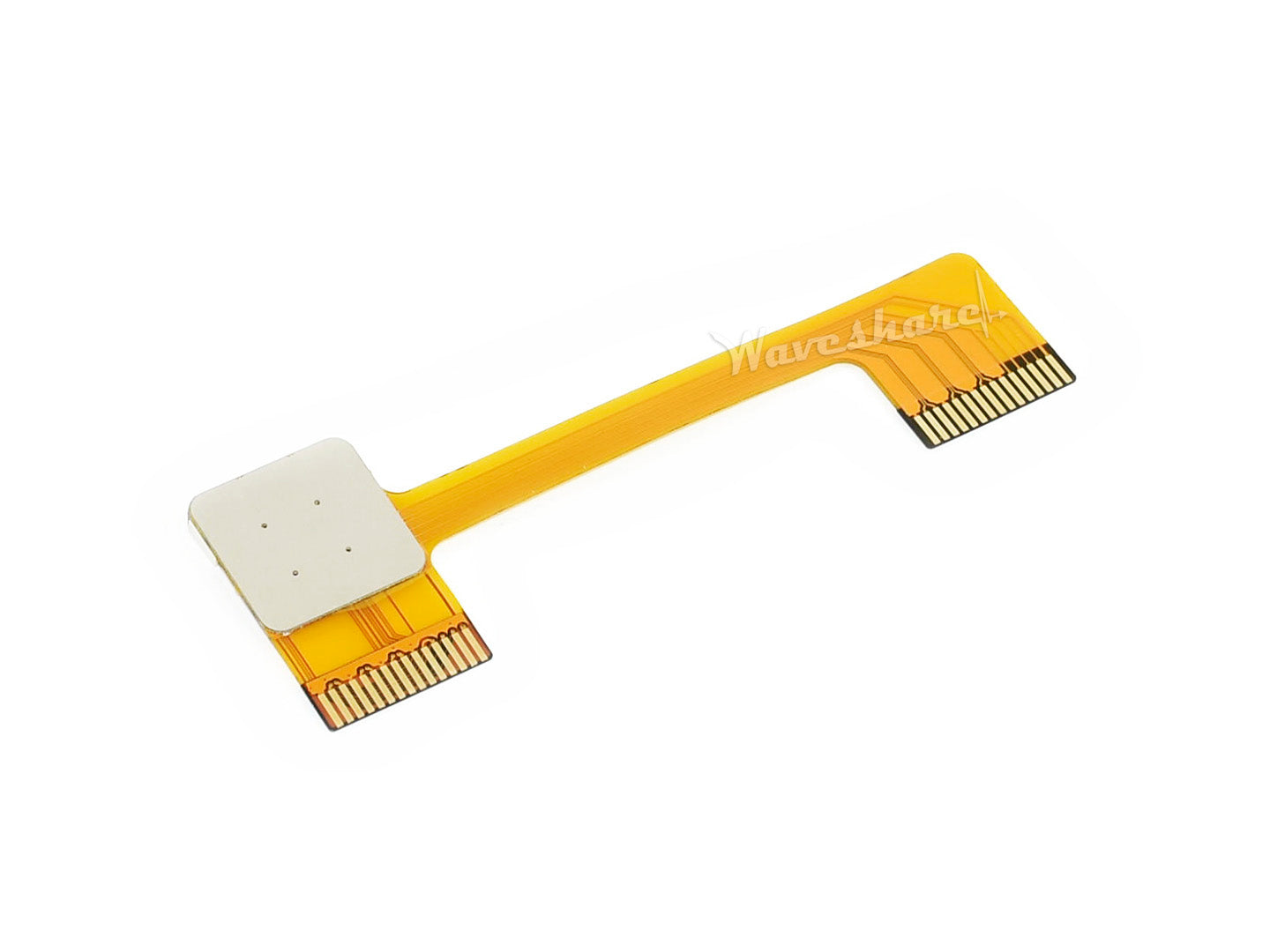

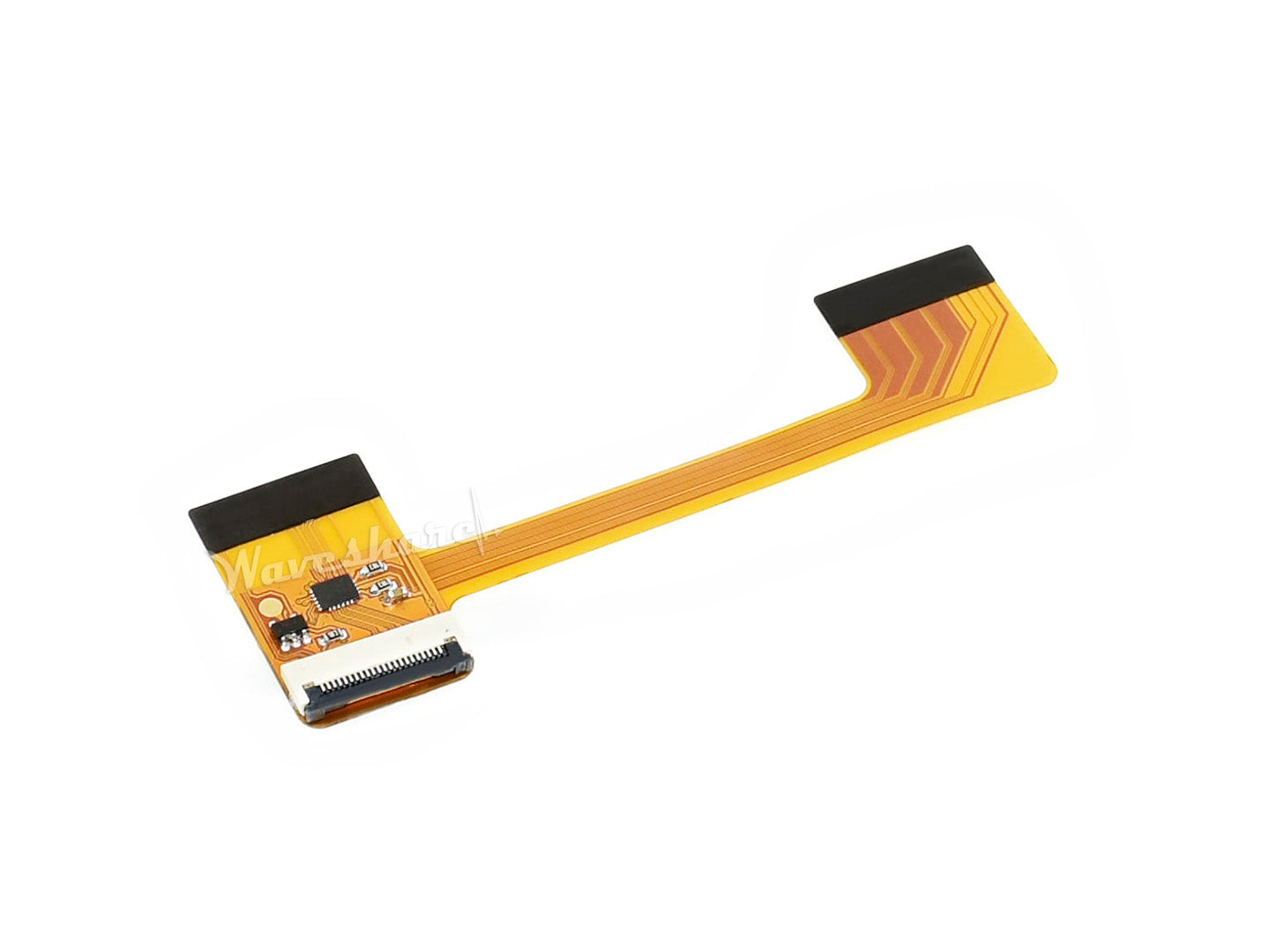

Camera Scheduler, Specific FPC Which Allows the Raspberry Pi to Connect Two Cameras

Overview

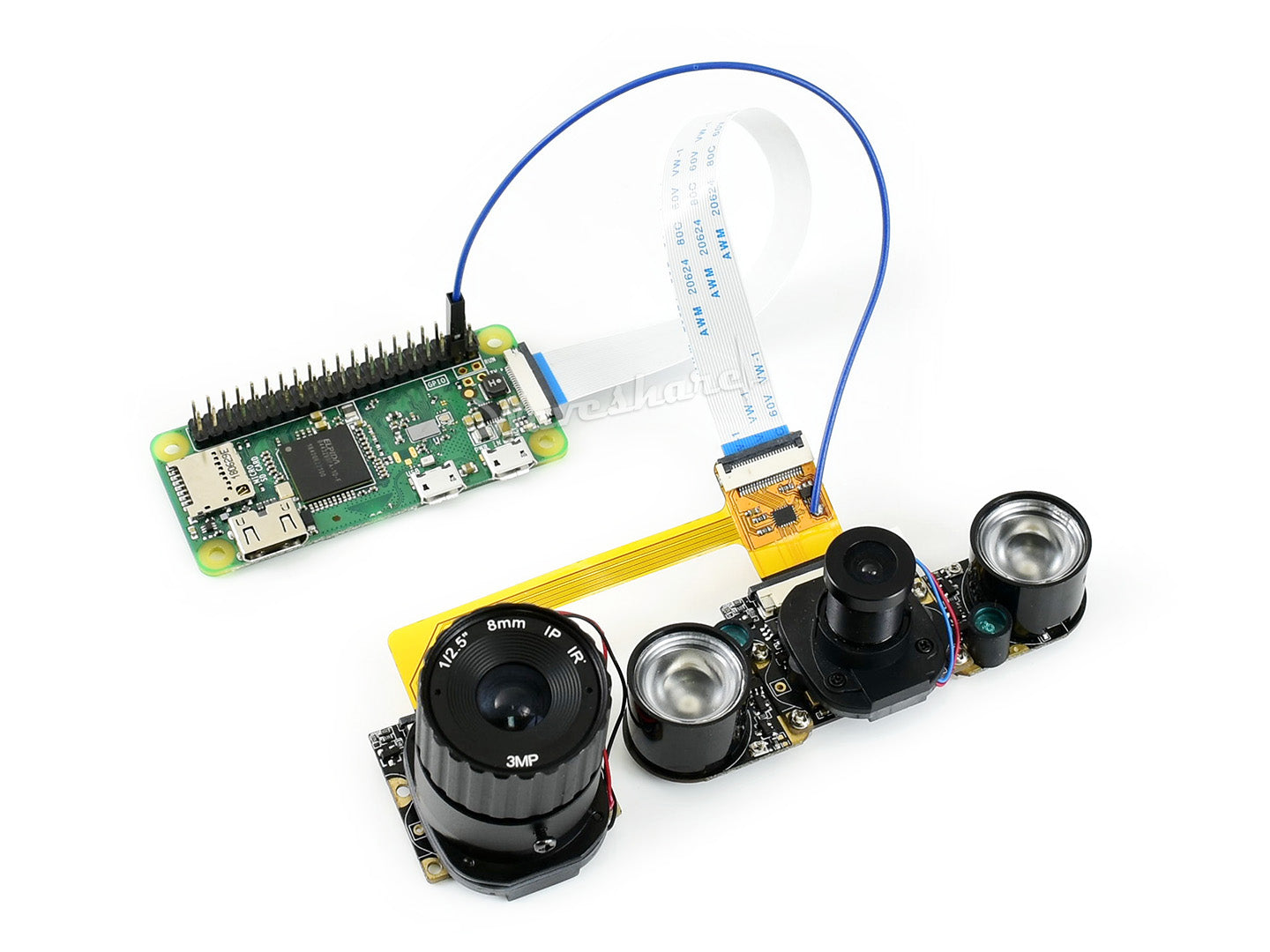

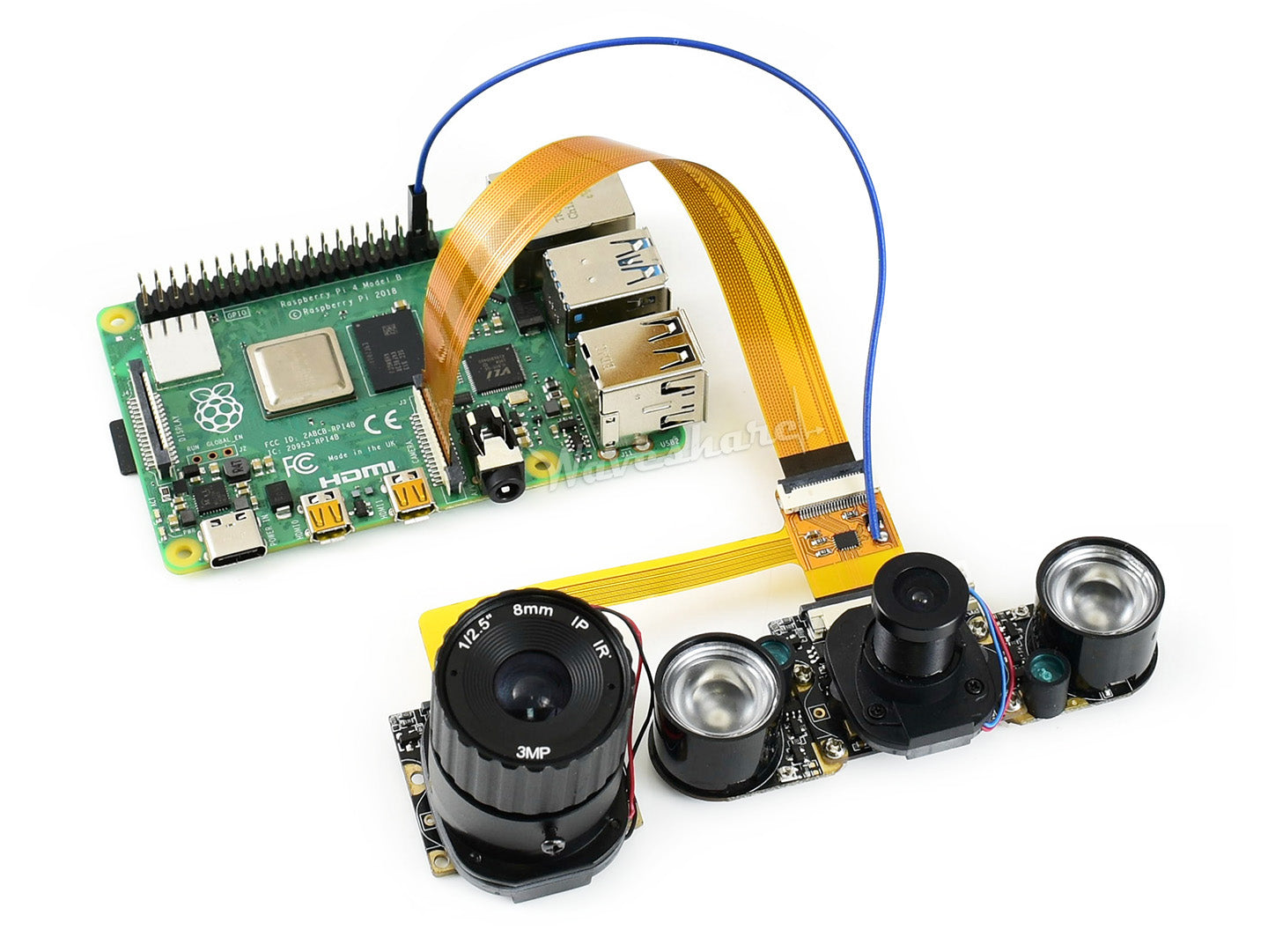

• Time-share scheduling function: allows the Raspberry Pi to connect two cameras at the same time, and select the active one manually or automatically (by GPIO)
• Dimensions: 76mm x 26mm
• Applicable range: Raspberry Pi full series boards
• Camera Option:
  • Workable: two 8MP IMX219 cameras OR two 5MP OV5647 cameras
  • NOT Workable: one 8MP IMX219 camera + one 5MP OV5647 camera

Development Resources

Wiki:www.waveshare.com/wiki/Camera_Scheduler

Lieferumfang

1. Camera Scheduler x1
2. RPi Zero V1.3 Camera Cable 15cm x1
3. Jumper wire 1PIN 2.54 Pitch 2PCS x1
4. FFC 22PIN 160mm (opposite side contact) x1

1

2

3

4
