SKU:WSAL22594

Raspberry Pi CM4 To CM3 Adapter, Alternative Solution for Raspberry Pi CM3 / CM3+

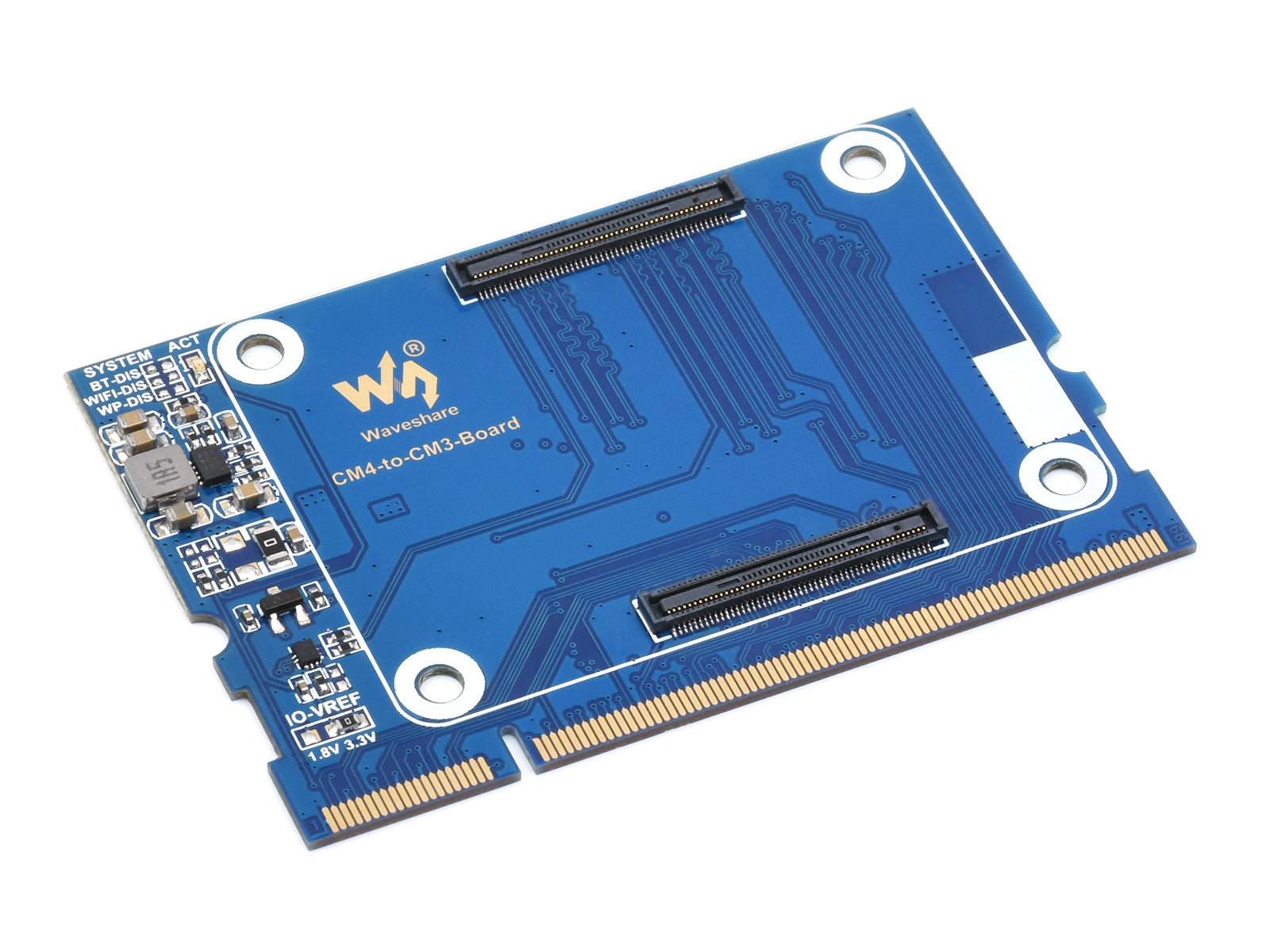

Raspberry Pi CM4 To CM3 Adapter

Alternative Solution for Raspberry Pi CM3 / CM3+

Features at a glance

• Onboard standard CM4 connector, support access to CM4 Lite / eMMc series boards with Quad Core Cortex A72 64-bit processor, more powerful performance
• Onboard standard CM3 SODIMM, easily connected to the original CM3 ecosystem base board
• Onboard buck-boost DC chip, supports 3.3V/5V power input
• Onboard ACT, etc., can monitor the working status of CM4 in real time

Based on Raspberry Pi CM4

Use CM 4 to replace CM3 series, solve the short supply problem of CM3

for reference only, CM4 is NOT included

Function Comparison

Function	CM3	CM4 TO CM3 Adapter
HDMI	√	√
2-ch MIPI CSI-2 Interface	√	√
2-ch MIPI DSI-2 Interface	√	√
Micro SD interface pins	√	√
USB 2.0	√	√
Power Input	2.5V~5V	5V or 1.8V~5.5V
GPIO	48	28
Dimensions(mm)	67.6 × 31	67.6 × 46

Install CM4 Easily

Onboard Standard CM4 Connector Support Access To Compute Module 4 Lite / eMMC Series Boards

for reference only, CM4 is NOT included.

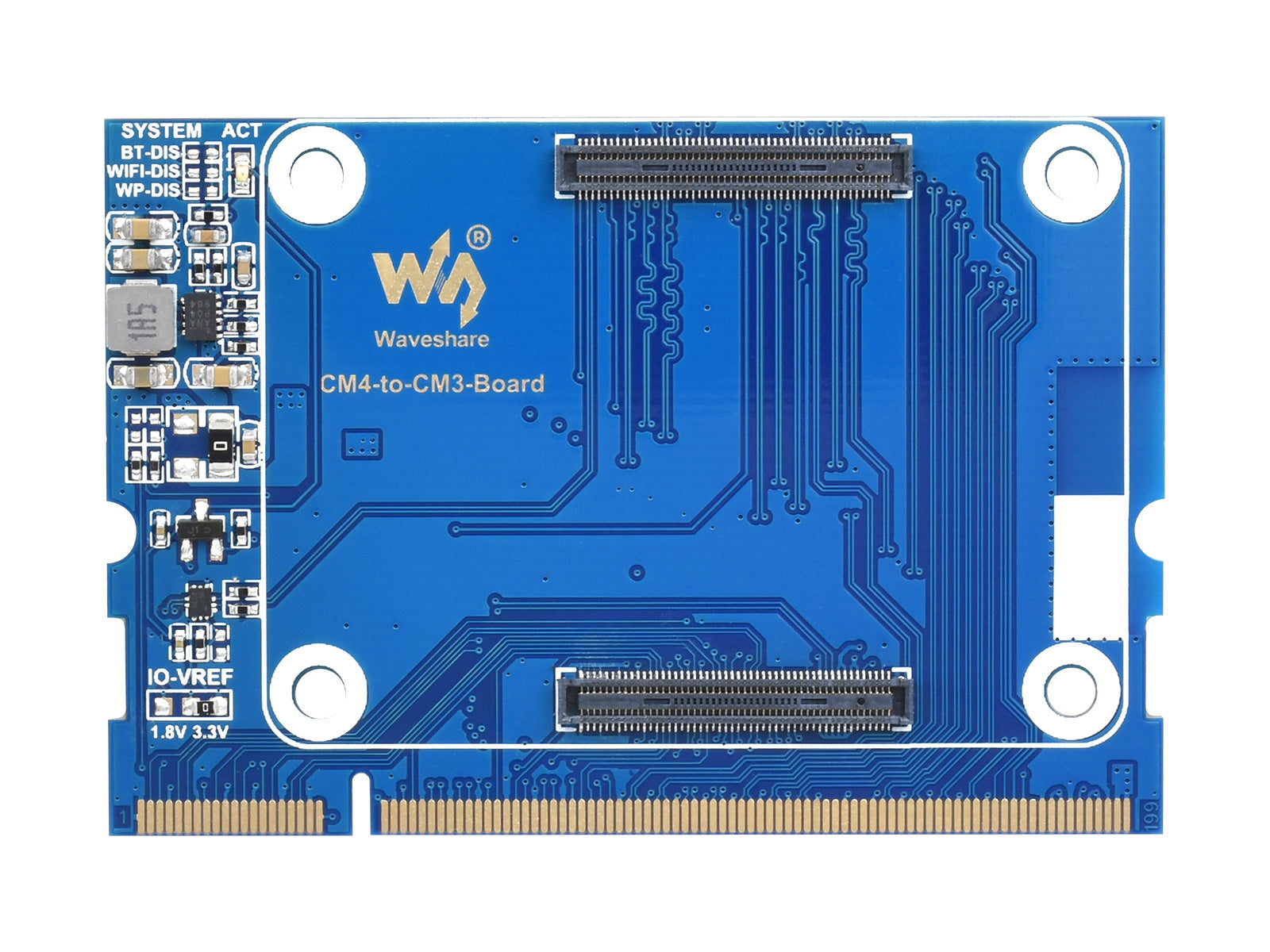

Interface Introduction

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/CM4-to-CM3-Board

Lieferumfang

Package Contains

1. CM4-to-CM3-Board x1

1
