Raspberry Pi Compute Module 4 Dev Kit, with Official IO Board and Optional 7" Touchscreen

26.184 Ft
26.184 Ft 0 Ft
Sale Sold out
Tax included. Shipping calculated at checkout.

Kurzbeschreibung: Raspberry Pi Compute Module 4 Development Kit, With Official IO Board, Basic Accessories, And Optional 7" Touchscreen

Raspberry Pi Compute Module 4 development kit, with official IO Board, basic accessories, and optional 7" touchscreen
Compute Module 4 development kit A/B

official Raspberry Pi Compute Module 4 IO Board, useful basic accessoriesand an optional 7" IPS capacitive touch display, if you need

Application example

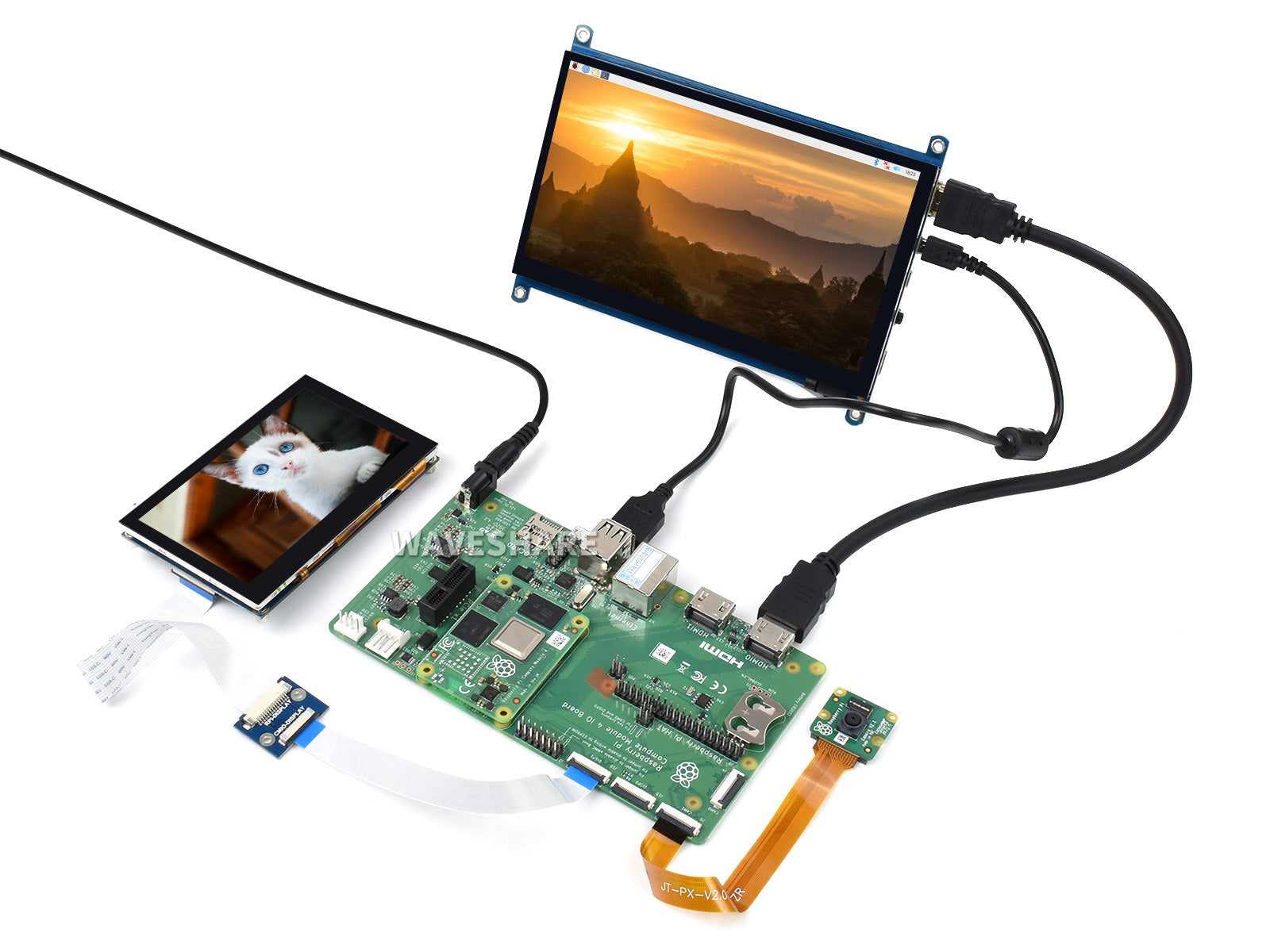

dual-display support, suitable for video-oriented projects

image for reference ONLY, the CM4,4.3" DSI LCD, and Camera Module are NOT included.
Compute module 4 IO Board

TheCompute Module 4 IO Board is a companion board for Raspberry Pi Compute Module 4 (supplied separately). It is designed for use both as a development system for Compute Module 4 and as an embedded board integrated into end products.

The IO board is designed to allow you to create systems quickly using off-theshelf parts such as HATs and PCIe cards, which might include NVMe, SATA, networking, or USB. The major user connectors are located along one side to make enclosures simple.

Compute Module 4 IO Board also provides an excellent way to prototype systems using the Compute Module 4.

Interfaces introduction
Specifications
CM4 socket suitable for all variants of Compute Module 4
Connectors Standard Raspberry Pi HAT connectors with PoE support Standard PCIe Gen 2 x1 socket Various jumpers to disable specific features, e.g. wireless connectivity, EEPROM writing
RTC Real-time clock with battery socket and ability to wake Compute Module 4
Video 2 x MIPI DSI display FPC connectors (22-pin 0.5 mm pitch cable)
Camera 2 x MIPI CSI-2 camera FPC connectors (22-pin 0.5 mm pitch cable)
USB 2 x USB 2.0 connectors Micro USB socket for updating Compute Module 4
Ethernet Gigabit Ethernet RJ45 with PoE support
Storage socket MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan Standard fan connector
Power input 12V / 5V
Dimensions 160 × 90mm
CM4 base board selection guide
CM4 Base Board Interface count and specifications
PoE Gigabit ETH 40PIN GPIO PCIe USB① DSI HDMI CSI RTC Fan Header Power Input Features
NANO A √ 2.0×1 ×1 5V CM4 sized
NANO B ×1 √ 2.0×1 ×1 ×1 ×1 5V CM4 sized
NANO C √ 2.0×1 ×1 ×1 ×1 5V Onboard Camera
mini Base A ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 5V 5V mini size
mini Base B ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 √ 5V 5V mini size
mini Base C ×1 √ M.2 M 2.0×2 ×1 ×2 √ 5V 5V Dedicated 40PIN LCD Connector
Touch screen ×1 M.2 M 2.0×4 ×1 ×1 5V IPS screen
Mini Dual Gigabit ×2 √ 2.0×1 5V SH1.0 5V dual ETH
Binocular camera ×1 √ M.2 M 2.0×4 ×2 5V dual 8MP cameras
4CH RS485 ×1 2.0×2 ×1 ×2 ×1 5V 7-36V dual ETH
WIFI6 DUAL ETH ×1 √ M.2 E 2.0×3 ×1 ×2 ×2 ×1 5/12V 7-36V WIFI6 dual ETH
Dual Gigabit ETH ×2 √ 3.0×3 ×1 ×2 ×2 √ 5/12V 7-36V
IoT Dual Gigabit ETH ×2 √ 3.0×2 ×1 ×2 ×2 √ 5/12V 5V 5G/4G support
IoT Base √ ×1 Gen2×1 2.0×2 ×2 ×2 ×2 √ 5/12V 7-36V 5G/4G supportRS232RS485ADC
PoE Base (B) √ ×1 √ Gen2×1 2.0×4 ×2 ×2 ×2 √ 5/12V 5V RS232RS485
PoE UPS Base √ ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 √ 5/12V 7-36V UPS
PoE Base √ ×1 √ 3.0×4 ×2 ×2 ×2 √ 5/12V 7-36V
Raspberry Pi official ② ×1 √ Gen2×1 2.0×4 ×2 ×2 ×2 √ 12V 12V
Wireless base ×1 M.2 B / Mini-PCIe 2.0×3 ×1 ×1 √ 5/12V 5V or 7-36V 5G/4G support RS485 CAN rail-mount
UPS Wireless base ×1 M.2 B 2.0×3 ×1 ×1 √ 5/12V 5V or 7-36V With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer ×2 √ M.2 M×2/ Mini-PCIe 3.0×2 ×2 ×2 √ 5V dual M.2 M KEY slots
5″ touch screen ② ×1 √ M.2 M 2.0×4 ×1 ×2 √ 5/12V 5V
7″ all-in-one ×1 M.2 M 2.0×4 used ×1 used √ 5/12V used 7-36V touch screen camera speaker
13.3″ all-in-one ×1 2.0×2 12V HD touch screen
13.3″ Magic Mirror ×1 2.0×2 12V HD screen, Speech Assistant
Note ① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).
Compute Module 4 introduction
Completely upgraded, more powerful Raspberry Pi CM4
  • Upgraded processor BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, more powerful performance
  • More options for RAM (1GB/2GB/4GB/8GB), competent for large-scale data compilation
  • Faster eMMC Flash storage, up to 100 MBytes/s data rate, which is four times faster than the CM3+
  • Option for fully certified radio module, the same one used on Pi4B, supports either PCB trace antenna or external antenna, more suitable for industrial applications
  • Adopts B to B connectors, more stable than the Goldfinger edge connector of previous generations
  • Onboard new Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
  • Onboard new PCIe Gen 2 x1 interface, allows connecting more useful modules

more detail...

Section guide
Item Description CM4 Development Kit
A B C D
DSI adapter 22PIN 0.5mm pitch to 15PIN 1mm pitch √ √ √ √
CSI adapter 22PIN 0.5mm pitch to 15PIN 1mm pitch, 15cm length √ √ √ √
USB cable USB-A to micro-B, 1.2m length √ √ √ √
Power supply 12V 2A √ √ √ √
Base board Raspberry Pi CM4 IO Board √ √
Waveshare CM4 PoE IO Board √ √
7" touchscreen 1024×600 pixels, HDMI, IPS panel √ √
Resources & Services
Wiki:Compute-Module-4

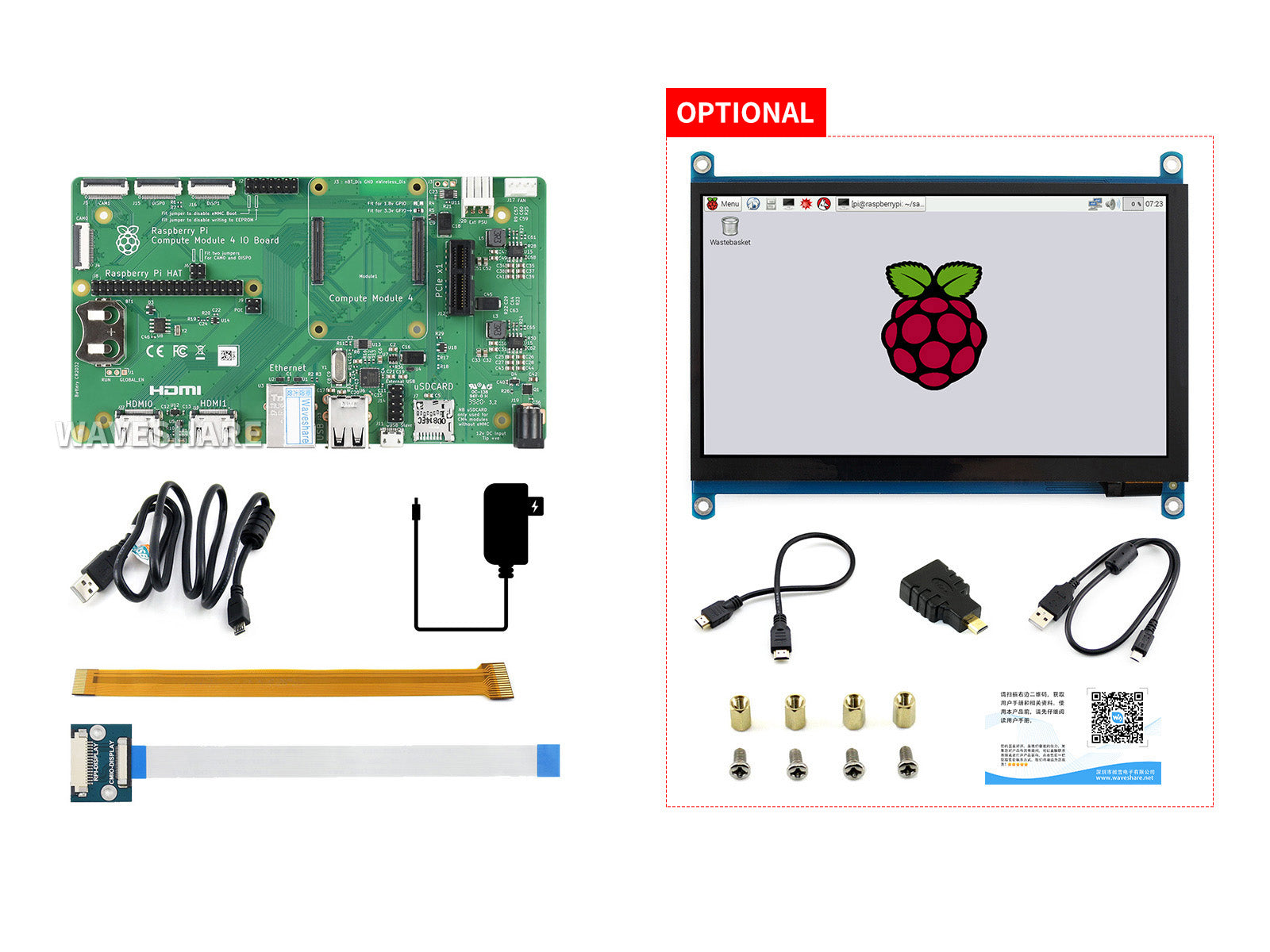

Lieferumfang

  1. Compute Module 4 IO Board x1
  2. USB-A to micro-B cable 1.2m x1
  3. RPi Zero V1.3 Camera Cable 15cm (CSI adapter) x1
  4. Power supply 12V 2A x1
  5. CM-DSI-ADAPTER x1
  6. OPTIONS 7inch HDMI LCD (H) x1
Raspberry Pi Compute module 4 development kit
