SKU:WSAL19183

Kurzbeschreibung: Raspberry Pi Compute Module 4 Development Kit, With Waveshare PoE Board, Basic Accessories, And Optional 7" Touchscreen

Raspberry Pi Compute Module 4 development kit, with Waveshare PoE Board, basic accessories, and optional 7" touchscreen

Compute Module 4 development kit C/D

Waveshare Compute Module 4 PoE Board, useful basic accessoriesand an optional 7" IPS capacitive touch display, if you need

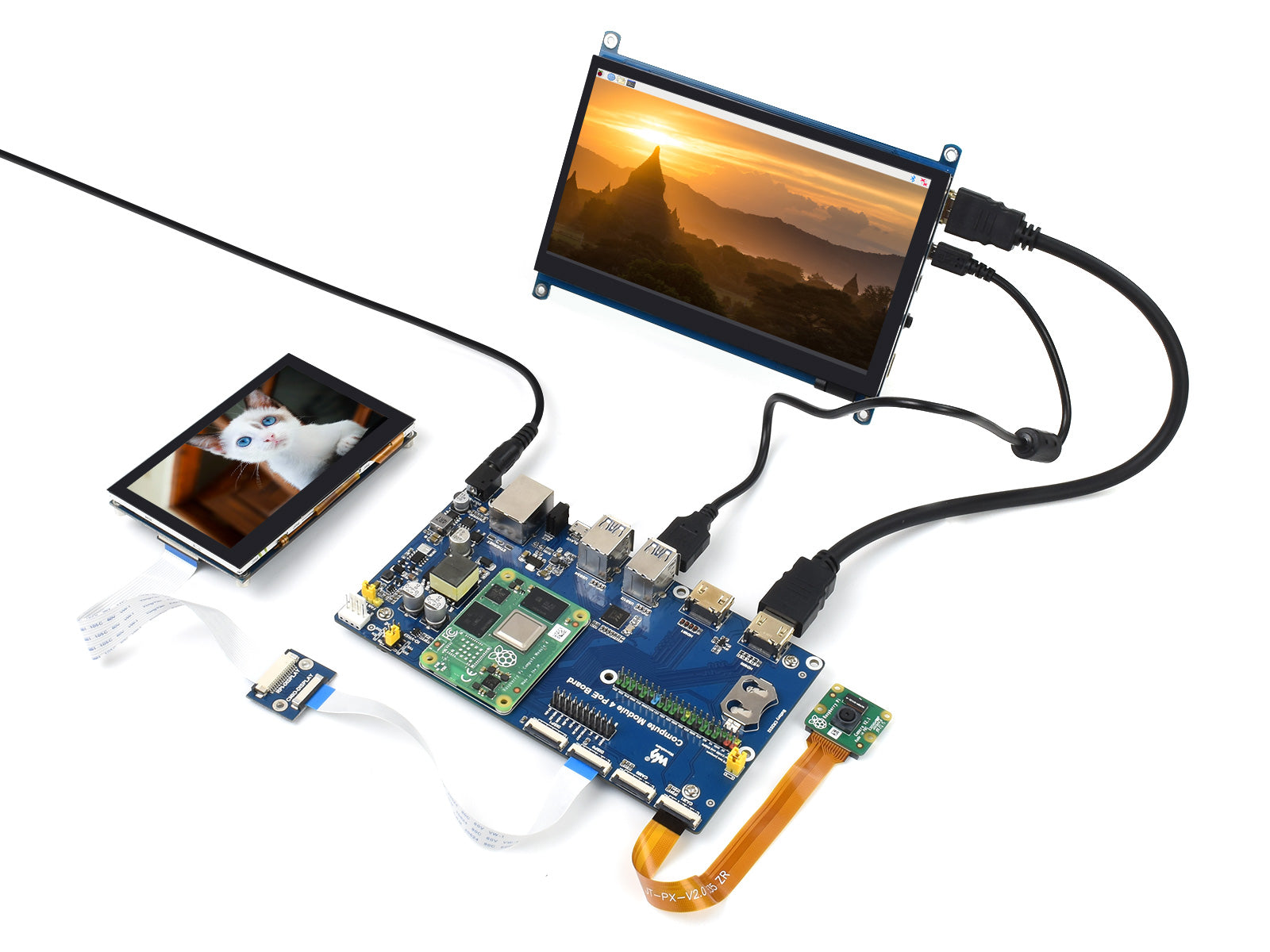

Application example

dual-display support, suitable for video-oriented projects, and PoE applications

image for reference ONLY, the CM4,4.3" DSI LCD, and Camera Module are NOT included.

Compute Module 4 PoE Board

suitable for evaluating the Raspberry Pi CM4 or being integrated into end products

PoE Base Board for all Compute Module 4 Variants

Specifications

CM4 socket	suitable for all variants of Compute Module 4
Networking	Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
Connector	Raspberry Pi 40PIN GPIO header
USB	USB 3.2 Gen1 × 4
Display	MIPI DSI display port × 2 (22pin 0.5mm FPC connector)
Camera	MIPI CSI-2 camera port × 2 (22pin 0.5mm FPC connector)
Video	HDMI port × 2, supports 4K 30fps output
RTC	Real-time clock with battery socket and ability to wake Compute Module 4
Storage	MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
Fan header	allows speed adjustment and measurement, 5V / 12V
Power input	7V-36V
Dimensions	160.0 × 89.8mm

What's the differences

CM4 Base Board	Interface count and specifications
	PoE	Gigabit ETH	40PIN GPIO	PCIe	USB①	DSI	HDMI	CSI	RTC	Fan Header	Power Input	Features
NANO A			√		2.0×1			×1			5V	CM4 sized
NANO B		×1	√		2.0×1	×1	×1	×1			5V	CM4 sized
NANO C			√		2.0×1	×1	×1	×1			5V	Onboard Camera
mini Base A		×1	√	M.2 M	2.0×4	×1	×2	×2		5V	5V	mini size
mini Base B		×1	√	M.2 M	2.0×4	×1	×2	×2	√	5V	5V	mini size
mini Base C		×1	√	M.2 M	2.0×2		×1	×2	√	5V	5V	Dedicated 40PIN LCD Connector
Touch screen		×1		M.2 M	2.0×4		×1	×1			5V	IPS screen
Mini Dual Gigabit		×2	√		2.0×1					5V SH1.0	5V	dual ETH
Binocular camera		×1	√	M.2 M	2.0×4		×2				5V	dual 8MP cameras
4CH RS485		×1			2.0×2		×1	×2	×1	5V	7-36V	dual ETH
WIFI6 DUAL ETH		×1	√	M.2 E	2.0×3	×1	×2	×2	×1	5/12V	7-36V	WIFI6 dual ETH
Dual Gigabit ETH		×2	√		3.0×3	×1	×2	×2	√	5/12V	7-36V
IoT Dual Gigabit ETH		×2	√		3.0×2	×1	×2	×2	√	5/12V	5V	5G/4G support
IoT Base	√	×1		Gen2×1	2.0×2	×2	×2	×2	√	5/12V	7-36V	5G/4G supportRS232RS485ADC
PoE Base (B)	√	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	5/12V	5V	RS232RS485
PoE UPS Base	√	×1	√	M.2 M	2.0×4	×1	×2	×2	√	5/12V	7-36V	UPS
PoE Base	√	×1	√		3.0×4	×2	×2	×2	√	5/12V	7-36V
Raspberry Pi official	②	×1	√	Gen2×1	2.0×4	×2	×2	×2	√	12V	12V
Wireless base		×1		M.2 B / Mini-PCIe	2.0×3		×1	×1	√	5/12V	5V or 7-36V	5G/4G support RS485 CAN rail-mount
UPS Wireless base		×1		M.2 B	2.0×3		×1	×1	√	5/12V	5V or 7-36V	With UPS 5G/4G support RS485 CAN rail-mount
NAS Mini Computer		×2	√	M.2 M×2/ Mini-PCIe	3.0×2		×2	×2	√		5V	dual M.2 M KEY slots
5″ touch screen	②	×1	√	M.2 M	2.0×4		×1	×2	√	5/12V	5V
7″ all-in-one		×1		M.2 M	2.0×4	used	×1	used	√	5/12V used	7-36V	touch screen camera speaker
13.3″ all-in-one		×1			2.0×2						12V	HD touch screen
13.3″ Magic Mirror		×1			2.0×2						12V	HD screen, Speech Assistant
Note	① USB 3.0 is equivalent to USB 3.2 Gen1 ② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A).

Connecting with Compute Module 4

standard CM4 socket and color-coded Raspberry Pi 40PIN GPIO header suitable for all variants of Compute Module 4

Rich peripheral connectors

onboard connectors including CSI/DSI/RTC/HDMI/USB/ETH/TF card

What's On Board

1. CM4 socket suitable for all variants of Compute Module 4
2. Power input 7~36V wide range power supply
3. Gigabit Ethernet connector Gigabit Ethernet RJ45 with PoE support
4. USB SLAVE port allows burning system image into Compute Module 4 eMMC variants
5. USB3.2 ports 4x USB 3.2 Gen1 ports, for connecting sorts of USB devices
6. HDMI ports 2x HDMI ports, supports dual 4K 30fps output
7. RTC RTC battery holder, allows RTC-related functions like wakeup, shutdown, reboot, and more
8. CAM 2x MIPI CSI camera ports
9. DISP 2x MIPI DSI display port

10. FAN for connecting cooling fan, allows speed adjustment and measurement
11. FAN power selection 5V or 12V voltage to drive the fan
12. IO-VREF/PoE selection CM4 IO logic level: 3.3V or 1.8V PoE: enable (EN) or disable (DIS)
13. 40PIN GPIO header
14. CAM0 and DISP0 I2C bus fit the jumpers when using CAM0 or DISP0
15. Misc configurations
16. Dual LED indicators red: Raspberry Pi power indicator green: Raspberry Pi operating status indicator
17. TF card slot (bottom side) insert a Micro SD card with pre-burnt system, to start up Compute Module 4 Lite

Outline dimensions

Compute Module 4 introduction

Completely upgraded, more powerful Raspberry Pi CM4

• Upgraded processor BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, more powerful performance
• More options for RAM (1GB/2GB/4GB/8GB), competent for large-scale data compilation
• Faster eMMC Flash storage, up to 100 MBytes/s data rate, which is four times faster than the CM3+
• Option for fully certified radio module, the same one used on Pi4B, supports either PCB trace antenna or external antenna, more suitable for industrial applications
• Adopts B to B connectors, more stable than the Goldfinger edge connector of previous generations
• Onboard new Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
• Onboard new PCIe Gen 2 x1 interface, allows connecting more useful modules

more detail...

Section guide

Item	Description	CM4 Development Kit
		A	B	C	D
DSI adapter	22PIN 0.5mm pitch to 15PIN 1mm pitch	√	√	√	√
CSI adapter	22PIN 0.5mm pitch to 15PIN 1mm pitch, 15cm length	√	√	√	√
USB cable	USB-A to micro-B, 1.2m length	√	√	√	√
Power supply	12V 2A	√	√	√	√
Base board	Raspberry Pi CM4 IO Board	√	√
	Waveshare CM4 PoE IO Board			√	√
7" touchscreen	1024×600 pixels, HDMI, IPS panel		√		√

Resources & Services

---

WIKI:Compute_Module_4_POE_Board

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

1. Compute Module 4 PoE Board x1
2. USB-A to micro-B cable 1.2m x1
3. RPi Zero V1.3 Camera Cable 15cm (CSI adapter) x1
4. Power supply 12V 2A x1
5. CM-DSI-ADAPTER x1
6. OPTIONS 7inch HDMI LCD (H) x1
