SKU:WSAL22382

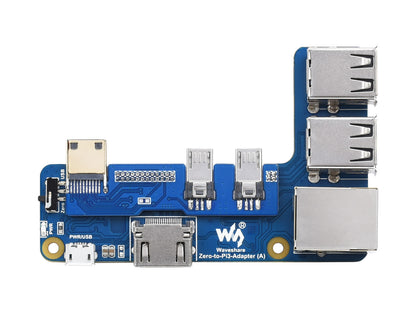

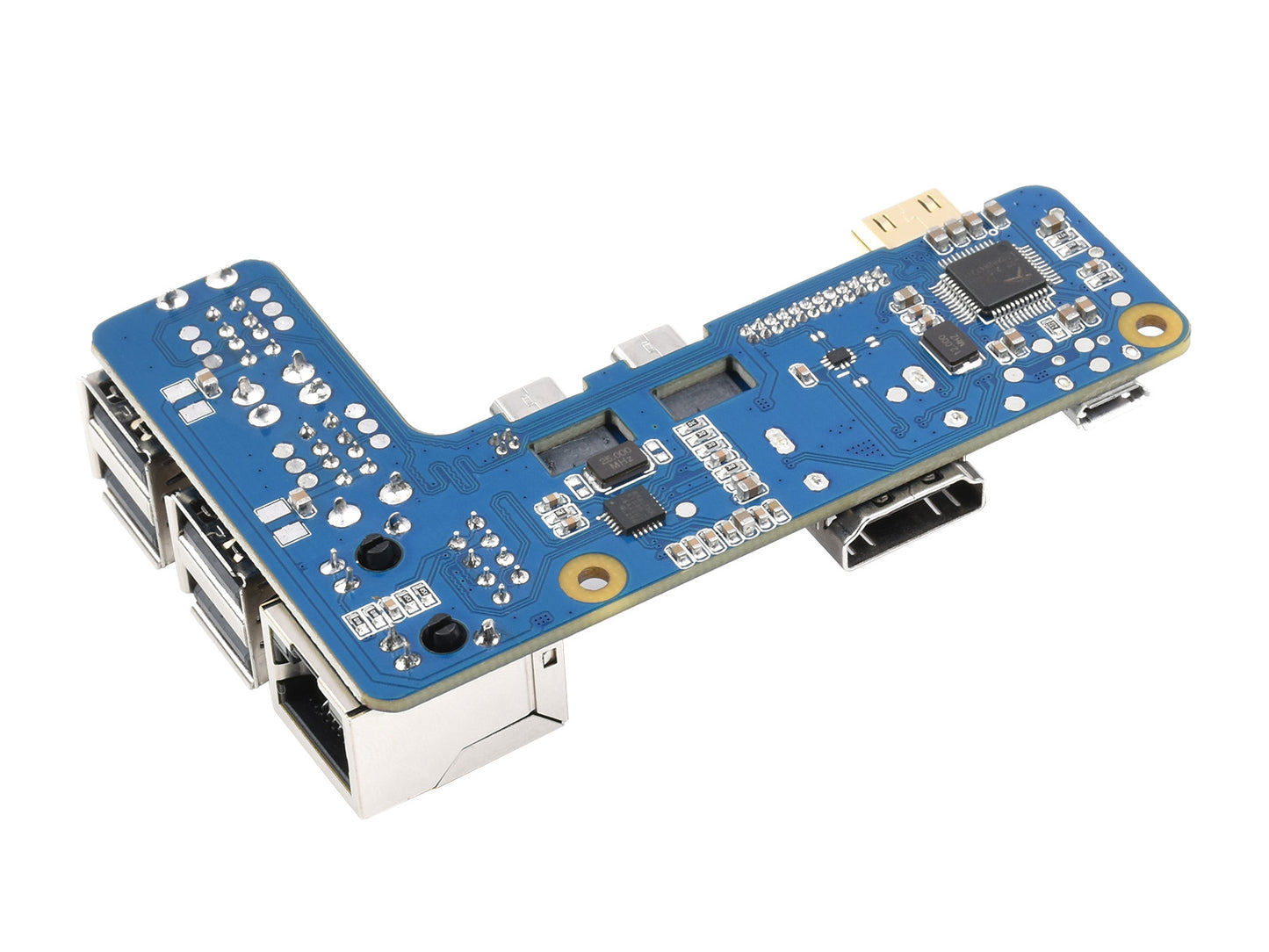

Raspberry Pi Zero To 3B Adapter, Alternative Solution for Raspberry Pi 3 Model B/B+

Raspberry Pi Zero To 3B Adapter

Alternative Solution for Raspberry Pi 3 Model B/B+

Features at a glance

• Zero can be easily attached via specially designed connectors
• Easily compatible with the interfaces of Raspberry Pi 3B / 3B+ boards
• The same GPIO header height as 3B, easily connecting with 3B series HATs or development projects
• Onboard 4-ch USB ports, compatible with USB 2.0 / 1.1 transmission
• Onboard RTL8152B Ethernet chip, support 1-ch RJ45 Ethernet port, 10 / 100 M adaptive

Based on Raspberry Pi Zero

Use Zero To Reproduce The Original Appearance Of The Pi 3B Series As Much As Possible More Cost-effective Choice

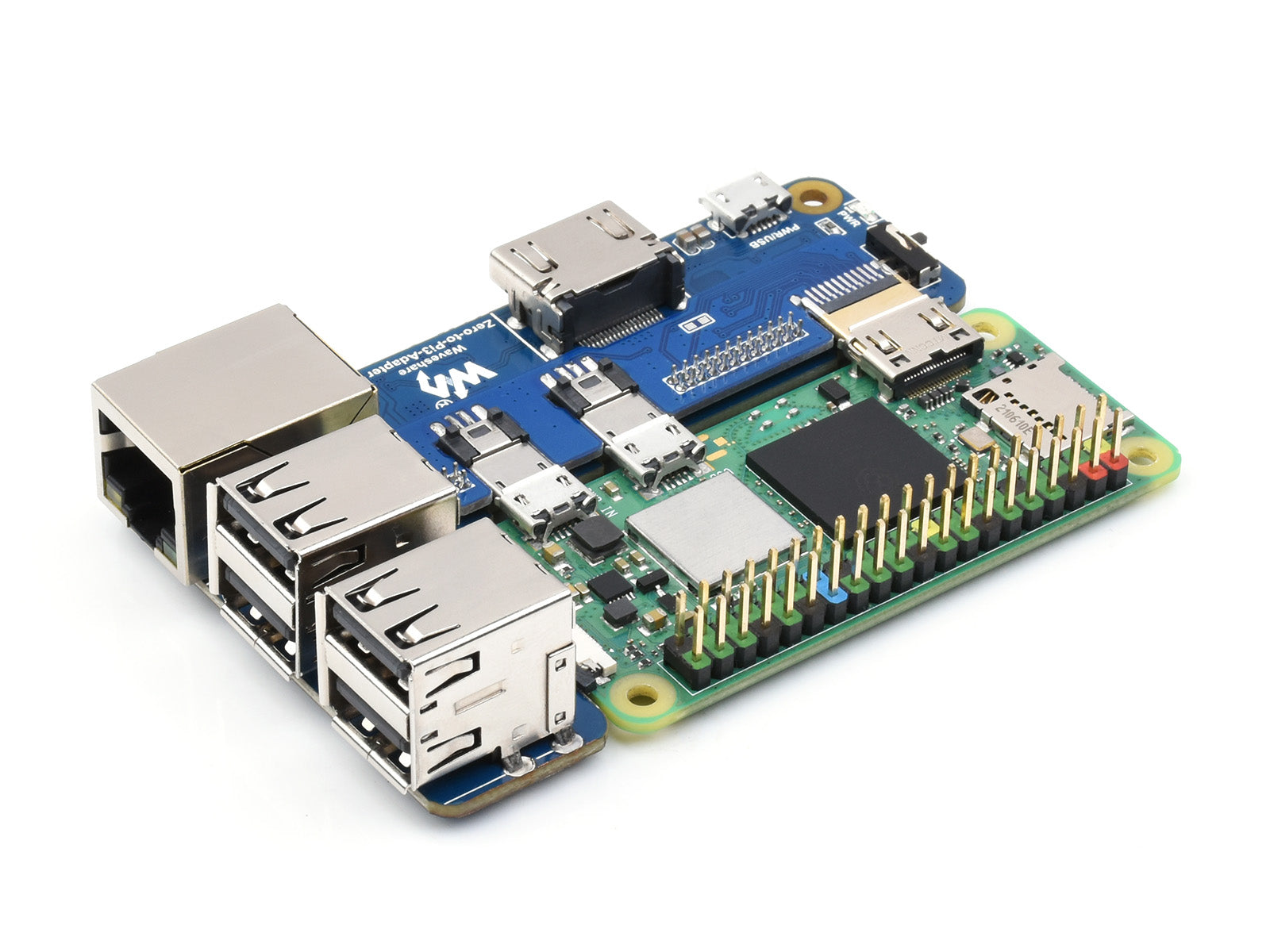

Connect to Zero

Connect to Zero 2 W

Compare with Raspberry Pi 3B+

for reference only, Pi Zero is NOT included

Easy to Install

Zero can be easily attached via specially designed connectors

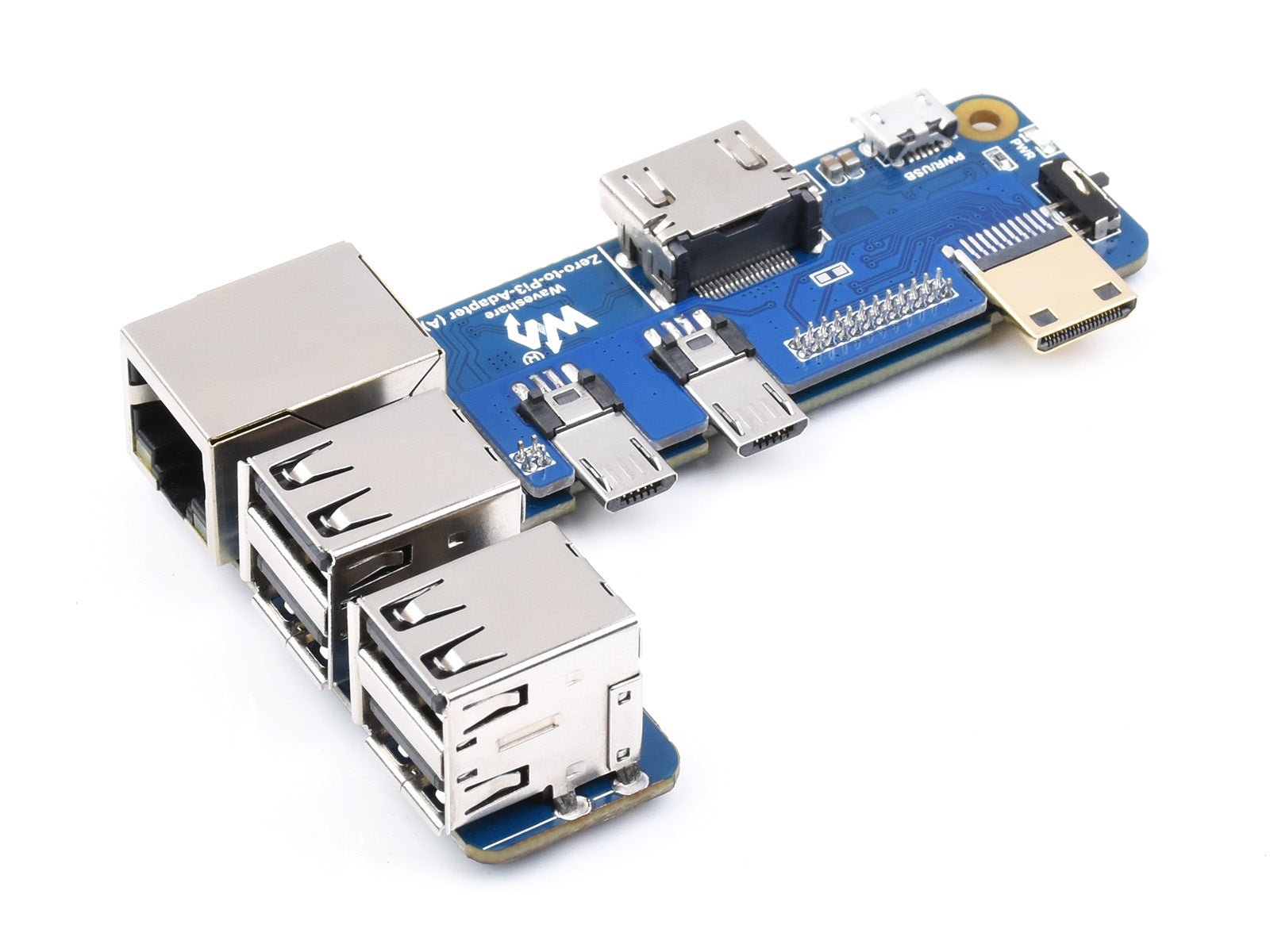

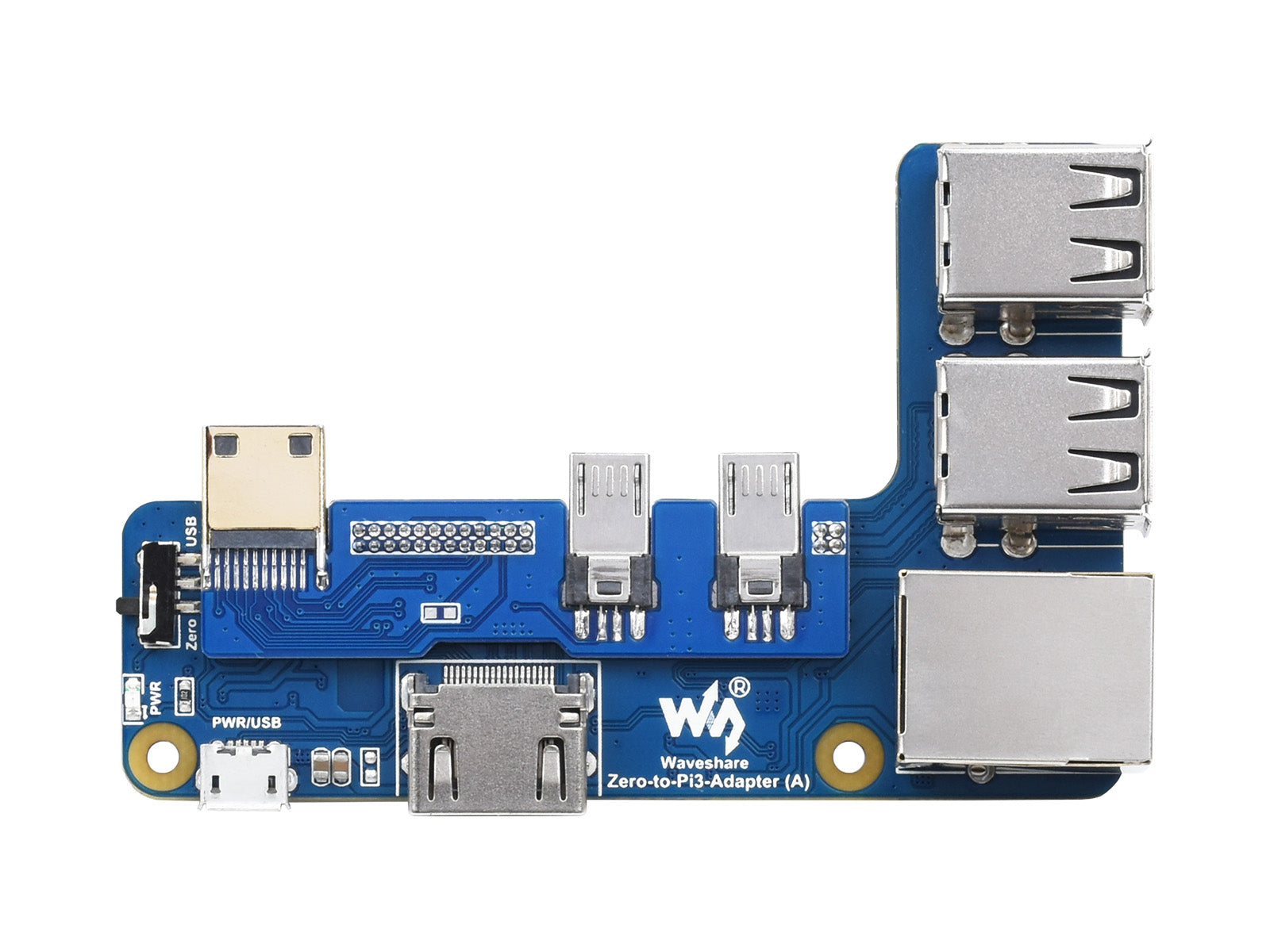

Interface Introduction

Onboard 4-ch USB Interface, 100M Ethernet Port and HDMI Port Note: The Ethernet port does not support PoE function

Compatible with Pi 3B Series HATs

The same GPIO header height as 3B, easily connecting with 3B series HATsor development projects

for reference only, Pioneer600 and Pi Zero is NOT included.

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Zero-to-Pi3-Adapter_(A)

Raspberry Pi 3B / 3B+ Alternative SolutionSelection Guide

PART NUMBER	GPIO	USB	Ethernet Port	Headphone Jack	CSI	HDMI	DSI	TF Card Slot
3B/3B+	40PIN	4-ch	100M	√	√	√	√	√
CM4-to-Pi3-Adapter	40PIN	4-ch	1000M	√	√	√	√	√
CM4-to-Pi3-Adapter-B	40PIN	4-ch	1000M	√	√	√	√	√
Zero-to-Pi3-Adapter (A)	40PIN	4-ch	100M	-	-	√	-	√*
Zero-to-Pi3-Adapter (B)	40PIN	4-ch	100M	√	-	√	-	√
* Indicates that will use the original interface of the Pi.

Lieferumfang

1. Zero-to-Pi3-Adapter (A) x1
