SKU:WSAL12076

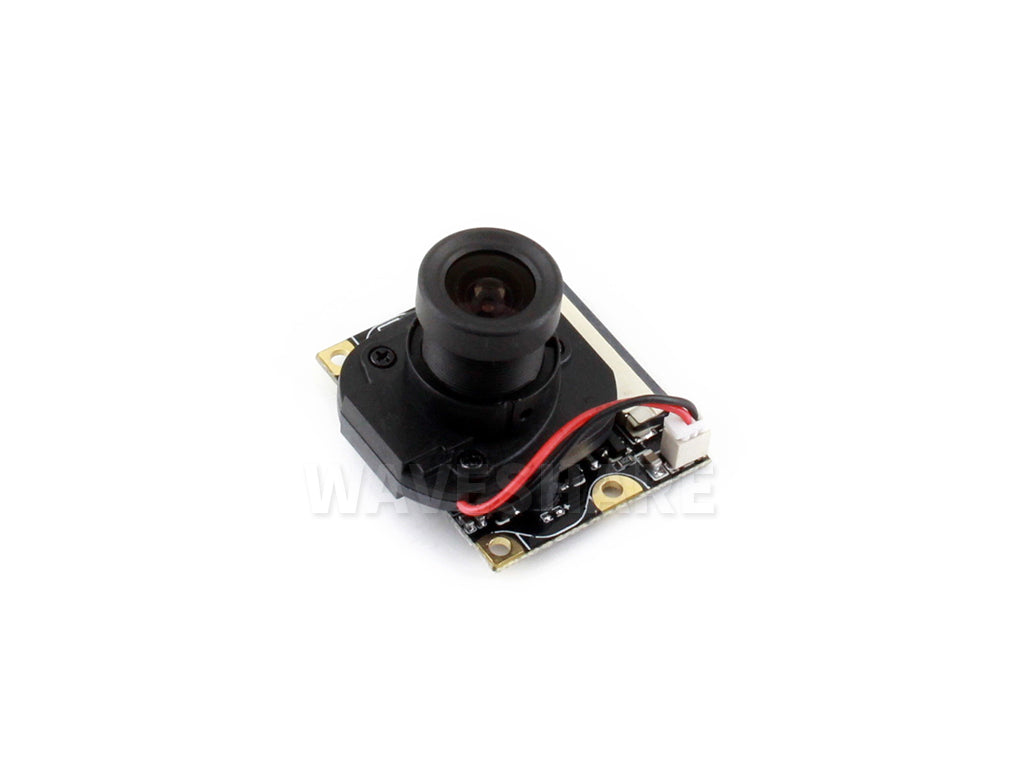

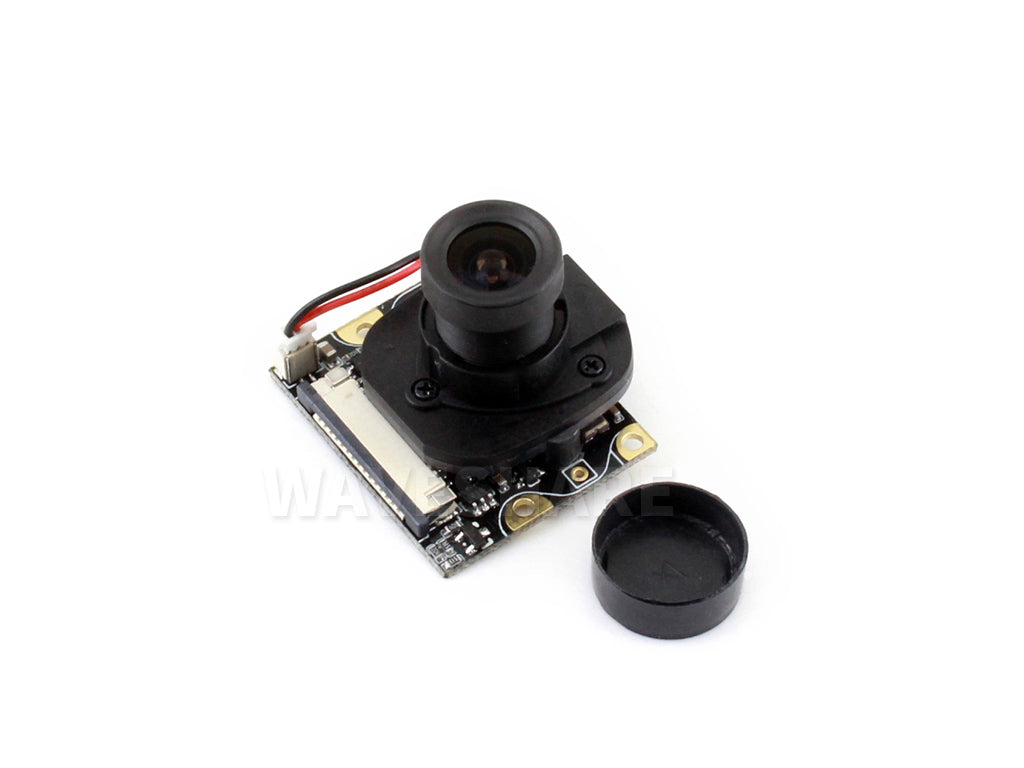

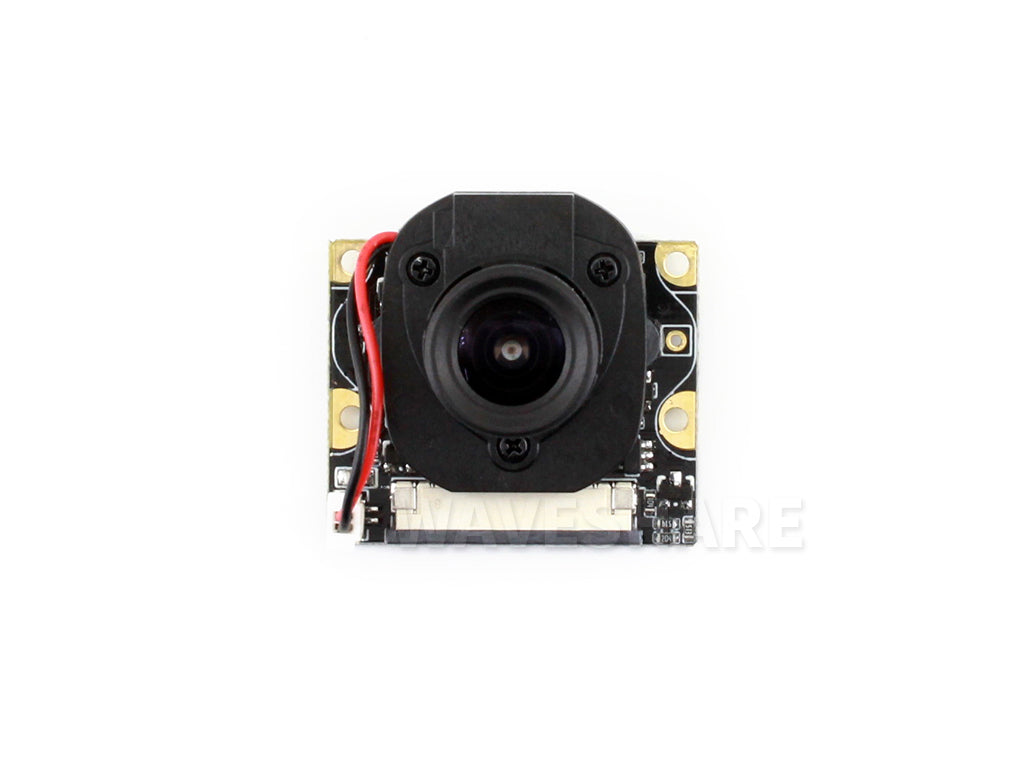

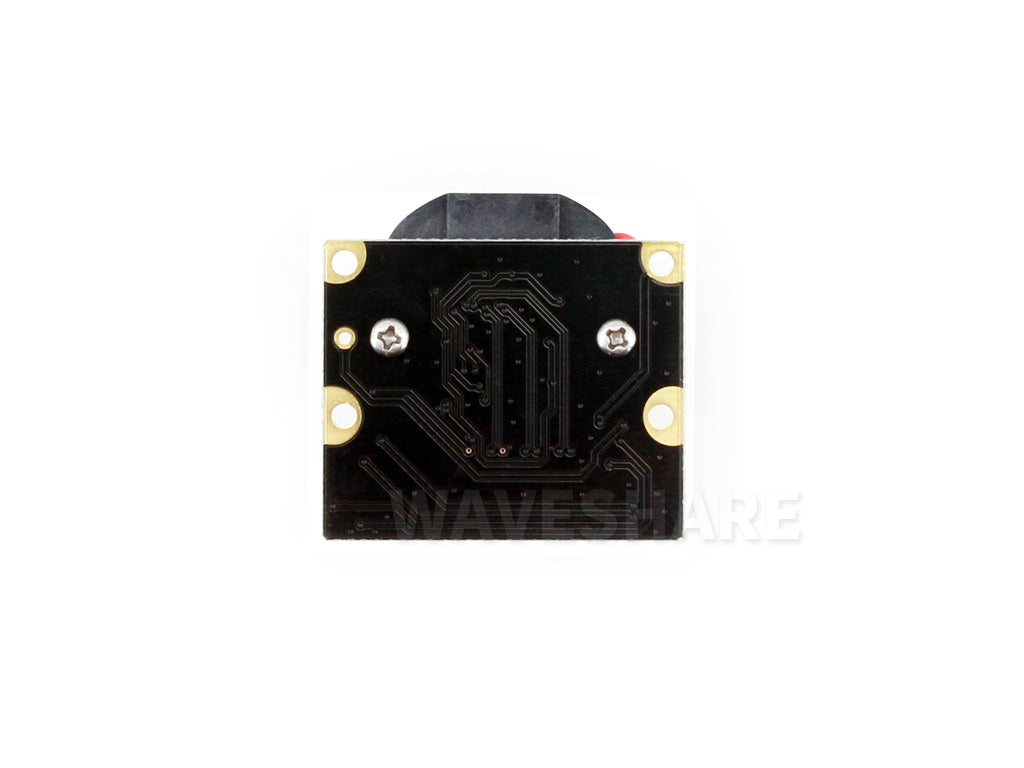

RPi IR-CUT Camera for Raspberry Pi, OV5647, 5MP, Adjustable Focus
Couldn't load pickup availability
5MP | Infrared night vision | IR-CUT | Manual-Focus
Compatible with Raspberry Pi series boards
| Sensor | OV5647 | CMOS size | 1/4 inch |
|---|---|---|---|
| PIXELS | 5MP | APERTURE | F2.0 |
| FOCAL LENGTH | 3.6mm | FIELD OF VIEW | 50° |
| Infrared night vision | Support | FOCUSING | Manual-Focus |
Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect
Onboard Four mounting holes with the 3.3V power supply output
Equipped with two 850nm infrared lights, which can be installed or removed via four screw mounting holes
direct connect to Raspberry Pi different variants including 5/4B/3B+/3A+/3B/2B/B+/A+, and Raspberry Pi Zero / Zero 2 W series
* for reference only, the Raspberry Pi 5, Raspberry Pi 4B, and Raspberry Pi Zero 2W are NOT included, please purchase separately.
OV5647 5MP Camera Selection Guide
| Partnumber | IR filter | Aperture | Focal Length (mm) | Angle of View (diagonal) | Dimensions (mm) | Features |
|---|---|---|---|---|---|---|
| RPi Camera (B) | integrated | 2 | 6 | 60.6° | 32×32 | - |
| RPi Camera (E) | N/A | 2.8 | 3.21 | 69.8° | 25×24 | - |
| RPi Camera (F) | N/A | 2 | 3.6 | 50° | 25×24 | - |
| RPi Camera (G) | integrated | 2.35 | 3.15 | 160° | 25×24 | - |
| RPi Camera (H) | N/A | 2.35 | 3.15 | 160° | 25×24 | - |
| RPi Camera (I) | integrated | 2 | 1.55 | 185° | 32×32 | - |
| RPi Camera (M) | integrated | 2 | 0.87 | 200° | 25×24 | - |
| RPi IR-CUT Camera | integrated | 2 | 3.6 | 50° | 31×32 | IR-CUT |
| RPi IR-CUT Camera (B) | integrated | 1.6 | 8 | 42° | 31×32 | IR-CUT |
| RPi Zero V1.3 Camera | integrated | 2.8 | 3.21 | 69.8° | 60×11.5 | for Zero Series |
| RPi FPC Camera | integrated | 2.8 | 3.21 | 69.8° | 300×16 | mini size |
| RPi FPC Camera (B) | integrated | 2.4 | 3.89 | 72.9° | 35×16 | mini size |
| OV5647-70 5MP OIS Camera | N/A | 2.8 | 3.2 | 70° | 19×19 | Optical Image Stabilization |
- Unless otherwise specified, cameras on the table are compatible with Raspberry Pi, CM3/3+/4, please refer to the detail product page for more information.
- Normal IR cameras will take curious reddish pictures by daylight for lacking of IR filter in the CCD, and that is the reason why they can capture image in the night by using IR fill light. If you're looking for cameras that can capture image in correct color in both day and night, please choose RPi IR-CUT CameraandRPi IR-CUT Camera (B).
Lieferumfang
- RPi IR-CUT Camera x1
- Infrared LED Board (B) x2
- 15-pin FFC (opposite sides contact) x1
- RPi Zero V1.3 Camera Cable ~15cm x1
