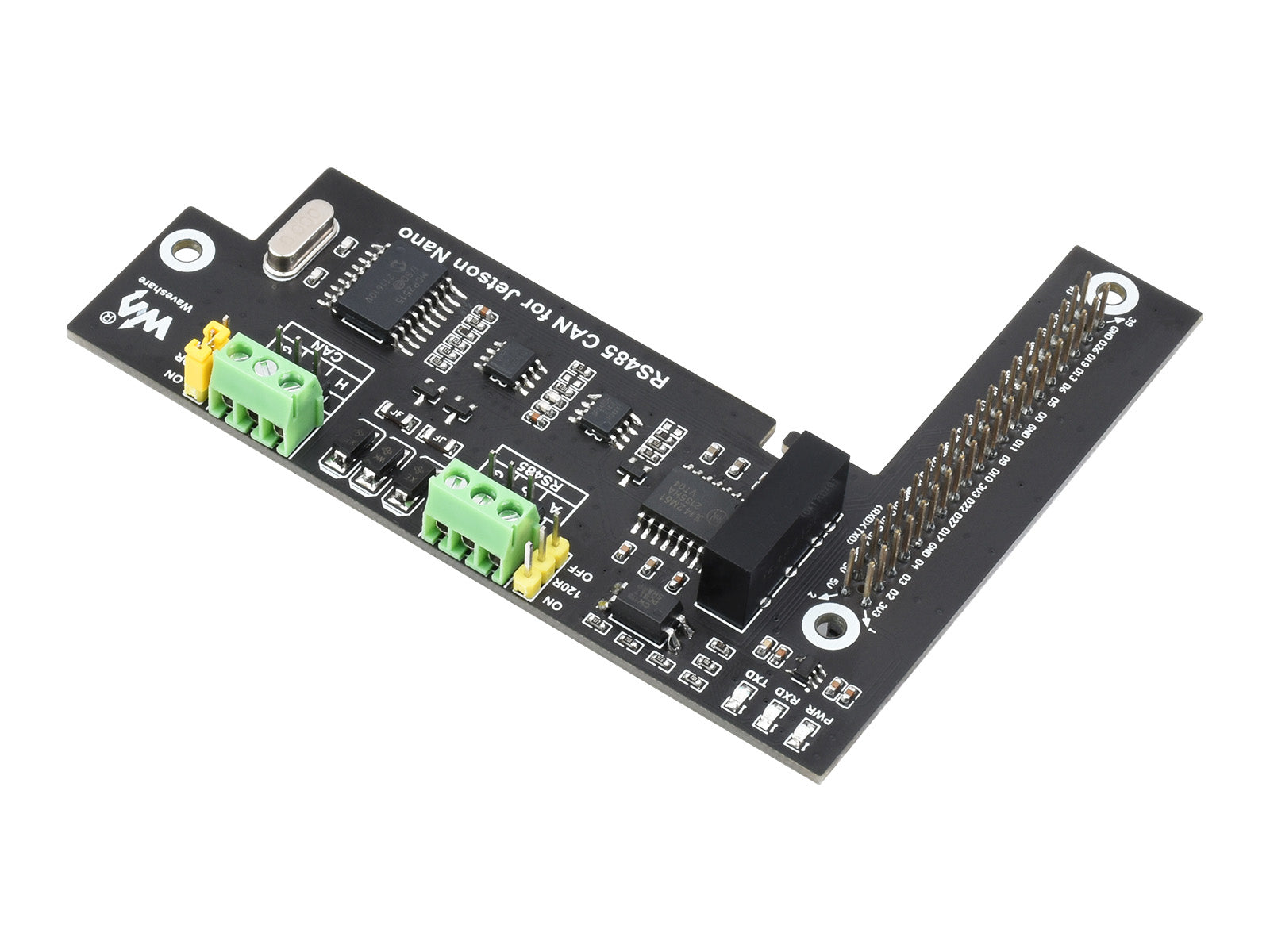

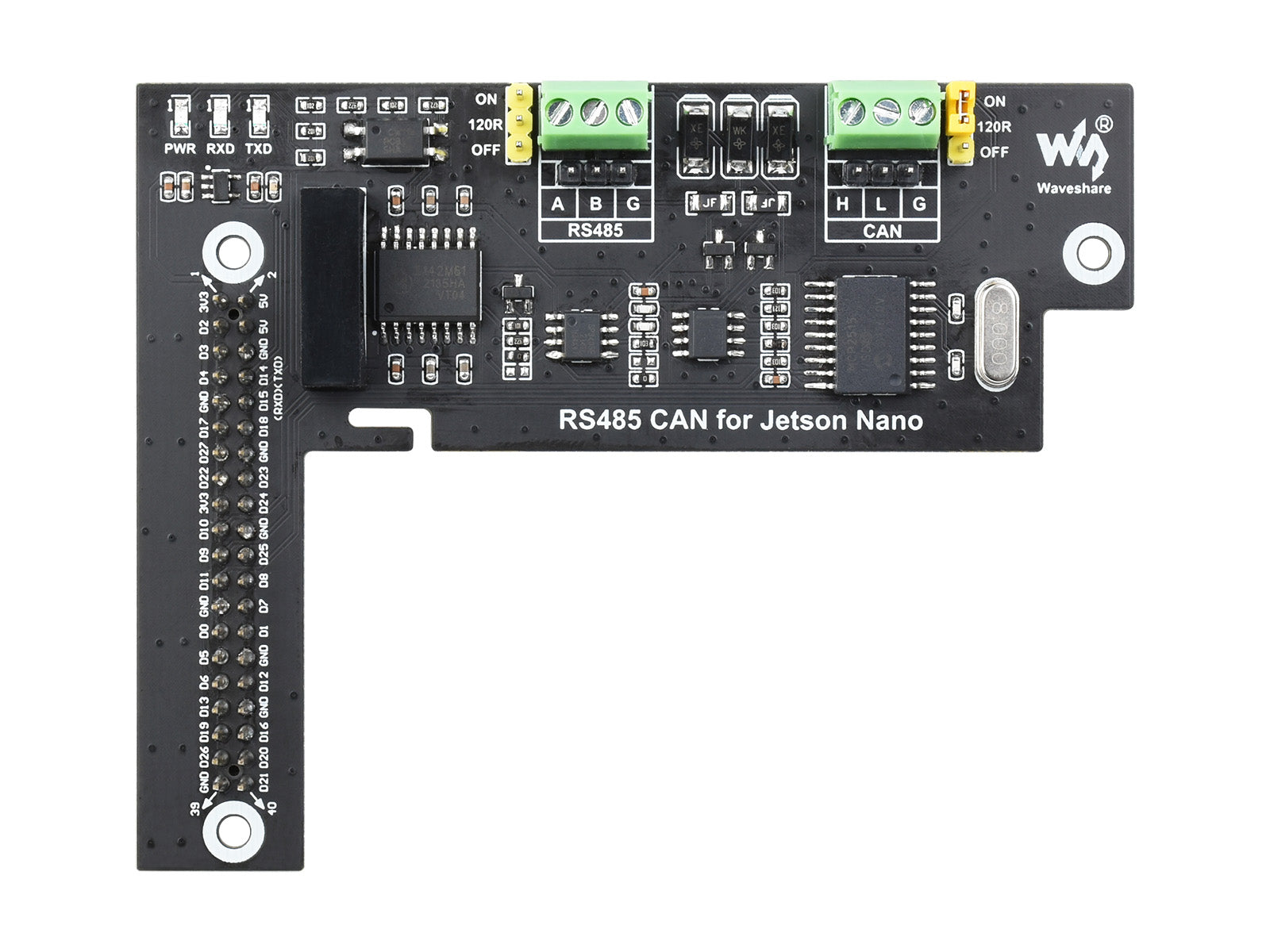

RS485 CAN Expansion Board for Jetson Nano, Digital Isolation, Built-In Protection Circuit

Name: RS485 CAN Expansion Board for Jetson Nano, Digital Isolation, Built-In Protection Circuit
Brand: WaveShare
SKU: WSAL22026
Price: 9025.84 HUF
Availability: InStock

9.026 Ft

9.026 Ft 0 Ft

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Kurzbeschreibung: RS485 CAN Expansion Board Designed For Jetson Nano, Digital Isolation, Built-In Protection Circuit

RS485 CAN Expansion Board Designed For Jetson Nano, Digital Isolation, Built-in Protection Circuit

RS485 CAN Expansion Board

Designed for Jetson Nano

Features at a glance

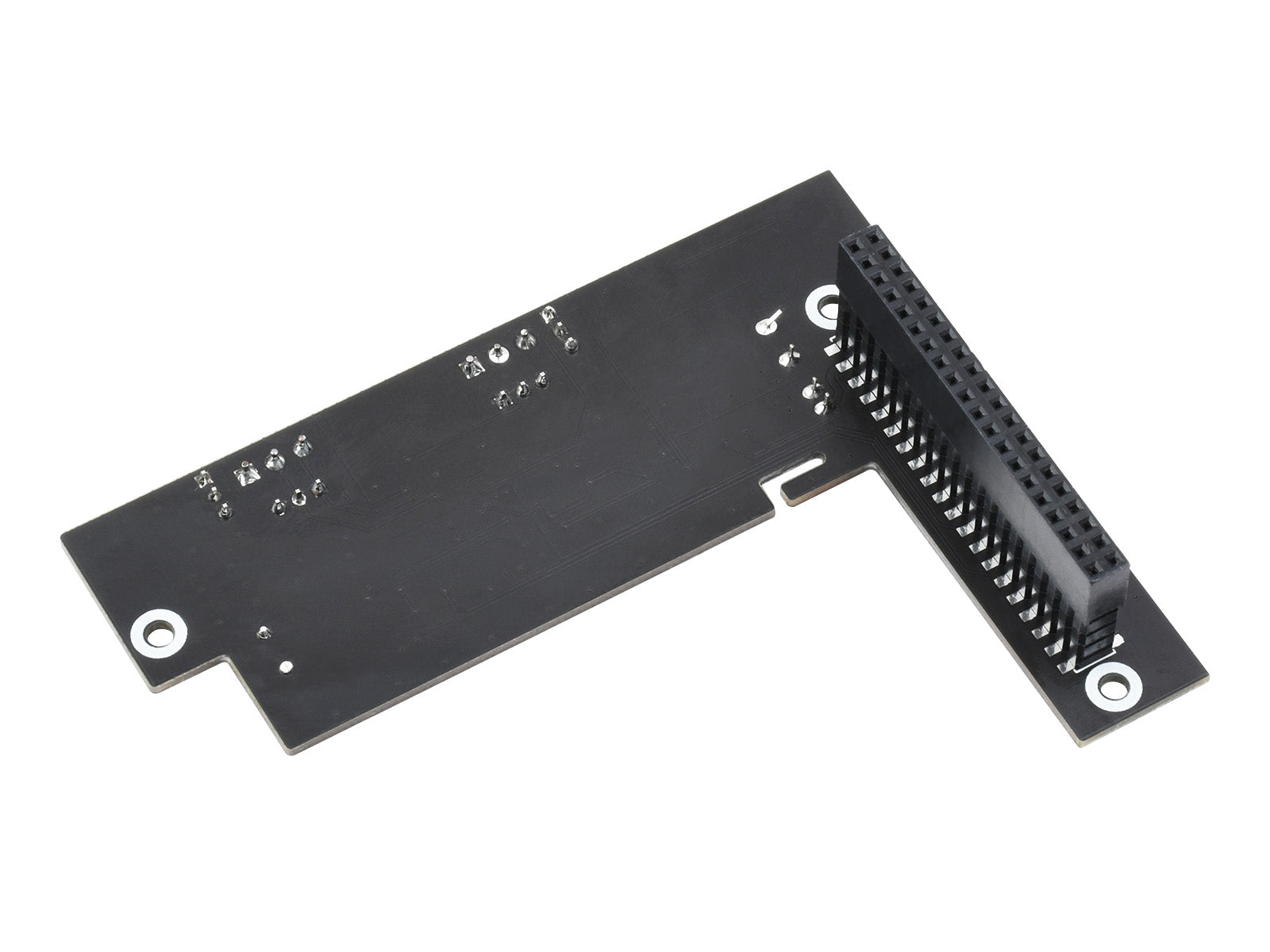

Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano
Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, lightningproof & anti-electrostatic
Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
Reserved control pins, allows to work with other control boards
Comes with development resources and manual (examples in python)

Specifications

CAN Controller	MCP2515
CAN Transceiver	SIT65HVD230DR
RS485 Transceiver	SP3485
Operating Voltage	3.3V
Mounting hole size	3.0mm
Dimension	100 × 79mm

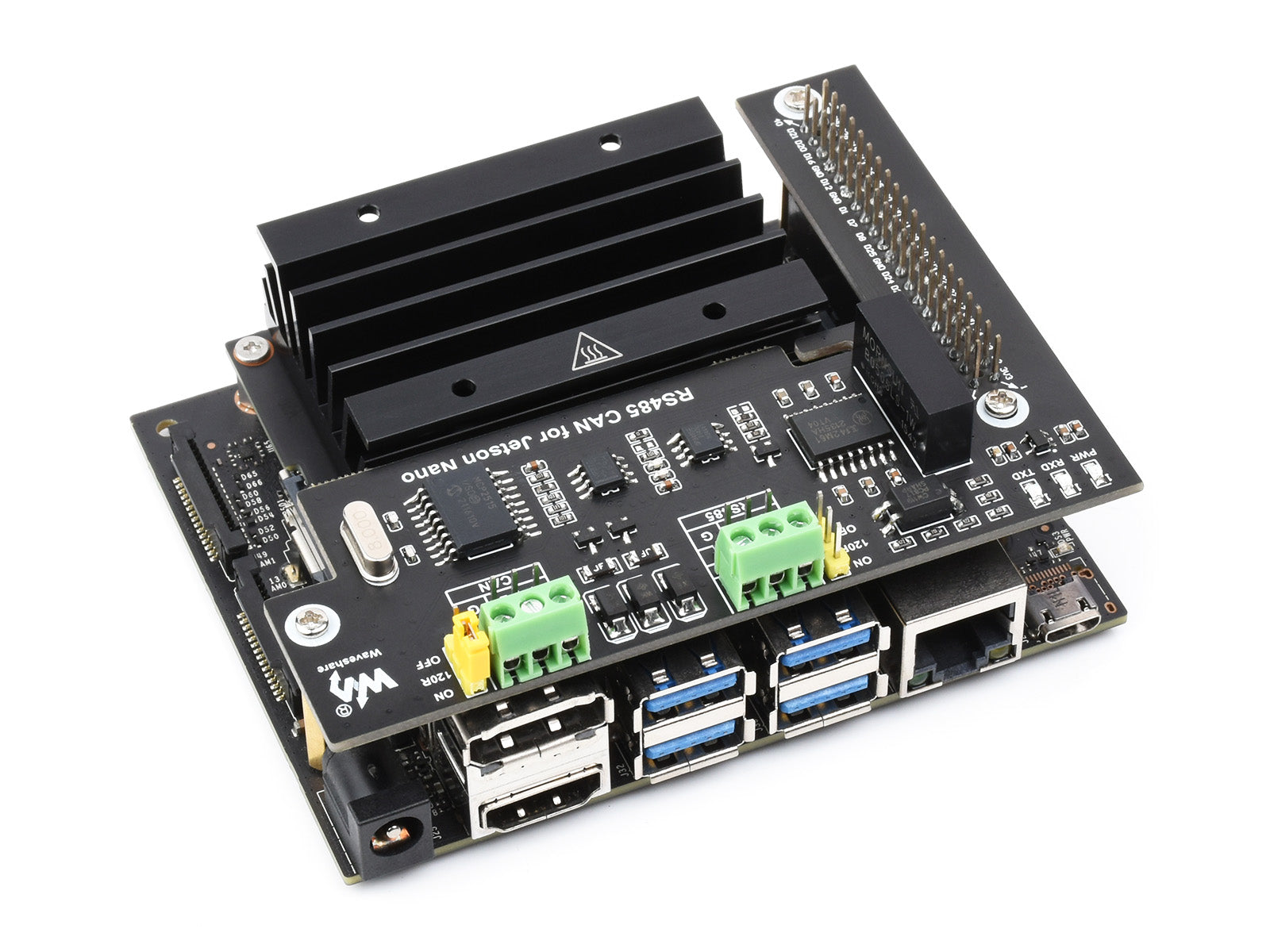

Connect to Jetson Nano

B01 4GB Version

2GB Version

Features RS485 and CAN Function

Isolation Circuit Design, Safer Communication

Onboard SM24CANB Transient Voltage Suppressor(TVS), Prevent The Damage Of Static electricity, Surge Voltage and Transient Peak Voltage, Making RS485 Communication More Stable And Safer
