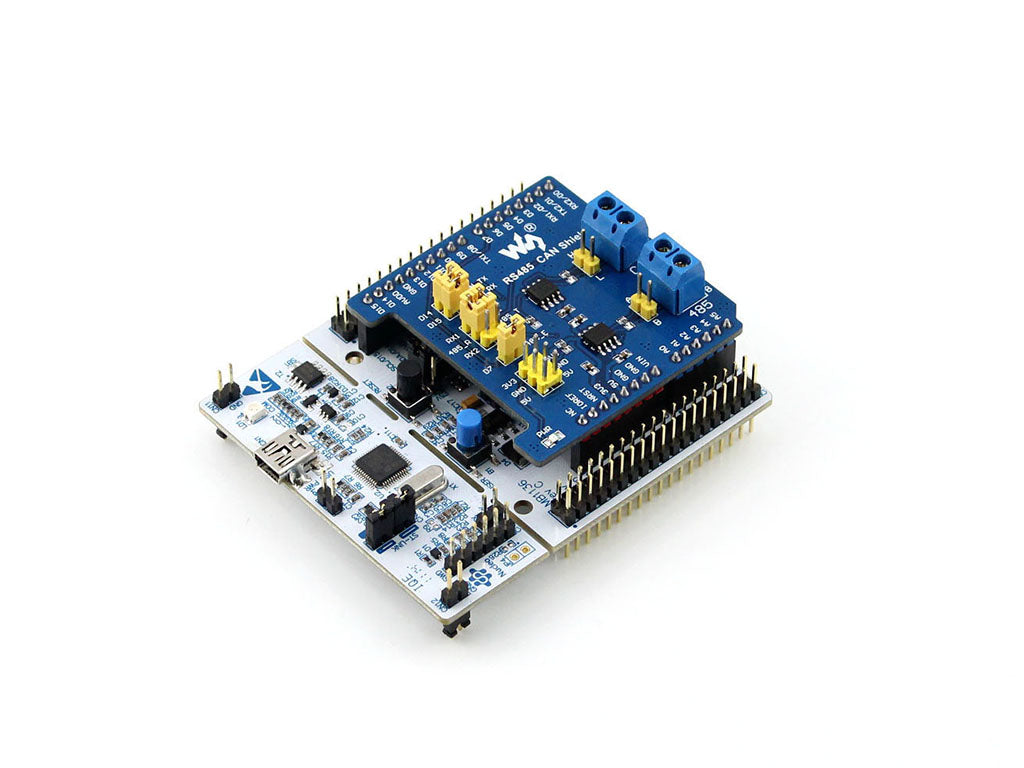

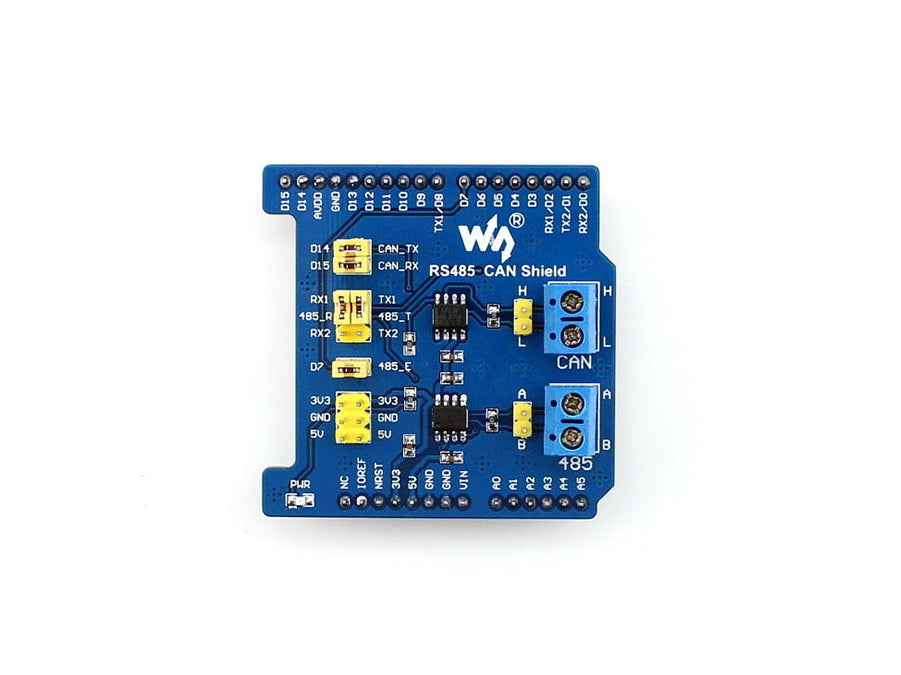

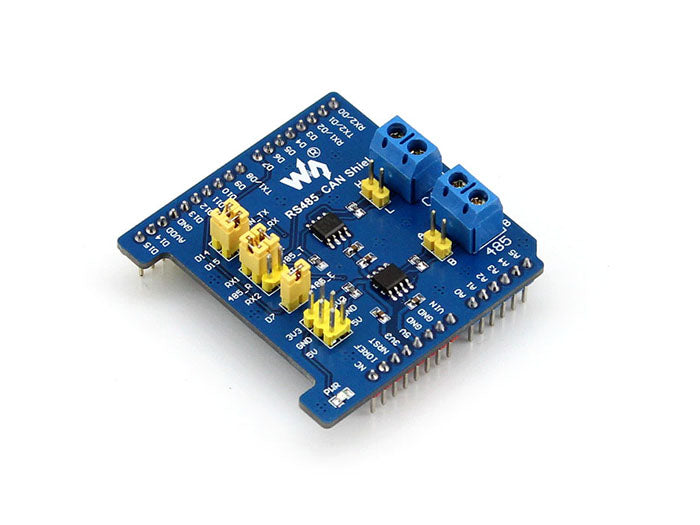

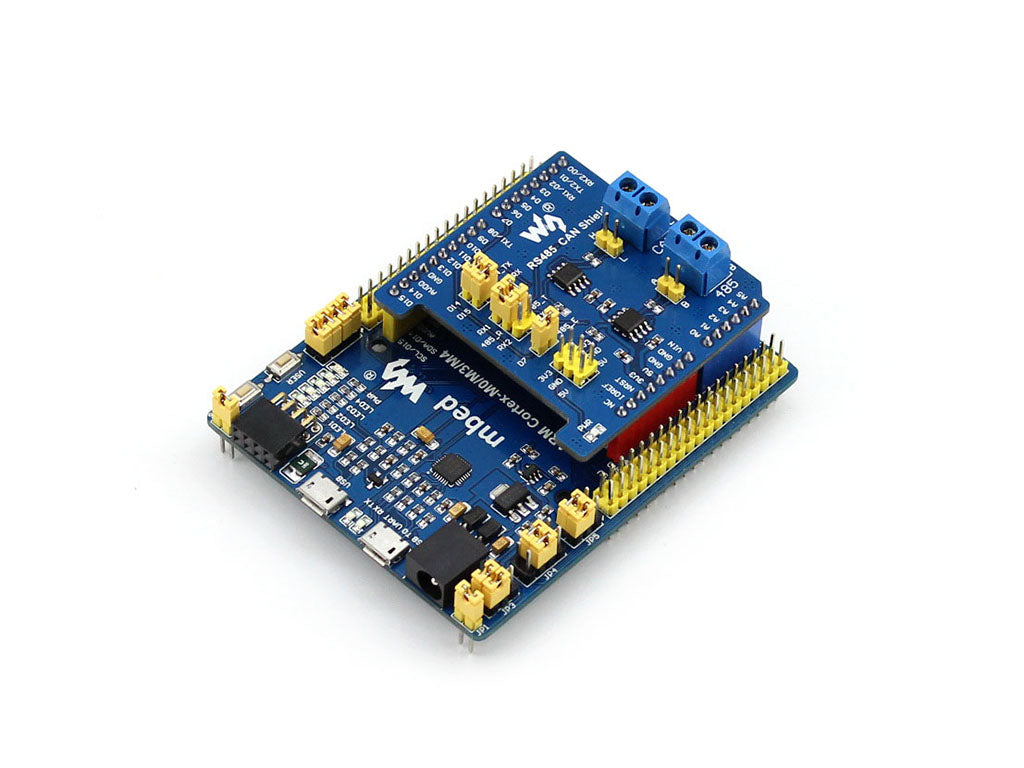

RS485 CAN Shield Designed for NUCLEO/XNUCLEO
Overview
The RS485 CAN Shield will easily enable RS485/CAN communication functions for your NUCLEO/XNUCLEO Arduino boards.
Features
- Arduino standard interfaces, compatible with Arduino boards like Arduino UNO, Leonardo, NUCLEO, XNUCLEO
- when using with Arduino UNO, Leonardo, the CAN function is unavailable due to hardware limitation
- RS485 function, onboard transceiver SP3485/MAX3485, 3.3V power supply
- CAN function, onboard transceiver SN65HVD230, 3.3V power supply
Development Resources
www.waveshare.com/wiki/RS485_CAN_Shield
Lieferumfang
- RS485 CAN Shield x 1
