SKU:WSAL15667

Kurzbeschreibung: Serial Expansion HAT for Raspberry Pi, I2C Interface, Provides 2-ch UART and 8 GPIOs

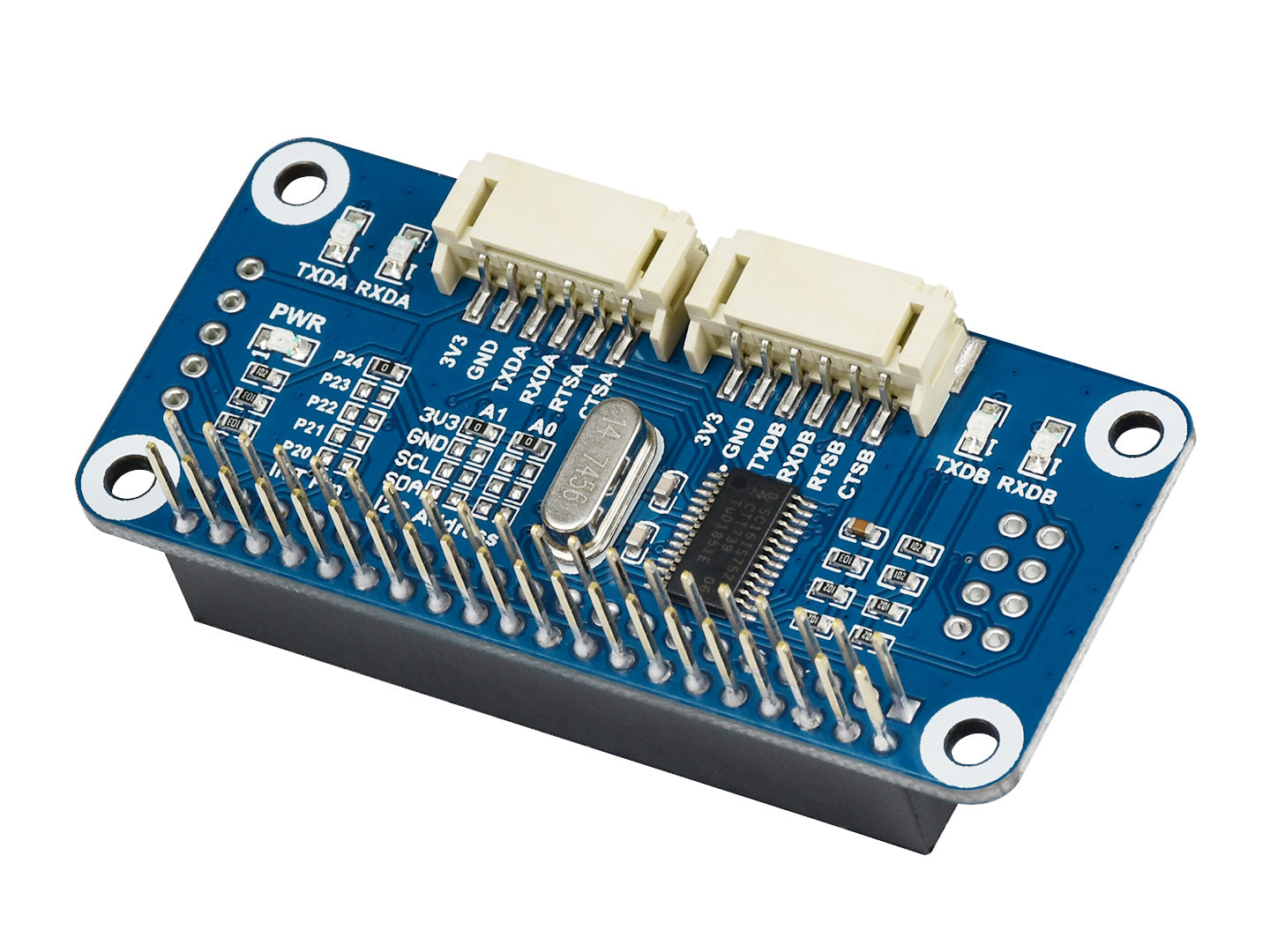

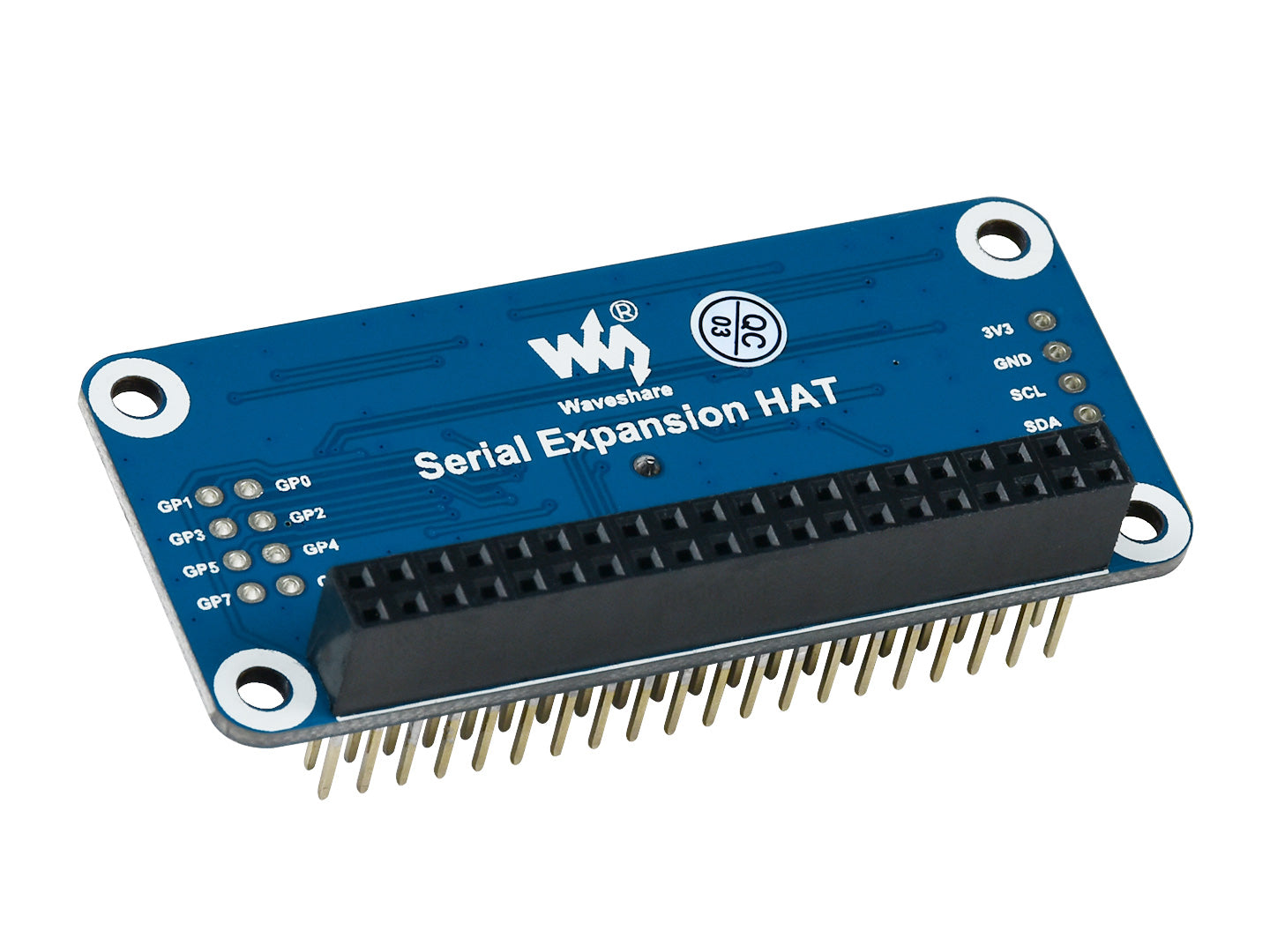

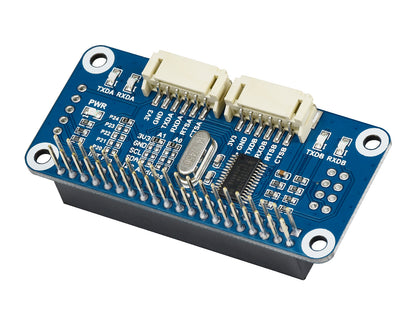

Serial Expansion HAT for Raspberry Pi, I2C Interface, Provides 2-ch UART and 8 GPIOs

Overview

There is only 1-ch UART port on the original Raspberry Pi, once it is used for terminal debugging, no more other serial device is allowed. What a poor situation. Now you have 2-ch extra UART, plus 8 programmable GPIOs, just bring this Serial Expansion HAT.

Features

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Onboard SC16IS752, expands 2-ch UART and 8 programmable GPIO through I2C, no extra pin required
• It is stackable up to 16 this modules by setting the address jumper, that means up to 32-ch UART
• Onboard multi LEDs for indicating the UART working status
• Reserved I2C control pins, allows to work with other control boards
• Comes with development resources and manual (examples in C and python)

Specifications

• Operating voltage: 3.3V
• Expansion chip: SC16IS752
• Control interface: I2C
• Dimension: 65mm x 30mm
• Mounting hole size: 3.0mm

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Serial_Expansion_HAT

Lieferumfang

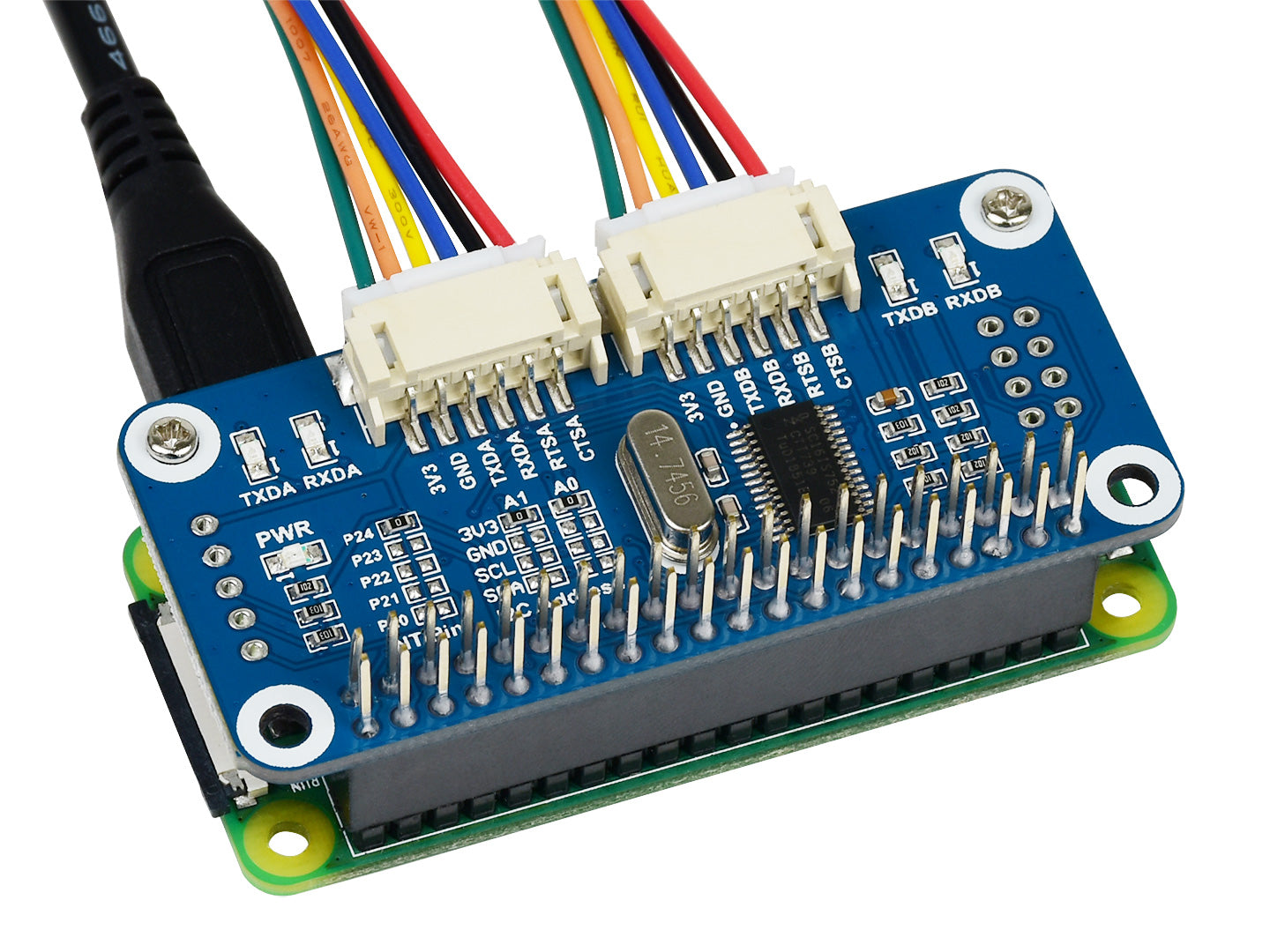

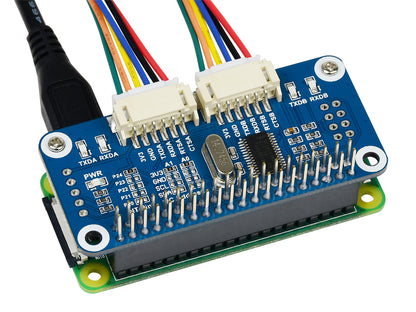

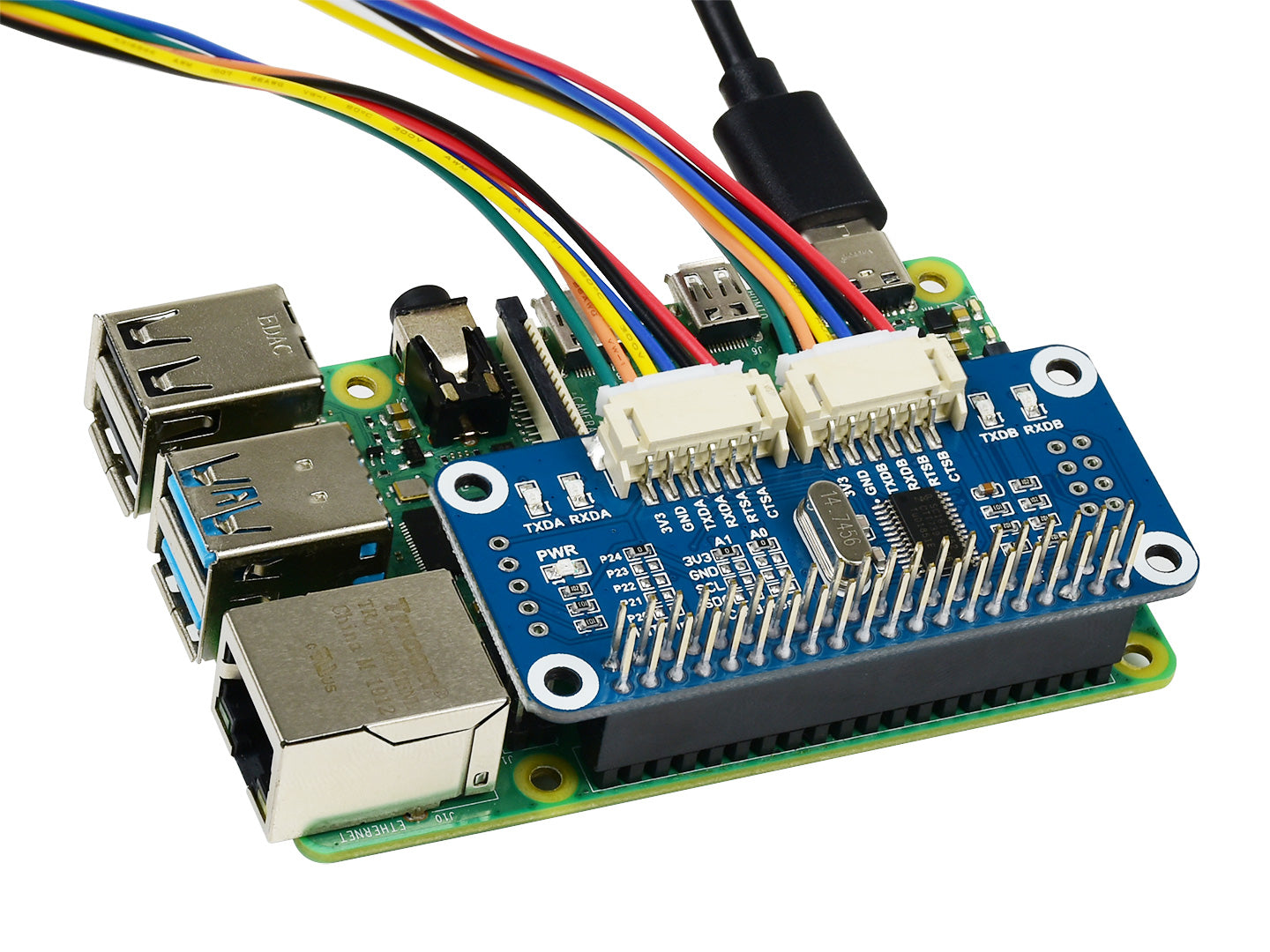

Note: Raspberry Pi in the photos is NOT included.

1. Serial Expansion HAT x1
2. RPi screws pack (2pcs) x1
3. PH2.0 6PIN wire x2

1

2

3
