Kurzbeschreibung: Servo Driver Module For Raspberry Pi Pico, 16-Channel Outputs, 16-Bit Resolution

Servo Driver Module for Raspberry Pi Pico, 16-Channel outputs, 16-bit resolution

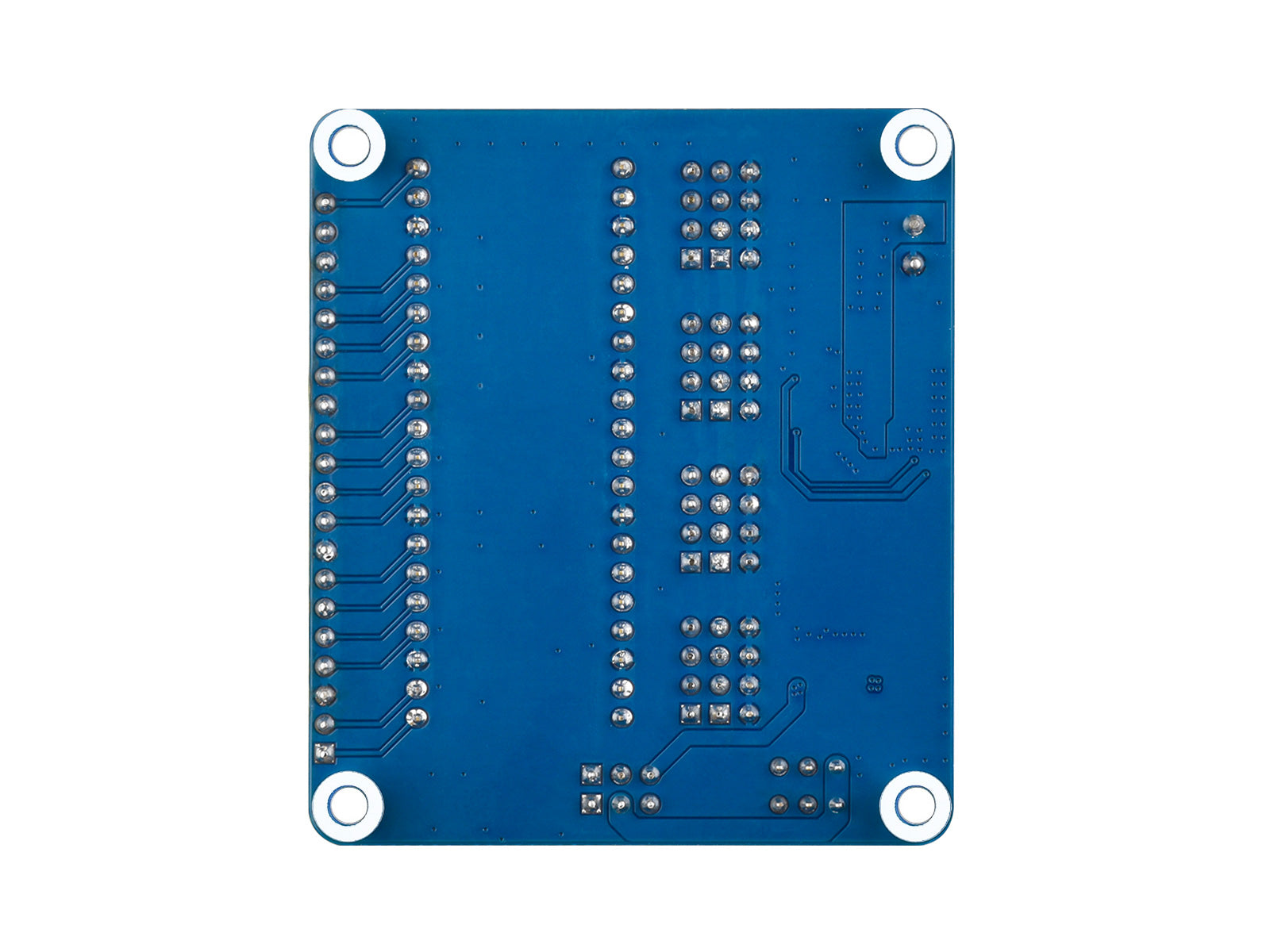

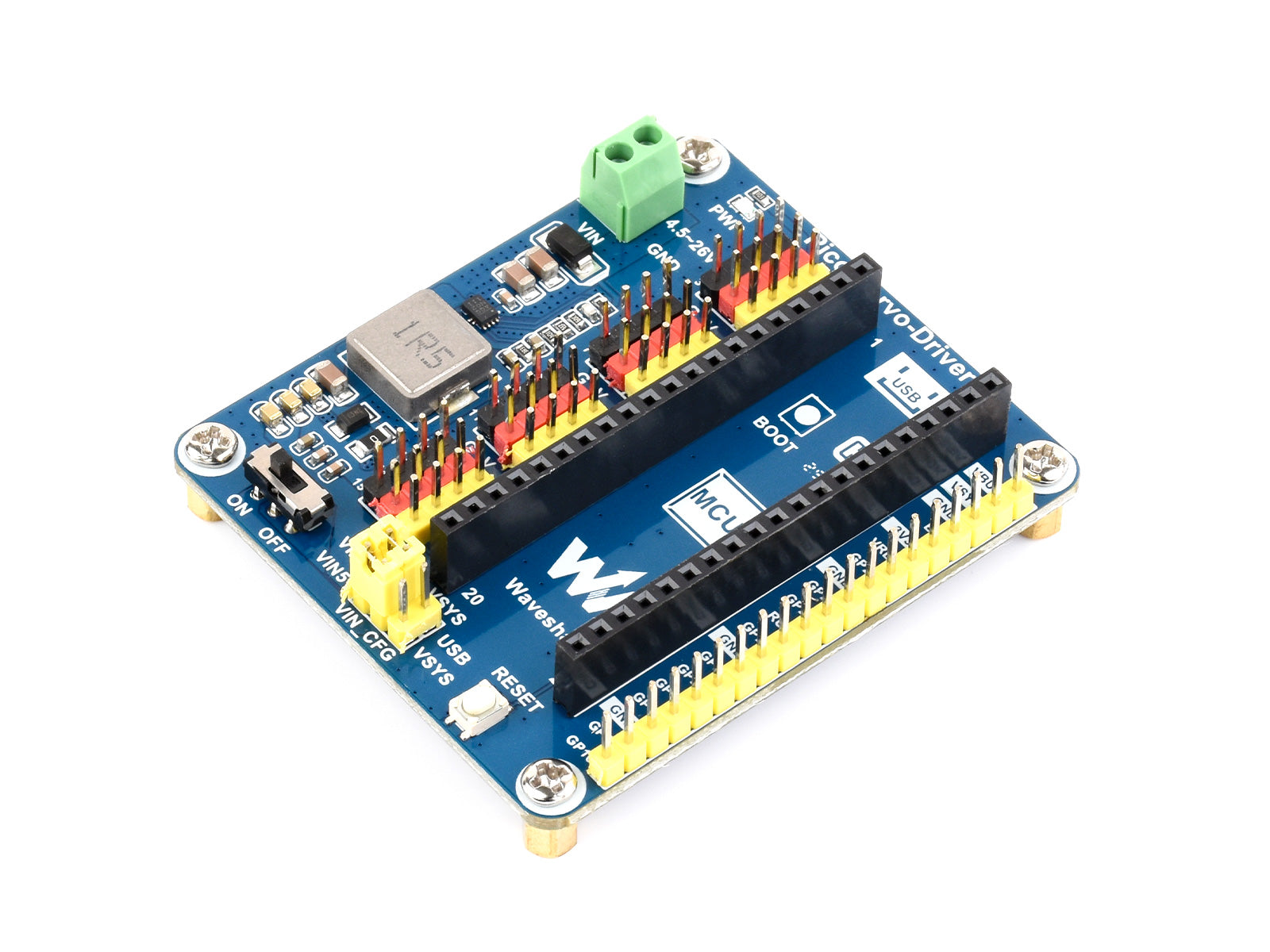

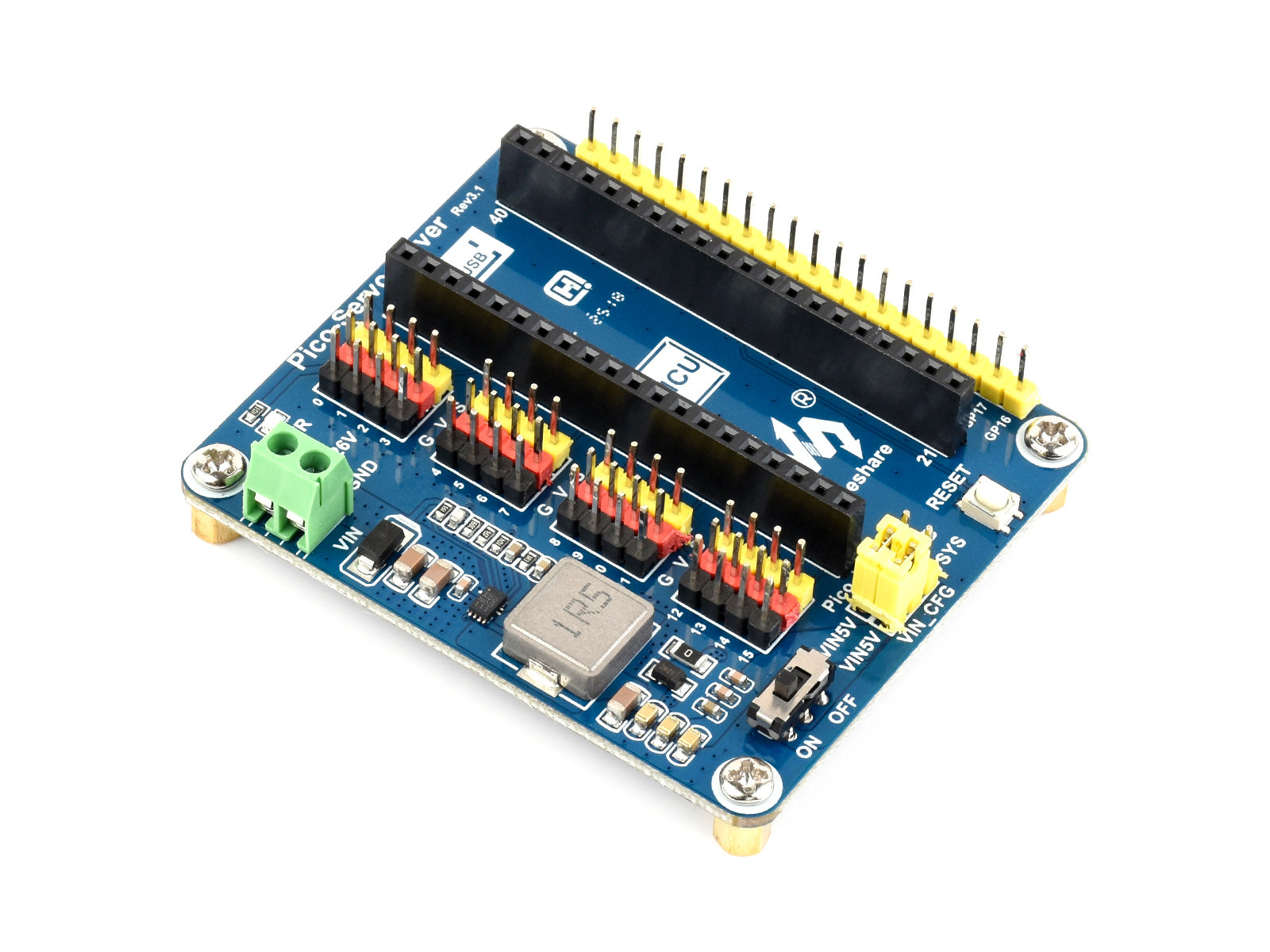

Servo Driver Module for Pico

ideal for controlling robotic arm or hexapod walker

Features at a glance

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
• Up to 16-Channel servo/PWM outputs, 16-bit resolution for each channel
• Integrates 5V regulator, up to 8A output current, allows battery power supply from the VIN terminal
• Standard servo interface, supports common used servos
• Exposes unused pins of Pico, easy expansion
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage	5V (Pico) or 6~12V (VIN terminal)	Servo voltage level	5V
Logic level	3.3V	Control interface	GPIO
Mounting hole size	3.0mm	Dimensions	65 × 56mm

Raspberry Pi Pico header compatibility

onboard female pin header for direct attaching to Raspberry Pi Pico

Standard servo interface

SG90 ServoMG90S ServoMG996R Servo

Onboard 5V regulator

flexible power options: powered from Pico directly, or from VIN battery input terminal with max 8A current output

Application example

Raspberry Pi PicoandMG90S Servo are NOT included.

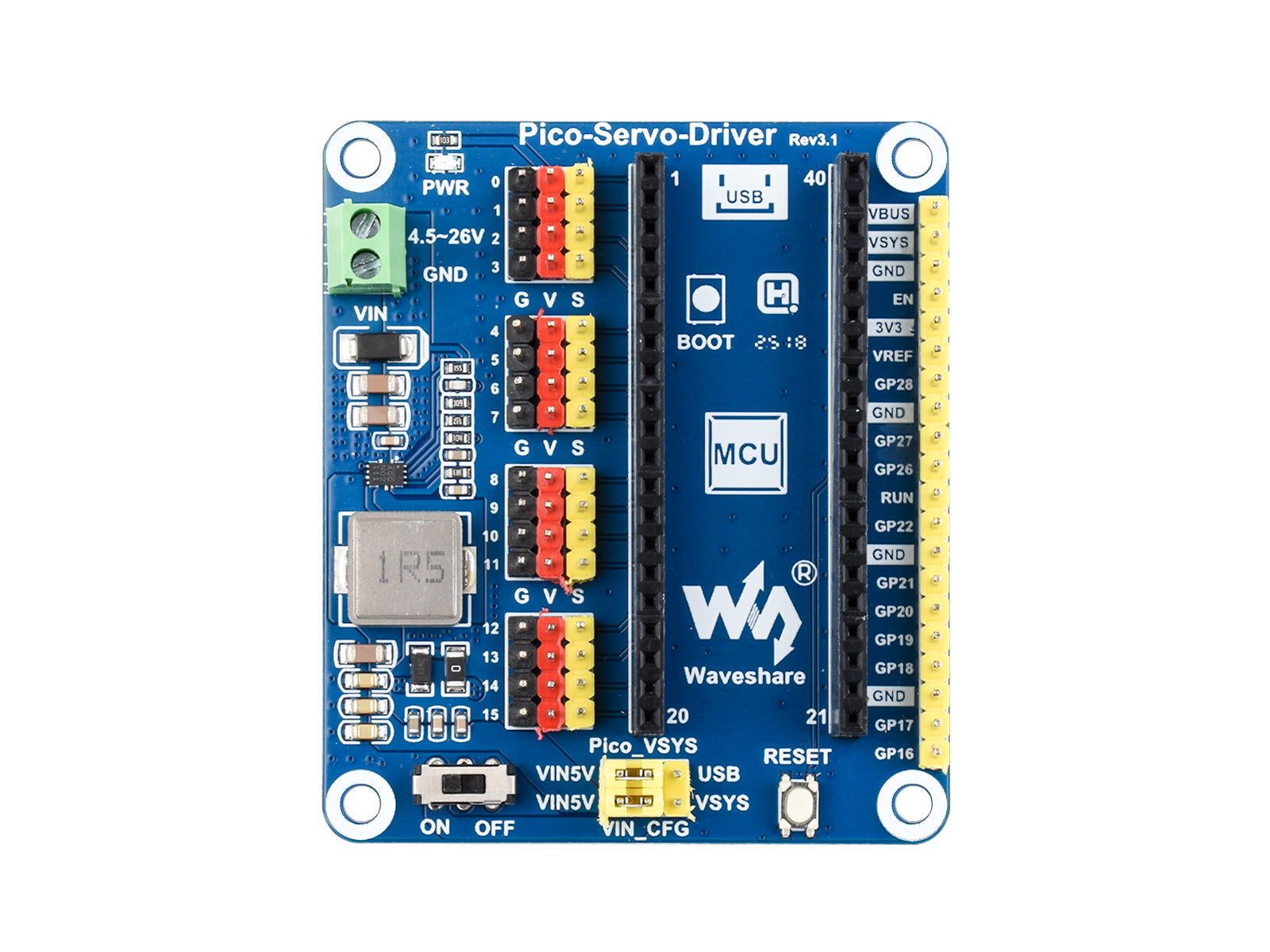

Pinout definition

Outline dimensions

Resources & Services

---

WIKI:Pico-Servo-Driver

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

Pico-Servo-Driver x1

• Vendor:

  WaveShare
