SIM7000G NB-IoT / Cat-M / EDGE / GPRS HAT for Raspberry Pi, GNSS positioning, Global band support

NB-IoT / Cat-M / GPRS / GNSS HAT

Low power narrow band cellular IoT communication module for Raspberry Pi

Based on SIM7000G

This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning function. Due to its advantages like small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.

Features at a glance

• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.
• Supports GNSS positioning (GPS, BeiDou, GLONASS)
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
• Breakout UART control pins, to connect with host boards like Arduino/STM32
• Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor
• SIM card slot, compatible with both normal SIM card and NB-IoT specific card
• 2x LED indicators, easy to monitor the working status
• Baudrate: 300bps~3686400bps (115200bps by default)
• Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
• Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT
• Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

NB-IoT / Cat-M / 2G
Frequency bands	NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28
	Cat-M: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39
	GPRS/EDGE: 850, 900, 1800, 1900MHz
Data rate	NB-IoT: 34(DL)/66(UL)
	Cat-M: 300(DL)/375(UL)
	EDGE: 236.8(DL)/236.8(UL)
	GPRS: 85.6(DL)/85.6(UL)
SIM card support	NB-IoT: NB Specific (Not Included)
	Cat-M/GPRS/EDGE: Normal SIM (Not Included)
Applicable region	Global
GNSS
Satellite systems	GPS, BeiDou, GLONASS
Receiver type	16-channel
	C/A Code
Sensitivity	Tracking: -162 dBm (GPS) / -157 dBm (GLONASS) / TBD (BD)
	Cold starts: -148 dBm
Time-To-First-Fix	Cold starts: <35s
	Hot starts: <1s
Accuracy	Position: <2.5m CEP
Other
Power supply	5V
Operating voltage	5V / 3.3V (3.3V by default)
Sleep Mode current	1.2mA (@DRX=2.56s)
Power Save Mode current	9uA
Operating temperature	-40°C ~ 85°C
Storage temperature	-45°C ~ 90°C
Dimensions	30.2mm x 65mm

Standard Raspberry Pi 40PIN GPIO

Compatible with Raspberry Pi series boards

Global band support of NB-IoT/Cat-M/2G

Cloud Communication

Supports communication protocols including TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail...

GNSS positioning

Supports GPS, BeiDou, GLONASS positioning

What's on board

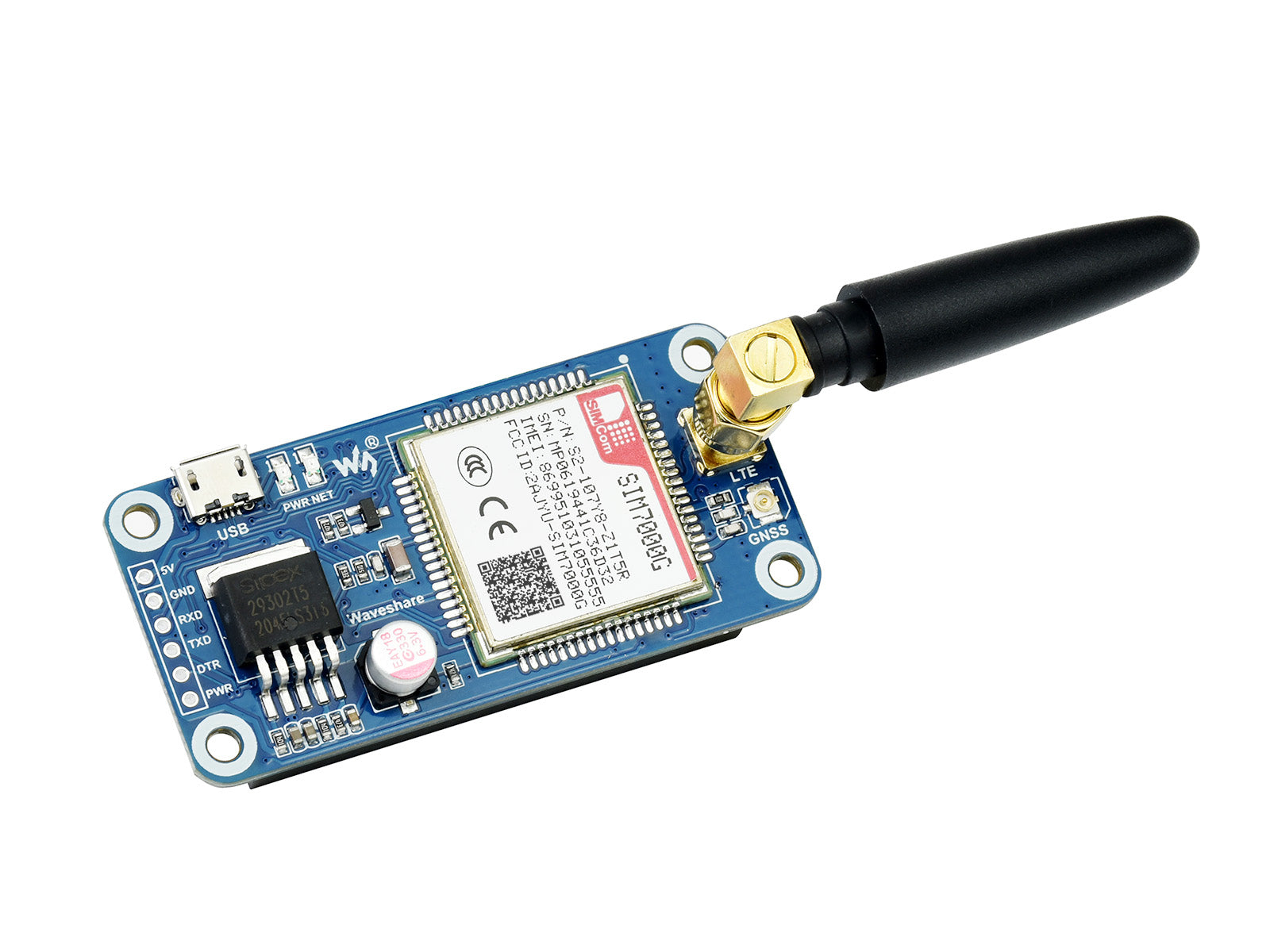

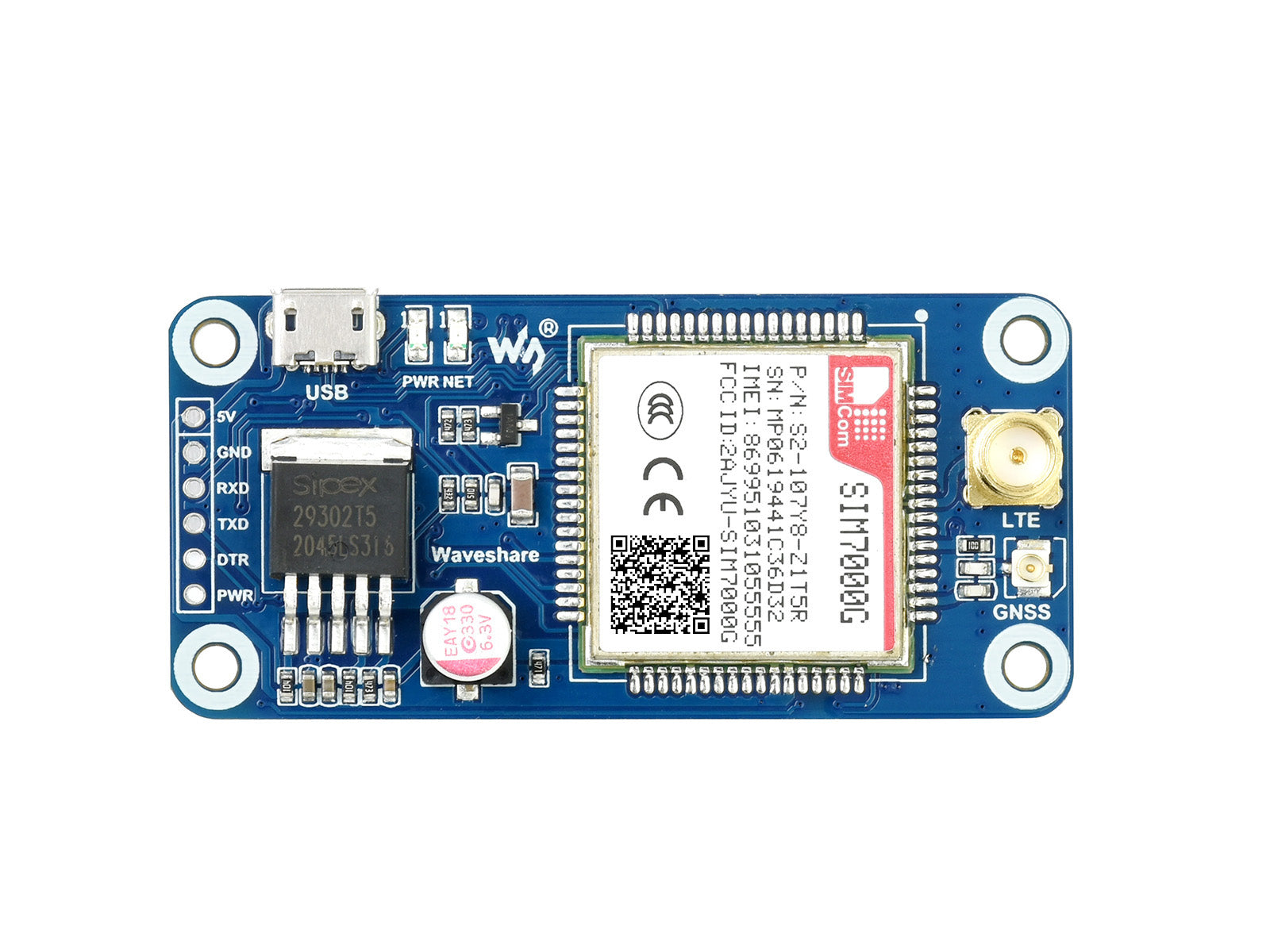

1. SIM7000G
2. SPX29302 power chip
3. RT9193-33 power chip

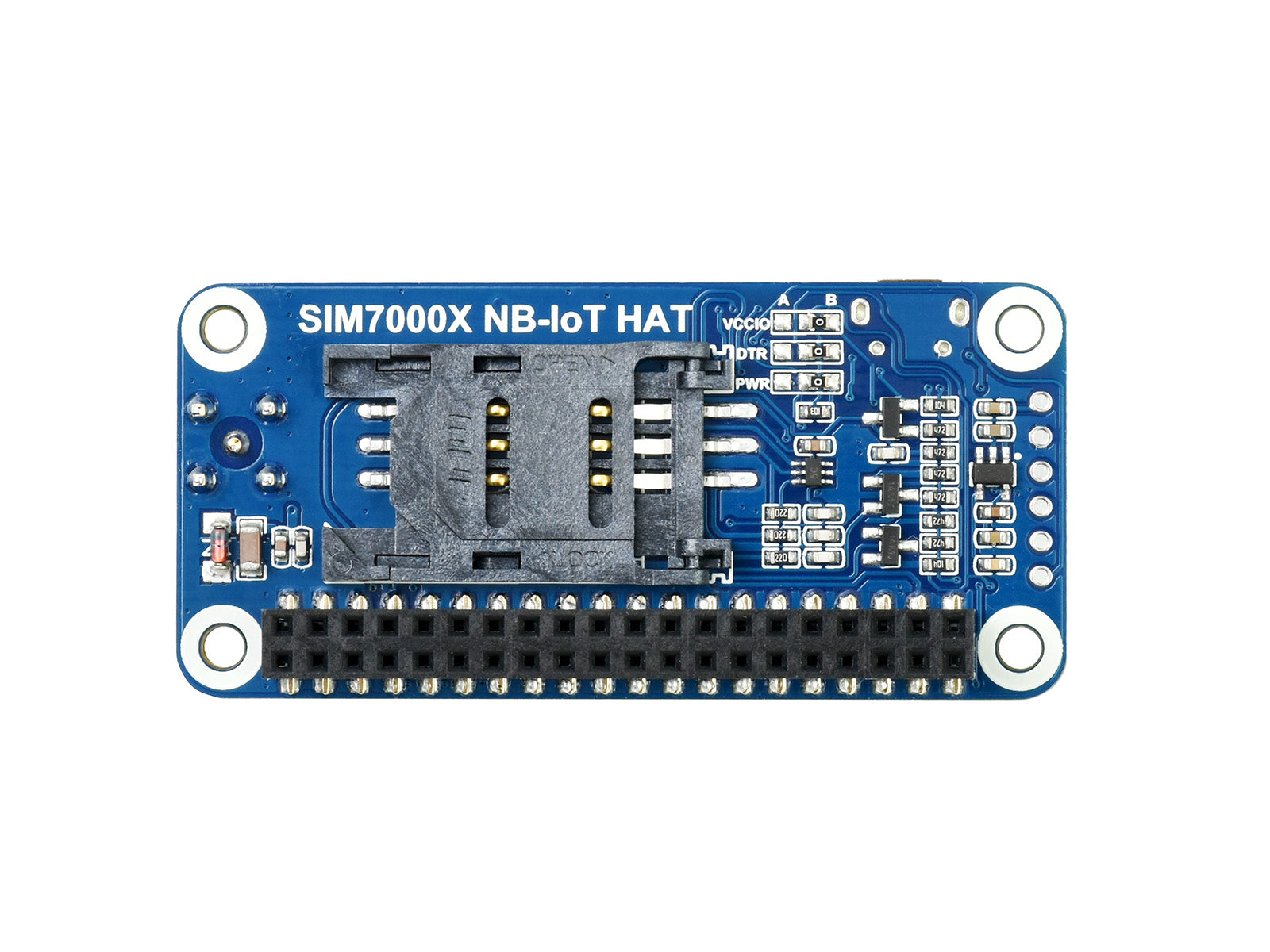

4. Raspberry Pi GPIO header for connecting with Raspberry Pi
5. USB interface for testing AT Commands, getting GPS positioning data, etc.
6. SIM7000G control interface for connecting with host boards like Arduino/STM32
7. SIM card slot supports 1.8V/3V SIM card
8. GNSS antenna connector
9. LTE antenna connector

10. Network status indicator
11. Power indicator
12. Operating voltage selection jumper configured via 0Ω resistor jumper A: set operating voltage as 5V B: set operating voltage as 3.3V (default)
13. DTR configuration jumper configured via 0Ω resistor jumper A: DTR is controlled by the Raspberry Pi P26 pin B: NC (default)
14. PWR configuration jumper configured via 0Ω resistor jumper A: startup/shutdown by the Raspberry Pi P4 pin B: auto startup on power-up (default)

Pinout definition

Outline Dimensions

Resources & Services

---

WIKI:SIM7000G_NB-IoT_HAT

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

	Cat-M & NB-IoT & GSM			Cat-M & NB-IoT	NB-IoT
	SIM7000C/SIM7000E	SIM7000G	SIM7070G	SIM7080G	SIM7020C/SIM7020E	SIM7028
Applicable regions	SIM7000C: China SIM7000E: Europe / Africa / Australia / Southeast Asia	Global			SIM7020C: China SIM7020E: Europe / Africa / Australia / Southeast Asia	Global
Band
NB-IoT	SIM7000C: LTE-FDD: B1, B3, B5, B8 SIM7000E: LTE-FDD: B3, B8, B20, B28	B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28	B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B71, B85		SIM7020C: LTE-FDD: B1, B3, B5, B8 SIM7020E: LTE-FDD: B1, B3, B5, B8, B20, B28	B1, B2, B3, B4, B5, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B66, B70, B85
Cat-M		B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39	B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B27, B28, B66, B85		N/A
GSM	GPRS/EDGE 900/1800 MHz	GSM/GPRS/EDGE 850/900/1800/1900MHz		N/A	N/A
GNSS	SIM7000C/SIM7000G: GPS, GLONASS, BeiDou SIM7000E/SIM7070G/SIM7080G: GPS, GLONASS, BeiDou, Galileo				N/A
Data Rate
NB-IoT(Kbps)	34(DL)/66(UL)		136(DL)/150(UL)		26.15(DL)/62.5(UL)	127(DL)/159(UL)
Cat-M(Kbps)	300(DL)/375(UL)		589(DL)/1119(UL)
EDGE(Kbps)	236.8(DL)/236.8(UL)		236.8(DL)/236.8(UL)
GPRS(Kbps)	85.6(DL)/85.6(UL)		85.6(DL)/85.6(UL)
Software Features
Network protocol	TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT, etc.
Firmware upgrade	USB				UART	UART/USB
Hardware Interfaces
SIM card slot	1.8V/3V		1.8V	1.8V	1.8V/3V	1.8V/3V
UART	Supports AT commands				Supports AT commands, firmware upgrading
USB	Supports AT commands testing, GPS positioning, firmware upgrading, etc.				For external power supply ONLY	Supports AT commands, firmware upgrading
Antenna connector	LTE antenna (SMA) + GNSS antenna (IPEX)			LTE antenna (IPEX) + GNSS antenna (IPEX)	LTE antenna (SMA)
Applications
Examples	Meters, remote control, smart home, smart city, intelligent agriculture, and so on

Lieferumfang

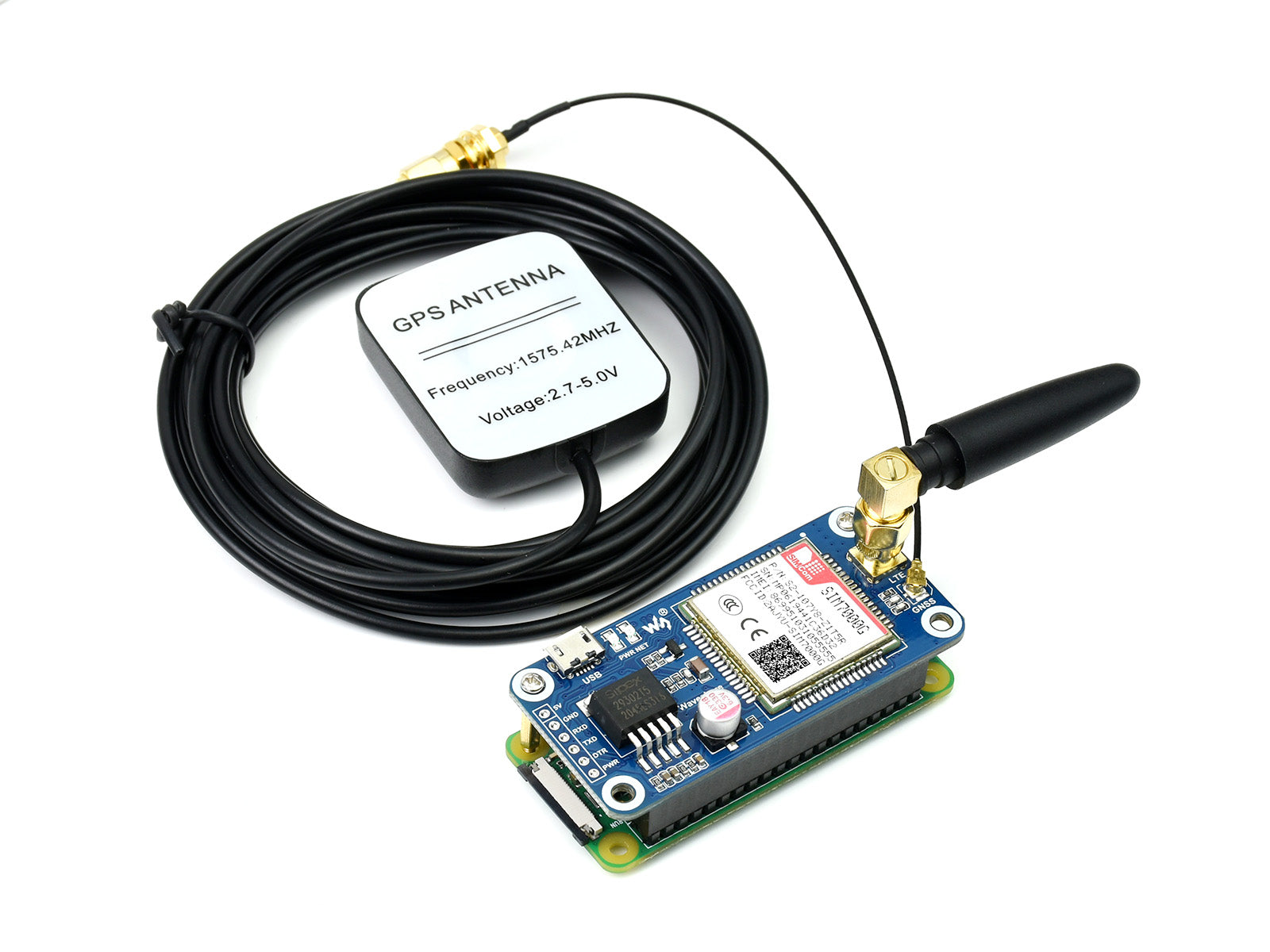

1. SIM7000G NB-IoT HAT x1
