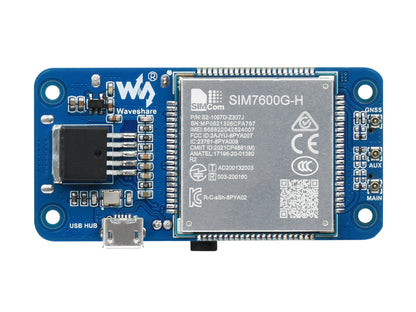

SIM7600G-H 4G HAT (B) for Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

Name: SIM7600G-H 4G HAT (B) for Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band
Brand: WaveShare
SKU: WSAL19485
Price: 37471.8 HUF
Availability: InStock

37.472 Ft

37.472 Ft 0 Ft

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

SIM7600G-H 4G HAT (B) For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

4G HAT for Raspberry Pi

enabling LTE Cat-4 4G / 3G / 2G communication & GNSS positioning

Based on SIM7600G-H, Global Band

Features at a glance

Connected via pogo pin or MicroUSB connector
- Dedicated pogo pin for Raspberry Pi Zero/Zero W
- MicroUSB connector for other Raspberry Pi boards or PC
Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support
USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
SIM card slot, supports 1.8V/3V SIM card
Onboard audio jack and audio decoder for making telephone call
2x LED indicators, easy to monitor the operating status
Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
Comes with development resources and manual (examples for Raspberry Pi)

Specifications

Frequency band
LTE Cat-4	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41
3G	UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G	GSM/GPRS/EDGE: 850/900/1800/1900 MHz
GNSS
Satellite systems	GPS/Beidou/GLONASS/GALILEO/QZSS
Receiver type	16-channel
Receiver type	C/A Code
Sensitivity	-159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Sensitivity	Cold starts: -148 dBm
Time-To-First-Fix (open air)	Cold starts: <35s
Time-To-First-Fix (open air)	Hot starts: <1s
SMS and Audio
SMS	Supported types: MT, MO, CB, Text, PDU
Audio feature	Supports echo cancellation
Audio feature	Supports noise reduction
Other
Power supply	5V
Operating temperature	-30°C ~ 80°C
Storage temperature	-45°C ~ 90°C
Dimensions	65.00 × 32.00mm

Suitable for Raspberry Pi / PC

Dedicated pogo pin for connecting with Raspberry Pi Zero/Zero W without extra USB cableGeneral purpose MicroUSB connector for other Raspberry Pi boards or PC

Global band 4G / 3G / 2G support

up to 50Mbps uplink and 150Mbps downlink for 4G network *

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, base station condition, etc.

USB HUB feature

onboard USB HUB chip with USB2.0/1.1 compliant, providing 2x USB-A connector and 1x USB solder pad

GNSS positioning

Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning

telephone call & SMS Support

Making telephone call or sending SMS by AT commands, with onboard audio jack

Application example

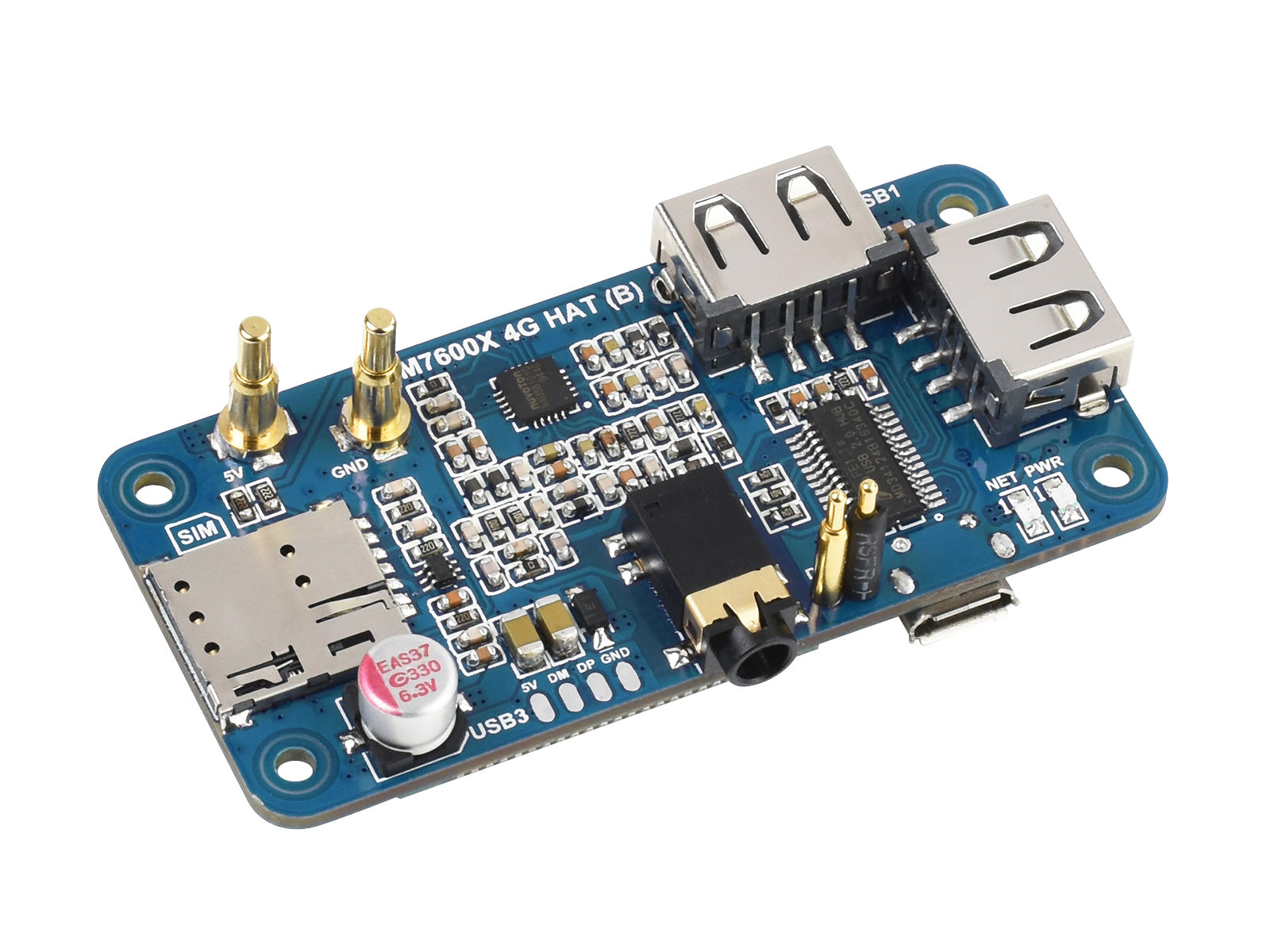

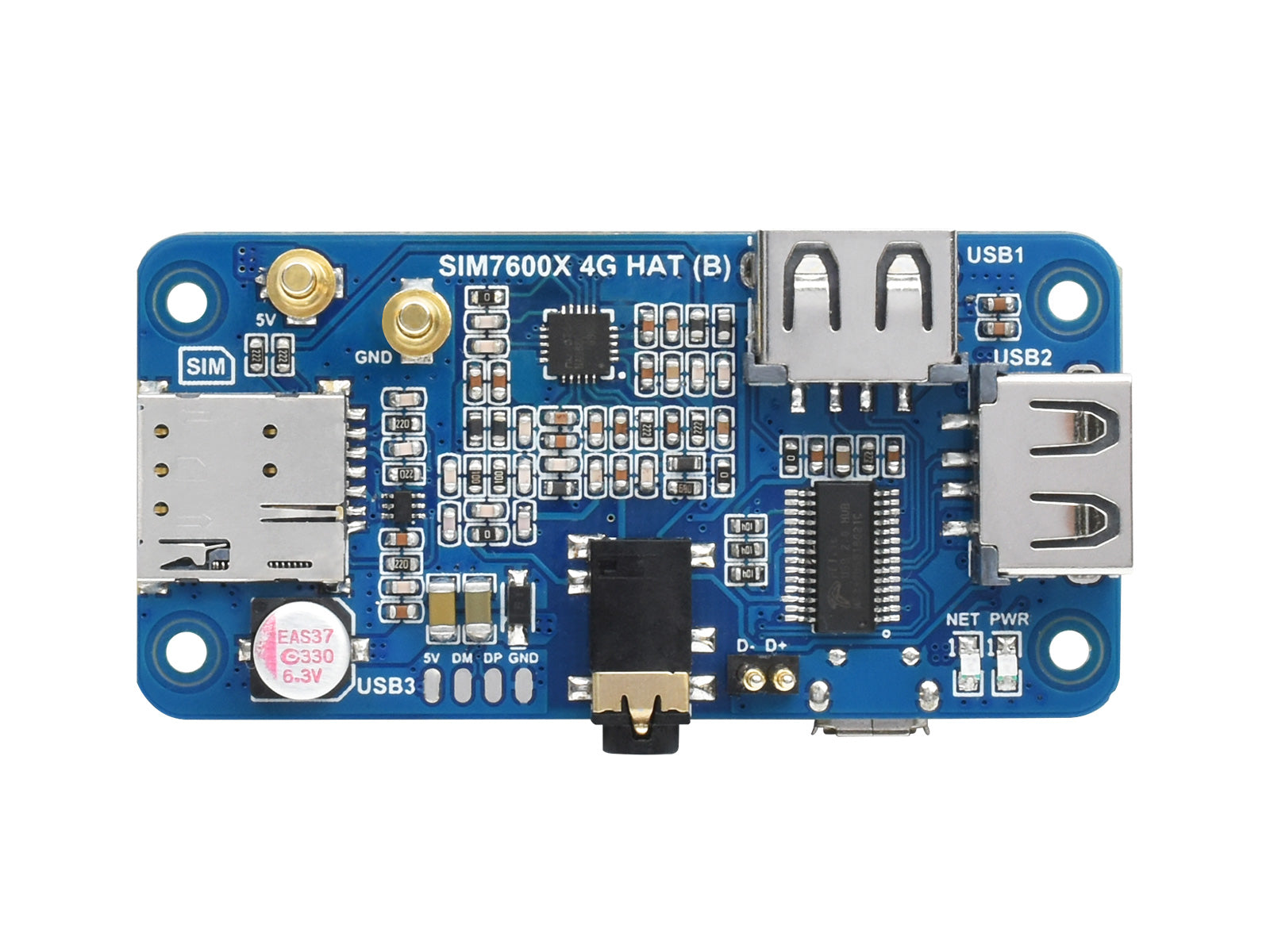

What's on board

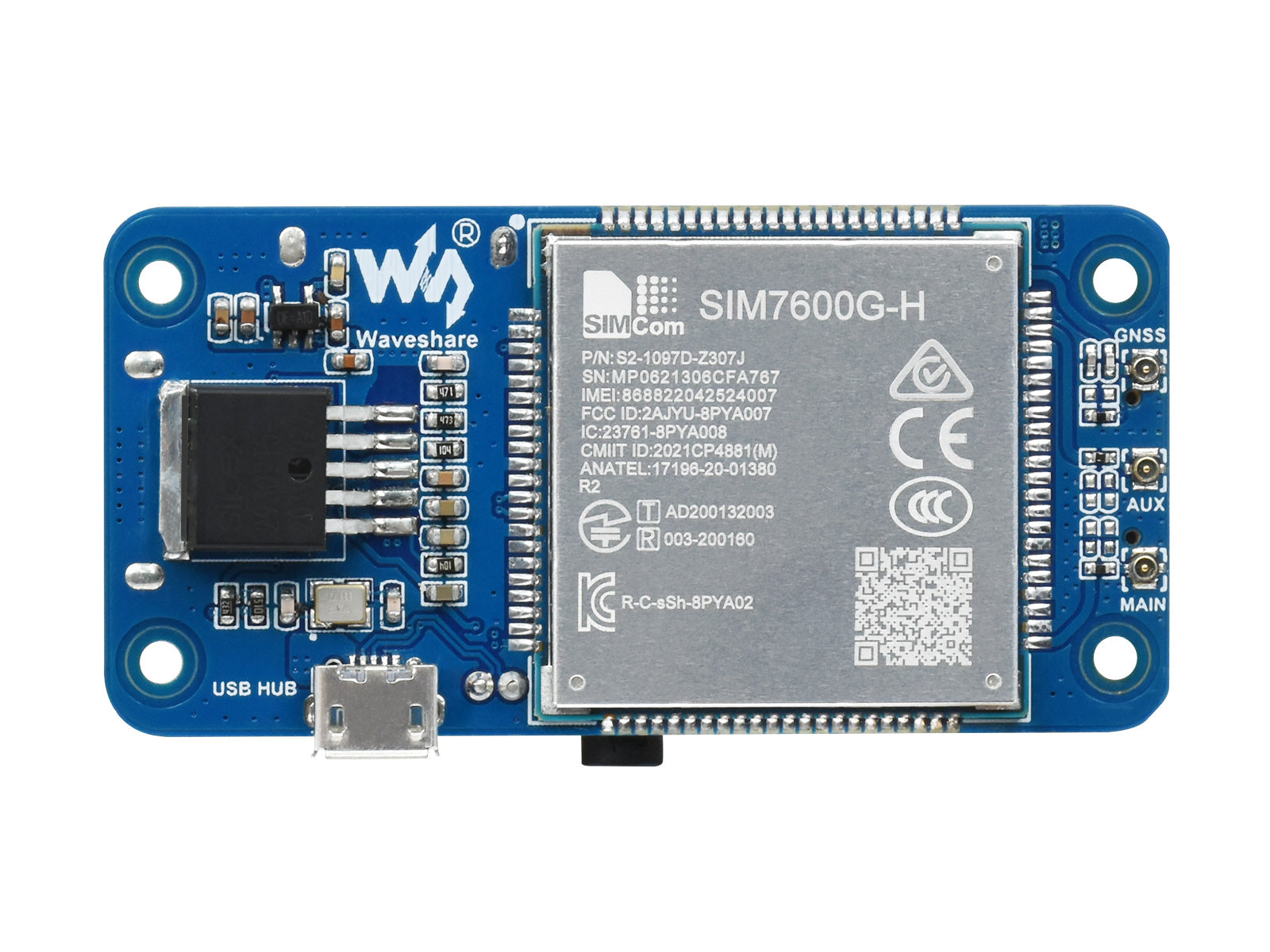

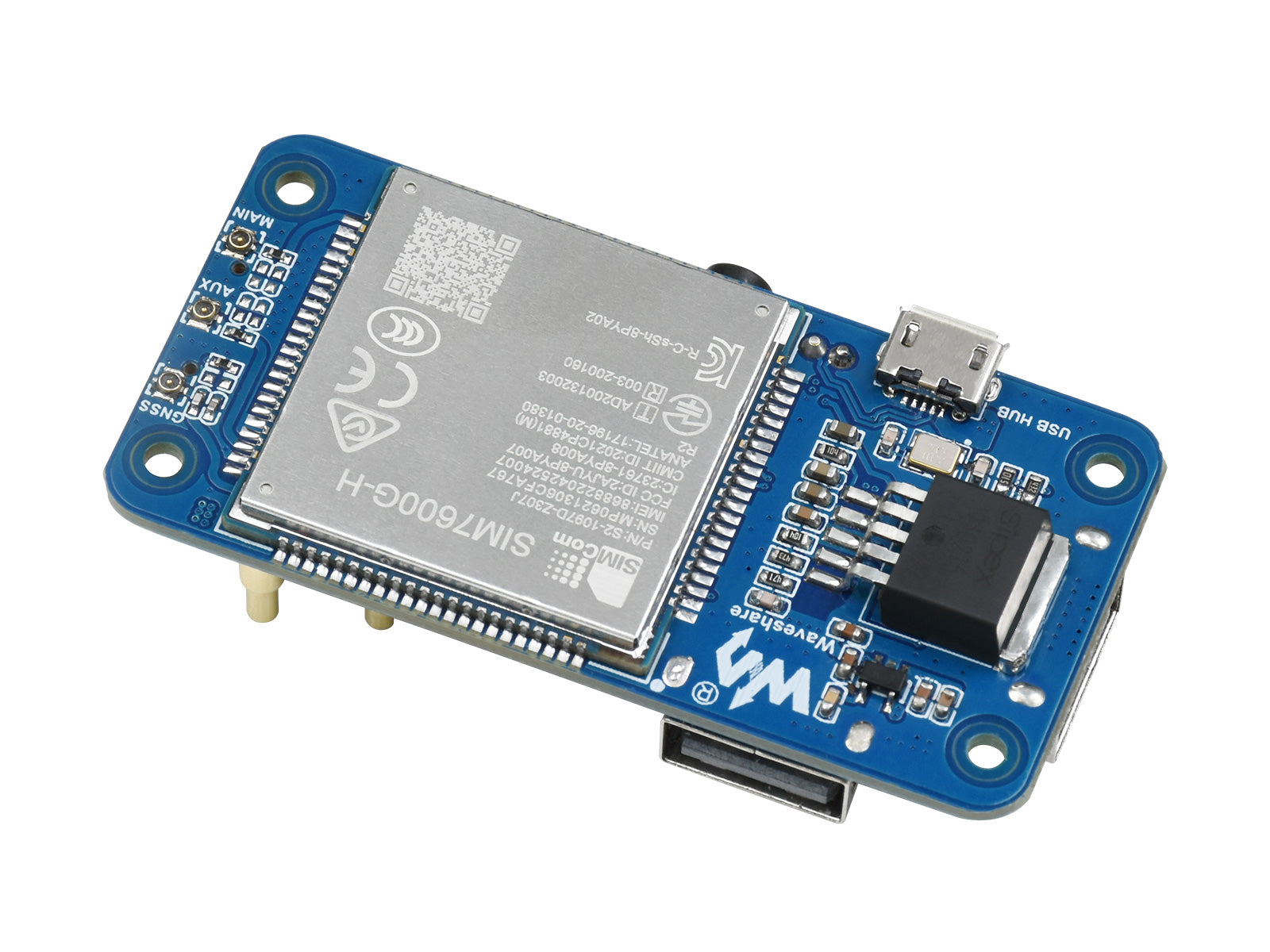

SIM7600G-H
FE1.1S USB HUB chip
NAU8810 audio decoder
SPX29302 power chip
RT9193-33 voltage translator
USB HUB input D+/D- pogo pin: for Raspberry Pi Zero/Zero WMicroUSB connector: for other Raspberry Pi boards or PC
Pogo pin power supply 5V: connects to 5V pin of Zero/Zero W, up to 2A currentGND: connects to GND pin of Zero/Zero W
