SKU:WSAL16157
SIM800C GSM / GPRS / Bluetooth HAT for Raspberry Pi, 2G Communication
Regular price
9.026 Ft
Sale price
9.026 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

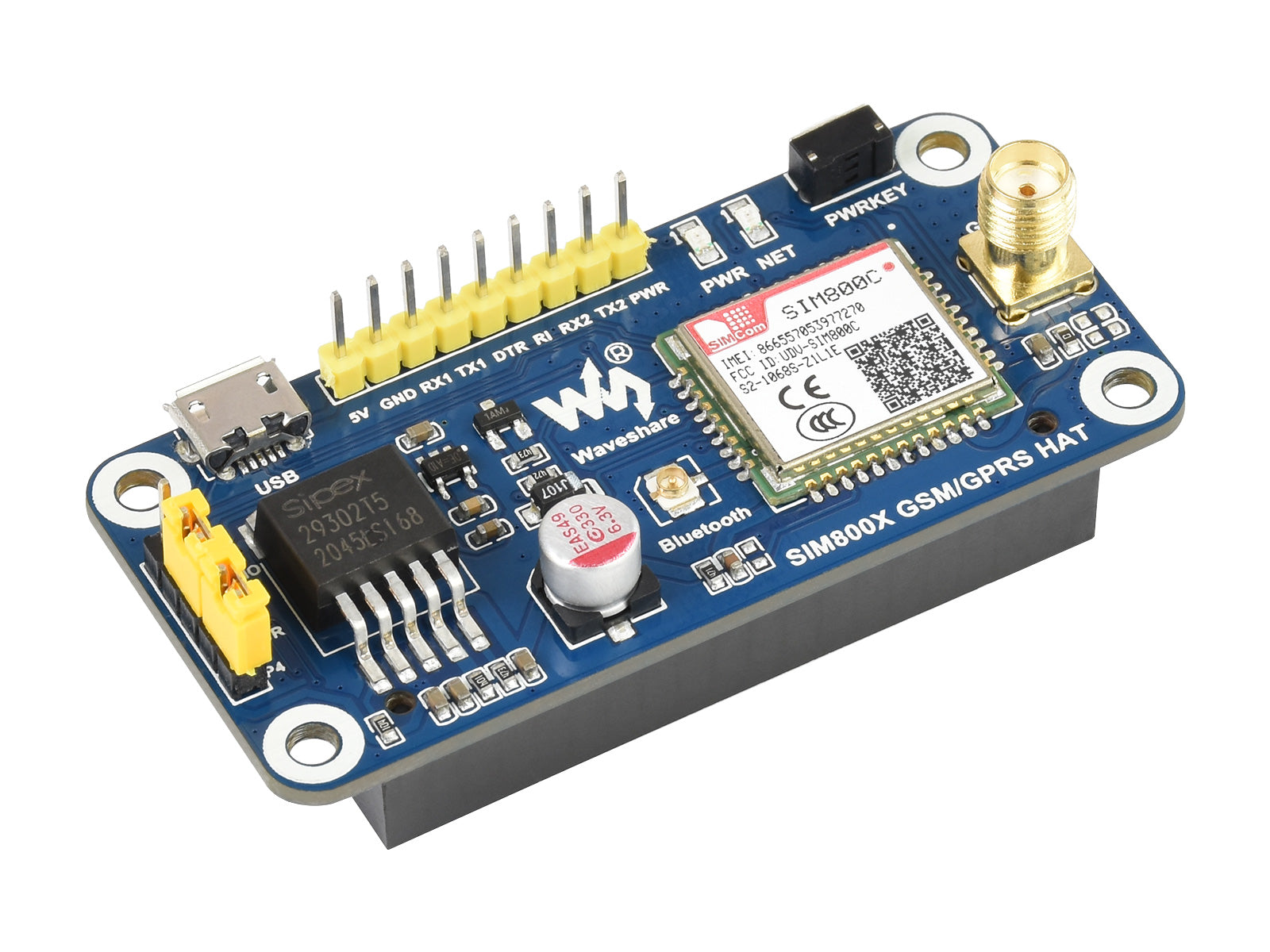

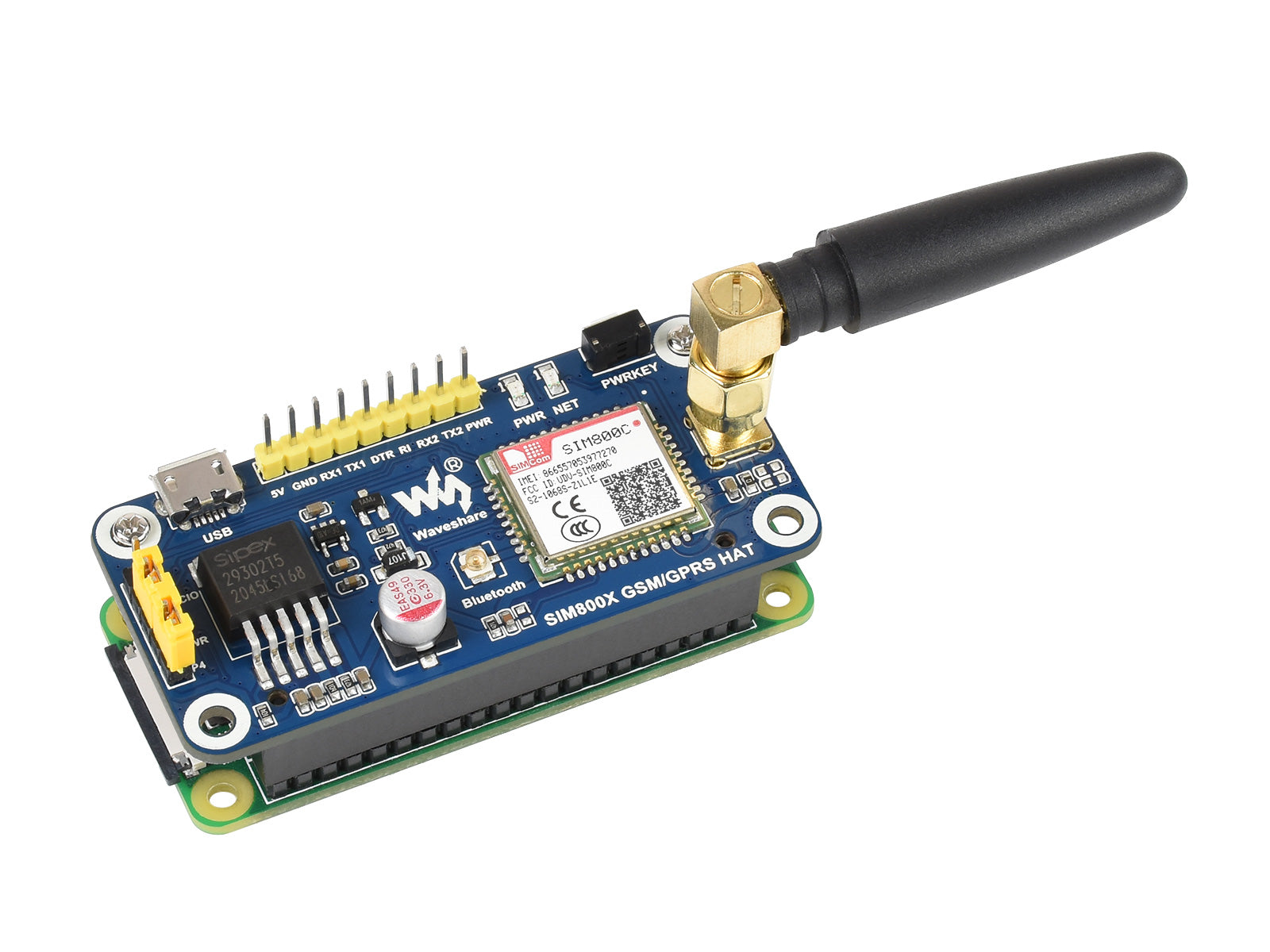

SIM800C GSM/GPRS/Bluetooth HAT For Raspberry Pi, 2G Communication
GSM / GPRS / Bluetooth HATfor Raspberry Pi
SMS support, 2G communication & Bluetooth data transmission
Based on SIM800C
Features at a glance
TheSIM800C GSM/GPRS HAT is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, and Bluetooth, with up to 85.6kbps GPRS data rate.
It allows your Pi to easily send messages, connect to wireless Internet, transfer data via Bluetooth, and so on.
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Supports SMS, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
- Bluetooth 3.0, supports data transferring through Bluetooth
- UART interface, for connecting host control boards like Arduino/STM32
- Onboard voltage level translator, 3.3V by default, switch to 5V via jumper
- 2x LEDs for indicating the module operating status

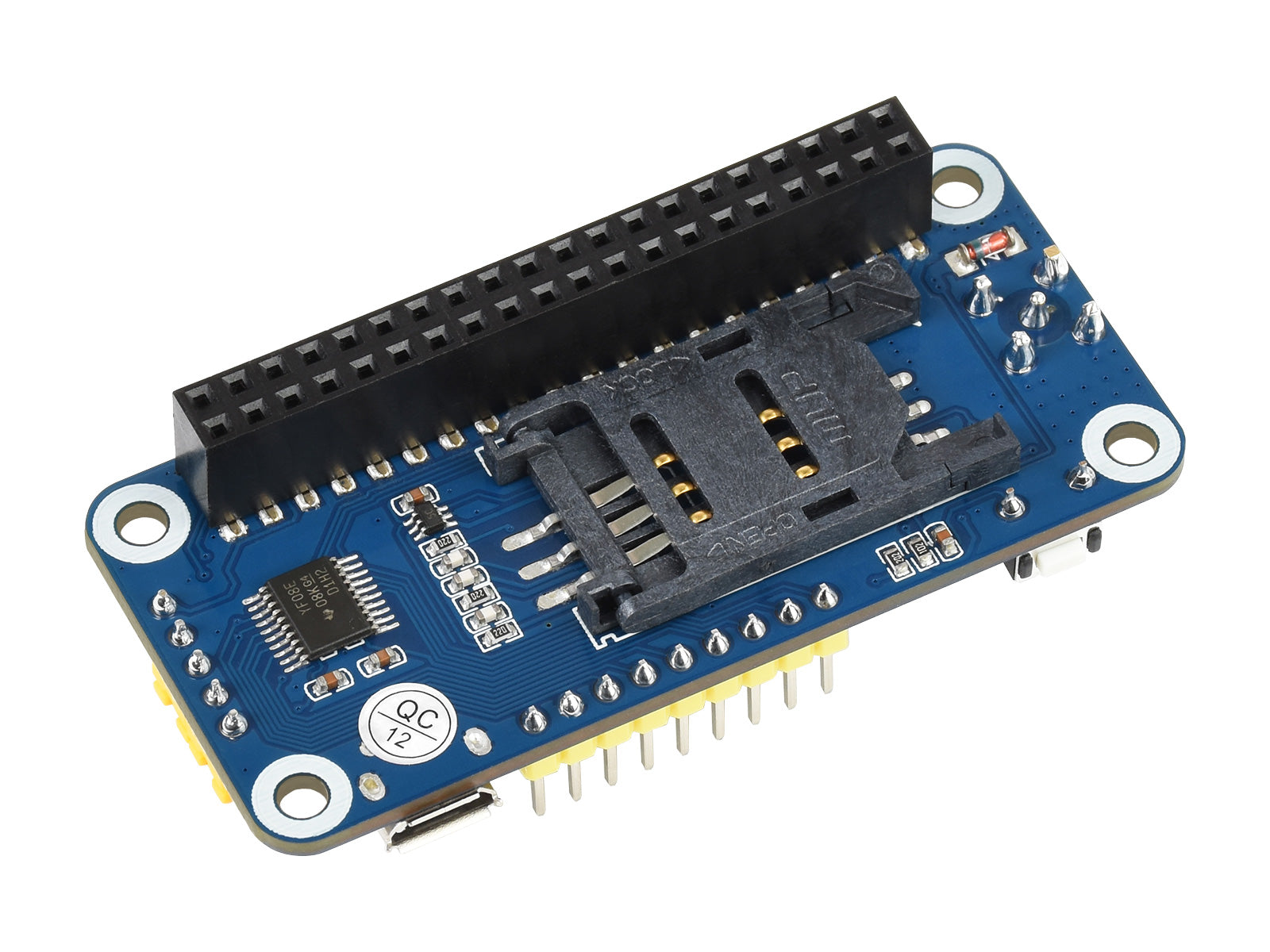

- SIM card slot for 1.8V/3V SIM card
- Autobauding baudrate: 1200bps ~115200bps
- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports SIM application toolkit: GSM 11.14 Release 99
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
| GSM / GPRS / Bluetooth | |
|---|---|
| Frequency band | GSM: 850/900/1800/1900 MHz Quad-band auto search Compliant to GSM phase 2/2+ |
| Emitting power | Class 4 (2W @ 850/900 MHz) Class 1 (1W @ 1800/1900 MHz) |
| GPRS connectivity | GPRS multi-slot class 12/10 (default) GPRS multi-slot class 1~12 (configurable) |
| GPRS data feature | UL/DL data rate: ≤85.6kbps Supports Packet Broadcast Control Channel (PBCCH) Coding schemes: CS-1, CS-2, CS-3, CS-4 Supports PAP (Password Authentication Protocol) for PPP connection Supports Unstructured Supplementary Service Data (USSD) |
| SMS | Supports: MT, MO, CB, Text, PDU SMS storage: SIM card |
| Bluetooth | Integrates AT commands Compliant to Bluetooth specification3.0 + EDR Supports SPP, OPP, HFP/HSP, etc. |
| Others | |
| Power supply | 5V (USB port OR pinheader) |
| Logic level | 5V / 3.3V (default) |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 30.2 x 65mm |

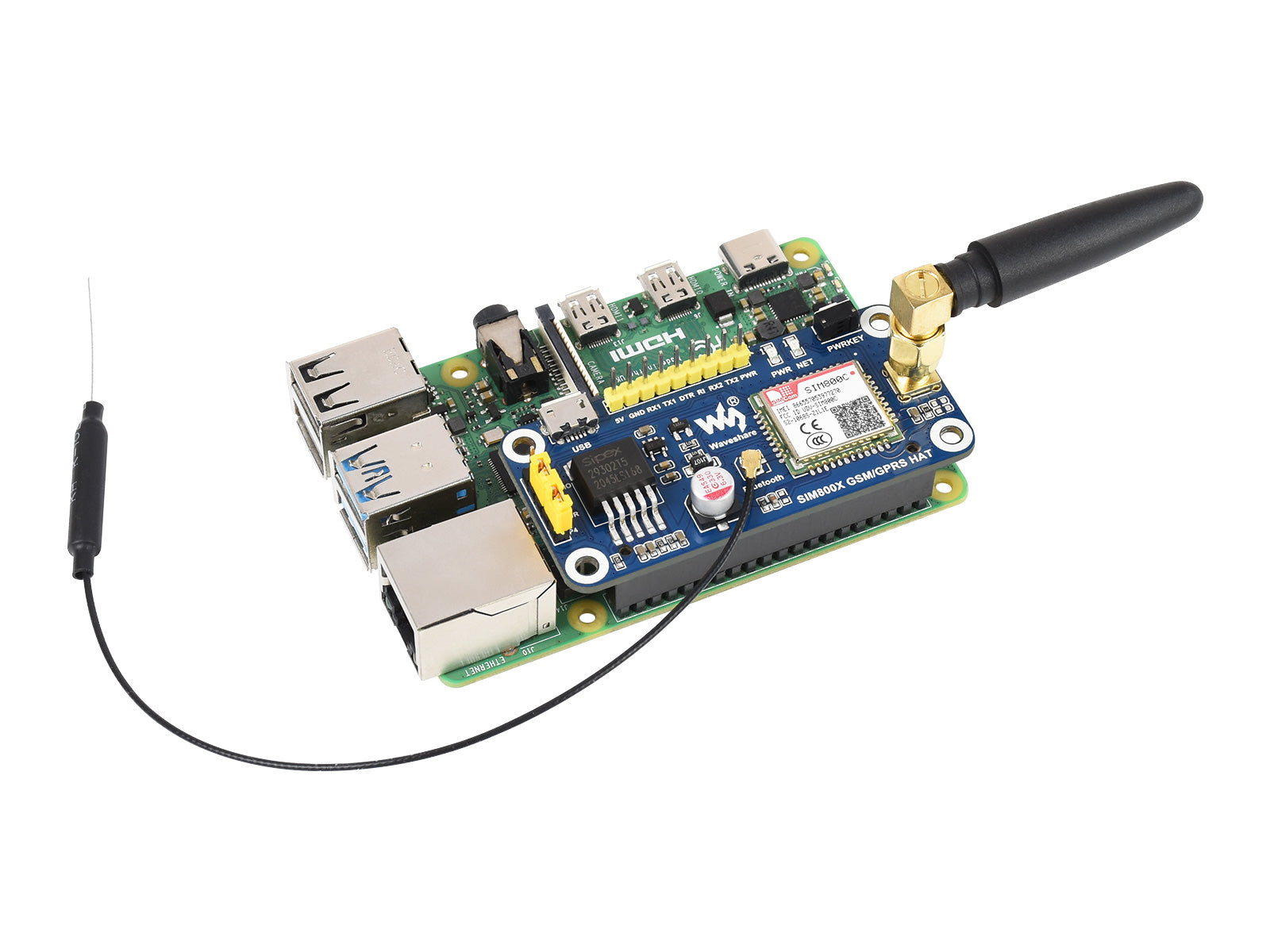

Standard Raspberry Pi 40PIN GPIO
Compatible with Raspberry Pi series boards, Jetson Nano
SMS & email Support
supports sending SMS, email, or MMS by AT commands
Pinout definition
Outline Dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Lieferumfang
- SIM800C GSM/GPRS HAT x1
- GSM Antenna x1
- Bluetooth Antenna x1
- USB type A plug to micro plug cable x1
- RPi screws pack (2pcs) x1
