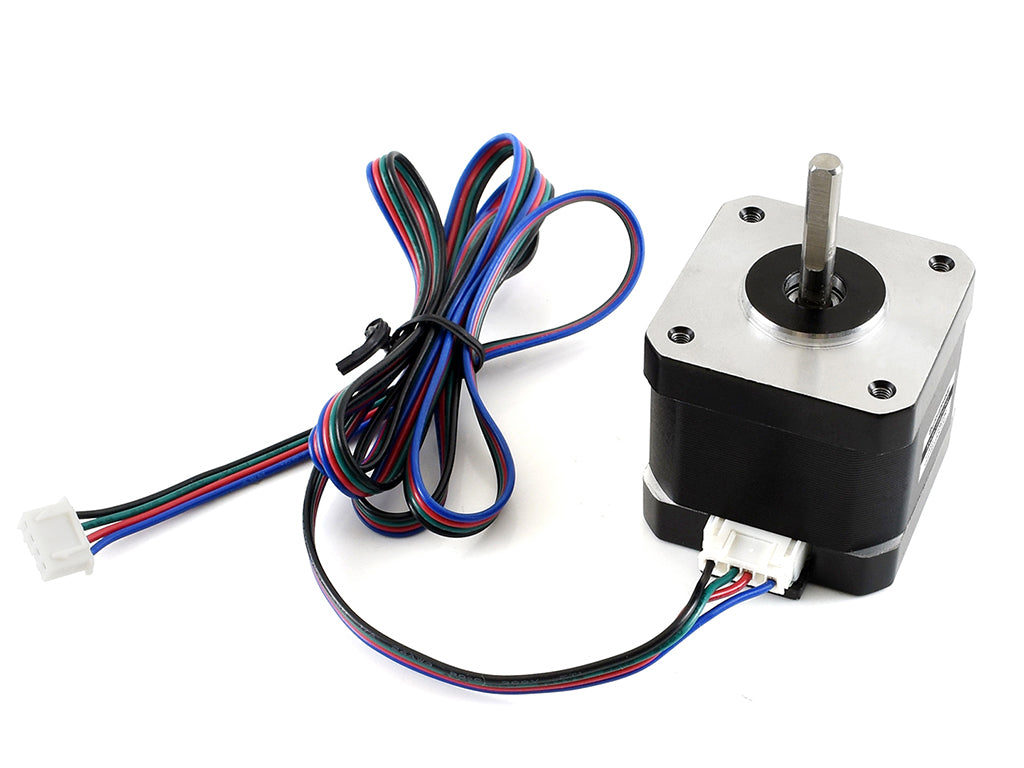

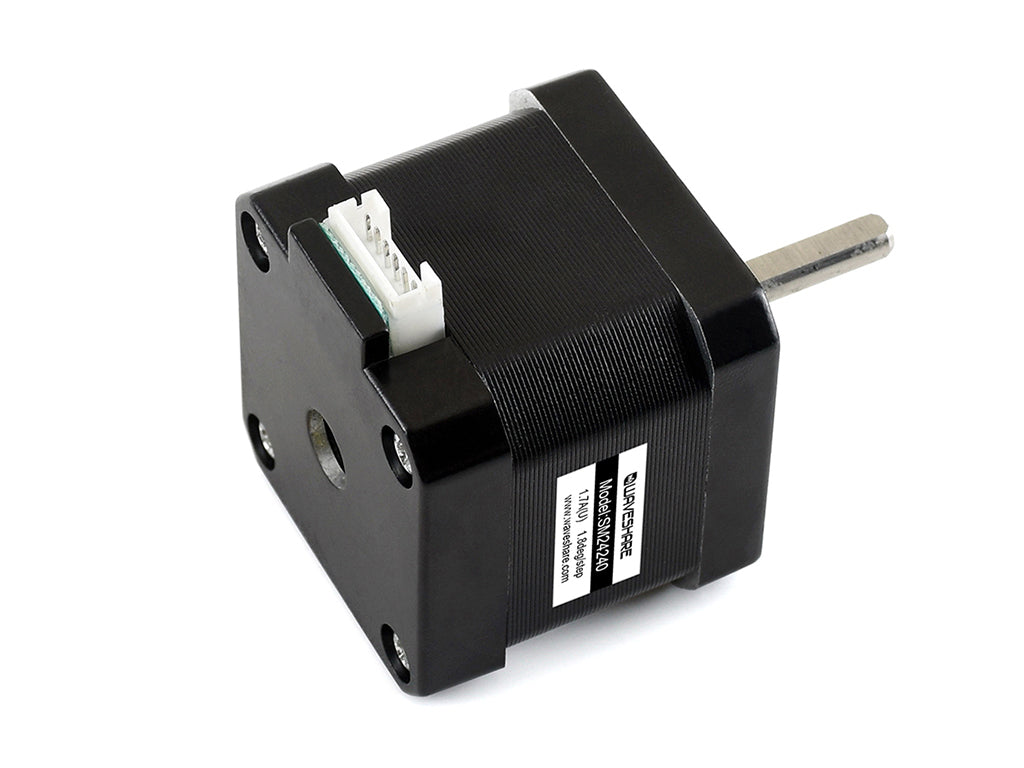

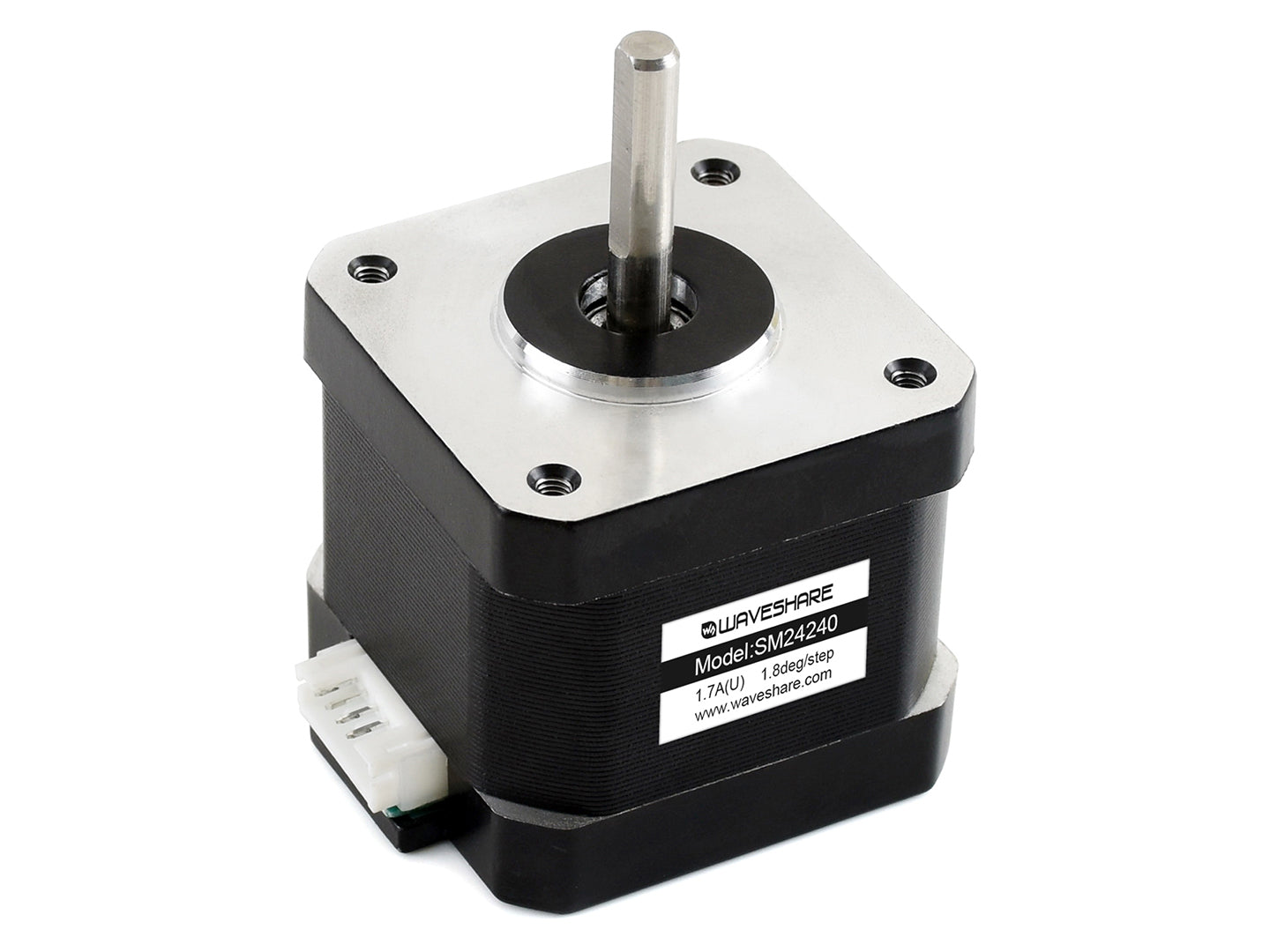

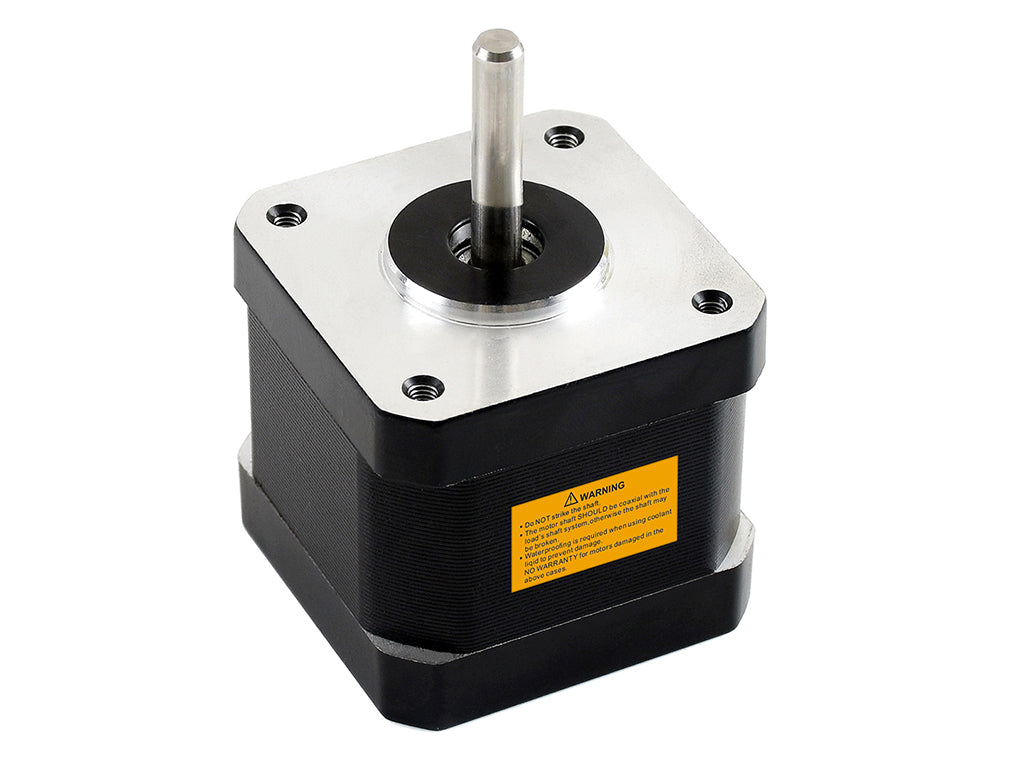

SM24240, Two-Phase Stepper Motor
Specifications
- Category: two-phase stepper motor
- Step angle: 1.8°
- Body length: 40mm
- Rated current: 1.7A/Phase
- Phase resistive elements: 2.4Ω
- Phase inductance: 3.7mH
- Holding torque: 0.45N.m
- Rotor inertia: 54(g.c㎡)
- Weight: 0.3kg
- Compatible driver: SMD258C,Stepper Motor HAT
Dimension
Wiring Configuration
Selection Guide
| Part Number | Phases | Step angle (degree) | Body length (mm) | Rated current (A/Phase) | Phase resistance (Ω) | Phase inductance (mH) | Holding torque (N.m) | Rotor inertia (g.c㎡) | Weight (kg) | Compatible driver |
|---|---|---|---|---|---|---|---|---|---|---|
| SM24240 | two-phase | 1.8 | 40 | 1.7 | 2.40 | 3.7 | 0.45 | 54 | 0.3 | SMD258C,Stepper Motor HAT |
| SM25776 | two-phase | 1.8 | 76 | 3.0 | 1.00 | 1.6 | 1.90 | 480 | 1.0 | SMD258C |
| SM35778 | three-phase | 1.2 | 78 | 5.8 | 0.29 | 0.39 | 1.50 | 380 | 1.1 | SMD356C |
Lieferumfang
- SM24240 x1
