SKU:WSAL33812
SMA Magnetic Mount Antenna Base, SMA Connector, 3m Coaxial Cable, Compatible With Multiple GNSS Positioning Modules
Regular price
1.576 Ft
Sale price
1.576 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SMA Magnetic Mount Antenna Base, SMA connector, 3m coaxial cable, Compatible with multiple GNSS positioning modules

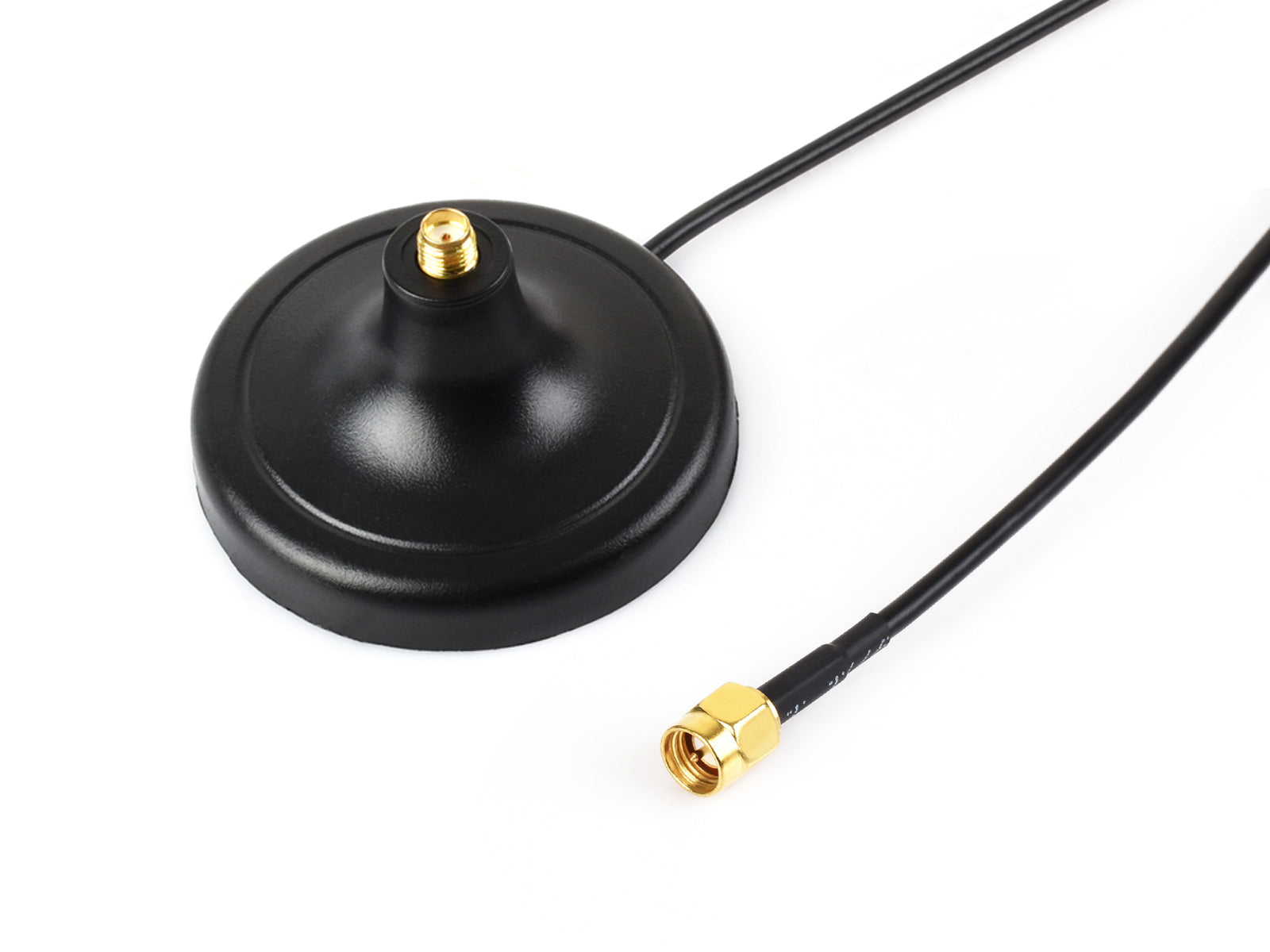

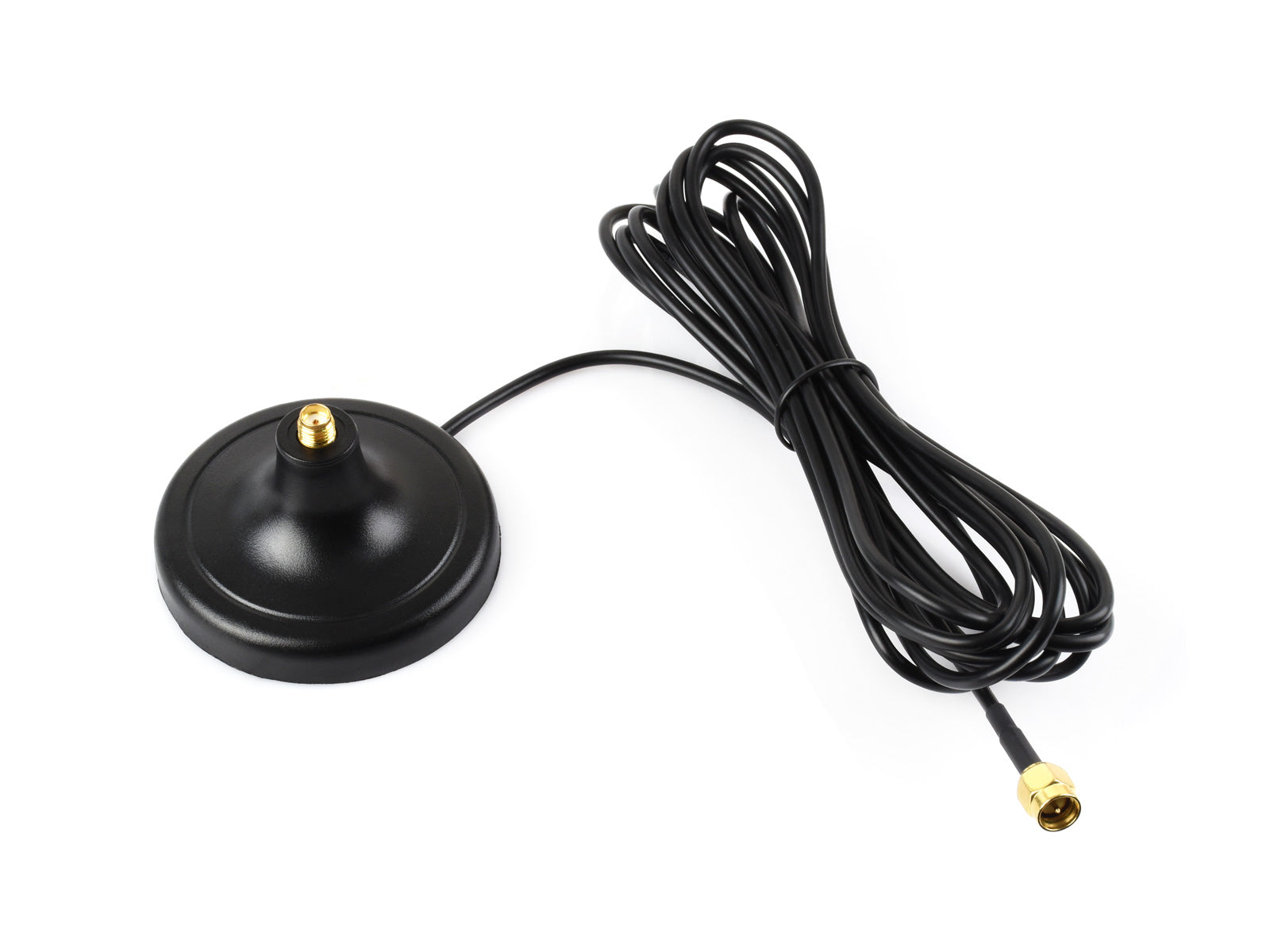

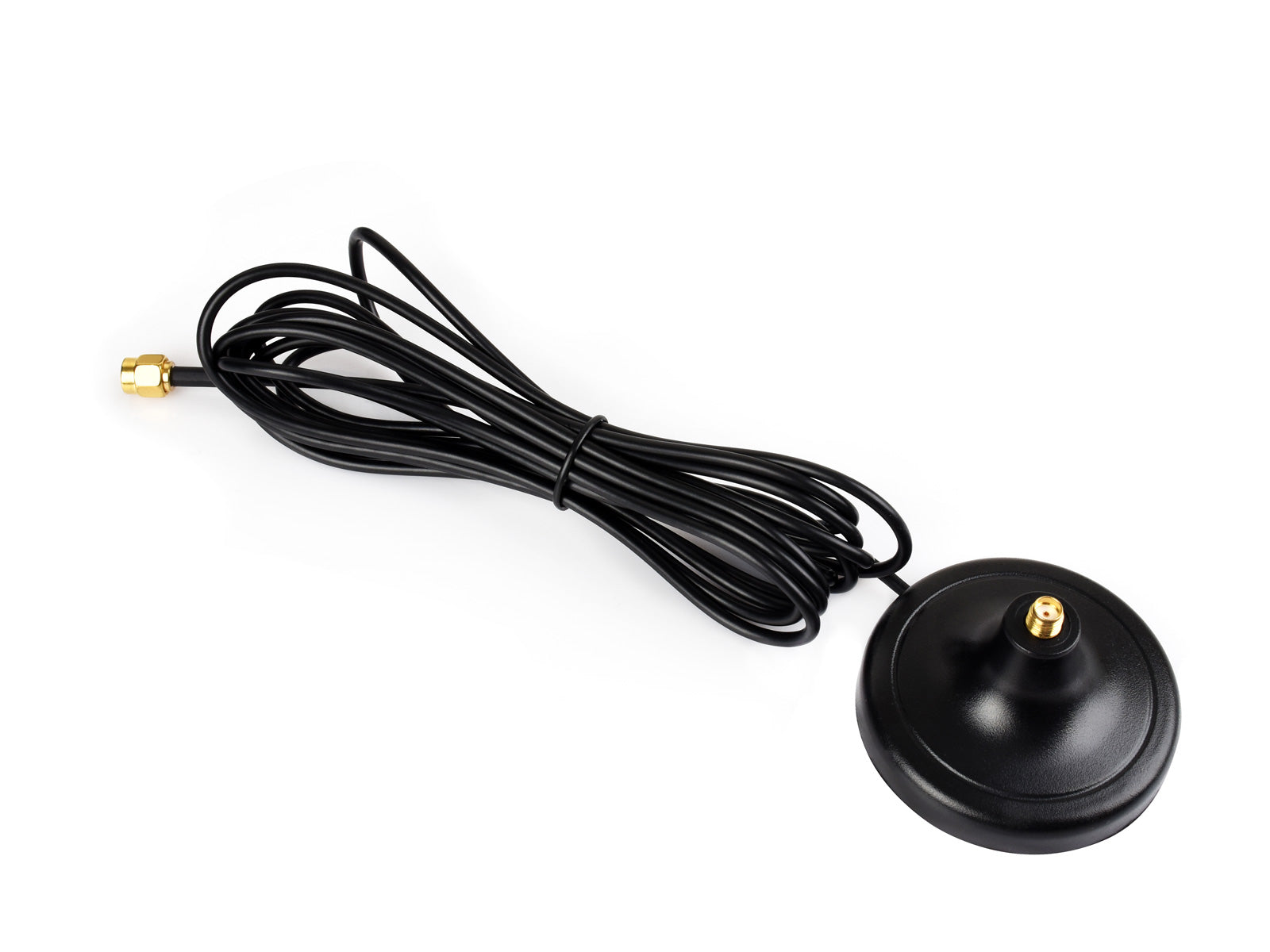

SMA Magnetic Mount Antenna Base
SMA connector | 3m coaxial cable | magnetic base
Specifications
| Frequency Range | 0GHz ~ 6GHz | Installation | Magnetic base mounting |
|---|---|---|---|
| impedance | 50Ω | cable | RG174 coaxial cable |
| Power input (MAX) | 50W | Cable Length | 3m |
| Base connector | SMA female | Cable connector | SMA male |
| dimensions | Φ60.5 × 36 (mm) | Operating temperature | -25℃ ~ +75℃ |
Connection Examples
Connecting to Q39 GNSS Helical Antennaand Q25 GNSS Helical Antenna
Connecting to 5G/4G/3G/2G External Antenna
Connecting to 5G/4G/3G/GNSS External Antenna
for reference only, please refer to the part list for detailed package content
Outline dimensions
Lieferumfang
SMA Magnetic Mount Antenna Base x1
