SKU:WSAL14542

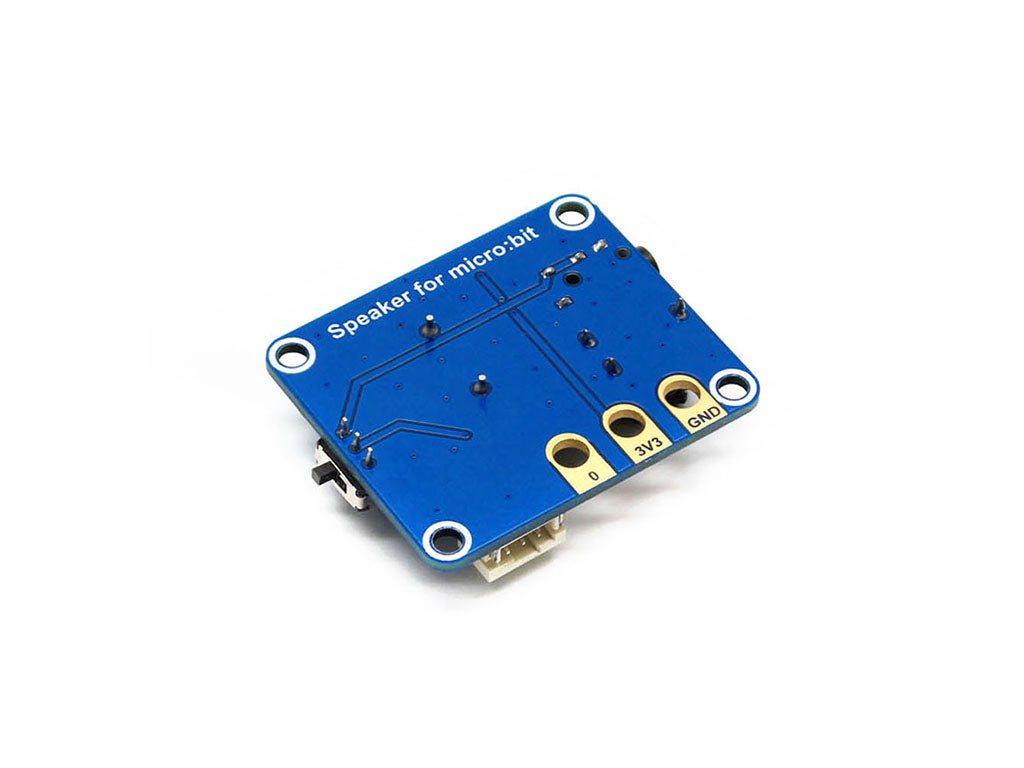

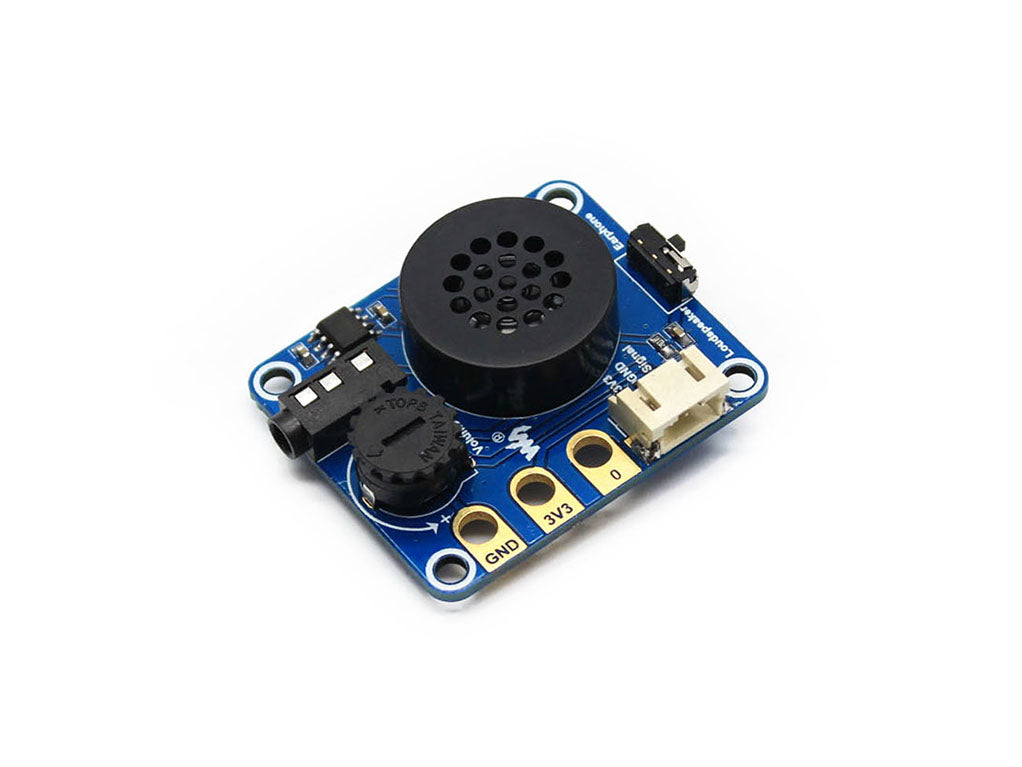

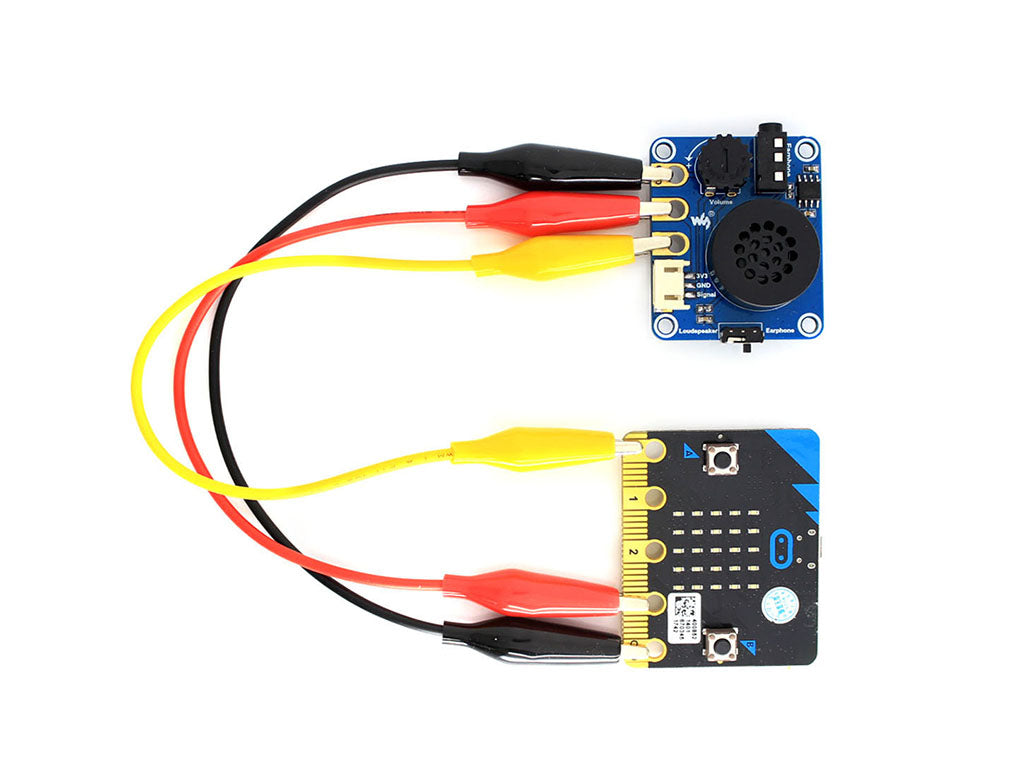

Speaker Module for micro:bit, makes it become a music player

Overview

Speaker expansion module designed for micro:bit, makes your micro:bit become a music player easily.

Furthermore, it can also be used for Arduino development, compatible with 3.3V/5V Arduino boards.

Features

• Onboard Hi-Fi chip NS8002
• Sound volume adjustment
• Earphone jack output
• Comes with development resources (micro:bit graphical demo/python code/Arduino demo/user manual, etc.)

Specifications

• Operating voltage: 2.0V ~ 5.5V
• Dimension: 36.52mm x 43.44mm
• Through holes diameter: 3.2mm

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Speaker_for_micro:bit

Lieferumfang

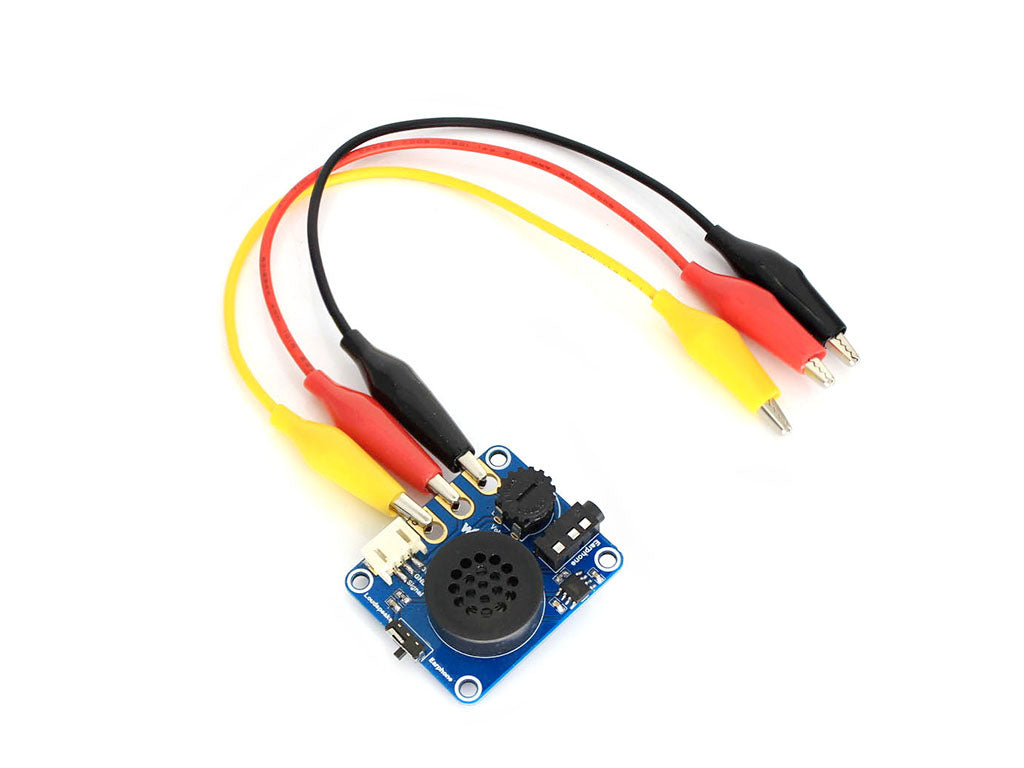

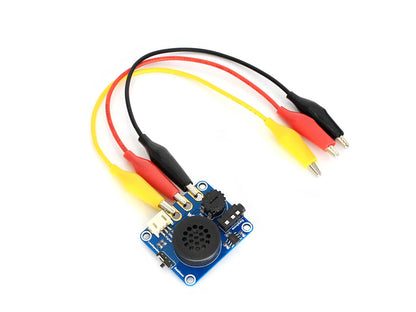

1. Speaker for micro:bit x1
2. Alligator clip cable x3
3. PH2.0 3PIN wire x1

1

2

3
