Stack HAT for Raspberry Pi, stacks up to 5 HATs at once

Overview

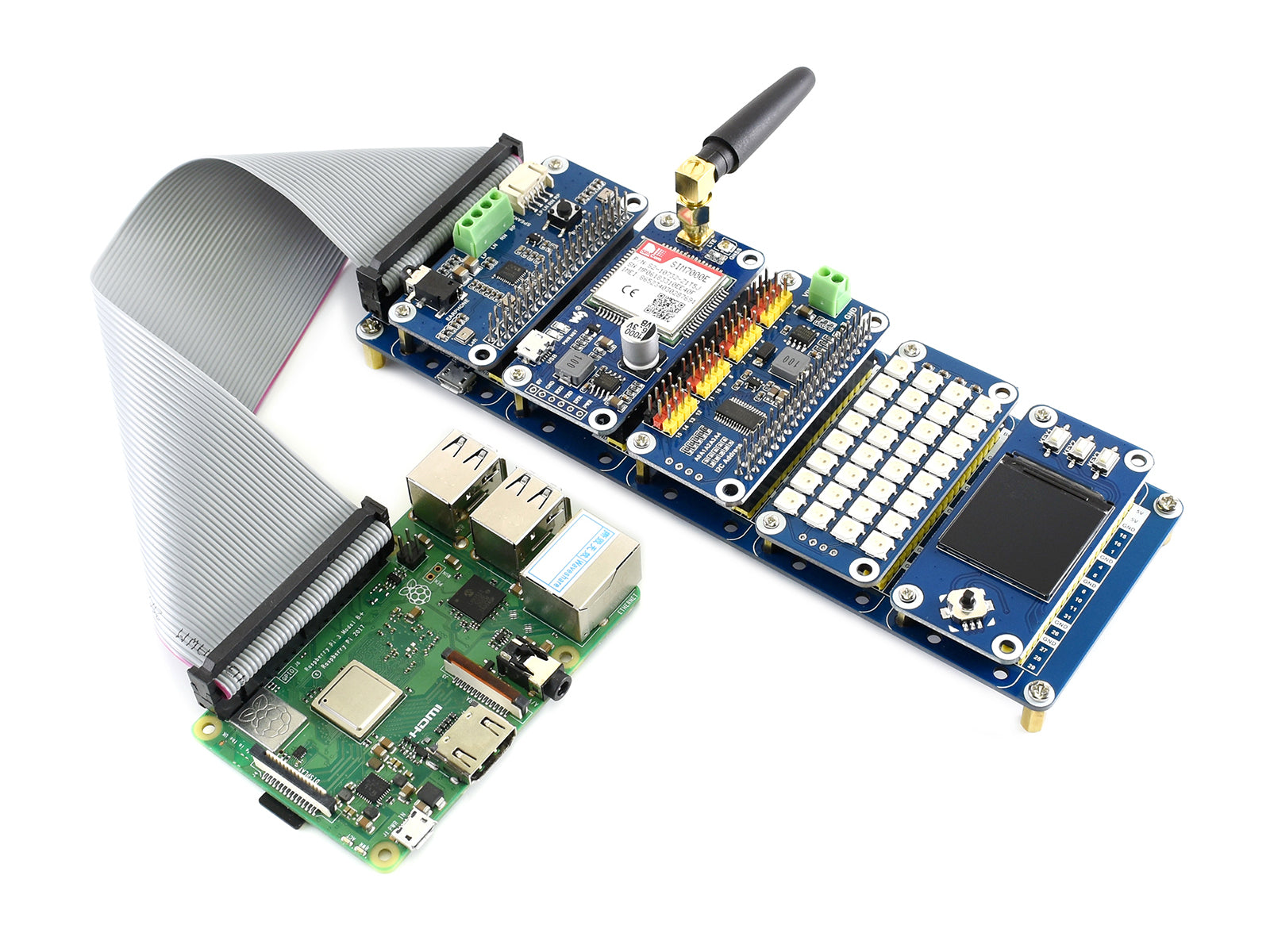

This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to "stack" multi different HATs together, and use them as a specific combination / project.

Features

• Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable

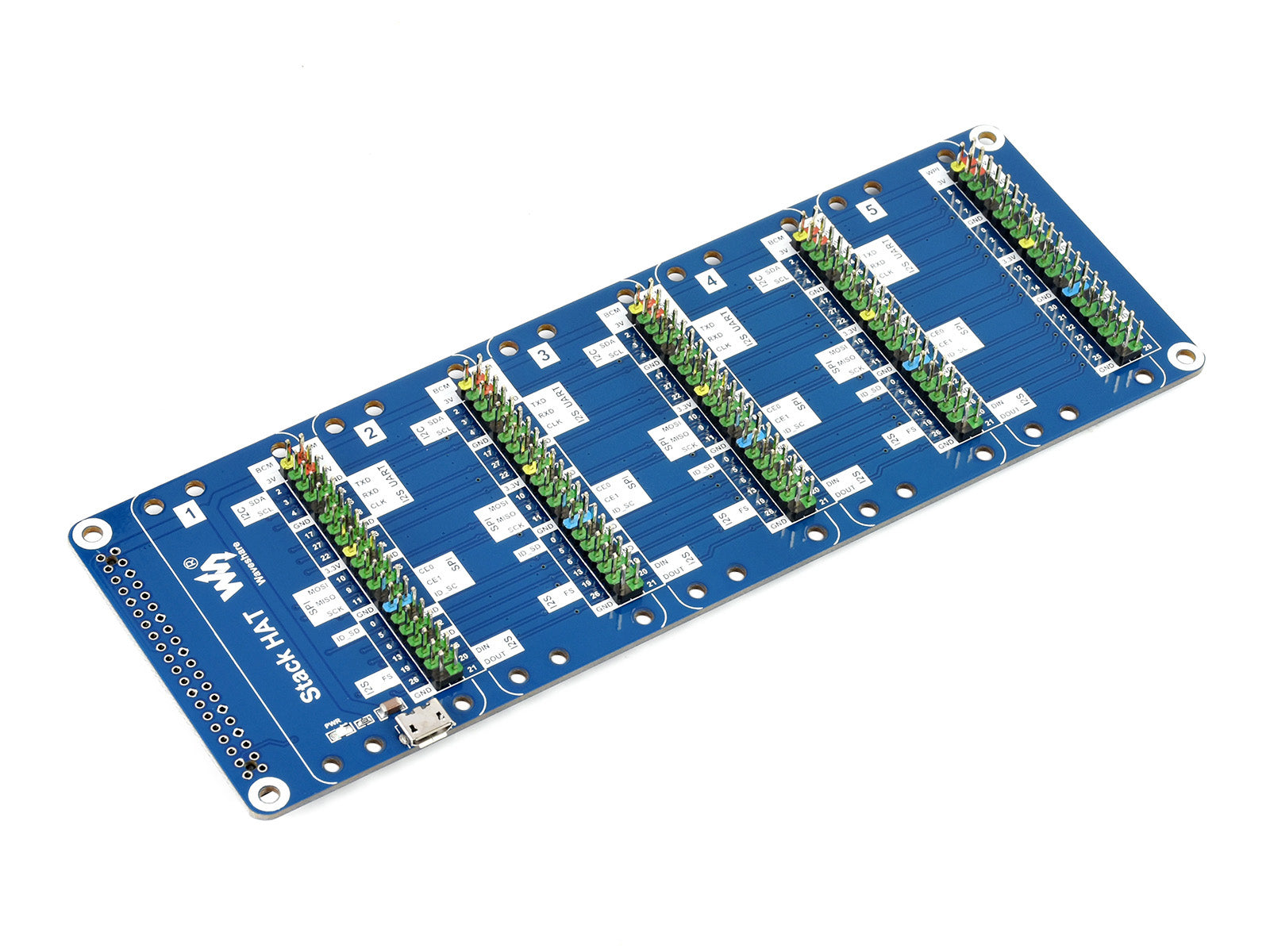

• 5 sets of 2x20 pinheaders, connect multi HATs together
• USB external power port, provides enough power supply for multi HATs
• Clear and descriptive pin labels for easy use

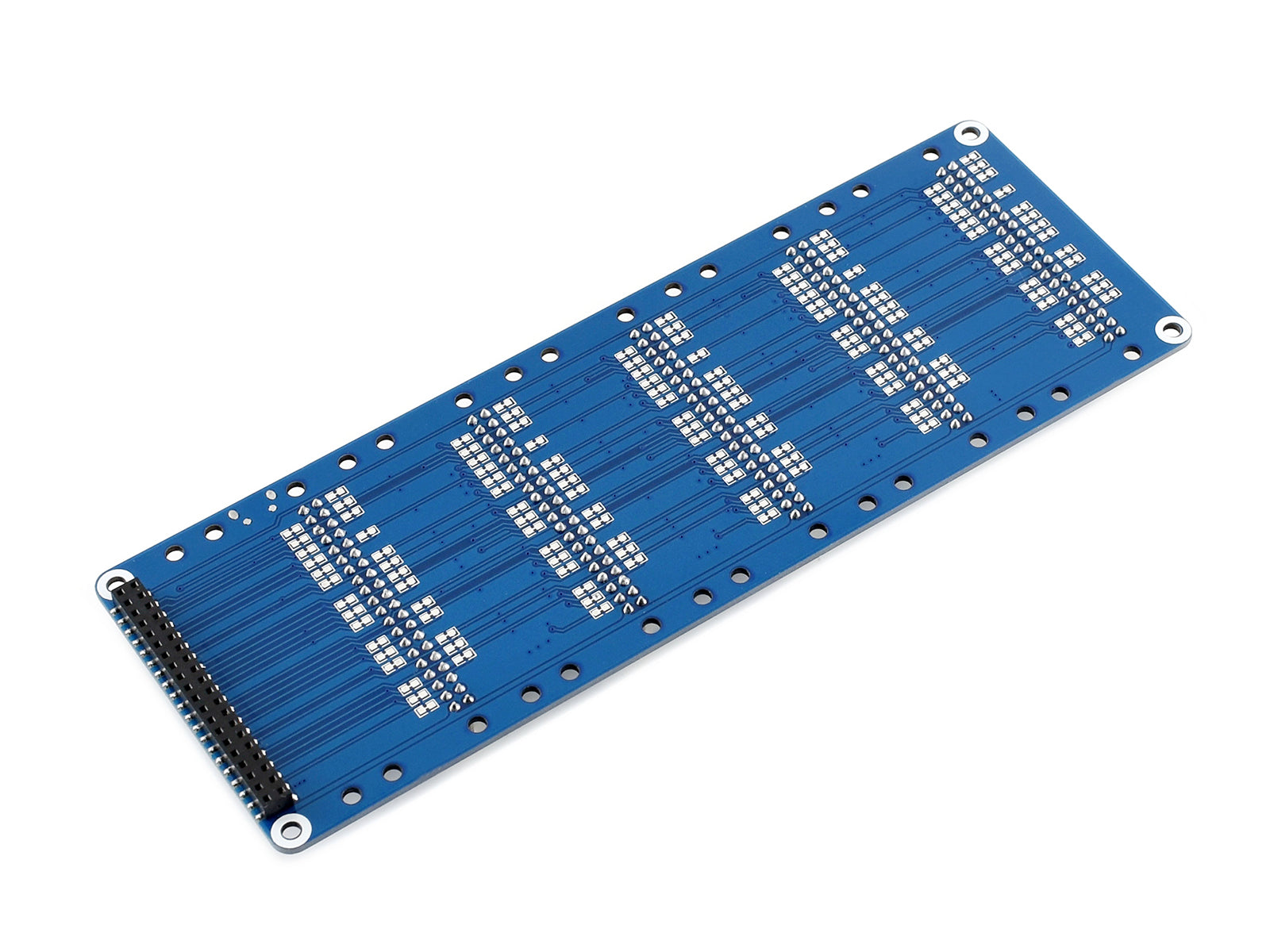

• Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts

Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting.

Specifications

• Dimension: 183mm × 65mm
• Mounting hole size: 3mm

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/Stack_HAT

Lieferumfang

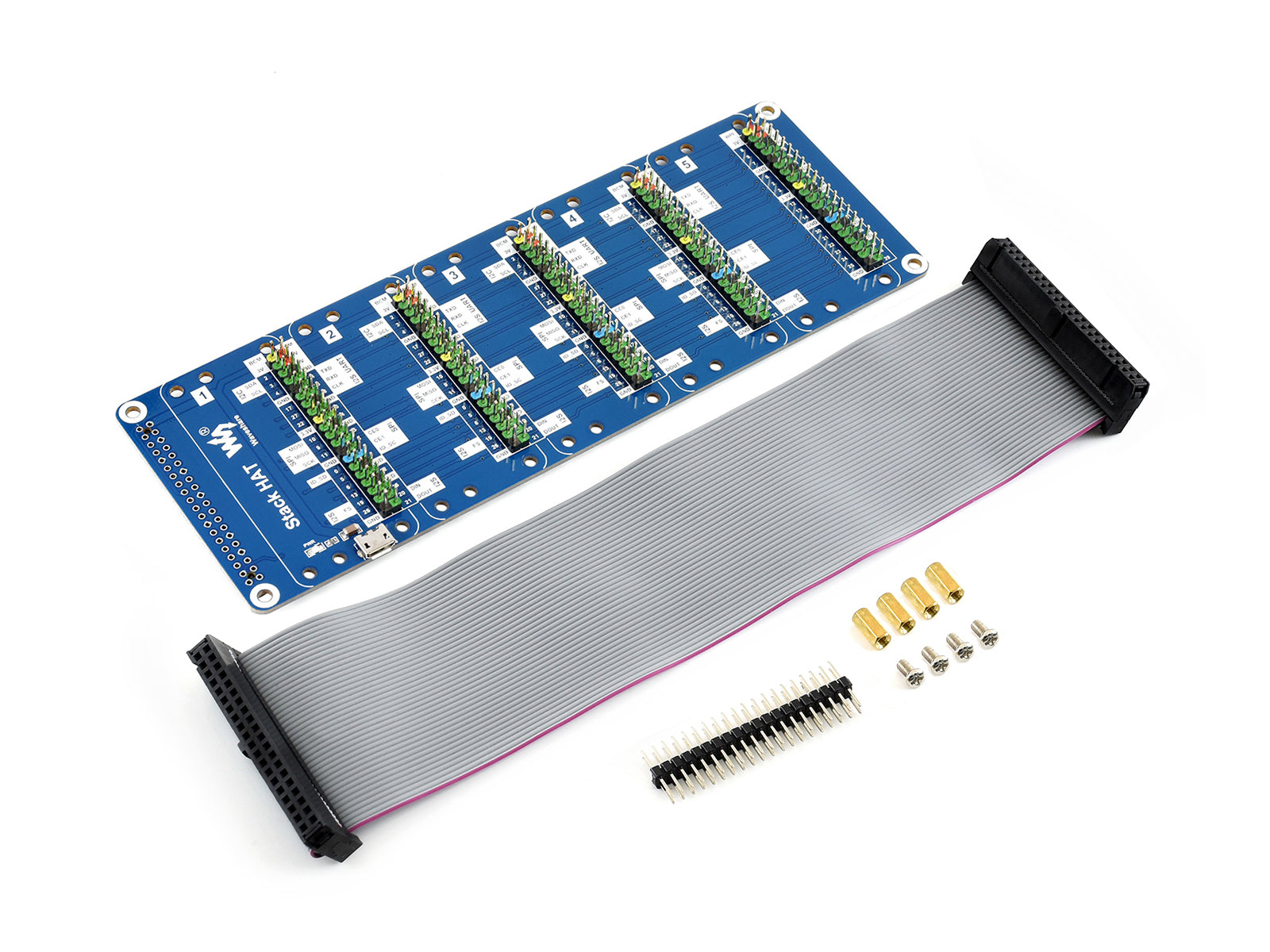

1. Stack HAT x1
2. Ribbon cable 40PIN x1
3. 2x20 male pinheader x1
4. RPi screws pack (4pcs) x1
