Kurzbeschreibung: STLINK-V3SET, modular in-circuit debugger and programmer for STM32/STM8, JTAG / SWD, SWIM, Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs

STLINK-V3SET, modular in-circuit debugger and programmer for STM32/STM8

STLINK-V3SET Debugger/Programmer

Suitable for STM8 / STM32 microcontrollers

The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.

Features at a glance

• Stand-alone probe with modular extensions
• Self-powered through a Micro-B USB connector (does not provide power supply to the target application)
• USB 2.0 high-speed compatible interface
• Direct firmware update (DFU) support, to use with more future devices
• Supports JTAG / SWD interfaces, 3V~3.6V application voltage support and 5 V tolerant inputs
• Supports SWIM interface, 1.65V~5.5V application voltage support, only available with adapter board MB1440
• Virtual COM port (VCP) specific features:
  • 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
  • VCP frequency up to 15 MHz
  • Available on STDC14 debug connector (not available on MIPI10)
• Drag-and-drop Flash programming
• Two color LEDs: communication, power

Software Support

Hardware Support

All STM32 MCUs with JTAG / SWD interface

All STM8 MCUs with SWIM interface

• for reference only, the STM32 and STM8 boards above are NOT included
• JP4 and JP6 jumper caps must be connected to use the SWIM interface

Product assembly diagram

STLINK Series Selection Guide

Item	V3MINIE	V3SET	V2
JTAG/SWD application voltage	1.65V~3.6V①	3V~3.6V	1.65V~3.6V①
SWIM application voltage	N/A	1.65V~5.5V	1.65V~5.5V
SWV support	YES②
Debug interface	multi	multi③	2
LED Indicator	two colors④
① ST-LINK/V2 and STLINK-V3MINIE support STM32 low-power devices. ② Only available for STM32 at present. ③ STLINK-V3SET features GPIO port besides the programming port. ④ Two colors LED indicates both power and communication.

What's On Board

1. Micro USB port
2. Power LED indicator
3. COM LED indicator COM LED is blinking RED: the first USB enumeration with the PC is taking place. COM LED is RED: communication between STLINK-V3SET and the PC is established (end of enumeration). COM LED is blinking GREEN/RED: data are being exchanged between the target and the PC.
4. UART header (VCP)
5. SWIM header
6. SWD header

7. SWIM ON/OFF enabled when jumper cap is connected
8. CAN header
9. CAN ON/OFF enabled when jumper cap is connected
10. UART Bridge
11. SPI/UART/I2C/CAN/GPIOs Bridge
12. SPI Bridge
13. JTAG20 header
14. STDC14 header

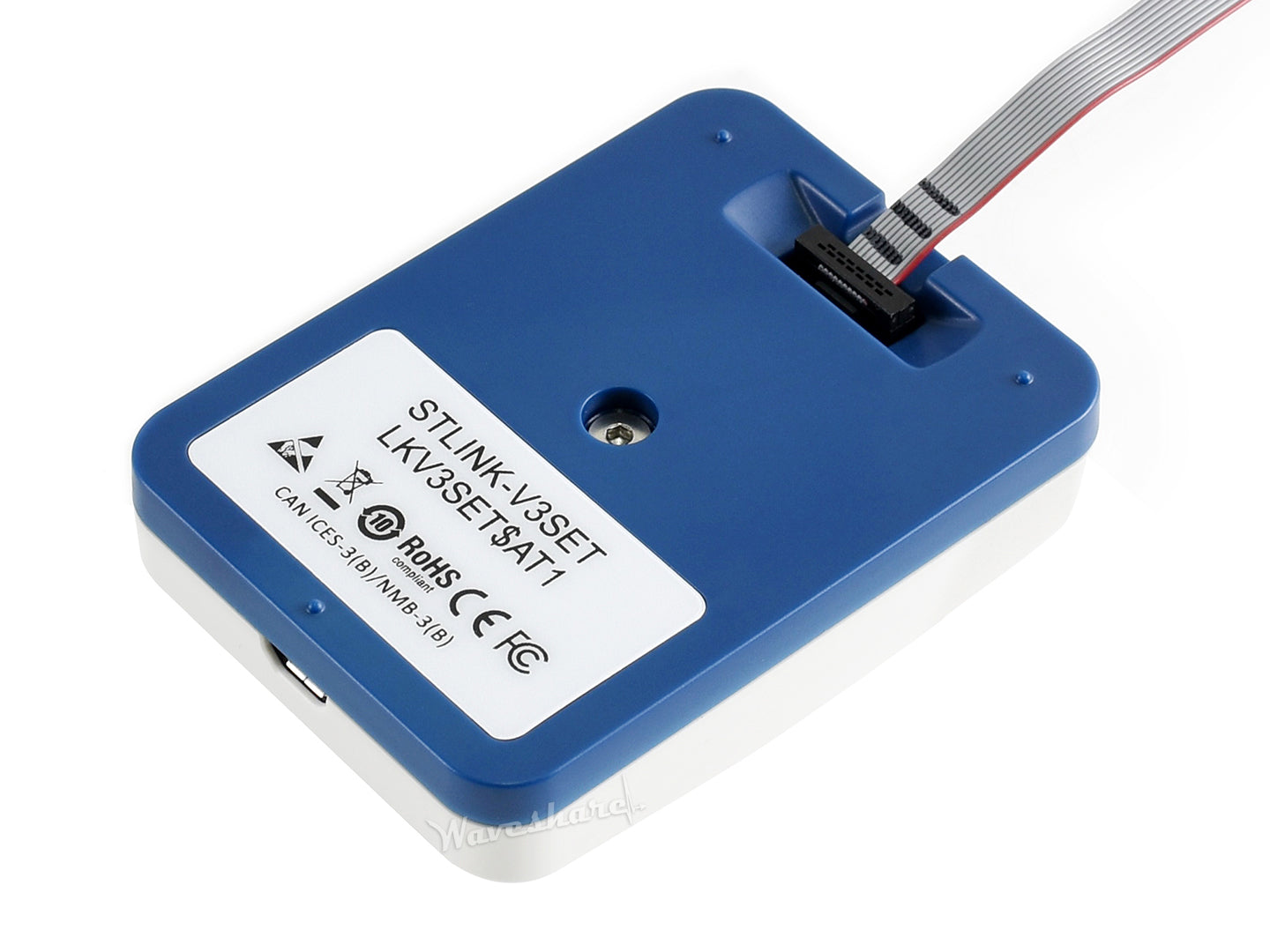

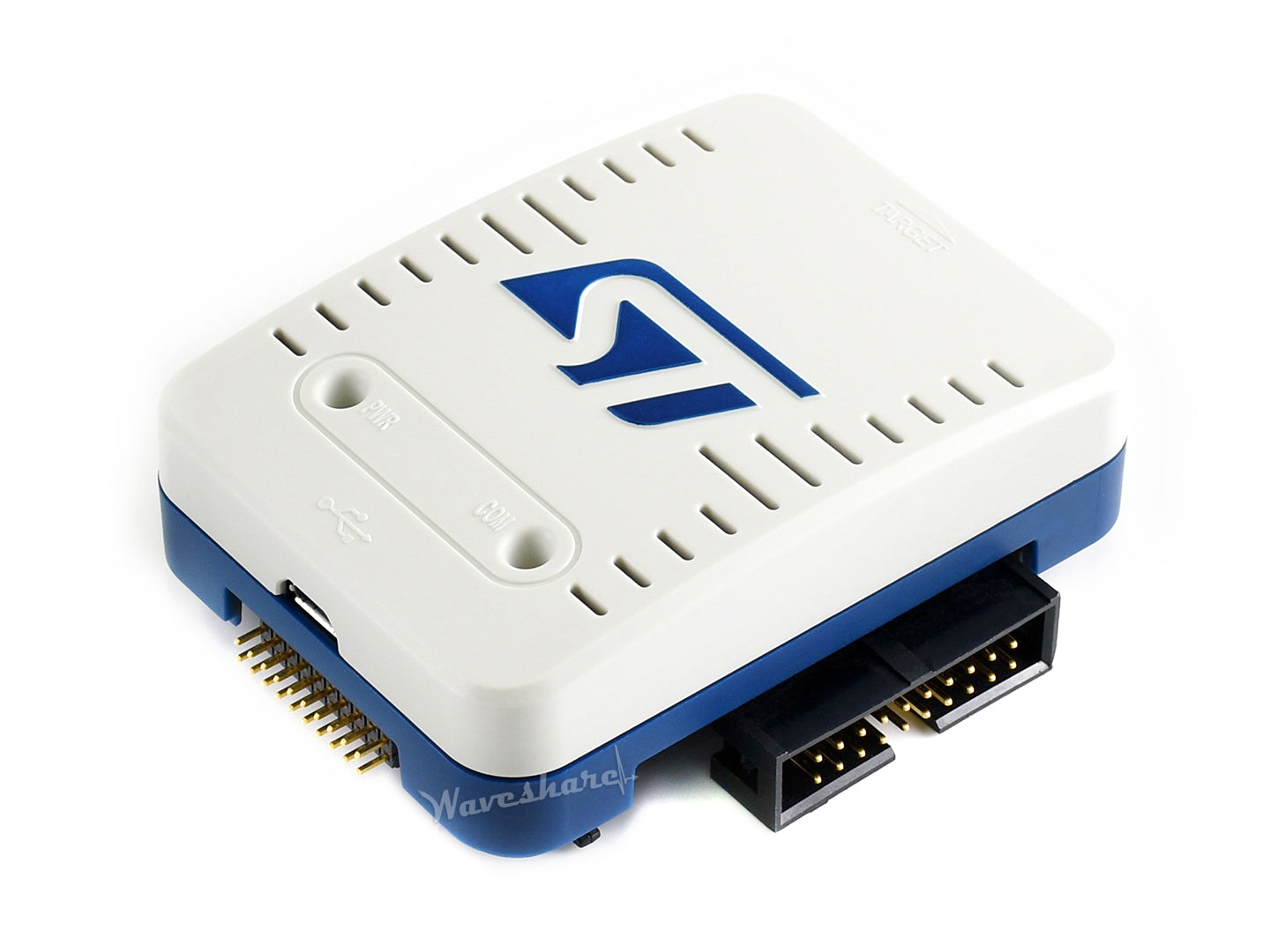

Product show

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/STLINK-V3SET

Lieferumfang

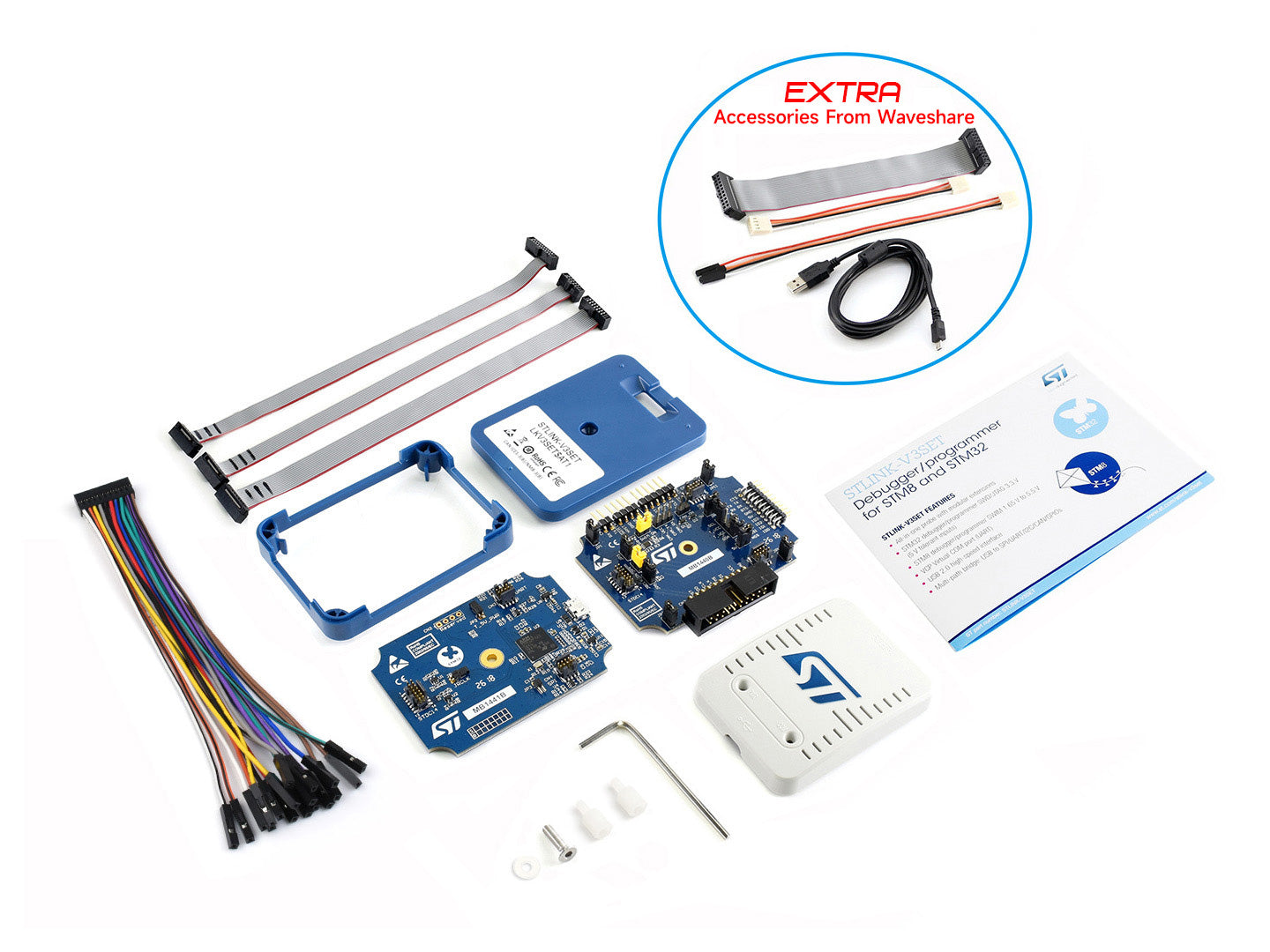

STLINK-V3SET x1
