SKU:WSAL11096

STM32F746G-DISCO, 32F746GDISCOVERY

Name: STM32F746G-DISCO, 32F746GDISCOVERY
Brand: ST
SKU: WSAL11096
Price: 37471.8 HUF
Availability: InStock

37.472 Ft

37.472 Ft 0 Ft

Sale Sold out

Tax included. Shipping calculated at checkout.

Quantity

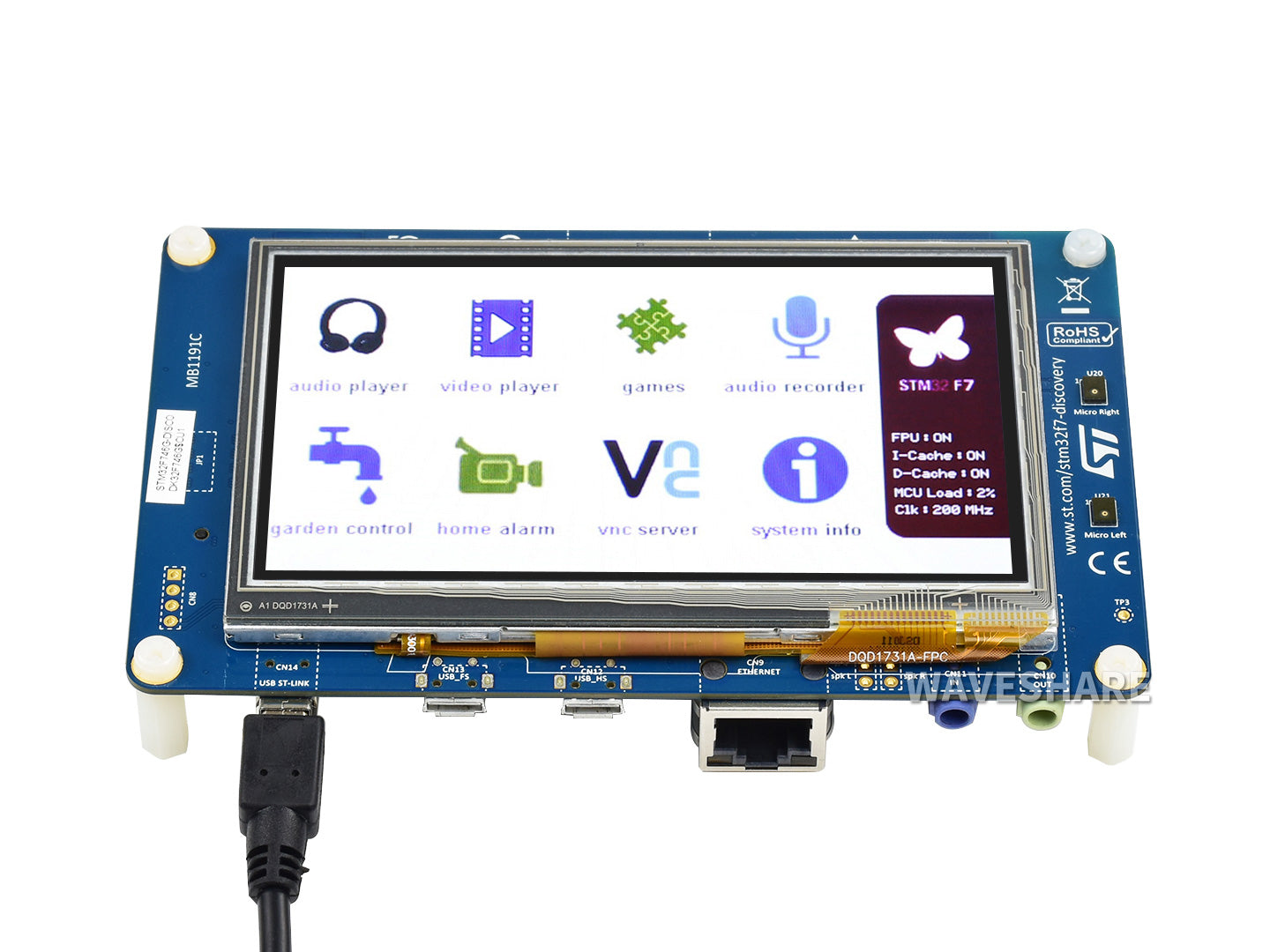

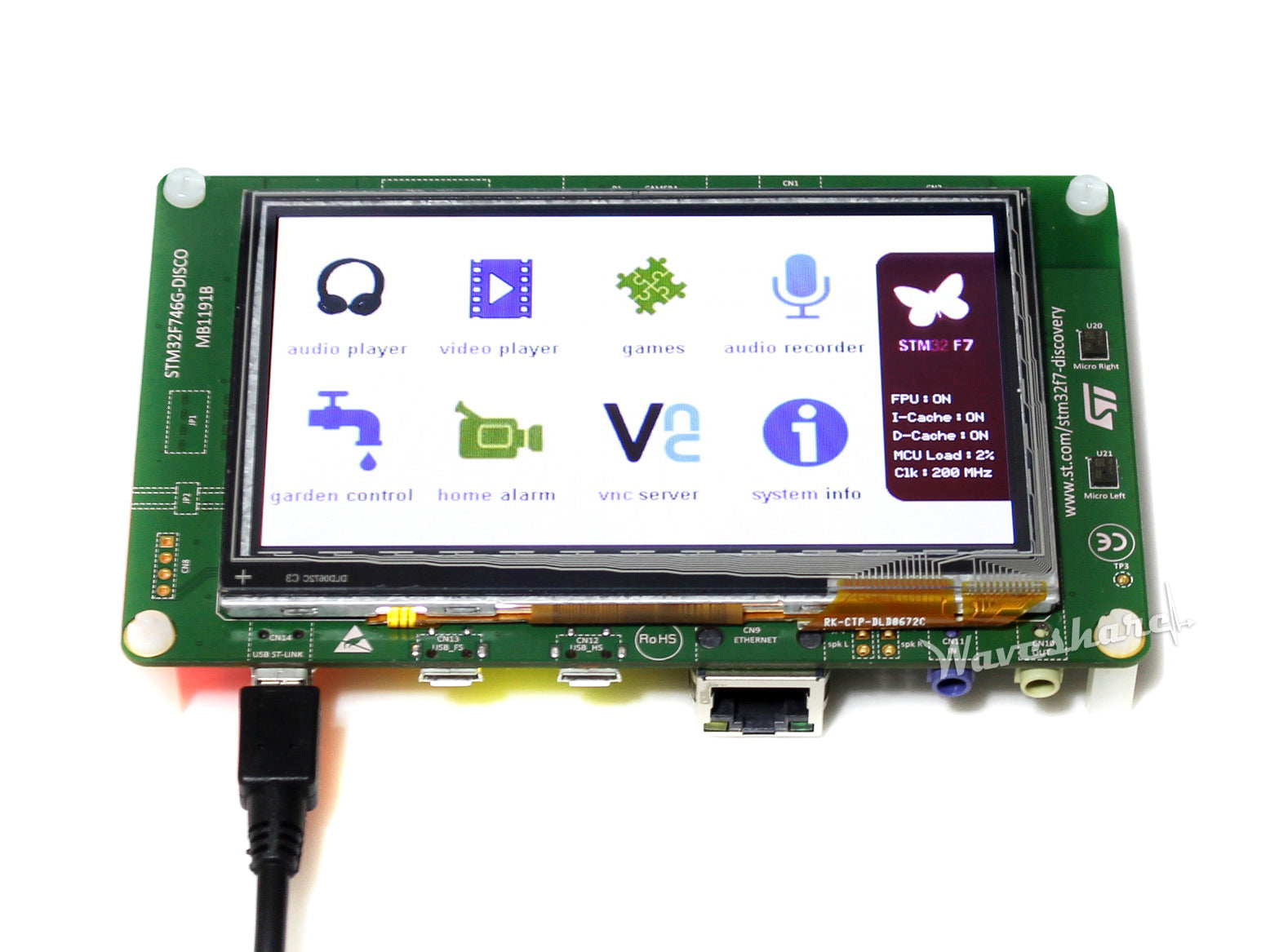

32F746GDISCOVERY, Discovery kit with STM32F746NG MCU

Description

The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontollers based on ARM® Cortex®-M7 core.

The discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.

The Arduino connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Key Features

STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
On-board ST-LINK/V2-1 supporting USB re-enumeration capability
Mbed-enabled (mbed.org)
USB functions: virtual COM port, mass storage, debug port
4.3-inch 480x272 color LCD-TFT with capacitive touch screen
Camera connector
SAI audio codec
Audio line in and line out jack
Stereo speaker outputs
Two ST MEMS microphones
SPDIF RCA input connector
Two pushbuttons (user and reset)
128-Mbit Quad-SPI Flash memory
128-Mbit SDRAM (64 Mbits accessible)
Connector for microSD card
RF-EEPROM daughterboard connector
USB OTG HS with Micro-AB connectors
USB OTG FS with Micro-AB connectors
Ethernet connector compliant with IEEE-802.3-2002
Five power supply options:
- ST LINK/V2-1
- USB FS connector
- USB HS connector
- VIN from Arduino connector
- External 5 V from connector
Power supply output for external applications: 3.3 V or 5 V
Arduino Uno V3 connectors
Comprehensive free software including a variety of examples, part of STM32Cube package
Supported by a wide choice of integrated development environments
