T2313+ ADP, AVR Programmer Adapter
Regular price
17.153 Ft
Sale price
17.153 Ft
Regular price
0 Ft
Unit price
per
Sale
Sold out
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Kurzbeschreibung: Enplas IC Test & Burn-in Socket with a simple board, especially for AVR SOIC20(300 mil) package
Enplas IC Test & Burn-in Socket with a simple board, especially for AVR SOIC20(300 mil) package
Features
- 10-pin/6-pin ISP Port for programming or testing
- External crystal can be connected via on board socket
- All the MCU pins are accessible on expansion connectors
Supported Devices
ATtiny2313 SOIC20(300 mil) package and other pinout compatible devices of the sort
- AVR MCU:ATtiny2313
- 51 MCU:AT89S2051/AT89S4051/AT89LP201/AT89LP4051
Outline and Dimensions
Unit: mm
| Part Number | Pitch | Pins | Applicable IC Dimensions (REF.) | Outside Dimensions (REF.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |||
| OTS-28-1.27-04 | 1.27 | 20 | 10.4±0.2 | 7.5±0.2 | 9.2±0.2 | - | 25.4 | 27 | - | - |
 | ||||||||||
Photos

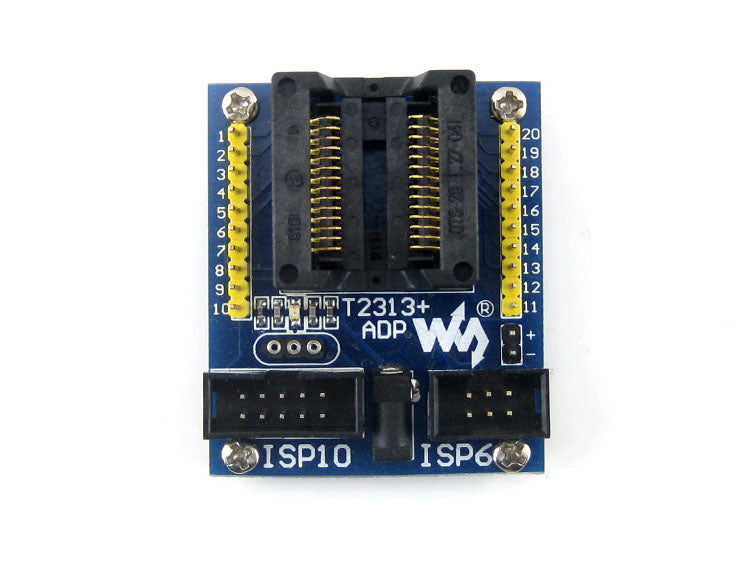

- All the MCU pins are accessible on expansion connectors
- Power Input
- 6-pin ISP Port
- 10-pin ISP Port
- External Crystal Socket
- Power LED
ISP Port Header Pinout
The T2313+ ADP houses ISP headers for connecting a programmer. The header pinouts are shown in the figures below.
Figure 1. 10-pin ISP header pinout
Figure 2. 6-pin ISP header pinoutDownloads
Development resources:schematic, etc. Wiki:www.waveshare.com/wiki/T2313+_ADP
Lieferumfang
- T2313+ ADP × 1
- USB power cable × 1
