SKU:WSAL21600

Kurzbeschreibung: The Official Cooling Fan For Jetson Xavier NX

The Official Cooling fan for Jetson Xavier NX

Official Cooling fan for Jetson Xavier NX

compatible with Jetson Xavier NX module, speed-adjustable fan, with elastic bracket and height-limited screws

Specifications

Module support	NVIDIA Jetson Xavier NX module
Power supply	DC 5V input
Structure	Embedded fan, aluminum alloy enclosure
Electrical parameter	0.65W (5V/0.13A)
Cable length	37±3mm
Fan	PWM speed-adjustable, 5500±10%RPM

Attaching To The Module

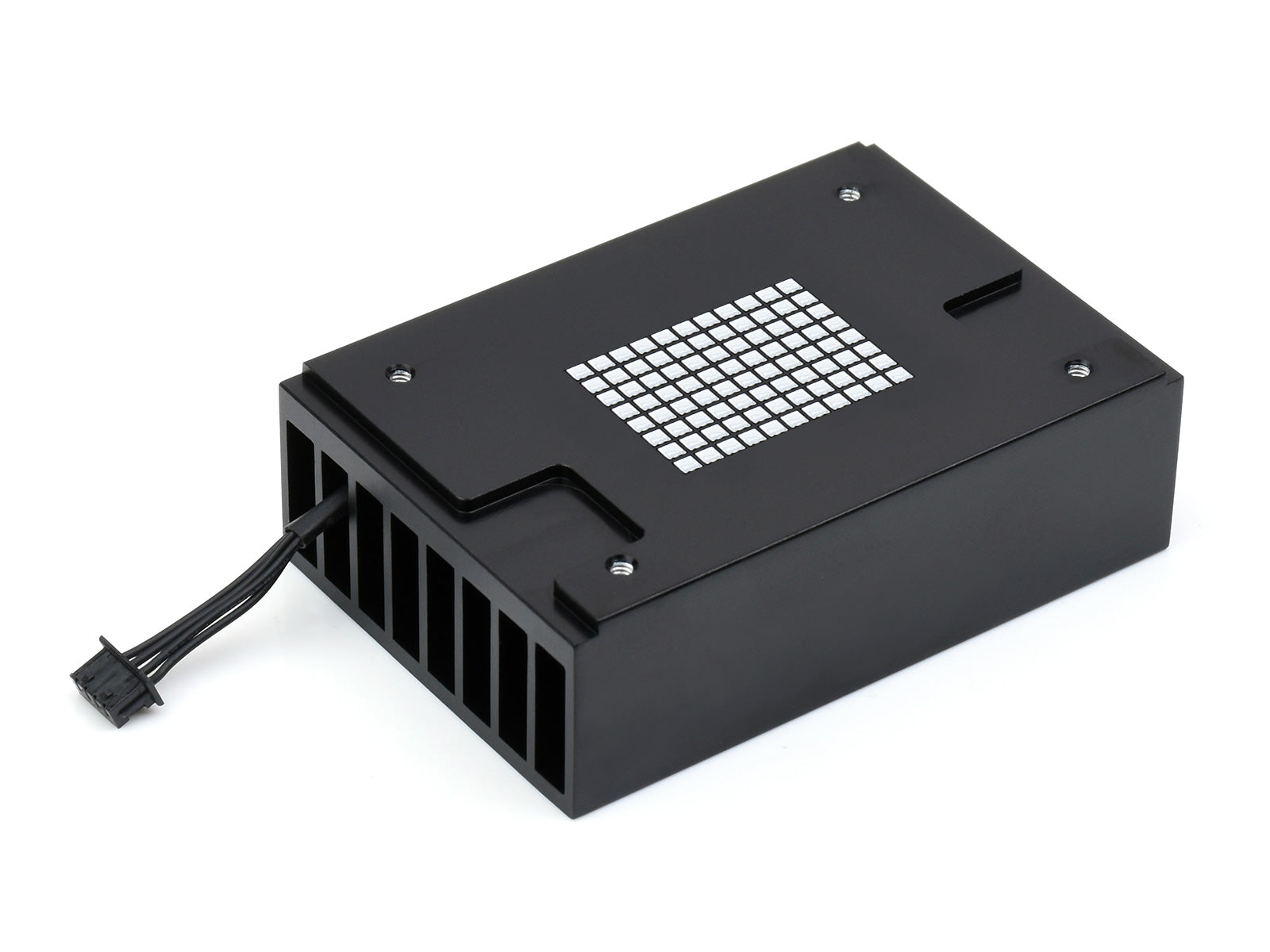

front view

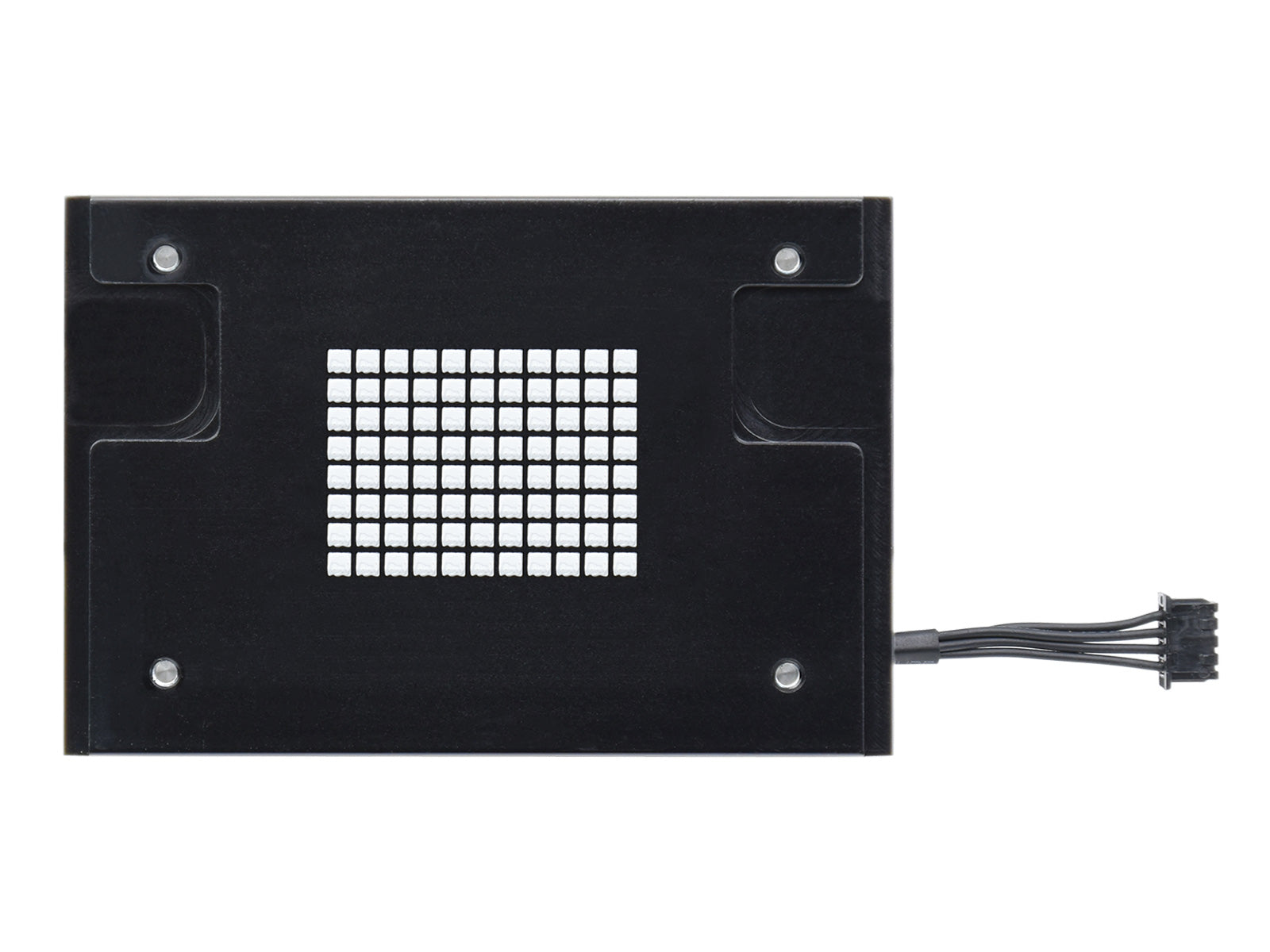

back view

Reserved Silicone Grease

please don't touch the silicone grease when opening the package

Outline dimensions

Lieferumfang

1. NX-FAN-PWM x1
2. Elastic bracket and height-limited screws x1

1

2
