Kurzbeschreibung: USB 3.2 Gen1 And Gigabit Ethernet HUB HAT For Raspberry Pi, 3x USB 3.2 Gen1, 1x Gigabit Ethernet, Driver-Free

USB 3.2 Gen1 and Gigabit Ethernet HUB HAT for Raspberry Pi, 3x USB 3.2 Gen1, 1x Gigabit Ethernet, driver-free

USB & GigE HUB HAT

USB HUB with Gigabit Ethernet Designed for Raspberry Pi

3x USB 3.2 Gen1, 1x GigE, Driver Free, Plug & Play

This is a driver-free 3 ports USB 3.2 Gen1 hub HAT for Raspberry Pi, also with a Gigabit Ethernet port, provides more USB/network capability to your Pi, make it easy to connect more USB devices and network devices.

The HAT features standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports is able to provide up to 5 Gbps data rate, which means 10 times faster than USB 2.0.

Features at a glance

• 3x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1
• 1x Gigabit Ethernet port, 1000M/100M/10M compatible
• Onboard external USB-C 5V DC power port, ensures more stable power supply
• 1x power indicator and 3x USB port indicators, easy to check the operating status
• Driver-free, plug and play, compatible with OS including Windows, mac OS, Linux and Android
• Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi version as well
• Comes with development resources and manual

USB 3.2 Gen 1 OR USB 3.0

they're totally equivalent in fact, indicating the transition of technical naming specificationthe word USB 3.0 on this page exactly means USB 3.2 Gen 1

Data rate	used name	current name
5 Gbps	USB 3.0 / USB 3.1 Gen 1	USB 3.2 Gen 1

Designed for Raspberry Pi series

Standard Raspberry Pi 40PIN GPIO header, customized for Raspberry Pi series boards

OnlyRaspberry Pi 4BandPi 400 support USB 3.2 Gen 1 for the moment, therefore, when working with other previous Raspberry Pi versions, there will be a data rate degradation.

External power supply support

Onboard external USB-C 5V DC power port

Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device

Multiple indicators

easy to check the operating status of power and USB ports

Various USB devices support

Driver free, plug & play

compatible with OS including Windows, mac OS, Linux and Android

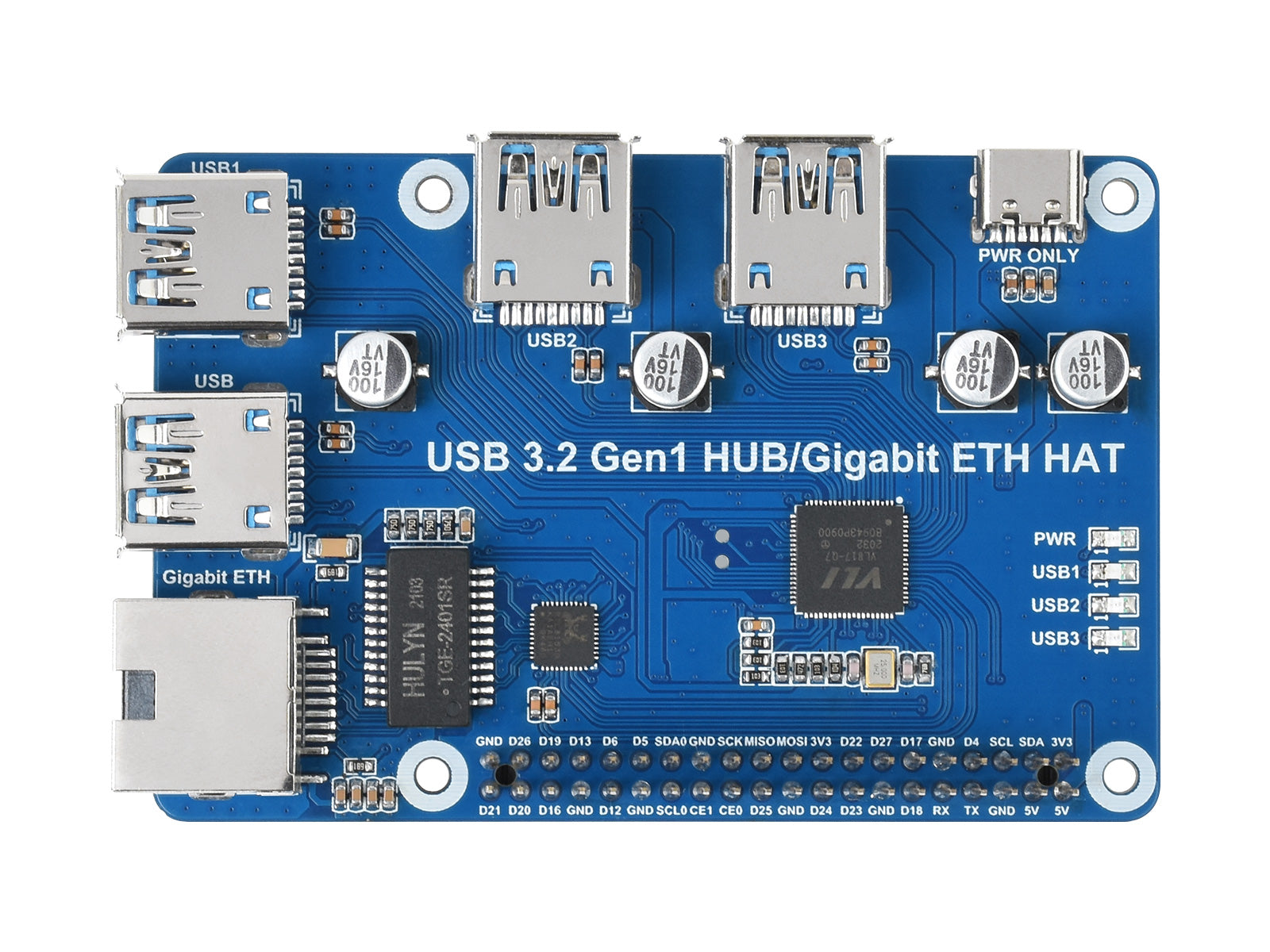

What's on board

1. Raspberry Pi GPIO header for connecting Raspberry Pi
2. USB 3.2 Gen1 HUB input connects to Raspberry Pi USB port
3. USB 3.2 Gen1 extended ports USB1~USB3
4. Gigabit Ethernet portup to 1000Mbps data rate
5. PWR ONLY port for external USB-C 5V DC power input

6. VL817-Q7 USB HUB chip
7. RTL8153B USB 3.0 to Gigabit Ethernet converter
8. TGE-2401SRGigabit Ethernet transformer
9. PWR power indicator
10. USB1~USB3 indicator for each USB port
11. MX25L512EOI-10G FLASH chip

Outline dimensions

Resources & Services

---

WIKI:USB_3.2_Gen1_HUB_Gigabit_ETH_HAT

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Lieferumfang

1. USB 3.2 Gen1 HUB Gigabit ETH HAT x1
2. USB 3.0 Adapter x1
3. USB 3.0 dual plug cable ~60cm x1
4. RPi screws pack (2PCS) x1

1

2

3

4
