SKU:WSAL21442

USB To UART Communication Module, Micro / Mini / Type-A / Type-C Connectors, High Baud Rate Transmission

USB to UART Communication Module

Stable transmission | Multi-device applicable | Multi-system compatible

Features at a glance

• Adopts new version CH343G chip. Compared with CH340G, it supports higher data rate (up to 6Mbps) and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V)
• Supports Mac, Linux, Android, Windows 7/8/8.1/10/11
• Onboard resettable Fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improve shock proof performance, stable and safe communication performance
• Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance
• Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
• Support 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)
• Adopts double-sided black immersion gold process, which is durable and has a good look

Specifications

HOST INTERFACE	USB
DEVICE INTERFACE	UART
COMMUNICATION RANGE	50bps ~ 6Mbps
USB DEVICE INTERFACE	connector: mini-USB, micro-USB, USB Type-A, USB Type-C; protection: resettable Fuse, ESD protection
UART INTERFACE	connector: 6pin right-angle pinheader; protection: IO protection diode

Multiple Protection Circuit, Safe And Stable

Onboard resettable Fuse And Transient Voltage Suppressor, Prevent Overcurrent And Overvoltage, Improve shock proof performance; Onboard IO Protection Circuit, Anti Surge, Anti-Static, Stable And Safe Communication Performance

Multiple systems support

Compatible with popular systems like Win7/8/8.1/10/11, Mac, Linux, Android...

Interface Introduction

Indicator description
PWR	Power indicator, turn on when the voltage is detected from USB interface
RXD	Receiving indicator, turn on when data is sent back from the device interface
TXD	Sending indicator, turn on when data is sent from USB

Pinouts Definition

VCC	5V or 3.3V output for external device (configured by jumper)
GND	Ground
TXD	Connects to MCU.RXD
RXD	Connects to MCU.TXD
RTS#	Connects to MCU.CTS
CTS#	Connects to MCU.RTS

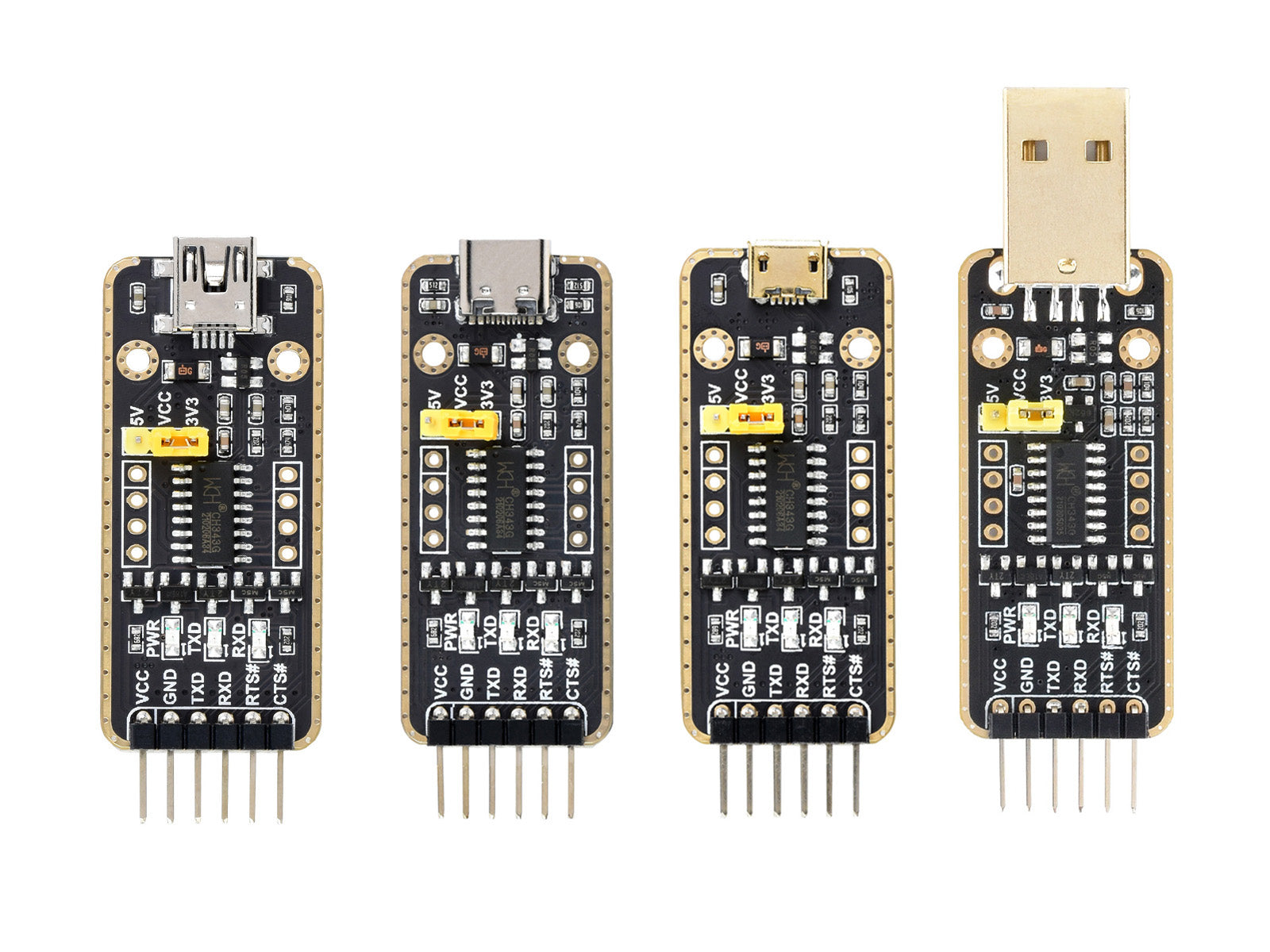

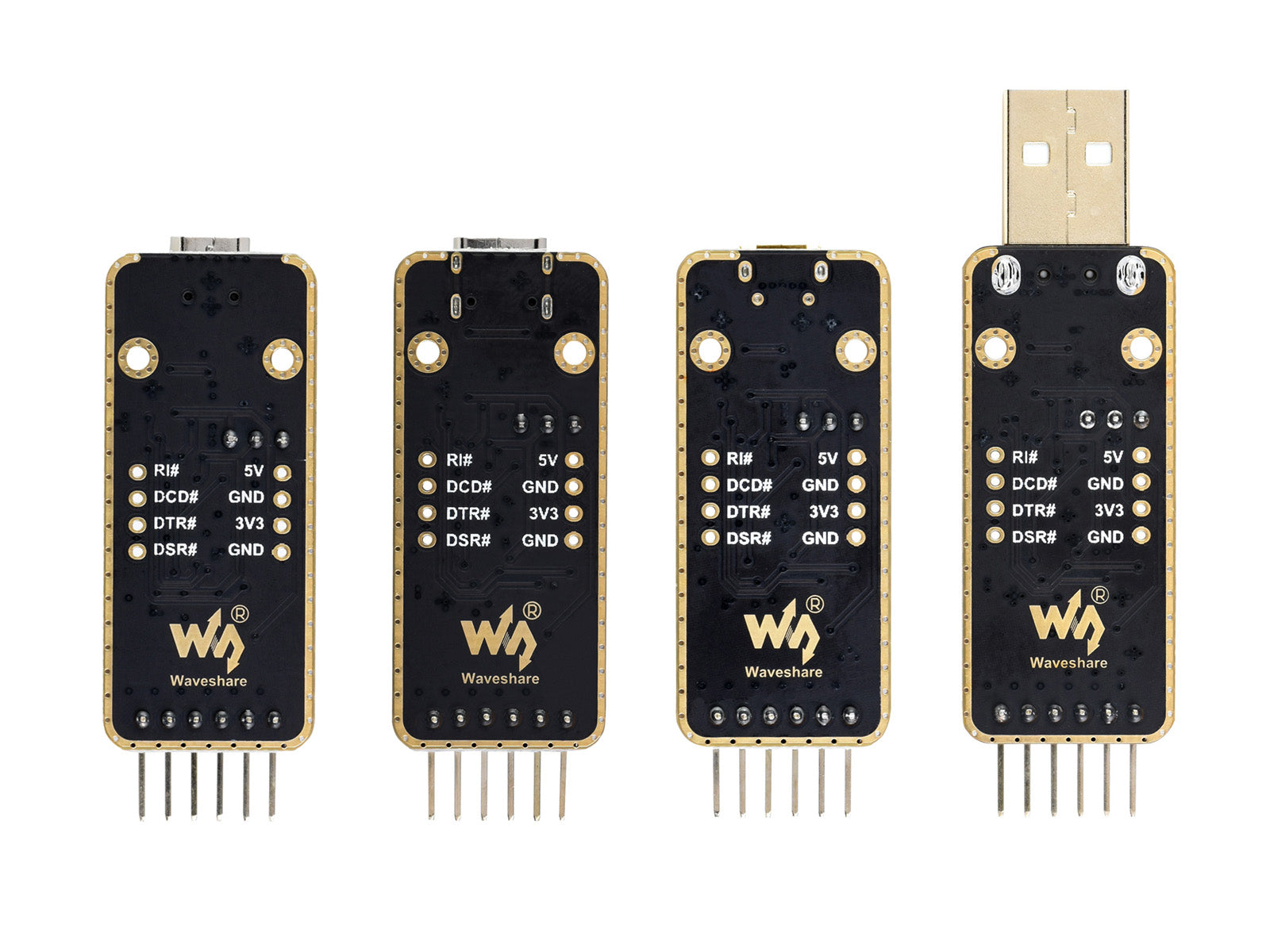

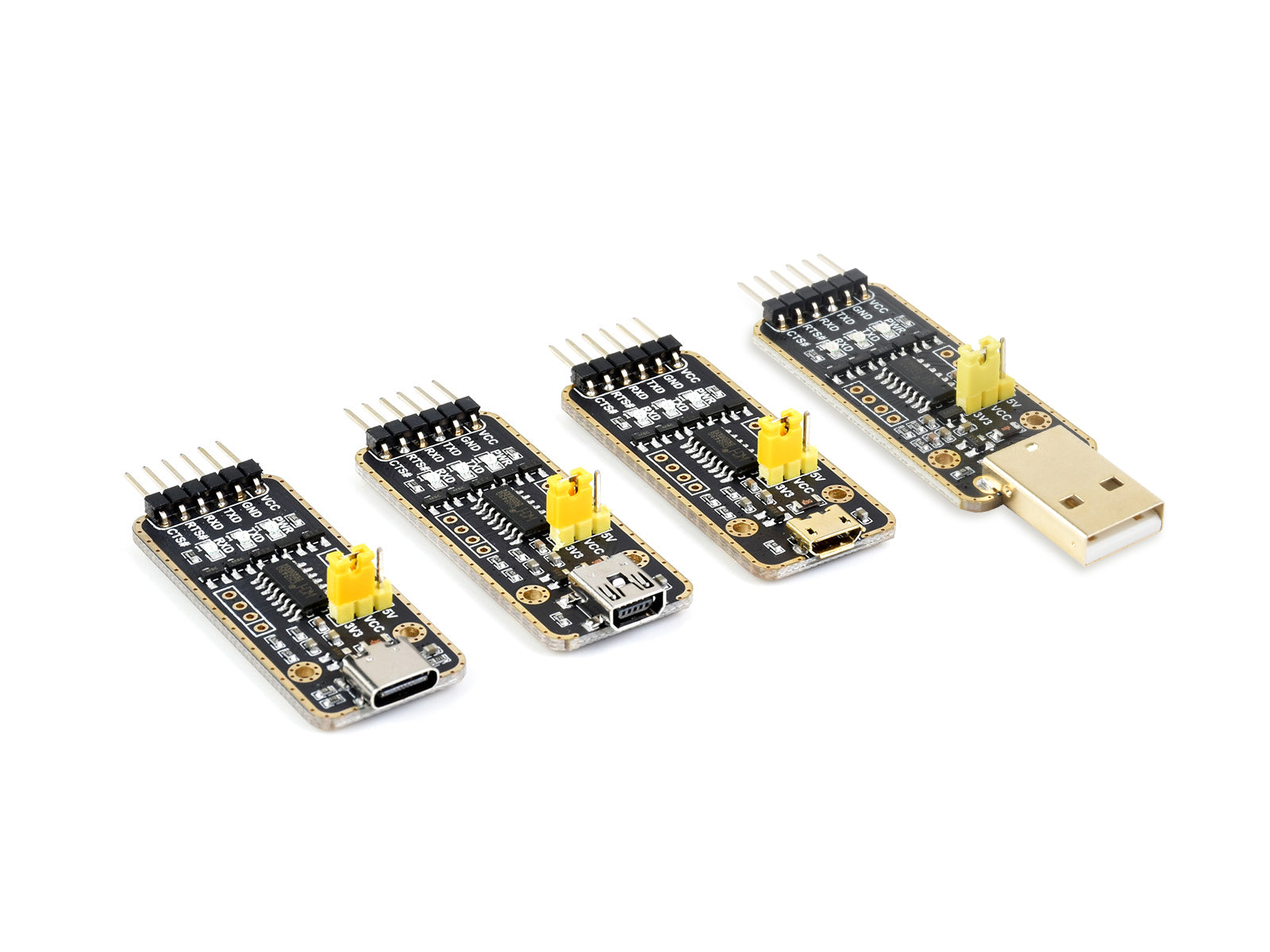

Different USB connectors are available

please select the proper one before placing order

Outline dimensions

Resources & Services

Wiki:CH343_USB_UART_Board

Lieferumfang

1. OPTIONS CH343 USB UART Board x1
2. 6-pin squid wire x1
