USB To UART (TTL) Mini Communication Module, Compact Size, Stable Communication, Over-current/Over-voltage Protection, Multi Systems Support, TTL Serial Converter, USB To TTL Converter

USB to UART (TTL)Mini communication module

Original FT232RNL | Stable Transmission | Multi Systems | Easy Integration

Features at a glance

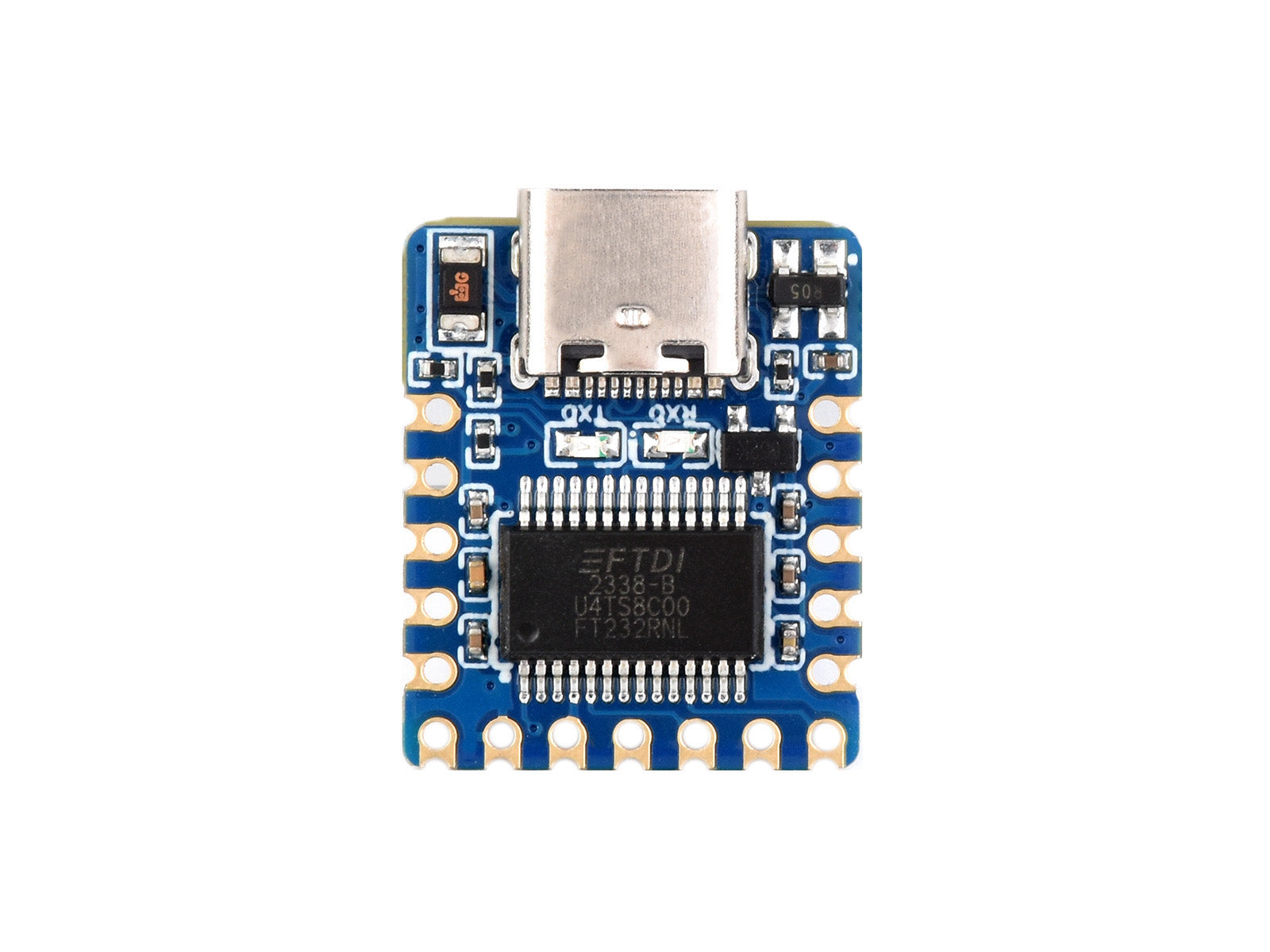

Onboard original FT232RNL chip, fast communication, stable and reliable, better compatibility

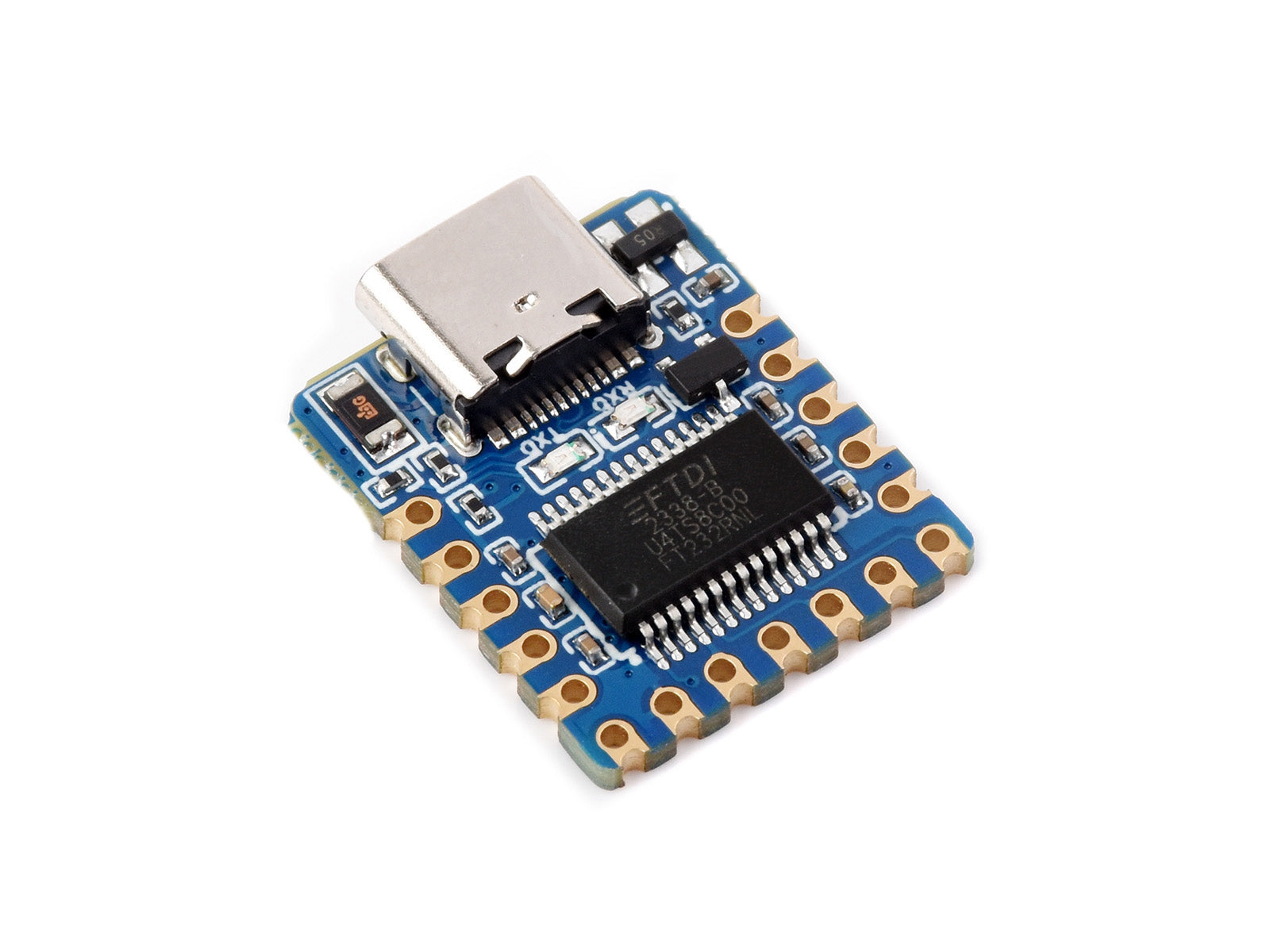

Castellated holes design, compact size, easy to integrate into the device by soldering
UART communication baudrate: 300bps~3Mbps
Onboard self-recovery fuse and ESD diode, provides over-current/over-voltage protection, stable and safe operation
Onboard TXD and RXD indicators for monitoring transceiver status
Reserved VCC switching pads on the back, using 3.3V TTL by default, allows switching to 5V by re-soldering
Adapting all function pins of the chip, more convenient for secondary development and integration

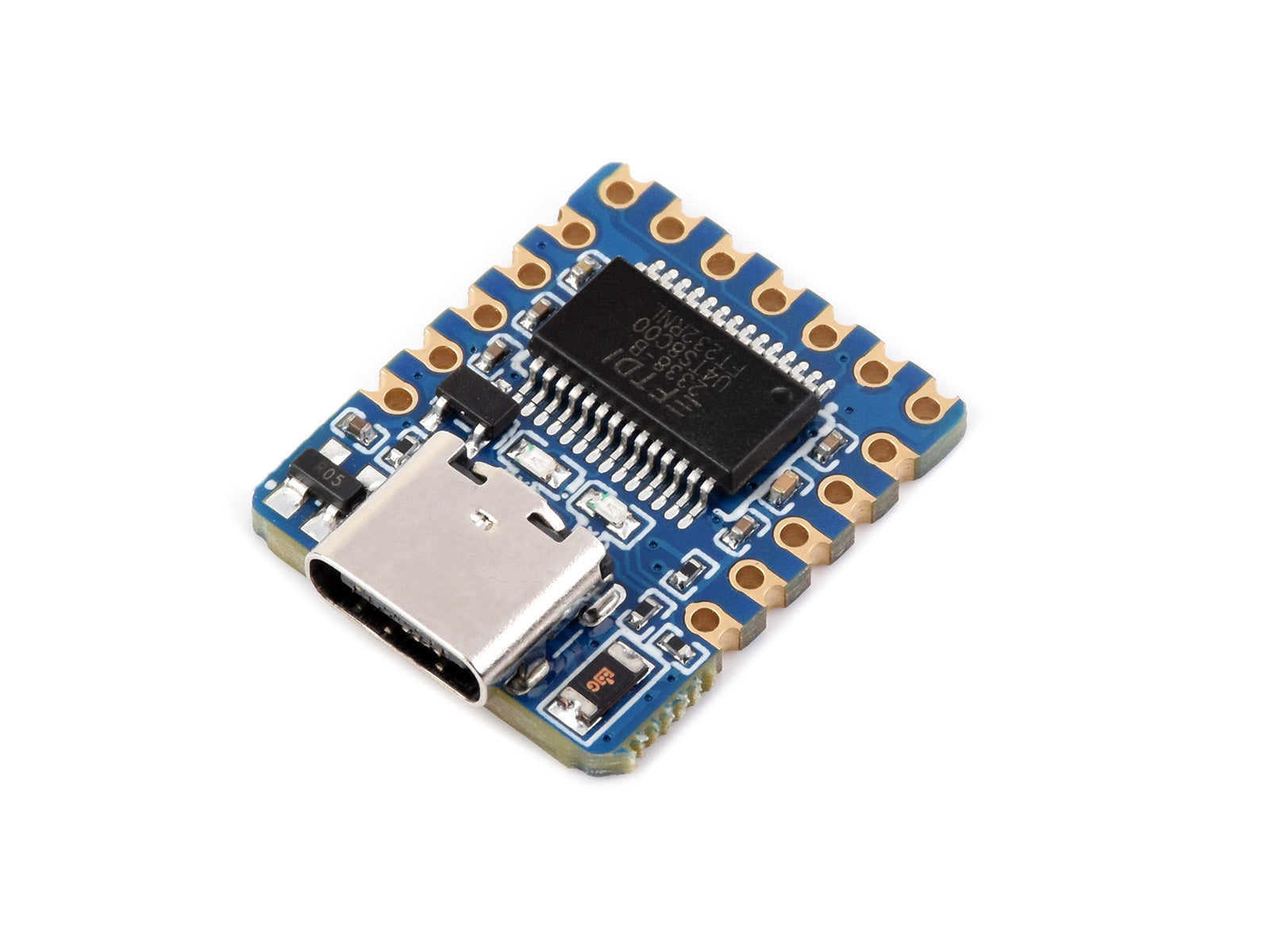

Onboard USB Type-C port, smoothly plug & pull, solid and reliable

Version Options

USB-TO-TTL-FT232standard version, without pinheader

USB-TO-TTL-FT232-M with pre-soldered header

Adopts FT232RNL solution

Multiple systems support

Compatible with popular systems like Win7/8/8.1/10/11, MacOS, Linux, Android...

Compact And Easy Integration

Castellated Holes With Immersion Gold Design, Highly Integrated PackagingSupports Multiple Ways To Be Embedded Into Various Product Applications

USB-TO-TTL-FT232 converter, compact size

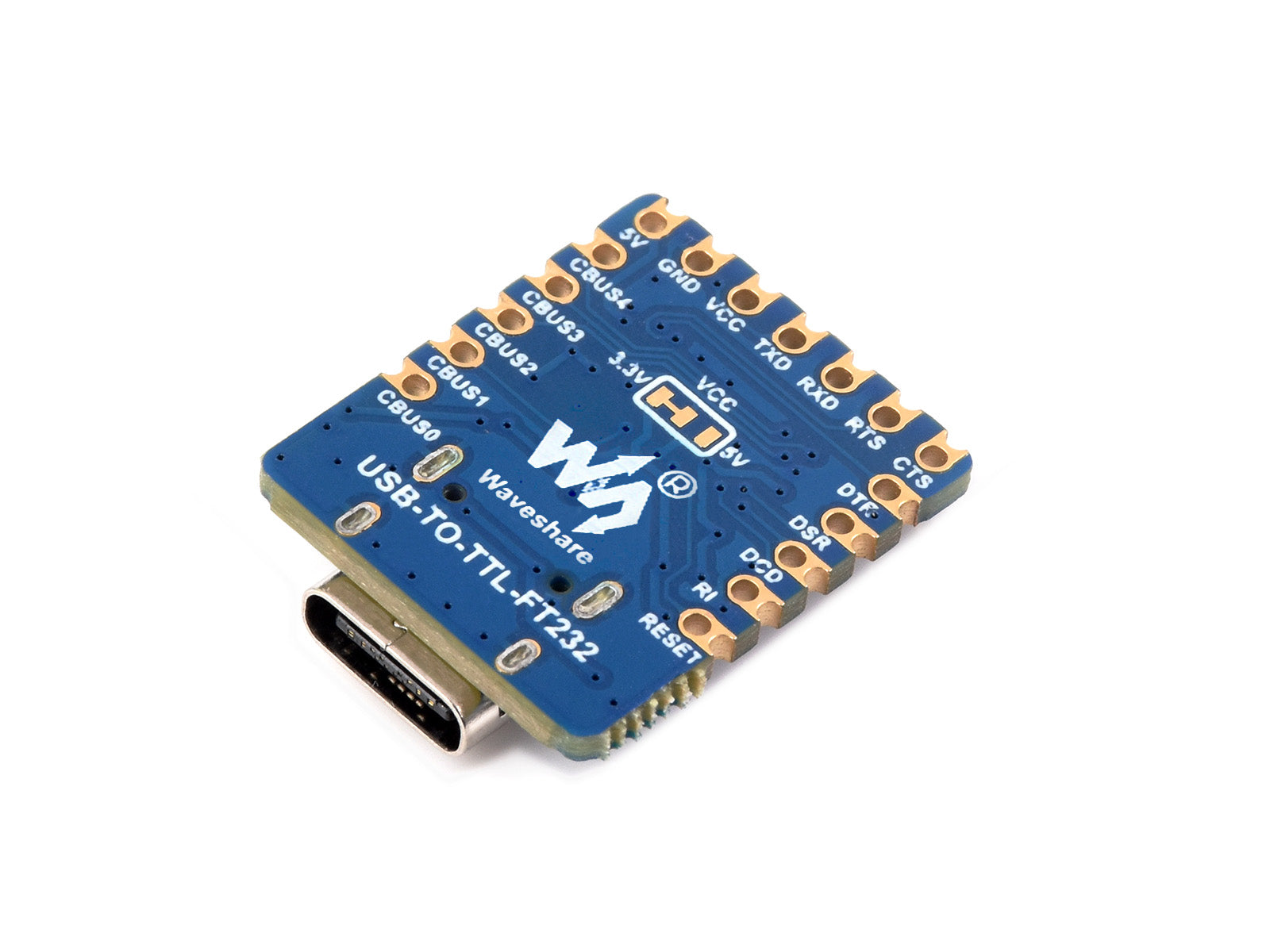

Pinouts Definition

5V	5V output
GND	Ground
VCC	3.3V or 5V output, configured via the pads on the back
TXD	Connecting to MCU.RX (signal direction: MCU.RX << FT232 << PC.TX)
RXD	Connecting to MCU.TX (signal direction: MCU.TX >> FT232 >>PC.RX)
RTS	Connecting to MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS)
CTS	Connecting to MCU.RTS (signal direction: MCU.RTS >> FT232 >>PC.CTS)
