SKU:WSAL29380

0.71inch Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K colors

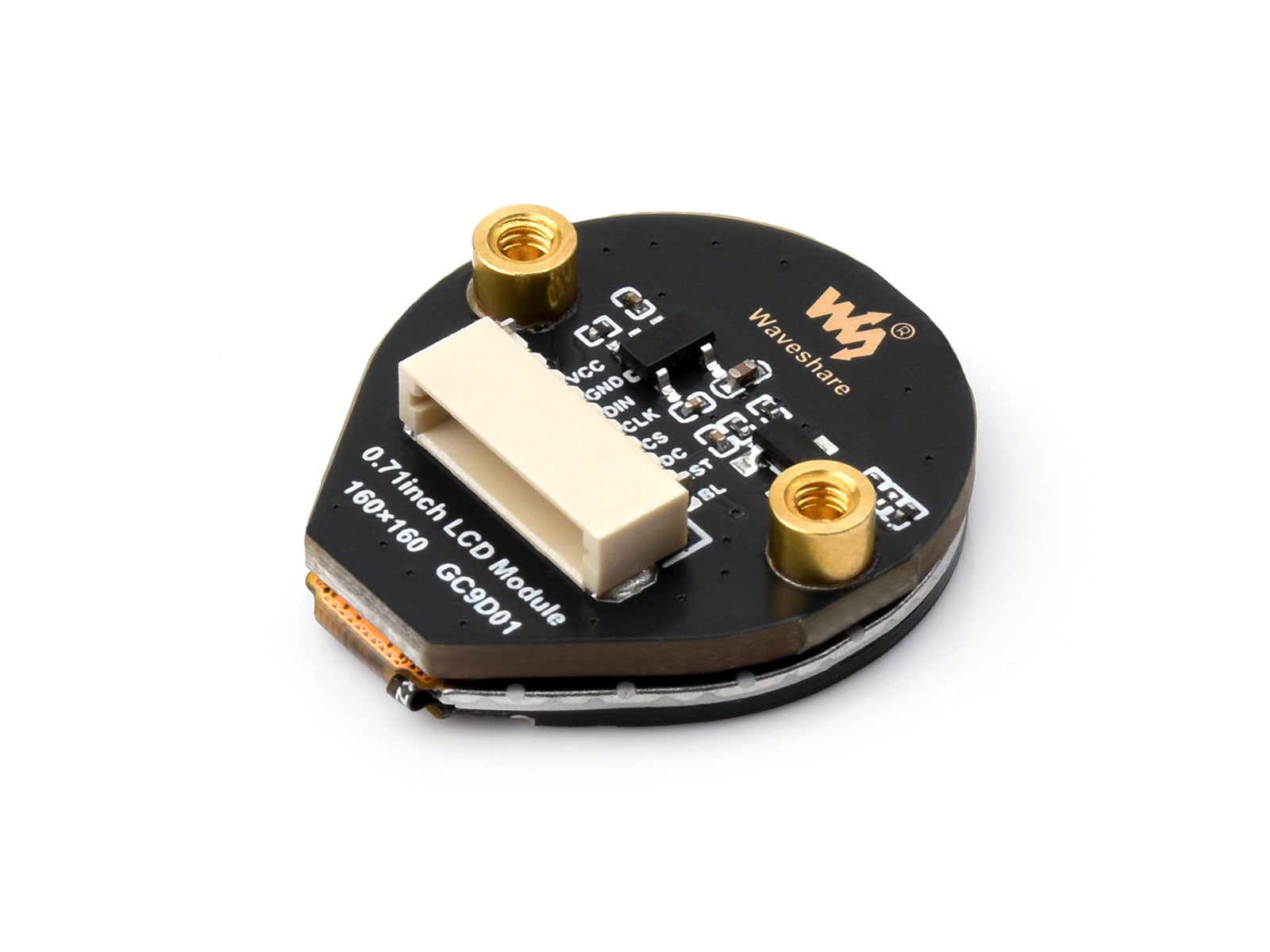

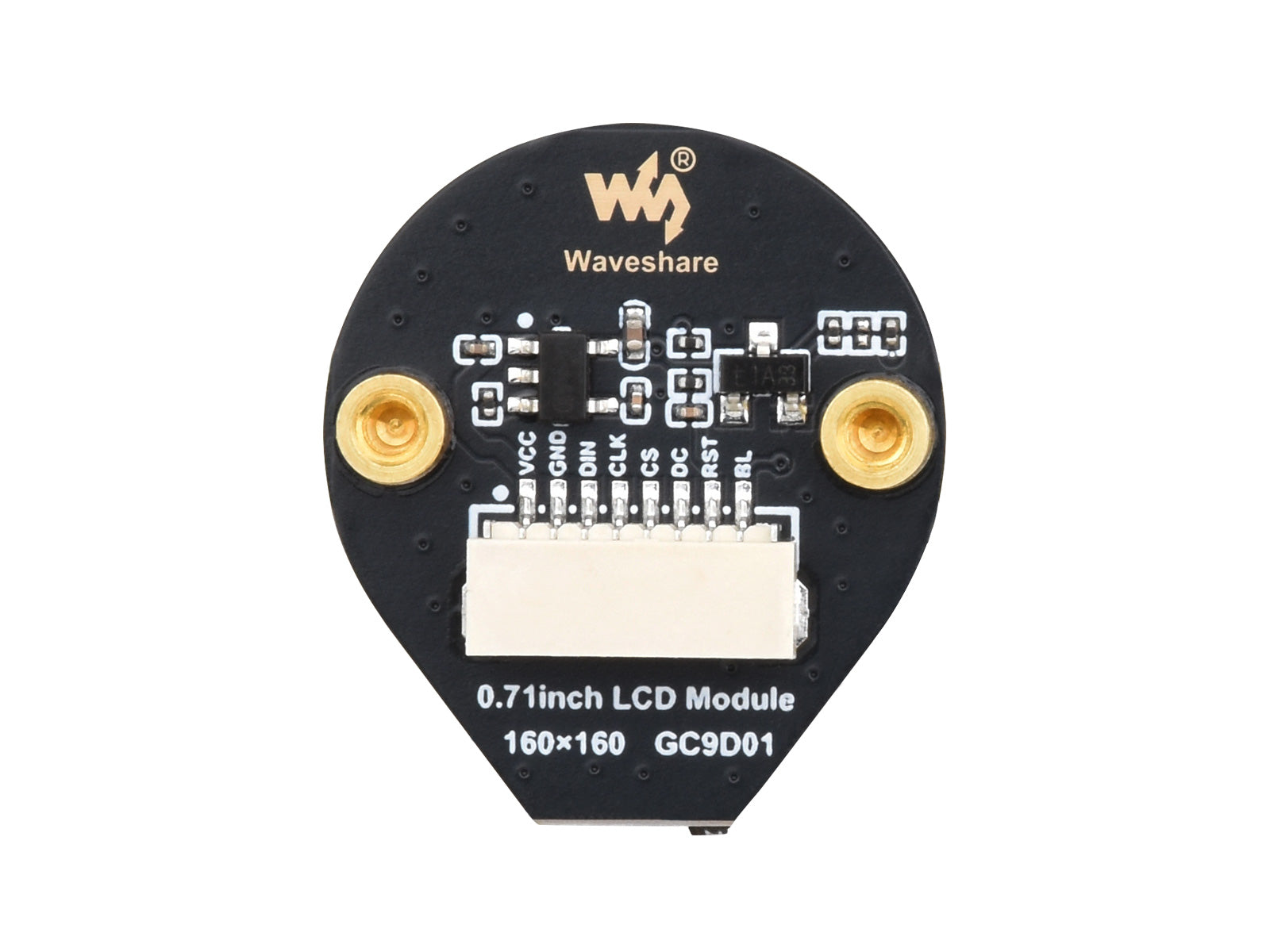

0.71inch LCD Display Module

IPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI Bus

• Size0.71"
• Resolution160×160
• Display Color65K colors
• Display PanelIPS
• InterfaceSPI
• DriverGC9D01

Features at a glance

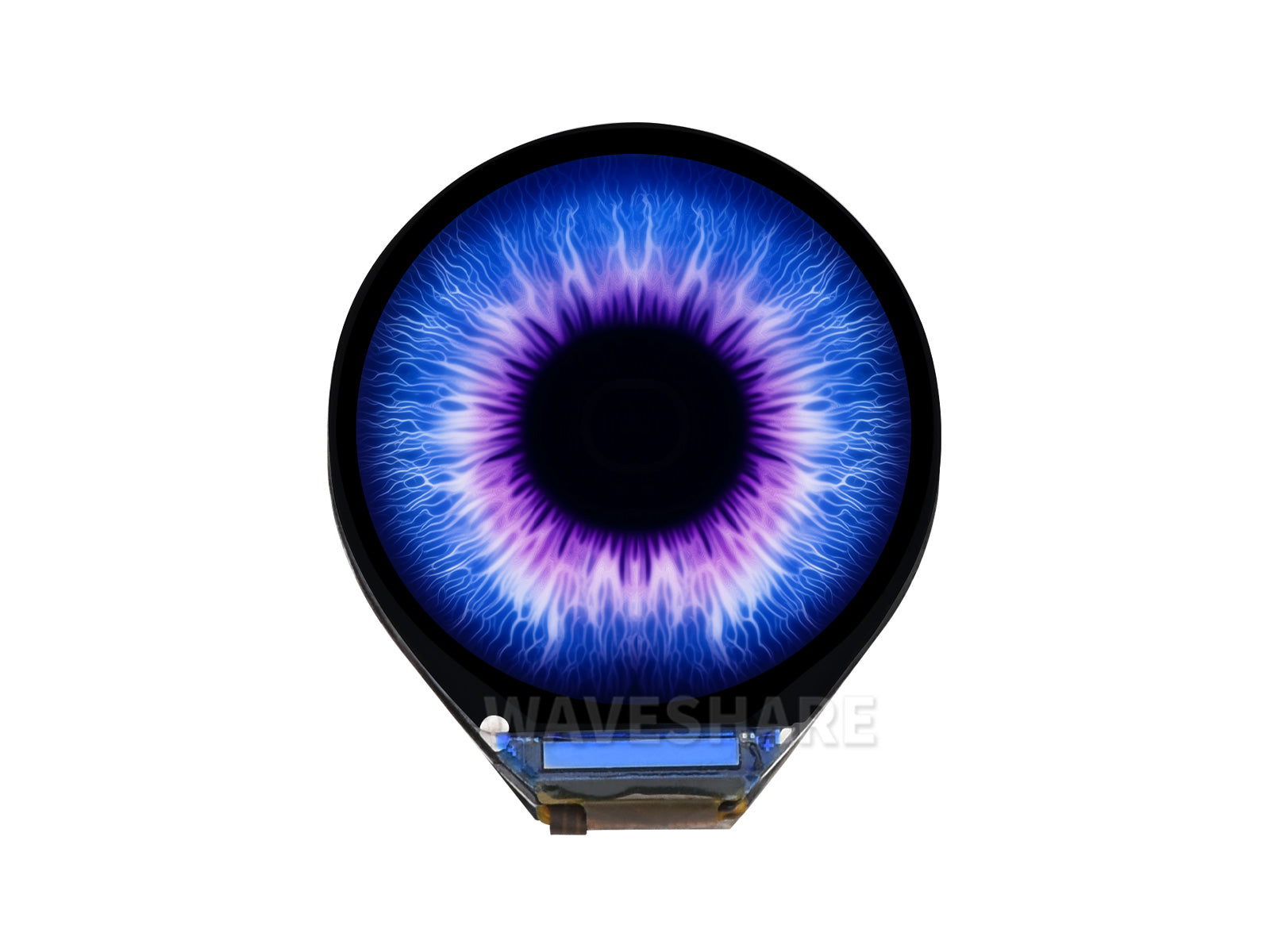

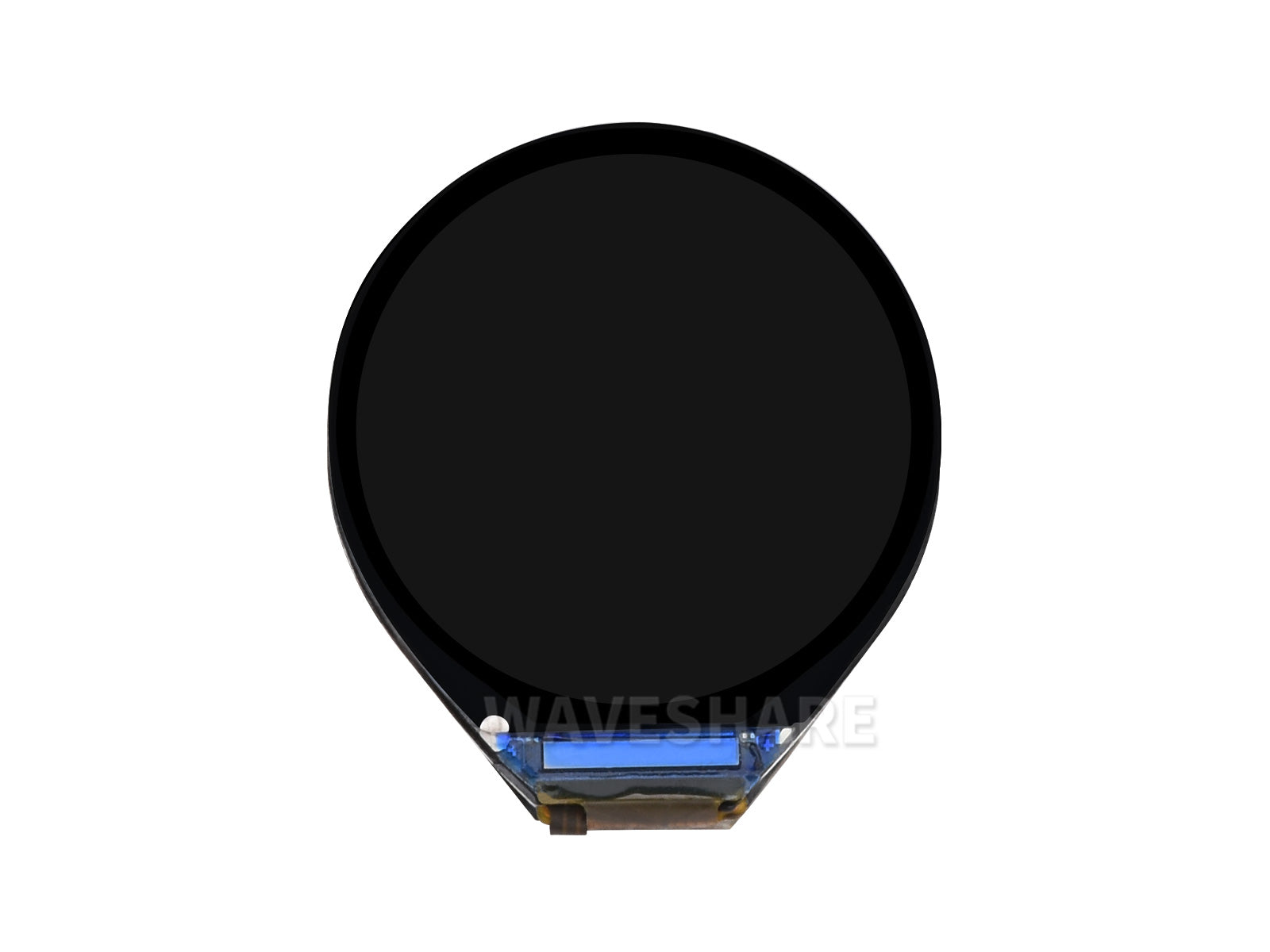

• Adopts 0.71inch round LCD display, IPS panel, wide viewing angle
• 160×160 resolution, 65K colors, clear and colorful displaying effect
• SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi Pico / ESP32 / Arduino

Specifications

Operating voltage	3.3V / 5V	Resolution	160 × 160 pixels
Communication Interface	4-wire SPI	Display size	18 × 18 (mm)
Display Panel	IPS	Pixel pitch	37.5 × 112.5 (μm)
Driver	GC9D01	Dimensions	20.12 × 22.3 (mm)

Controlled via SPI Bus

supports controller boards like Raspberry Pi Pico / ESP32 / Arduino

Hardware connection

* for reference only, please refer to the Package Content for detailed part list

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/0.71inch_LCD_Module

Selection Guide

Part Number	Type	Color	Resolution	Display Size (mm×mm)	Interfaces	Driver	Dimension (mm×mm)	Pinheader
0.49inch OLED Module	OLED	White	64×32	14.40×11.50	I2C	SSD1315	15.5×13.0	MX1.25 connector
0.71inch LCD Module	IPS	65K colorful	160×160	18×18	4-wire SPI	GC9D01	20.1×22.3	SH1.0 connector
0.71inch DualEye LCD Module	IPS	65K colorful	160×160	18×18	SPI	GC9D01	20.00×51.00	SH1.0 connector
0.85inch LCD Module	IPS	65K colorful	128×128	15.21×15.21	4-wire SPI	GC9107	19.0×22.5	GH1.25 connector
0.91inch OLED Module	OLED	White	128×32	22.38×5.58	I2C	SSD1306	36.0×12.5	PH2.0 connector
0.95inch RGB OLED (A)	OLED	65K colorful	96×64	20.14×13.42	4-wire SPI	SSD1331	31.7×37.0	angled/horizontal
0.95inch RGB OLED (B)	OLED	65K colorful	96×64	20.14×13.42	4-wire SPI	SSD1331	31.7×37.0	straight/vertical
0.96inch LCD Module	IPS	65K colorful	160×80	21.70×10.80	4-wire SPI	ST7735S	32.5×26.0	PH2.0 connector
0.96inch OLED (A)	OLED	1/4 yellow section, 3/4 blue section*	128×64	21.70×11.20	3/4-wire SPI, I2C	SSD1306	33.0×33.5	angled/horizontal
0.96inch OLED (B)	OLED	1/4 yellow section, 3/4 blue section*	128×64	21.70×11.20	3/4-wire SPI, I2C	SSD1306	33.0×33.5	straight/vertical
0.96inch OLED Module (C)	OLED	1/4 yellow section, 3/4 blue section*	128×64	21.74×11.18	4-wire SPI, I2C	SSD1315	26.0×26.0	straight/vertical
0.96inch OLED Module (D)	OLED	White	128×64	21.74×11.18	4-wire SPI, I2C	SSD1315	26.0×26.0	straight/vertical
0.96inch OLED Module (E)	OLED	Blue	128×64	21.74×11.18	4-wire SPI, I2C	SSD1315	26.0×26.0	straight/vertical
0.96inch RGB OLED Module	OLED	65K colorful	64×128	10.862×21.736	3/4-wire SPI	SSD1357	32.5×26.0	GH1.25 connector
1.14inch LCD Module	IPS	65K colorful	240×135	24.91×14.86	4-wire SPI	ST7789	35.0×32.0	PH2.0 connector
1.27inch RGB OLED Module	OLED	262K colorful	128×96	25.708×19.28	3/4-wire SPI	SSD1351	42.2×29.0	GH1.25 connector
1.28inch LCD Module	IPS	65K colorful	240×240	Φ32.4mm	4-wire SPI	GC9A01	40.4×37.5 Φ37.5	PH2.0 connector
1.28inch Touch LCD	IPS (with touch)	65K colorful	240×240	Φ32.4mm	4-wire SPI, I2C	GC9A01, CST816S	39.89×38.5 Φ38.5	GH1.25 connector
1.3inch LCD Module	IPS	65K colorful	240×240	23.40×23.40	4-wire SPI	ST7789	45.0×31.0	PH2.0 connector
1.3inch OLED (A)	OLED	Blue	128×64	29.42×14.70	3/4-wire SPI, I2C	SH1106	40.5×37.5	angled/horizontal
1.3inch OLED (B)	OLED	Blue	128×64	29.42×14.70	3/4-wire SPI, I2C	SH1106	40.5×37.5	straight/vertical
1.3inch OLED Module (C)	OLED	White	64×128	14.70×29.42	4-wire SPI, I2C	SH1107	30.0×39.5	PH2.0 connector
1.32inch OLED Module	OLED	White (16 gray scale)	128×96	26.86×20.14	4-wire SPI, I2C	SSD1327	34.3×30.5	GH1.25 connector
1.47inch Touch LCD	IPS	262K colorful	172×320	17.75×32.93	4-wire SPI	JD9853	22.05×41.69	SH1.0 connector, FPC0.5 connector
1.47inch LCD Module	IPS	262K colorful	172×320	17.39×32.35	4-wire SPI	ST7789V3	22.0×38.5	PH2.0 connector
1.5inch LCD Module	IPS	262K colorful	240×280	24.77×28.90	4-wire SPI	NV3030B	28.5×35.0	GH1.25 connector
1.5inch OLED Module	OLED	White (16 gray scale)	128×128	26.86×26.86	4-wire SPI, I2C	SSD1327	44.5×37.0	PH2.0 connector
1.5inch OLED Module (B)	OLED	White	128×128	26.855×26.855	4-wire SPI, I2C	SH1107	38.5×44.5	MX1.25 connector
1.5inch RGB OLED Module	OLED	65K colorful	128×128	26.86×26.86	3/4-wire SPI	SSD1351	44.5×37.0	PH2.0 connector
1.54inch LCD Module	IPS	65K colorful	240×240	27.72×27.72	4-wire SPI	ST7789	50.0×35.0	PH2.0 connector
1.54inch OLED Module	OLED	White	128×64	35.05×17.52	4-wire SPI, I2C	SSD1309	43.0×37.5	MX1.25 connector
1.54inch OLED Module (B)	OLED	Blue	128×64	35.05×17.52	4-wire SPI, I2C	SSD1309	43.0×37.5	MX1.25 connector
1.69inch LCD Module	IPS	262K colorful	240×280	27.972×32.634	4-wire SPI	ST7789V2	31.5×39.0	MX1.25 connector
1.69inch Touch LCD Module	IPS	262K colorful	240×280	27.972×32.634	4-wire SPI, I2C	ST7789V2	33.13×41.13	GH1.25 connector
1.8inch LCD Module	TFT	65K colorful	128×160	28.30×34.50	4-wire SPI	ST7735S	56.5×34.0	PH2.0 connector
1.83inch LCD Module	IPS	65K colorful	240×280	30.20×35.23	4-wire SPI	NV3030B	33.0×40.0	MX1.25 connector
1.83inch Touch LCD Module	IPS	262K colorful	240×284	29.52×34.93	4-wire SPI	ST7789P	35.00×42.00	GH1.25 connector
1.9inch LCD Module	IPS	262K colorful	170×320	22.70×42.72	4-wire SPI	ST7789V2	51.2×27.3	GH1.25 connector
1.9inch Touch LCD	IPS	262K colorful	170×320	23.10×43.12	4-wire SPI, I2C	ST7789V2	52.36×28.80	SH1.0 connector, FPC0.5 connector
2inch Capacitive Touch LCD	IPS	262K colorful	240×320	30.60×40.80	4-wire SPI, I2C	ST7789T3	37.1×58.8	GH1.25 connector, 18Pin FPC slot
2inch LCD Module	IPS	262K colorful	240×320	30.60×40.80	4-wire SPI	ST7789VW	58.0×35.0	PH2.0 connector
2.4inch LCD Module	TFT	65K colorful	240×320	36.72×48.96	4-wire SPI	ILI9341	70.5×43.3	PH2.0 connector
2.42inch OLED Module	OLED	White	128×64	55.01×27.49	4-wire SPI, I2C	SSD1309	61.50×39.50	GH1.25 connector
2.42inch OLED Module (C)	OLED	Yellow	128×64	55.01×27.49	4-wire SPI, I2C	SSD1309	61.50×39.50	GH1.25 connector
2.8inch Capacitive Touch LCD	TFT	262K colorful	240×320	43.20×57.60	4-wire SPI, I2C	ST7789T3	50.54×73.06	GH1.25 connector, 18Pin FPC slot
3.5inch Capacitive Touch LCD	IPS	262K colorful	320×480	48.96×73.44	4-wire SPI, I2C	ST7796S	61.00×92.44	GH1.25 connector, 18Pin FPC slot

*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Lieferumfang

1. 0.71inch LCD Module x1
2. SH1.0 8PIN cable x1
3. Convex lens x1

1

2

3
