SKU:WSAL22545

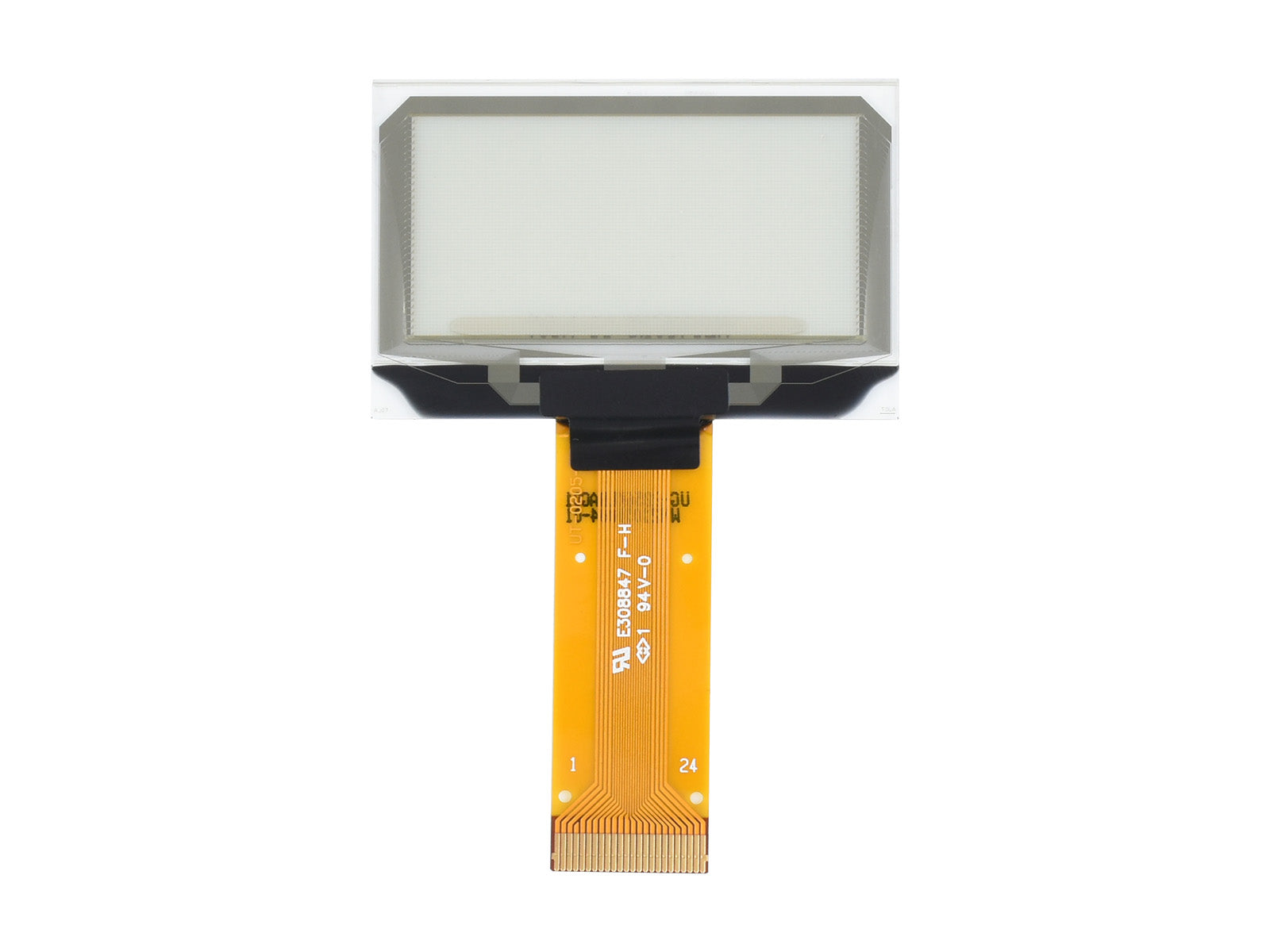

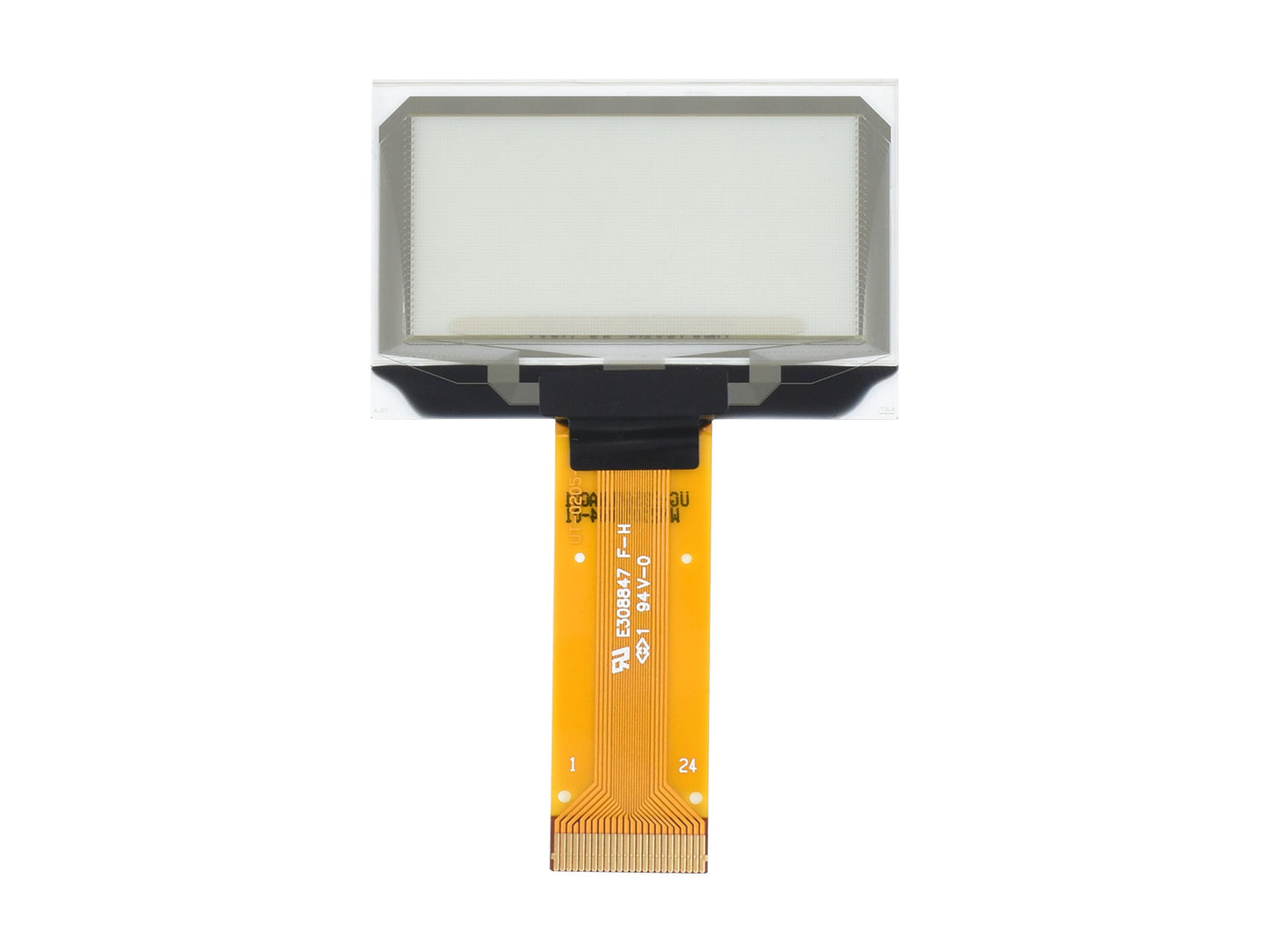

1.51inch Transparent OLED, 128×64 Resolution, SPI/I2C Interfaces, light blue color display

1.51inch Transparent OLED

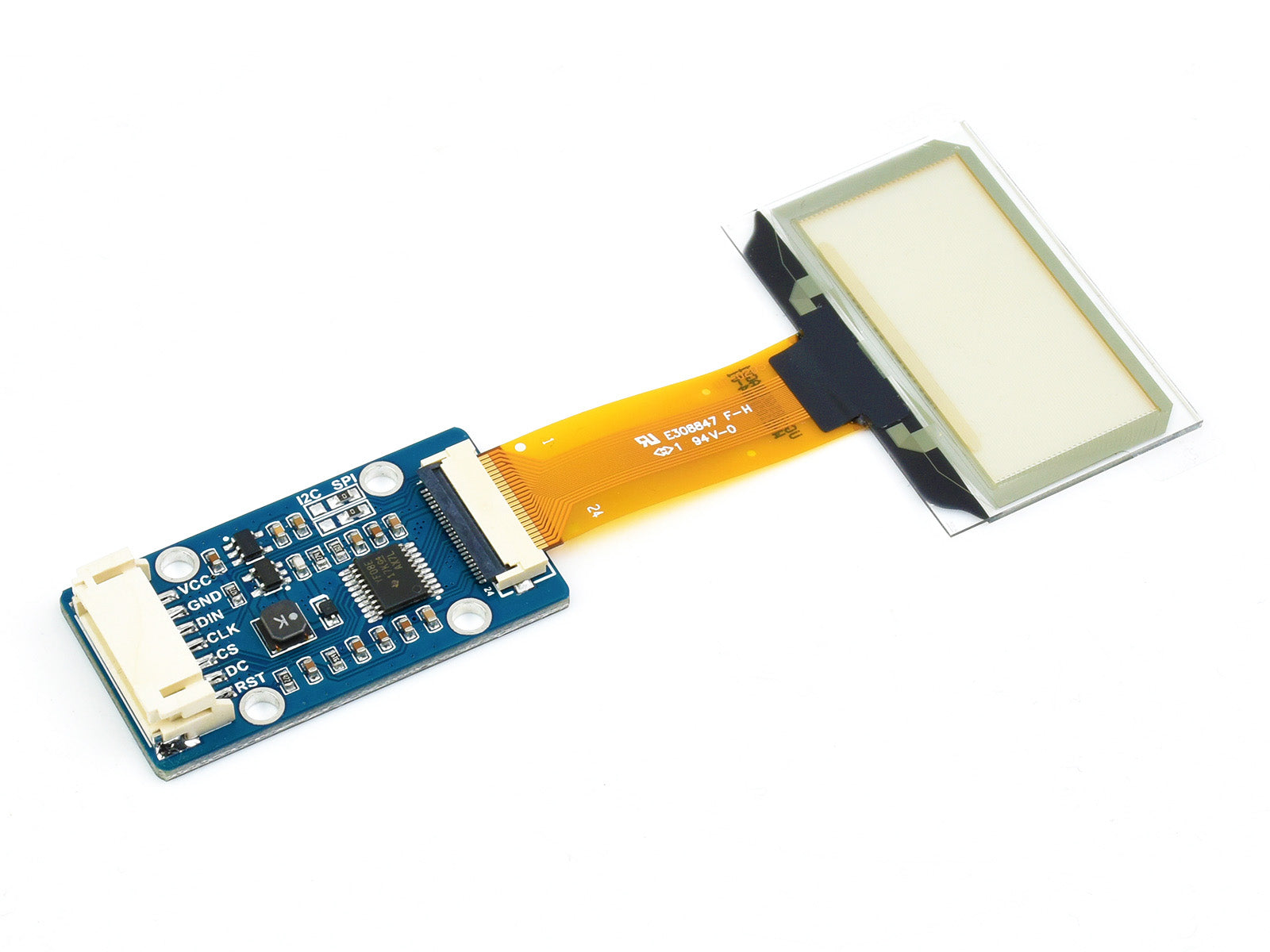

Embedded independent driver chip, Using SPI/I2C Interfaces

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

• Size1.51"
• Resolution128×64
• Display ColorLight Blue
• InterfaceSPI/I2C
• Display PanelOLED
• DriverEmbedded driver

Features at a glance

• OLED transparent module, full viewing angle
• Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate
• Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specifications

Operating voltage	3.3V / 5V	Resolution	128 × 64 pixels*
Pixel pitch	0.274 × 0.274mm	Module size	42.04 × 27.22mm
Communication Interface	4-wire SPI/I2C	Display size	35.05 × 15.32 mm
DISPLAY PANEL	OLED	PIXEL SIZE	0.254 × 0.254 mm

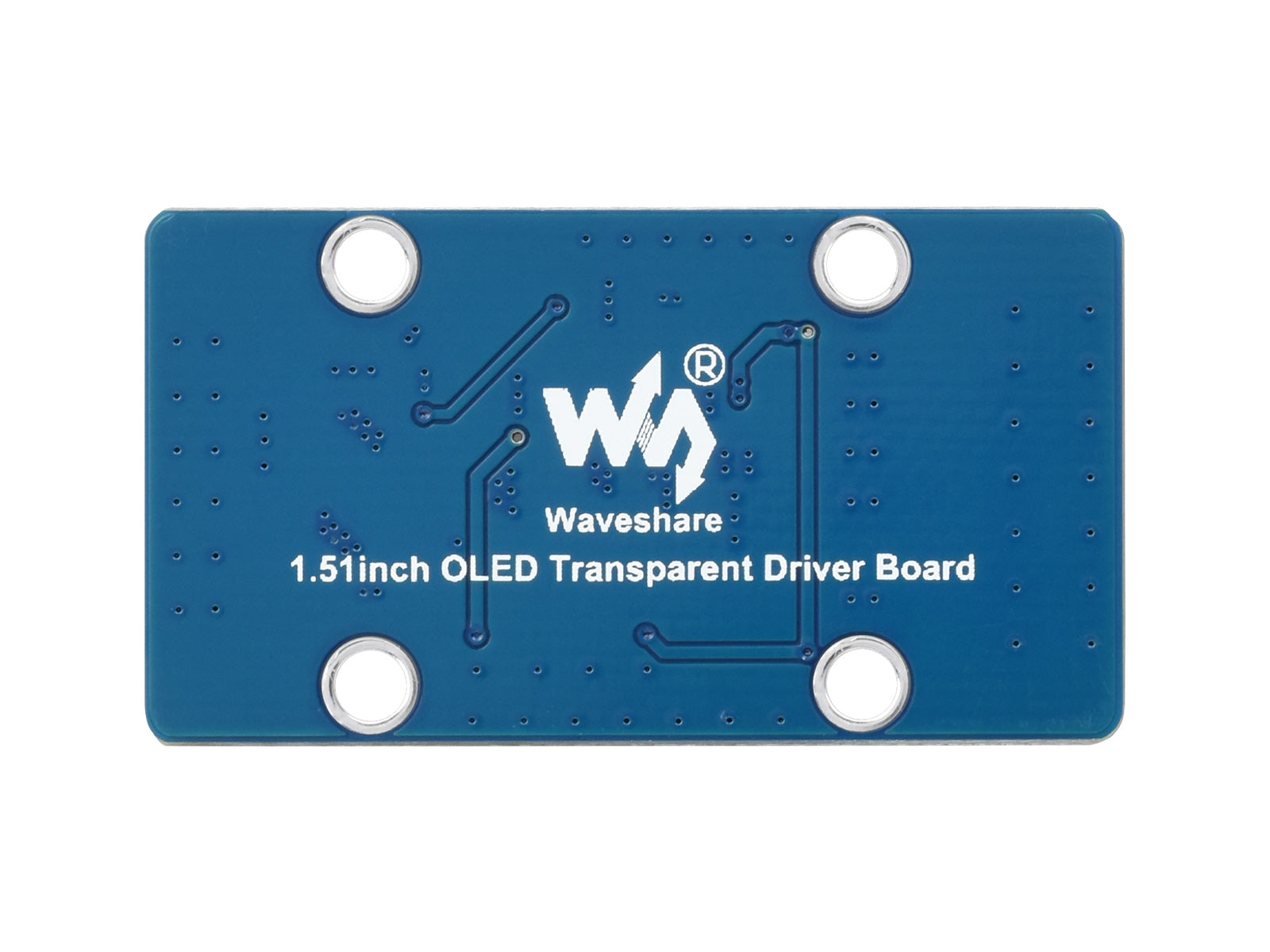

Driver	Embedded driver	Driver Board size	41 × 22.5 mm

* there is a non-transparent white area on the side of the cable, but it can be displayed

SPI and I2C control interface switching

supports controller boards like Raspberry Pi/Arduino/STM32

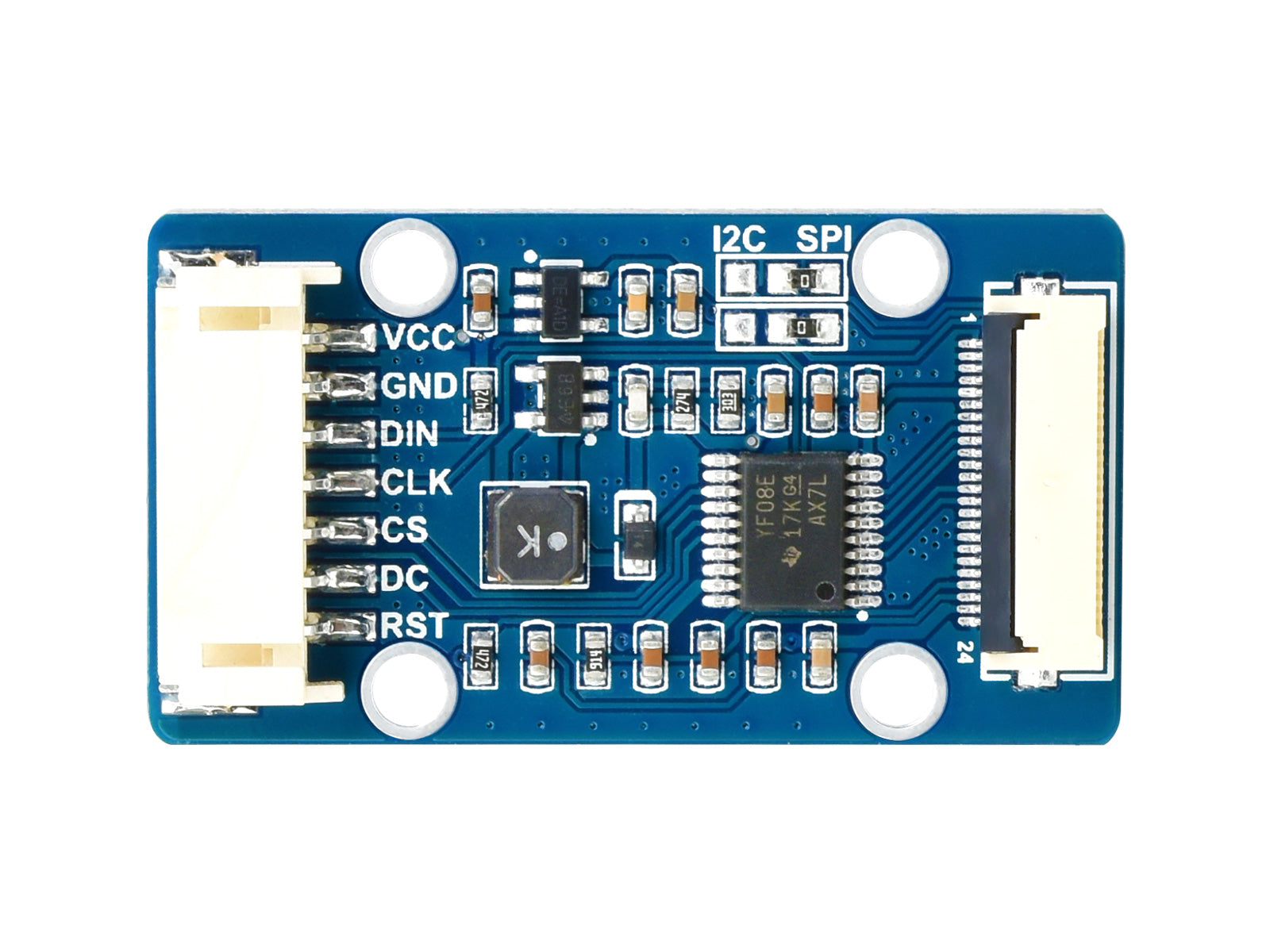

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI / I2C data input
CLK	SPI / I2CI clock input
CS	Chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	Reset, low active

Hardware connection

connecting with Raspberry Pi

connecting with Arduino board

Usage Example

FPC cable Connection

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/1.51inch_Transparent_OLED

Lieferumfang

1. 1.51inch Transparent OLED x1
2. PH2.0 7PIN cable x1
3. Screws pack
