SKU:WSAL30441

1.54inch e-Paper display (G), e-ink display, 200x200, Red/Yellow/Black/White, SPI Interface

Name: 1.54inch e-Paper display (G), e-ink display, 200x200, Red/Yellow/Black/White, SPI Interface
Brand: WaveShare
SKU: WSAL30441
Price: 2252.99 HUF
Availability: InStock

2.253 Ft

2.253 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

1.54inch e-Paper display (G), e-ink display, 200x200, Red/Yellow/Black/White, SPI Interface

1.54″ e-Paper (G)

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

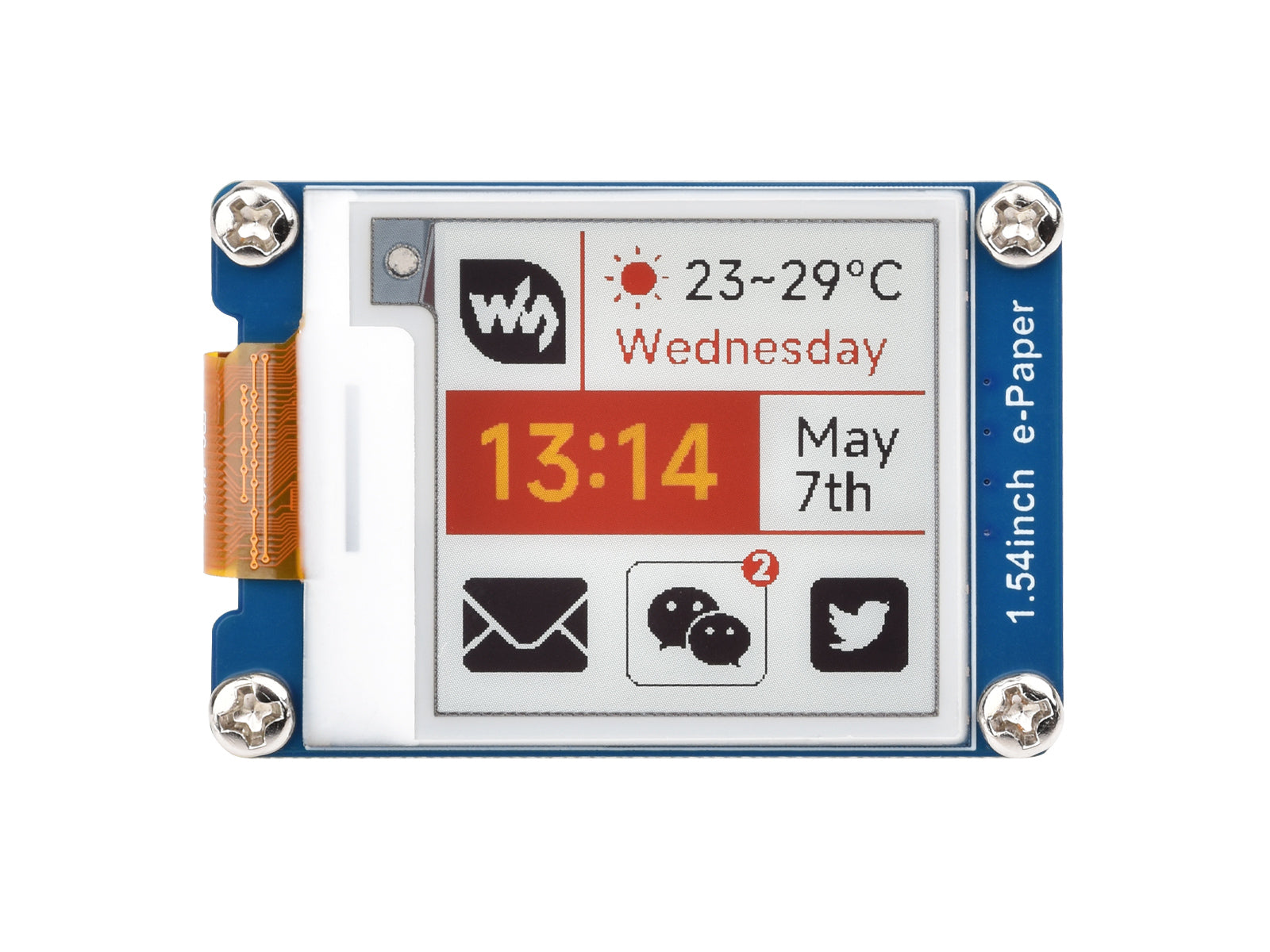

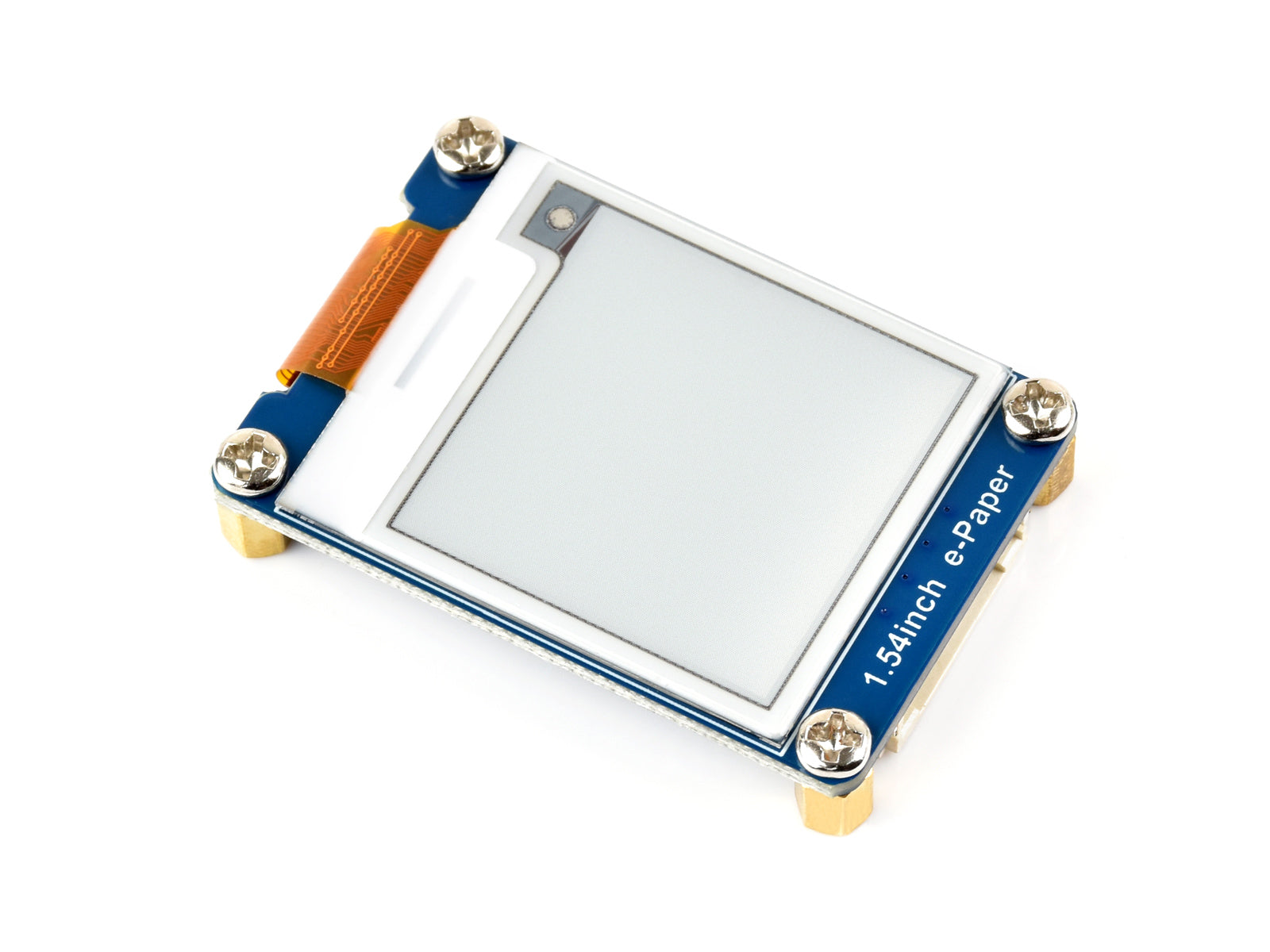

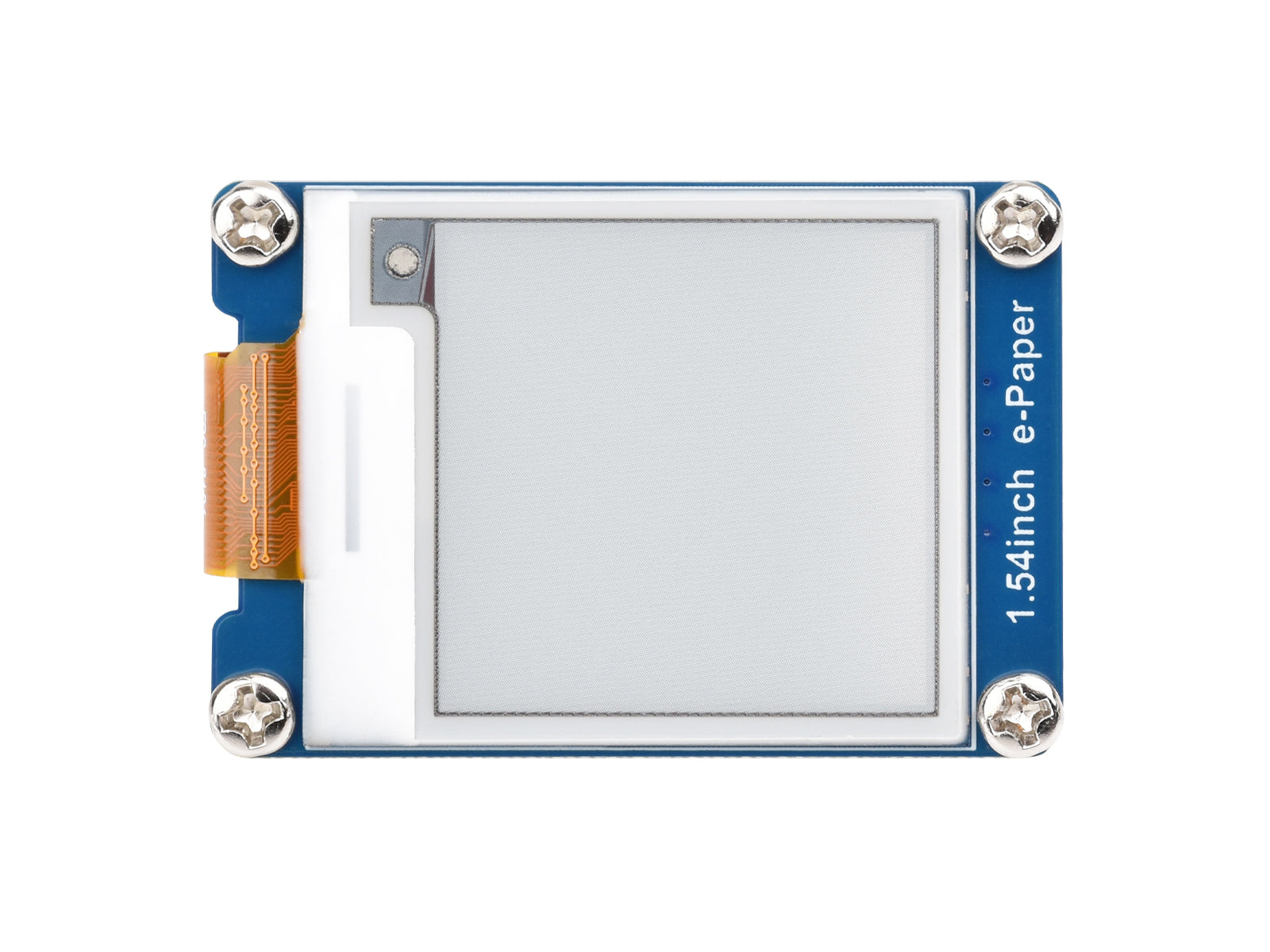

1.54inch e-Paper display (G) with driver board, front view

Note: the driver board is optional, please refer to the Package Content for detailed part list

Size1.54″
Resolution200×200
Viewing Angle>170°
Display ColorRed/Yellow/Black/White
Grey Scale2

CommunicationSPI
Display PanelE-paper
ExperiencePaper-like
EnvironmentAmbient Light Required
Display TypePassively Reflective

Version Options

1.54inch e-Paper (G)raw display, without driver board

1.54inch e-Paper Module (G) with driver board

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino)
Optional for e-Paper driver board:
- Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage	Raw display: 3.3V	display color	Red/Yellow/Black/White
operating voltage	with driver board: 3.3V/5V	display color	Red/Yellow/Black/White
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	Raw display: 37.32 × 31.8 × 1.00 mm	fast refresh time	15s
outline dimensions	with driver board: 48.00 × 33.00mm	full refresh time	20s
display size	27.0 × 27.0mm	refresh power	<30mW
DOT PITCH	0.135 × 0.135mm	standby current	<0.01uA (almost none)
RESOLUTION	200 × 200 pixels	viewing angle	>170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper driver board

Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino

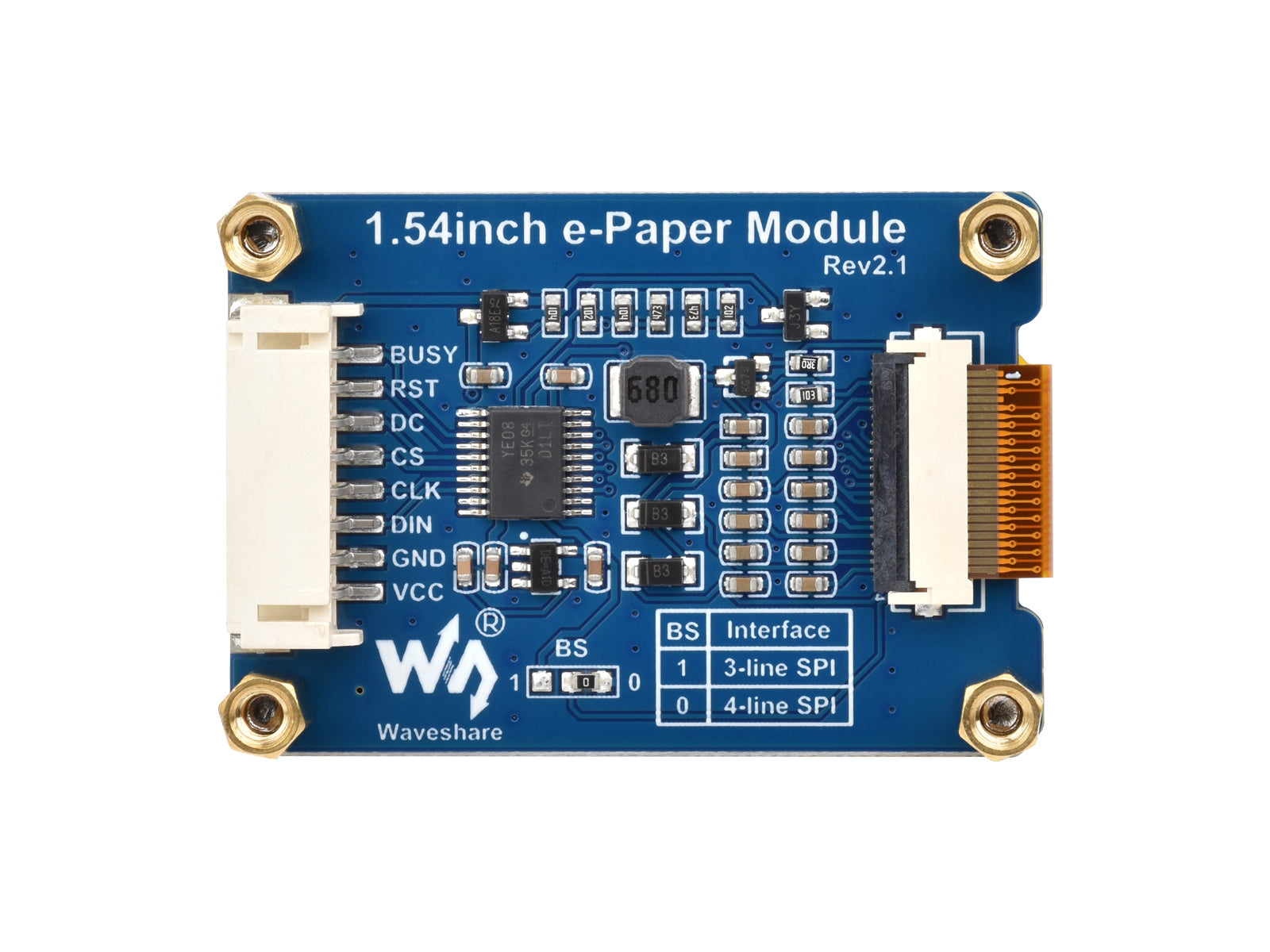

1.54inch e-Paper display (G) with driver board, onboard SPI control interface

VCC	Power (3.3V / 5V input)
GND	Ground
DIN	SPI MOSI pin
CLK	SPI SCK pin
CS	SPI chip selection, low active
DC	Data/Command selection (high for data, low for command)
RST	External reset, low active
BUSY	Busy status output pin

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

supported driver boards for raw display

	Universal e-Paper Raw Panel Driver HATe-Paper Driver HAT	Click here to purchase
	Universal e-Paper Raw Panel Driver Board, ESP32 WiFi / Bluetooth Wirelesse-Paper ESP32 Driver Board	Click here to purchase
	Universal e-Paper Raw Panel Driver Board, ESP8266 WiFi Wirelesse-Paper ESP8266 Driver Board	Click here to purchase
	Universal e-Paper Raw Panel Driver Shield for Arduino / NUCLEOe-Paper Shield	Click here to purchase

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions

1.54inch e-Paper (G)

1.54inch e-Paper Module (G)

1.54inch e-Paper display (G) with driver board, outline dimensions

Resources & Services

WIKI:www.waveshare.com/wiki/1.54inch_e-Paper_Module_(G)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part Number	Colors	Grey Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time (s)	Partial Refresh¹	Pi Head-er²	Flexi-ble	Interface
1.02inch e-Paper Module	black, white	2	128×80	21.76 × 14.00	42.0 × 27.0	2	√			SPI
1.54inch e-Paper Module	black, white	2	200×200	27.00 × 27.00	48.0 × 33.0	2	√			SPI
1.54inch e-Paper Module (B)	red, black, white	2	200×200	27.00 × 27.00	48.0 × 33.0	14				SPI
1.54inch e-Paper Module (G)	red, yellow, black, white	2	200×200	27.00 × 27.00	48.0 × 33.0	20				SPI
1.64inch e-Paper Module (G)	red, yellow, black, white	2	168×168	29.568 × 29.568	47 × 38	12				SPI
2.13inch e-Paper HAT	black, white	2	250×122	48.55 × 23.70	65.0 × 30.2	2	√	√		SPI
2.13inch e-Paper HAT+	black, white	2	250×122	48.55 × 23.70	65.0 × 30.5	2	√	√		SPI
2.13inch e-Paper HAT (B)	red, black, white	2	250×122	48.55 × 23.70	65.0 × 30.2	15		√		SPI
2.13inch e-Paper HAT (G)	red, yellow, black, white	2	250×122	48.55 × 23.70	65.0 × 30.2	16		√		SPI
2.13inch Touch e-Paper HAT	black, white	2	250×122	48.55 × 23.70	69.15 × 38.90	2	√	√		SPI
2.13inch Touch e-Paper HAT (with case)	black, white	2	250×122	48.55 × 23.70	72.20 × 41.90	2	√	√		SPI
2.15inch e-Paper HAT+ (B)	red, black, white	2	296×160	48.10 × 26.00	65.0 × 34.0	23		√		SPI
2.15inch e-Paper HAT+ (G)	red, yellow, black, white	2	296×160	48.10 × 26.00	65.0 × 34.0	20		√		SPI
2.36inch e-Paper Module (G)	red, yellow, black, white	2	296×168	52.096 × 29.568	69.5 × 38.5	12				SPI
2.66inch e-Paper Module	black, white	2	296×152	30.704 × 60.088	37.0 × 83.5	6	√			SPI
2.66inch e-Paper Module (B)	red, black, white	2	296×152	30.704 × 60.088	37.0 × 83.5	15				SPI
2.66inch e-Paper Module (G)	red, yellow, black, white	2	360×184	60.05 × 30.69	85.0 × 38.5	26				SPI
2.7inch e-Paper HAT	black, white	4	264×176	57.29 × 38.19	85.0 × 56.0	6	√	√		SPI
2.7inch e-Paper HAT (B)	red, black, white	2	264×176	57.288 × 38.192	73.5 × 56.0	15		√		SPI
2.9inch e-Paper Module	black, white	4	296×128	66.89 × 29.05	89.5 × 38.0	3	√			SPI
2.9inch e-Paper Module (B)	red, black, white	2	296×128	66.89 × 29.05	89.5 × 38.0	15				SPI
2.9inch e-Paper Module (G)	red, yellow, black, white	2	296×128	66.89 × 29.05	89.5 × 38.0	16				SPI
2.9inch Touch e-Paper HAT	black, white	4	296×128	66.89 × 29.05	89.10 × 42.70	3	√	√		SPI
3inch e-Paper Module (G)	red, yellow, black, white	2	400×168	70.4 × 29.568	88.5 × 41	12				SPI
3.5inch e-Paper Module (G)	red, yellow, black, white	2	384×184	79.68 × 38.18	94.00 × 47.50	20				SPI
3.52inch e-Paper HAT	black, white	2	360×240	74.51 × 49.67	86.5 × 57	1.5		√		SPI
3.52inch e-Paper HAT (B)	red, black, white	2	360×240	74.51 × 49.67	86.5 × 57	16		√		SPI
3.6inch e-Paper HAT+ (E)	E6 full color	2	600×400	76.20 × 50.80	89.50 × 59.00	15		√		SPI
3.7inch e-Paper HAT	black, white	4	480×280	47.32 × 81.12	58.0 × 96.5	3	√	√		SPI
3.7inch e-Paper HAT+ (G)	red, yellow, black, white	2	416×240	81.54 × 47.04	96.00 × 57.00	20		√		SPI
3.97inch e-Paper HAT+	black, white	4	800×480	86.40 × 51.84	99.50 × 60.00	3.5	√	√		SPI
3.97inch e-Paper HAT+ (G)	red, yellow, black, white	2	800×480	86.40 × 51.84	99.50 × 60.00	21		√		SPI
4inch e-Paper HAT+ (E)	E6 full color	2	600×400	84.6 × 56.40	101.00 × 68.00	19		√		SPI
4.2inch e-Paper Module	black, white	4	400×300	84.80 × 63.60	103.0 × 78.5	5	√			SPI
4.2inch e-Paper Module (B)	red, black, white	2	400×300	84.80 × 63.60	103.0 × 78.5	15				SPI
4.2inch e-Paper Module (G)	red, yellow, black, white	2	400×300	84.80 × 63.60	103.0 × 78.5	21				SPI
4.26inch e-Paper HAT	black, white	4	800×480	92.80 × 55.68	107.0 × 64.0	4	√	√		SPI
4.3inch e-Paper UART Module	black, white	4	800×600	88.00 × 66.00	118.0 × 75.0	1.5				UART
4.37inch e-Paper Module (G)	red, yellow, black, white	2	512×368	90.11 × 64.77	101.5 × 81.5	14				SPI
5inch e-Paper HAT	black, white	2	960×552	110.59 × 62.65	126.38 × 71.19	1.8	√	√		SPI
5.79inch e-Paper Module	black, white	4	792×272	139.00 × 47.74	152.50 × 58.50	3.5	√			SPI
5.79inch e-Paper Module (B)	red, black, white	2	792×272	139.00 × 47.74	152.50 × 58.50	24				SPI
5.79inch e-Paper Module (G)	red, yellow, black, white	2	792×272	139.00 × 47.74	152.50 × 58.50	21				SPI
5.83inch e-Paper HAT	black, white	2	648×480	119.232 × 88.320	125.4 × 99.5	5		√		SPI
5.83inch e-Paper HAT (G)	red, yellow, black, white	2	648×480	118.78 × 88.22	125.40 × 99.50	20		√		SPI
6inch e-Paper HAT	black, white	16	800×600	122.4 × 90.6	138.4 × 101.8	<1	√	√		USB/SPI/ I80
6inch HD e-Paper HAT	black, white	16	1448×1072	122.4 × 90.6	138.4 × 101.8	<1	√	√		USB/SPI/ I80
7.3inch E-Paper HAT (E)	E6 full color	2	800×480	160 × 96	170.2 × 111.2	12		√		SPI
7.3inch E-Paper HAT (F)	7-Color	2	800×480	160 × 96	170.2 × 111.2	35		√		SPI
7.5inch e-Paper HAT	black, white	4	800×480	163.20 × 97.92	170.2 × 111.2	4	√	√		SPI
7.5inch HD e-Paper HAT	black, white	2	880×528	163.24 × 97.94	170.2 × 111.2	5		√		SPI
7.5inch e-Paper HAT (B)	red, black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	26	√	√		SPI
7.5inch e-Paper HAT (H)	red, yellow, black, white	2	800×480	163.20 × 97.92	170.20 × 111.20	22		√		SPI
7.8inch e-Paper HAT	black, white	16	1872×1404	158.18 × 118.64	173.8 × 127.6	<1	√	√		USB/SPI/ I80
9.7inch e-Paper HAT	black, white	16	1200×825	202.8 × 139.43	218.8×156.4	<1	√	√		USB/SPI/ I80
10.2inch e-Paper HAT (G)	red, yellow, black, white	2	960 × 640	215.52 × 143.68	224.00 × 157.00	27		√		SPI
10.3inch e-Paper HAT	black, white	16	1872×1404	209.66 × 157.25	216.7 × 174.4	<1	√	√		USB/SPI/ I80
10.3inch e-Paper HAT (D)	black, white	16	1872×1404	209.66 × 157.25	227.7 × 165.8	<1	√	√	√	USB/SPI/ I80
10.85inch e-Paper HAT+	black, white	2	1360 × 480	259.76 × 91.68	270.56 × 105.92	3.5		√		SPI
10.85inch e-Paper HAT+ (G)	red, yellow, black, white	2	1360 × 480	259.76 × 91.68	270.56 × 105.92	21		√		SPI
12.48inch e-Paper Module	black, white	2	1304×984	252.98 × 190.90	280.0 × 229.5	<8		√		SPI
12.48inch e-Paper Module (B)	red, black, white	2	1304×984	252.98 × 190.90	280.0 × 229.5	37		√		SPI
13.3inch e-Paper HAT	black, white	16	1600×1200	270.40 × 202.80	285.80 × 213.65	<1	√	√		USB/SPI/ I80
13.3inch e-Paper HAT (B)	red, black, white	2	960×680	275.52 × 195.16	286.32 × 212.26	22	√	√		SPI
13.3inch e-Paper HAT (K)	black, white	4	960×680	275.52 × 195.16	286.32 × 212.26	5	√	√		SPI
13.3inch e-Paper HAT (E)	E6 full color	2	1600×1200	270.40 × 202.80	284.70 × 208.80	19		√		SPI

It usually takes about 0.3s for partial refresh
Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
