SKU:WSAL22688

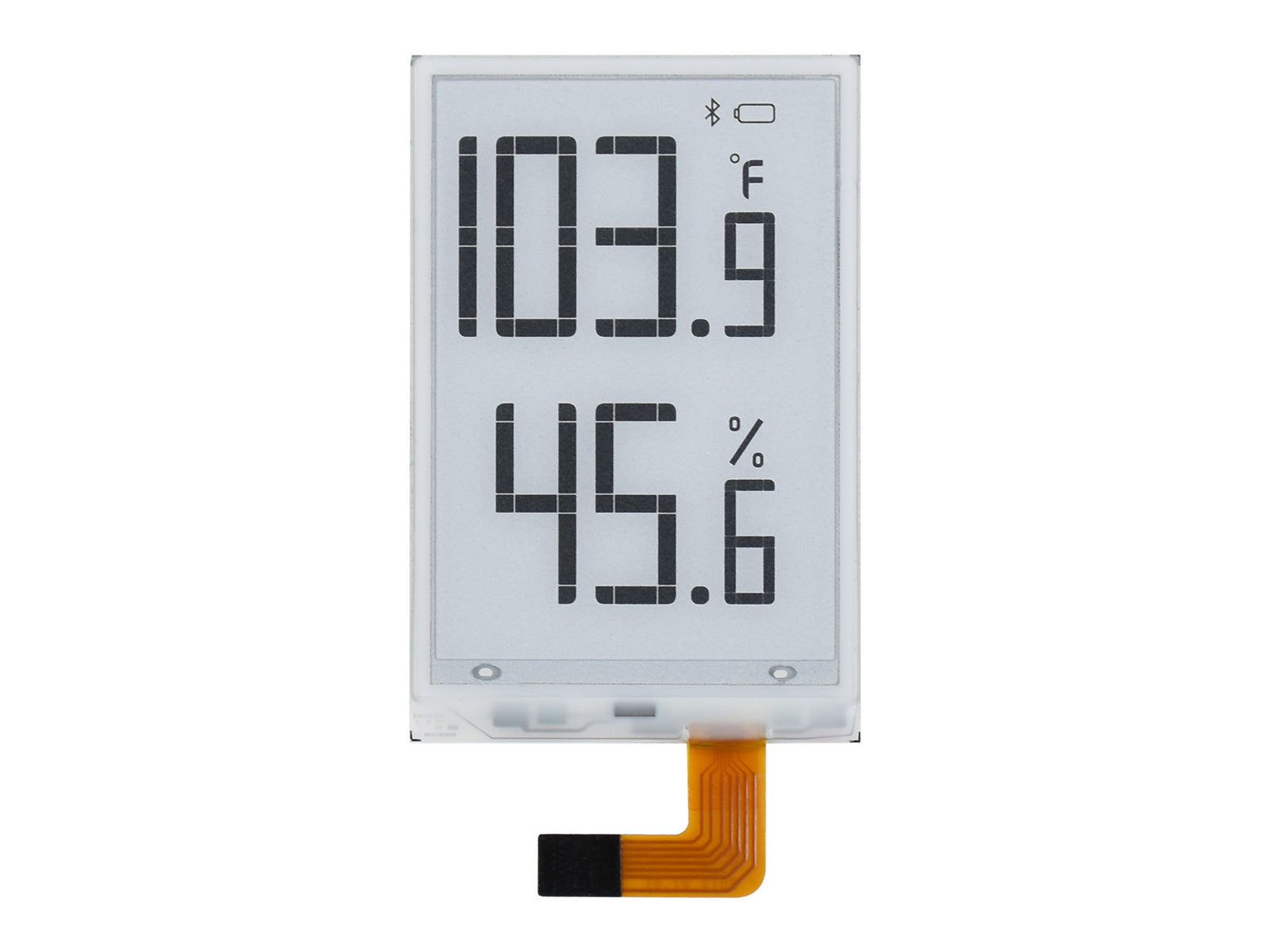

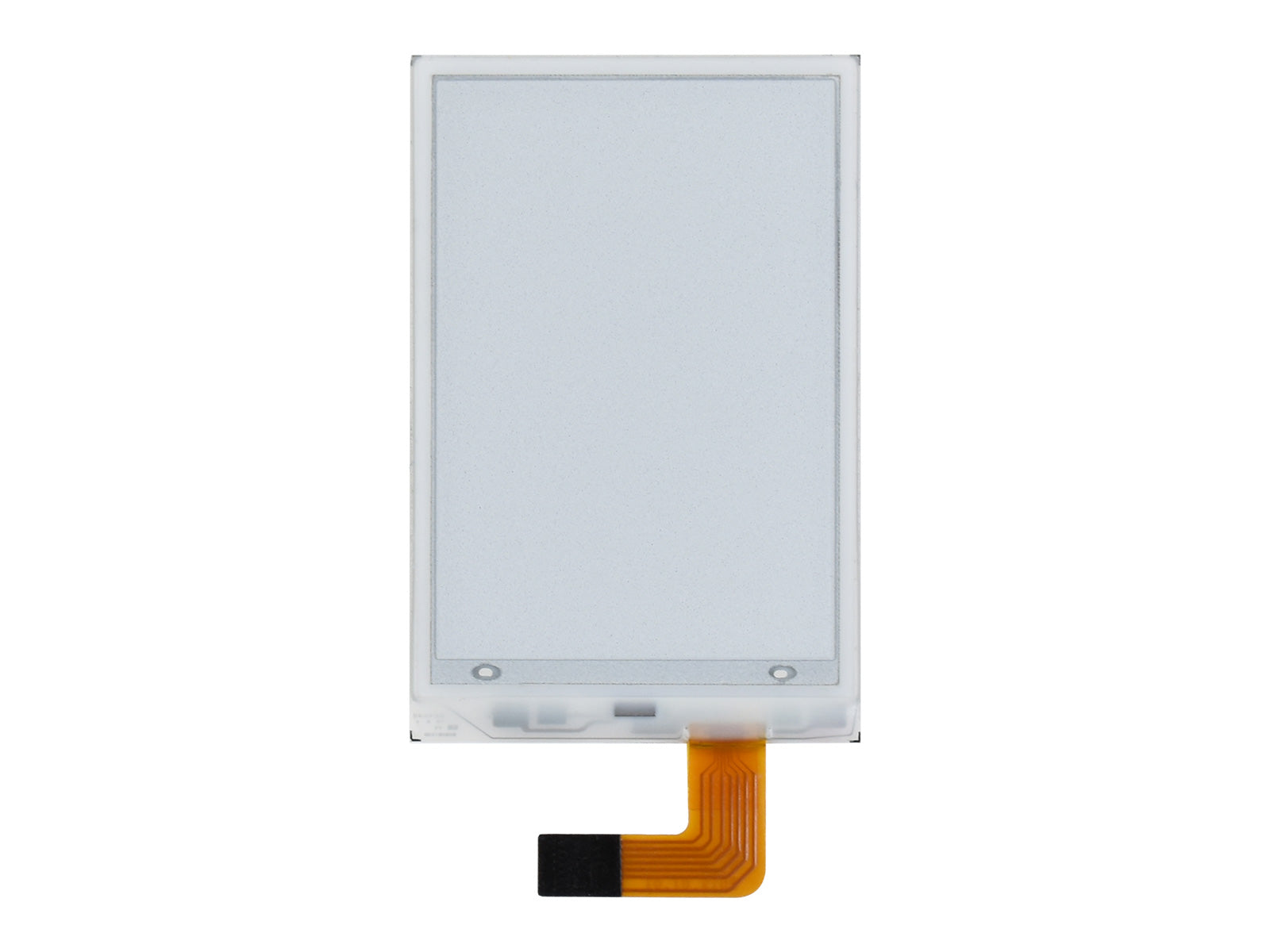

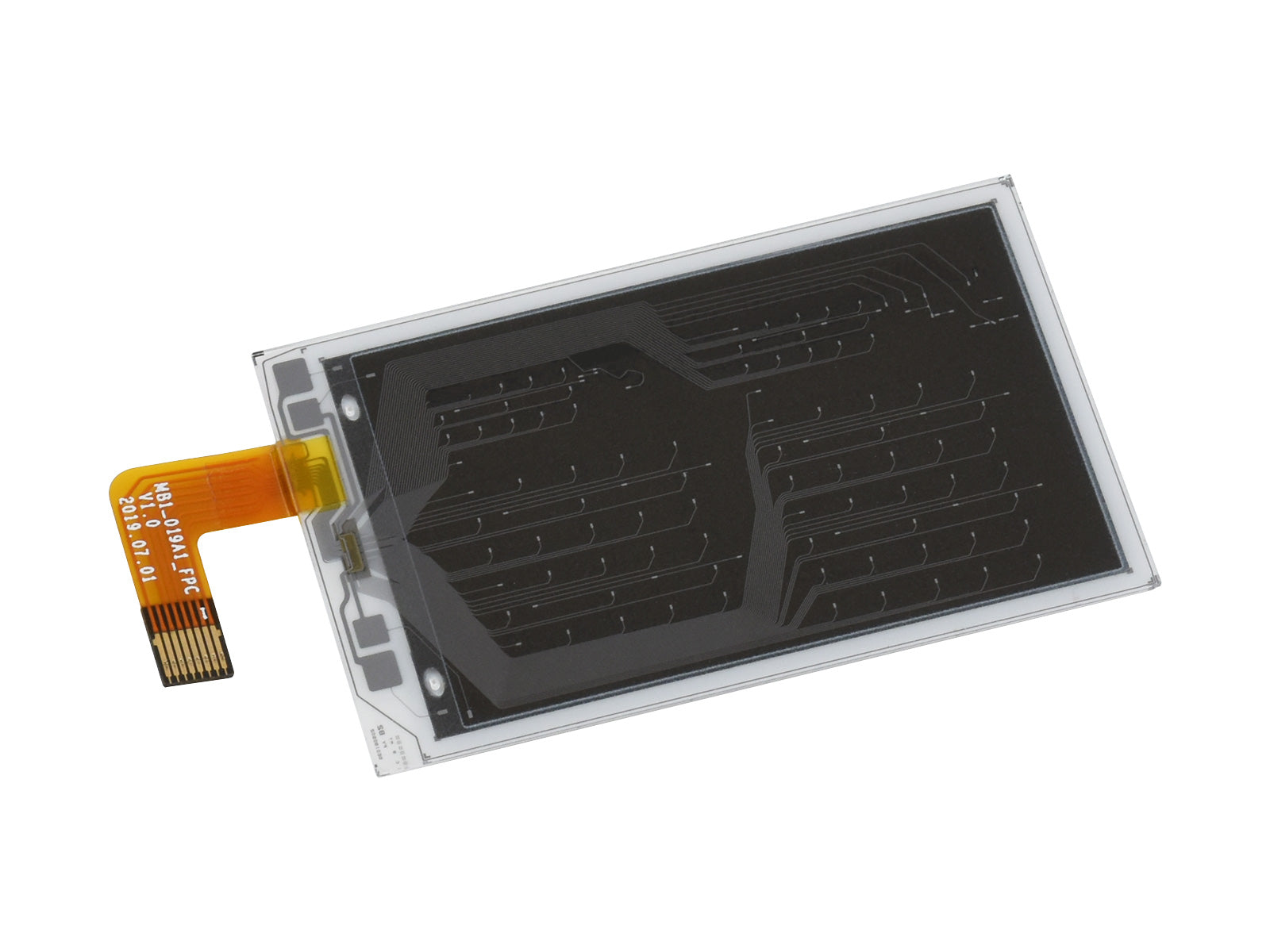

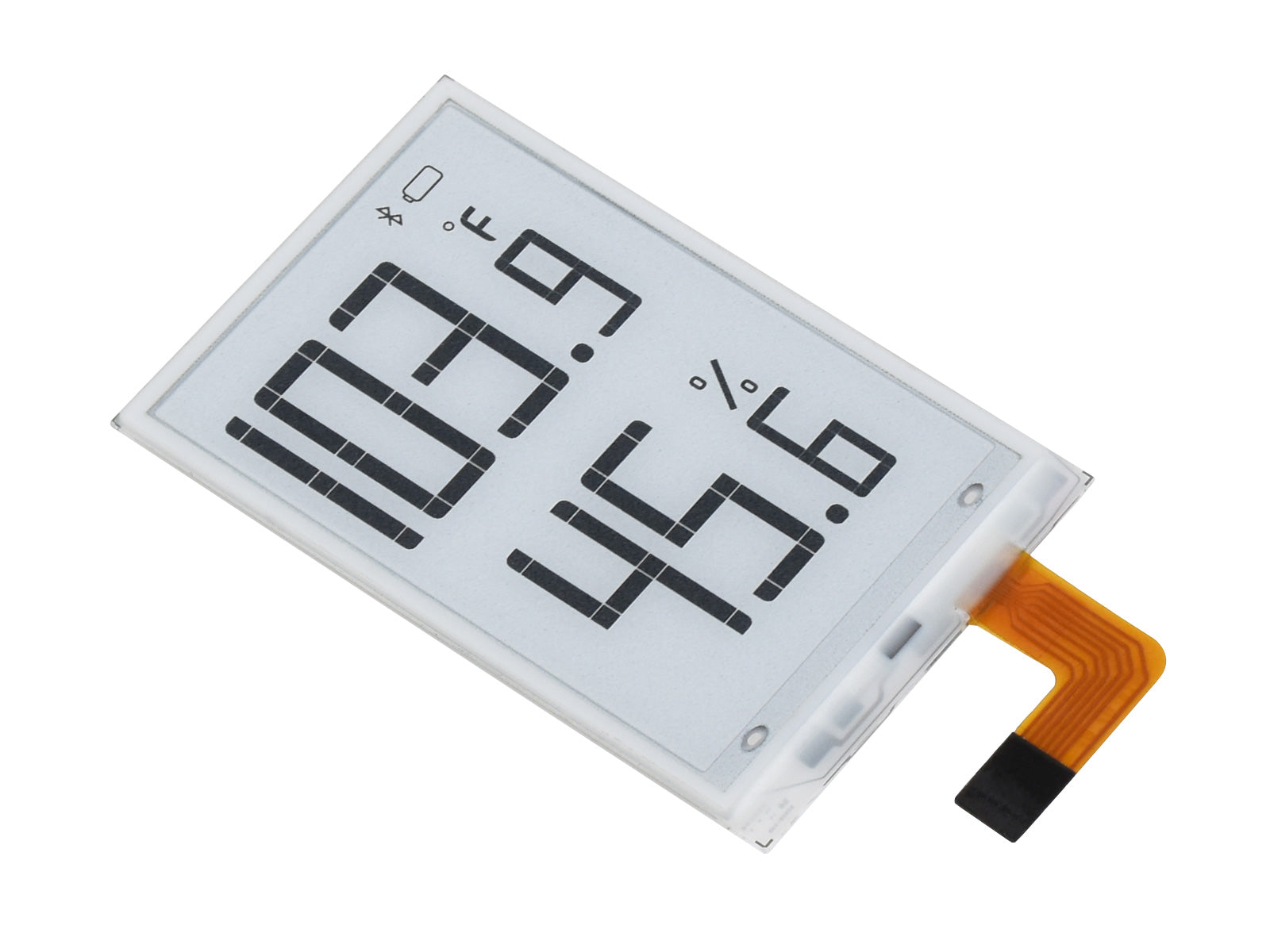

1.9inch Segment E-Paper Raw Display, 91 Segments, I2C Bus, Ideal for Temperature and humidity meter, Humidifier, Digital Meter
Abholverfügbarkeit konnte nicht geladen werden
Support Partial Refresh, Low Power, Wide Viewing Angle, Paper-Like Displaying Without Electricity
Ideal for Temperature and Humidity Meter, Humidifier, Digital Meter...
- Size
1.9″ - Segment
91 segments - Viewing Angle
>170° - Display Color
Black/White - Grey Scale
2 - Communication
I2C - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)
| operating voltage | 3.3V | grey scale | 2 |
|---|---|---|---|
| interface | I2C | Partial Refresh Time | 0.3s |
| outline dimensions | 49.35 × 32.11 × 0.87 mm | full refresh time | 2s |
| display size | 41.35 × 28.11 mm | refresh power | <5mW (typ.) |
| Segments | 91 | standby current | <0.01uA (almost none) |
| display color | Black/White | viewing angle | >170° |
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Suitable For Temperature and humidity meter, Humidifier, Digital Meter...
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Lieferumfang
1.9inch Segment e-Paper x1
