SKU:WSAL22520
10.1inch Capacitive Touch LCD (F), 1024 × 600, Toughened Glass, IPS Panel
Regulärer Preis
31.602 Ft
Verkaufspreis
31.602 Ft
Regulärer Preis
0 Ft
Einzelpreis
pro
Sale
Ausverkauft
Steuer enthalten.
Versand wird an der Kasse berechnet.
Abholverfügbarkeit konnte nicht geladen werden

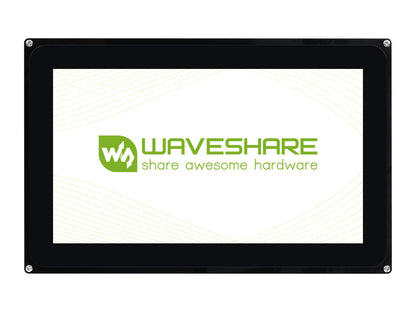

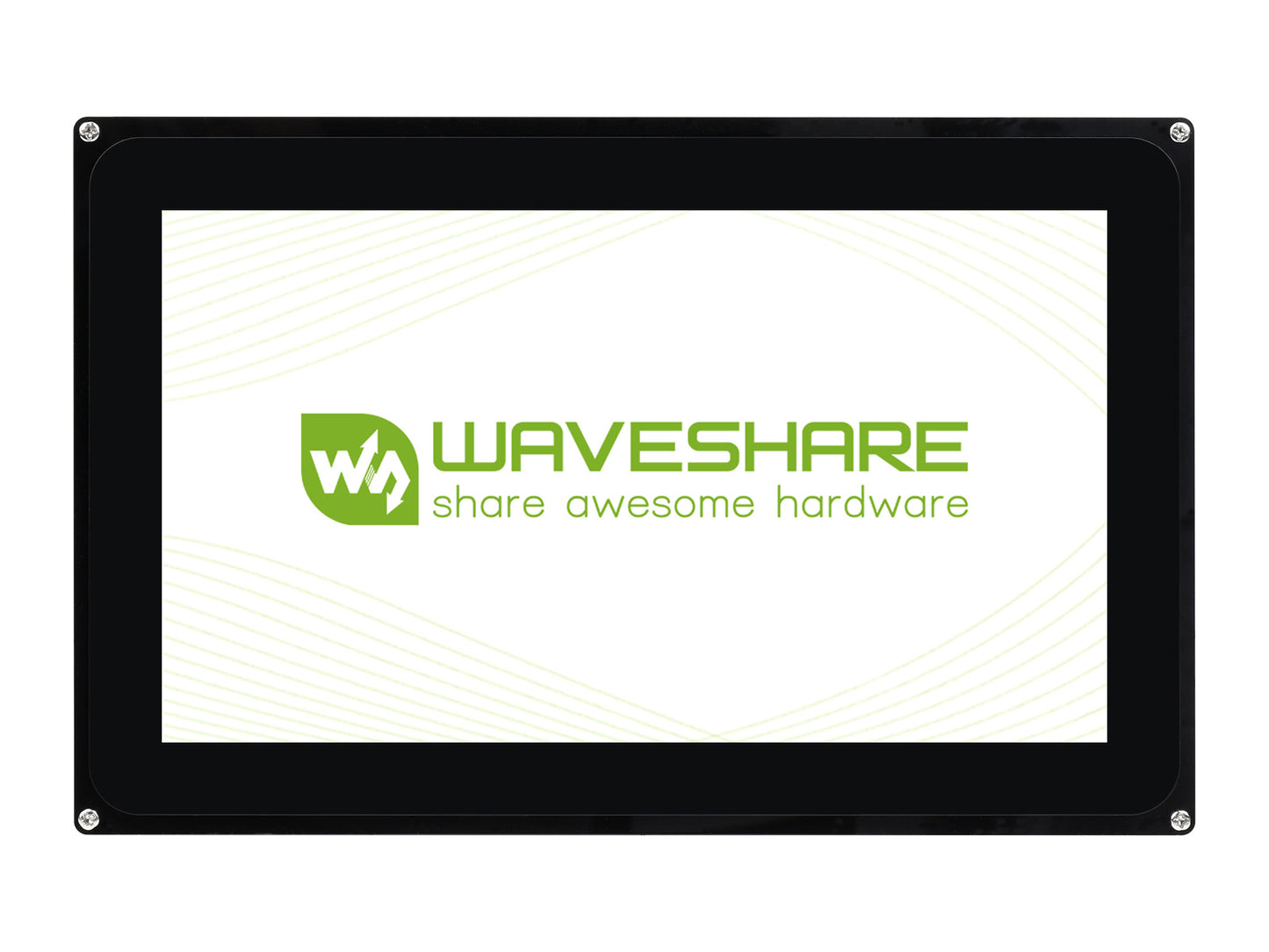

10.1inch Capacitive Touch LCD (F), 1024 × 600, Toughened Glass, IPS Panel
10.1inch Capacitive Touch LCD
Toughened Glass, IPS Panel
Specifications
| LCD Type | IPS |
|---|---|
| Interface | RGB |
| Touch Controller | GT7385 |
| Touch Panel Type | Capacitive (10-point touch) |
| Backlight | LED |
| Display Size (mm) | 223.00 × 125.28 |
| Dot Pitch (mm) | 0.2175 × 0.2088 |
| Aspect Ratio | 16:9 |
| Resolution | 1024 × 600 (Pixel) |
| Power Consumption | TBD |
| Backlight Current | TBD |
| Operating Temperature | 0 ~ 70℃ |
Wide Range of Applications
Industrial Control, Charging Pile, Smart Home, Medical, Internet of Things, Robot,Vehicle-mounted instruments, vending instruments, intelligent CNC, cosmetic instruments
Support 10-point Touch
IPS Panel
Toughened Glass
Up to 6H Hardness, strong protection with better light transmittance
RGB Interface Definition
| PIN NO. | SYMBOL | Description | I/O | FUNCTION |
|---|---|---|---|---|
| 40 | BL_VDD | Power supply | Power | Backlight power supply connect 5V |
| 39 | BL_VDD | |||
| 38 | GND | Power ground | GND | |
| 37 | VDD | Power supply | Power supply voltage connect 3.3V | |
| 36 | R0 | Data | Input | Red data |
| 35 | R1 | |||
| 34 | R2 | |||
| 33 | R3 | |||
| 32 | R4 | |||
| 31 | R5 | |||
| 30 | R6 | |||
| 29 | R7 | |||
| 28 | G0 | Data | Input | Green data |
| 27 | G1 | |||
| 26 | G2 | |||
| 25 | G3 | |||
| 24 | G4 | |||
| 23 | G5 | |||
| 22 | G6 | |||
| 21 | G7 | |||
| 20 | B0 | Data | Input | Blue data |
| 19 | B1 | |||
| 18 | B2 | |||
| 17 | B3 | |||
| 16 | B4 | |||
| 15 | B5 | |||
| 14 | B6 | |||
| 13 | B7 | |||
| 12 | GND | Power ground | Power | GND |
| 11 | PCLK | LCD clock | Input | LCD clock signal |
| 10 | LCD-BL-EN | Backlight control enable | Input | LCD-BL-EN=0: backlight offLCD-BL-EN=1: backlight on |
| 9 | HSYNC | Horizontal sync | Input | Horizontal sync signal |
| 8 | VSYNC | Vertical sync | Input | Vertical sync signal |
| 7 | DE | Control mode selection | Input | DE=0: SYNC mode;DE=1: DE mode |
| 6 | LCD-BL-ADJ | LCD backlight adjustment | Input | PWM adjustment backlight signal |
| 5 | GND | Power ground | Power | GND |
| 4 | CTP-SDA | I2C data pin | Input/Output | I2C data pin, read and write data |
| 3 | CTP-SCL | I2C clock pin | Input | I2C clock pin, clock control |
| 2 | CTP-RST | Reset pin | Input | Reset input |
| 1 | CTP-INT | Interrupt pin | Output | External touch interrupt control pin |

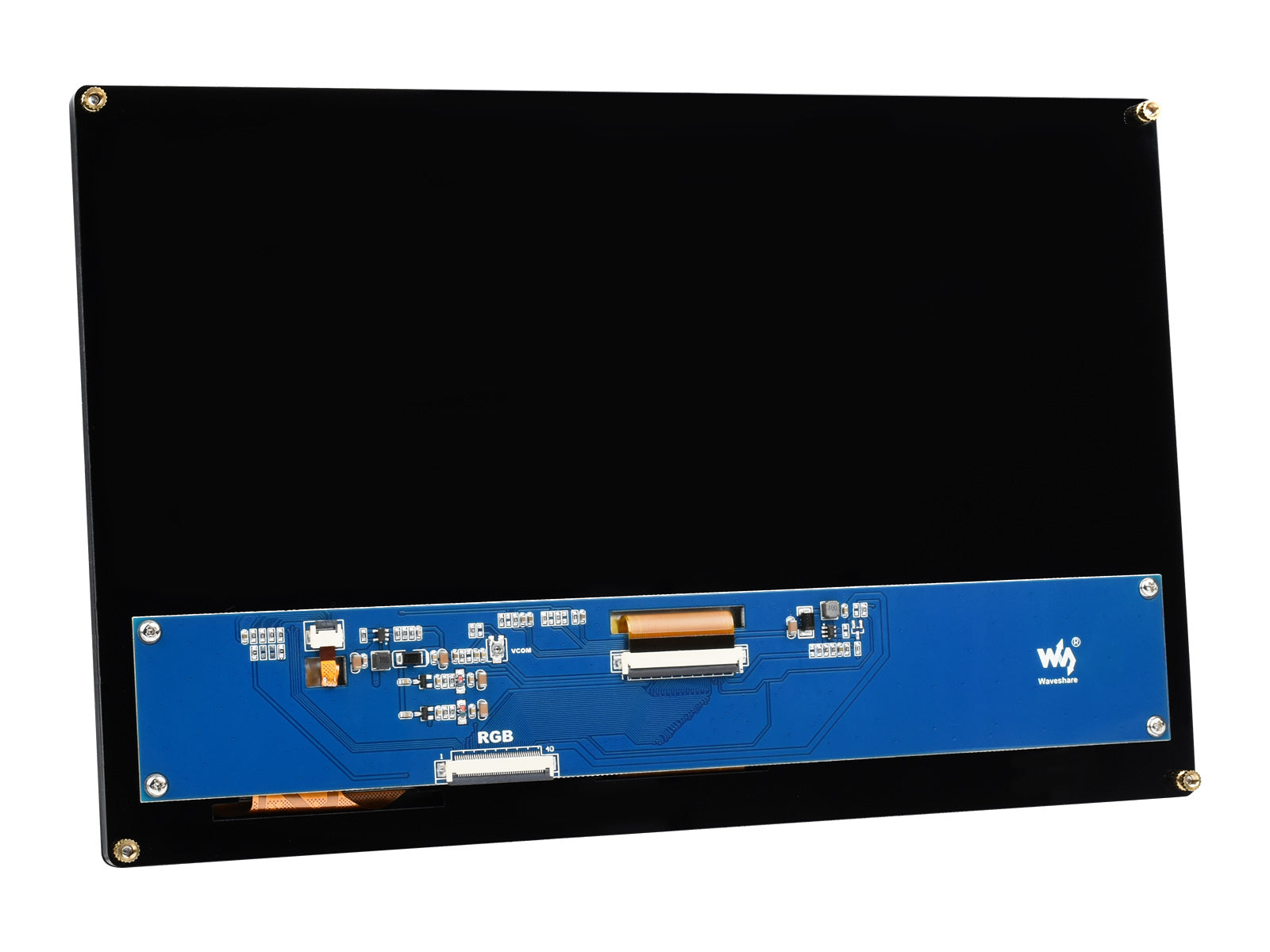

Product Show
Dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
Lieferumfang
- 10.1inch Capacitive Touch LCD (F) × 1
- 40-pin FFC × 1
1
2
