SKU:WSAL30052

10.1inch DSI Capacitive Touch Display, 800×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch

Name: 10.1inch DSI Capacitive Touch Display, 800×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch
Brand: WaveShare
SKU: WSAL30052
Price: 27086.76 HUF
Availability: InStock

27.087 Ft

27.087 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

10.1inch DSI Capacitive Touch Display, 800×1280, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch

10.1″ DSI Capacitive Touch Display

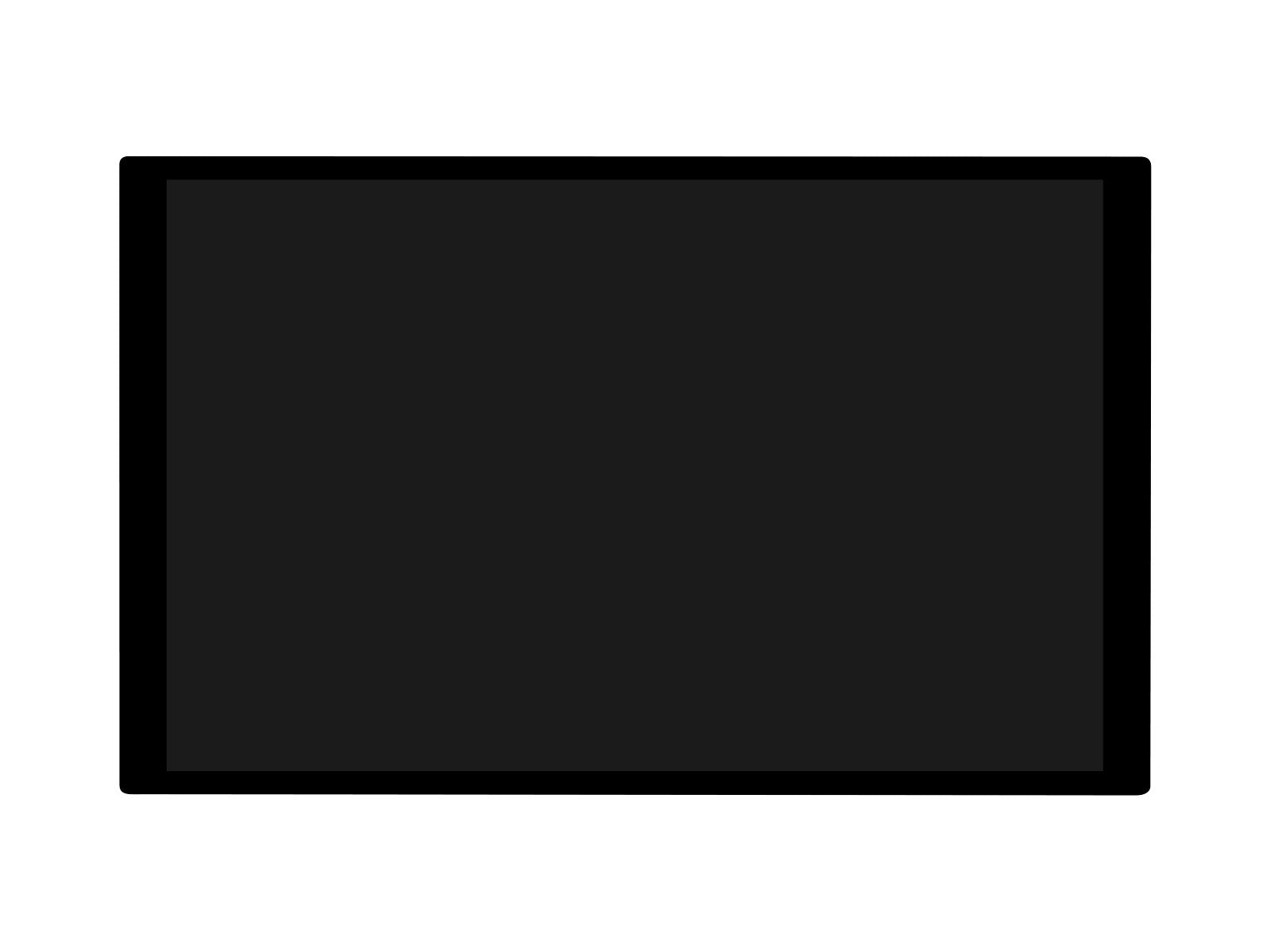

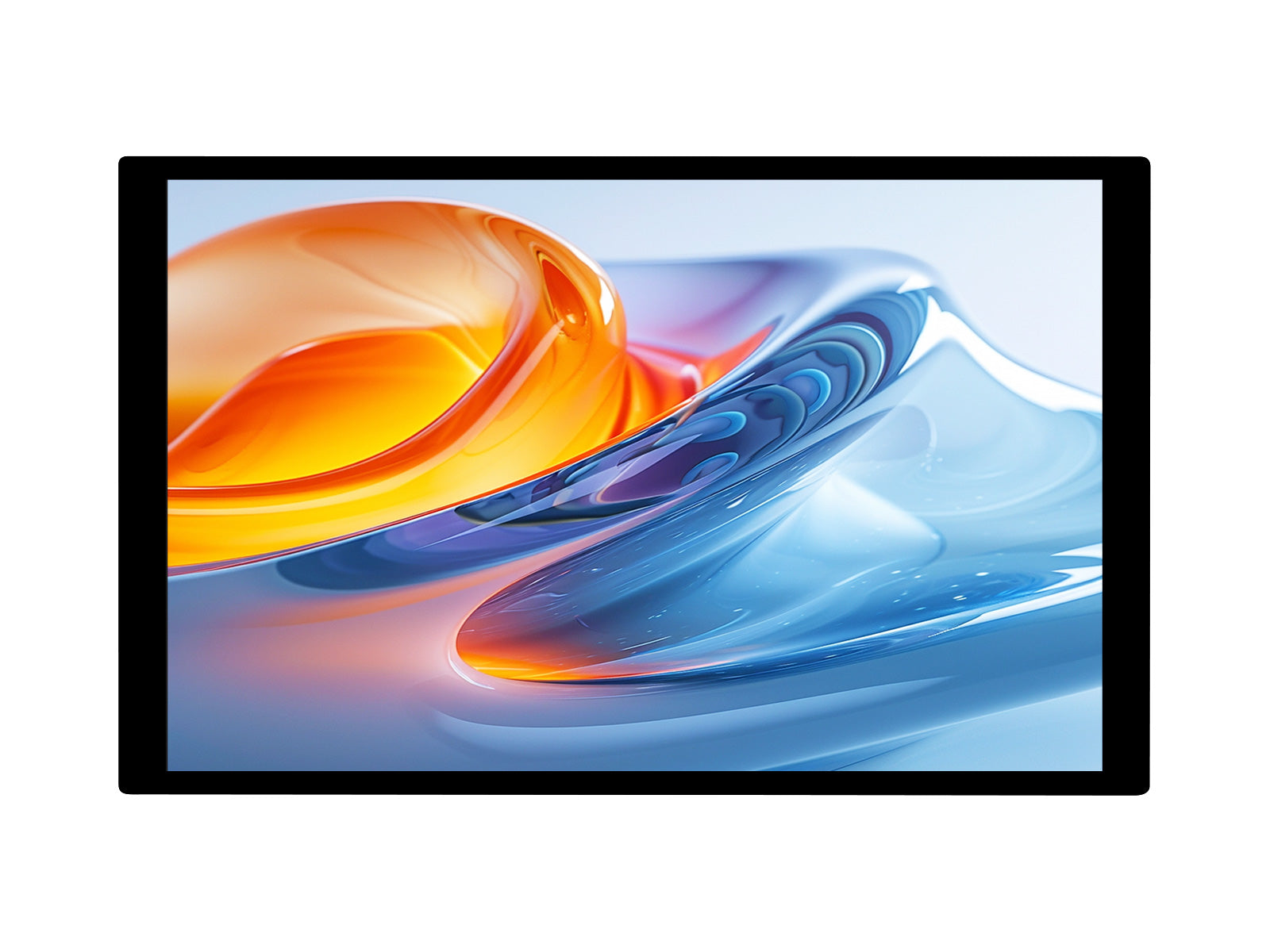

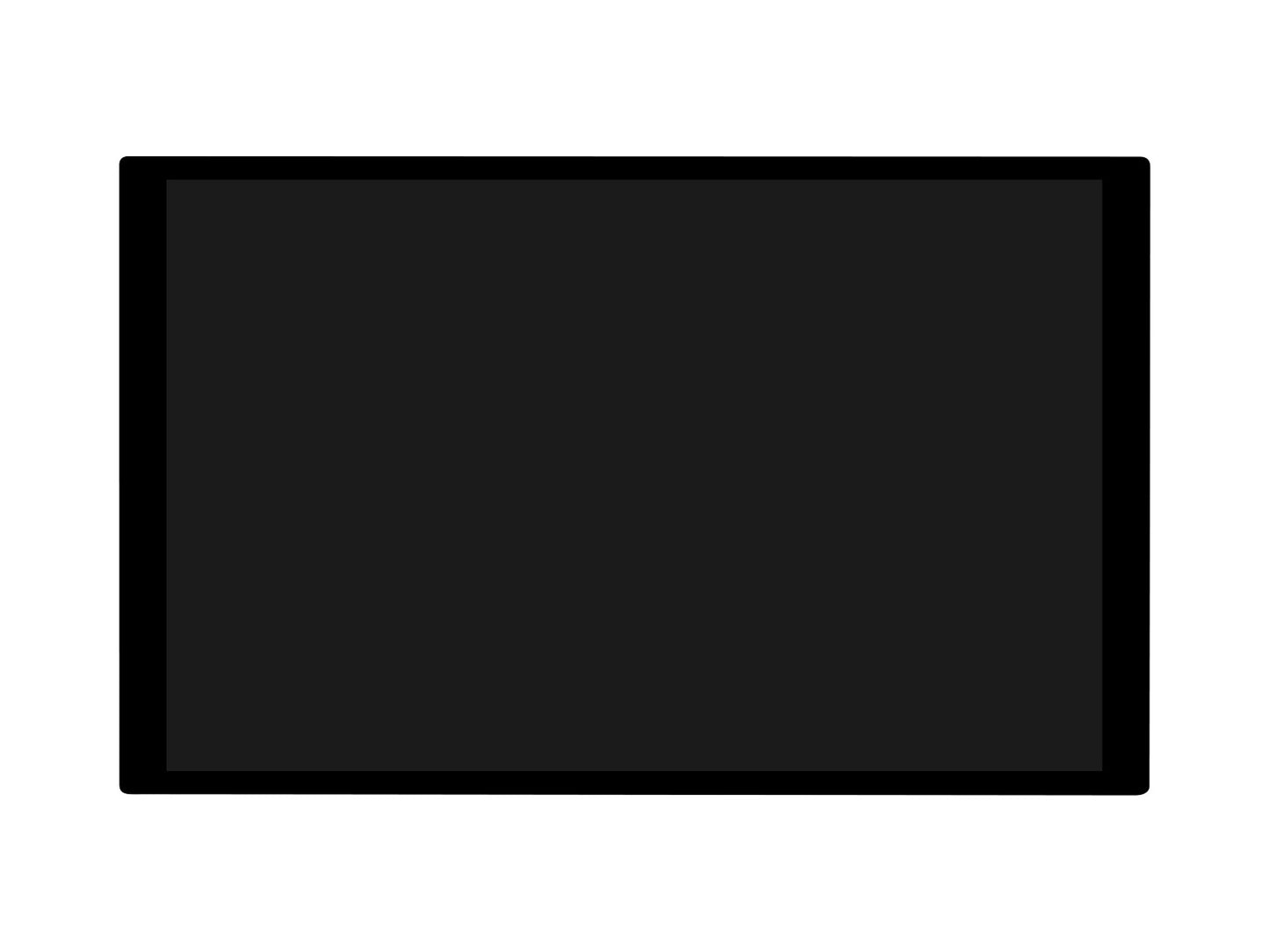

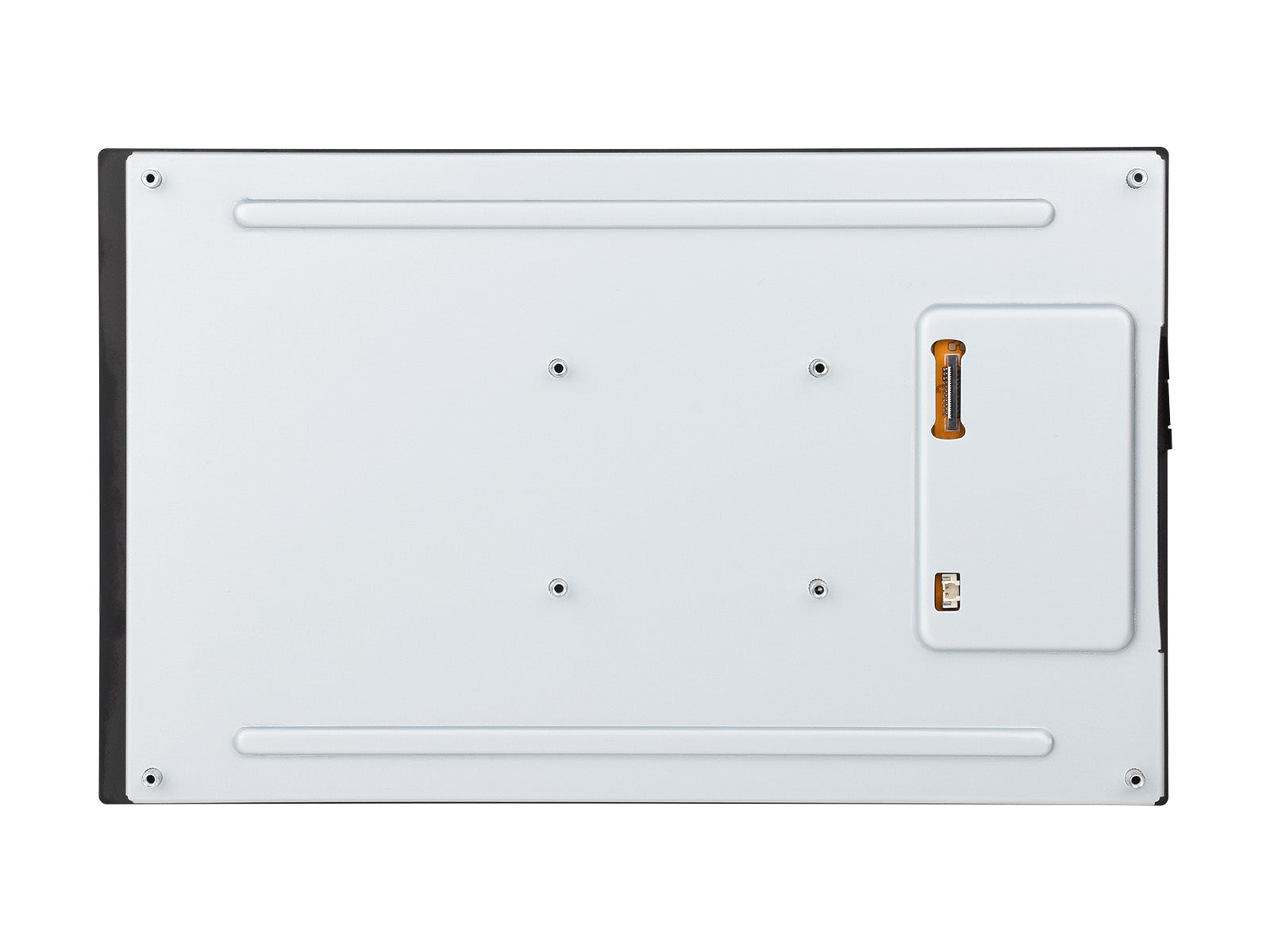

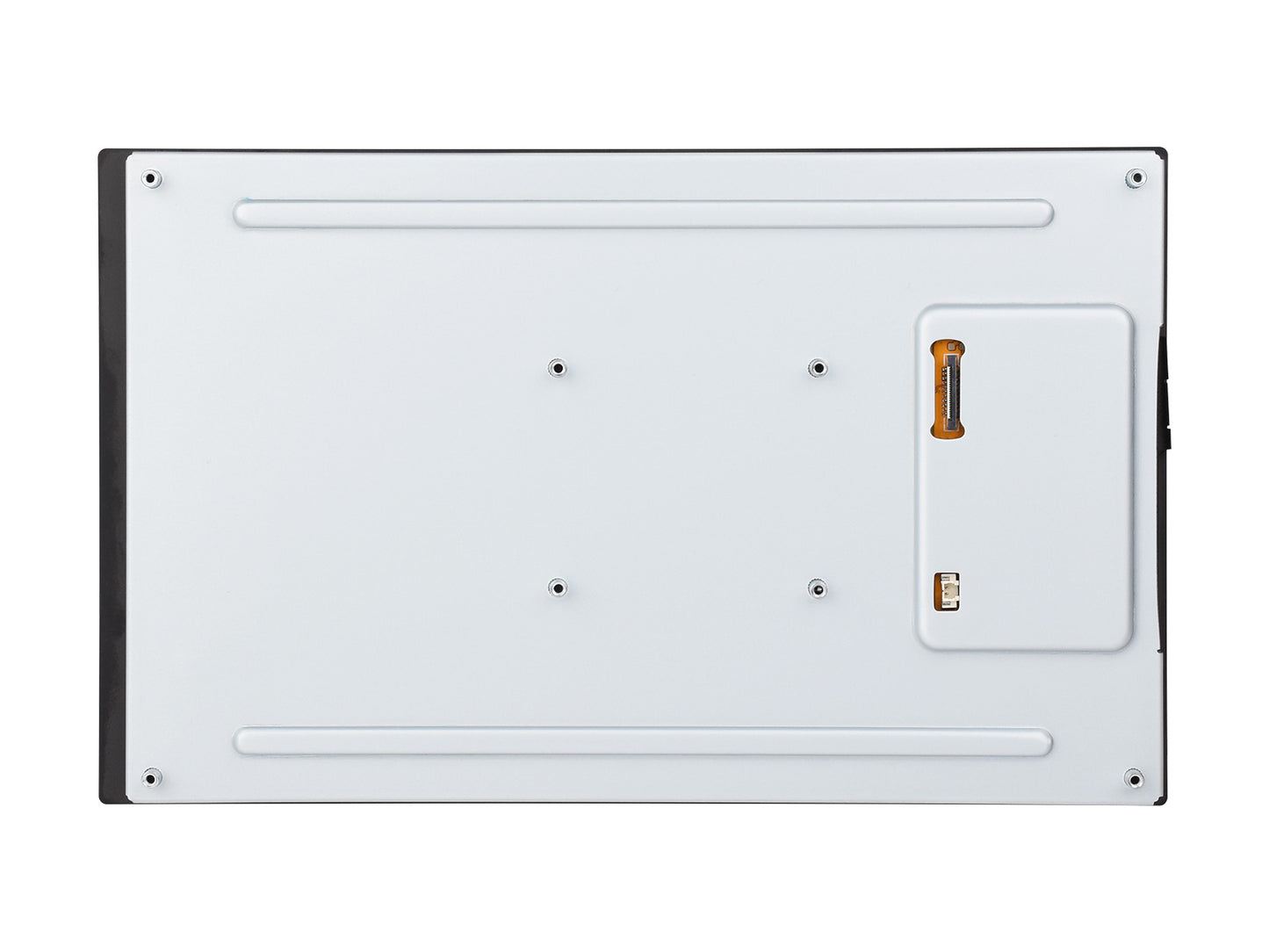

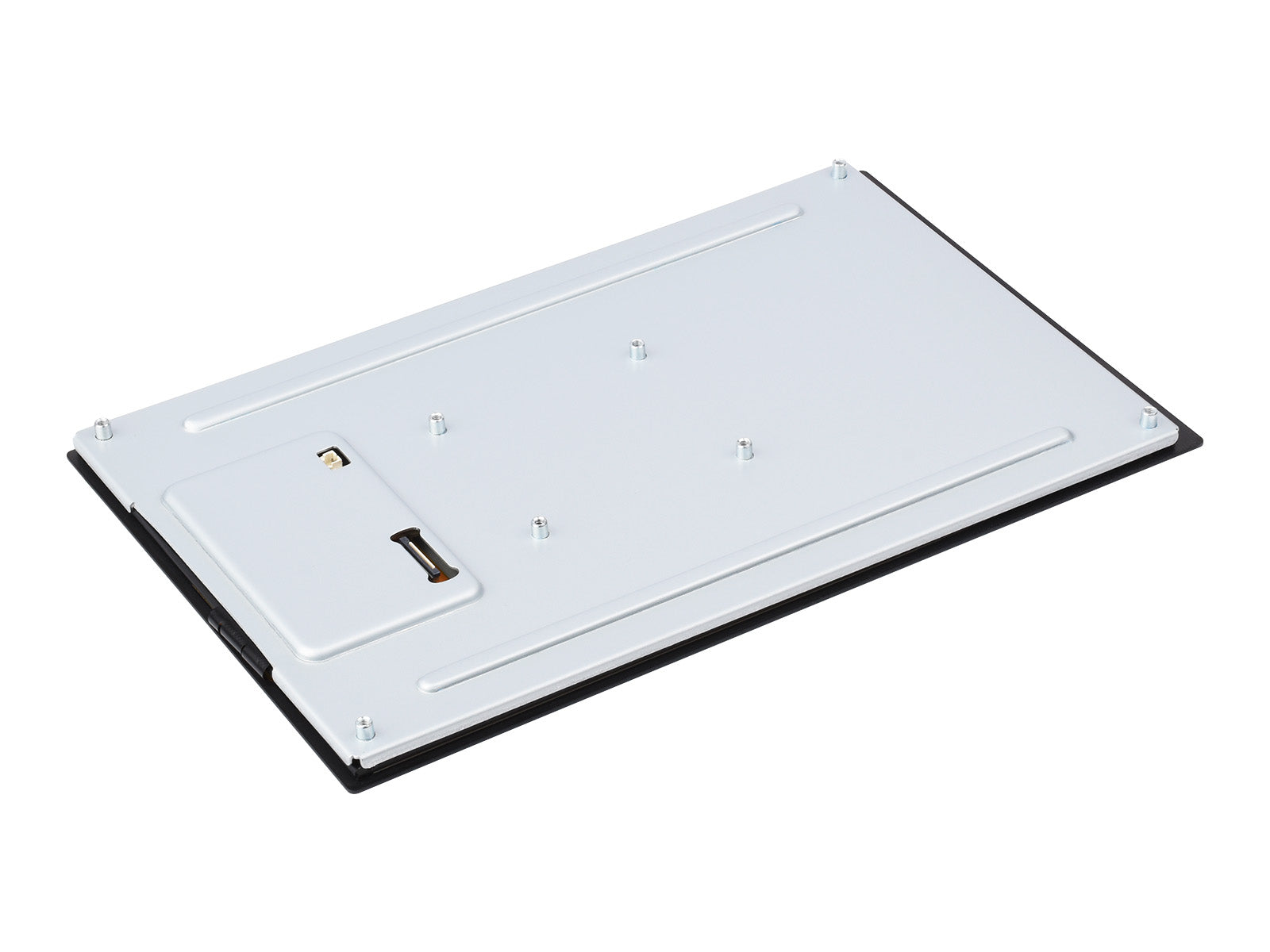

10.1inch capacitive touch display, front and back view

Size10.1″
Resolution800×1280
Display InterfaceDSI
Display PanelIPS
Viewing Angle178°

Touch TypeCapacitive
Touch Points10-Point
Touch PanelToughened Glass
Touch Panel TechOptical Bonding
Brightness400cd/㎡

The display orientation is portrait by default, with 800×1280 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch

RK3576

Supports Buildroot / Debian / Ubuntu / Android, etc. 10-point touch

RK3506

Supports Buildroot / Ubuntu, etc. 10-point touch

ESP32-P4

Supports LVGL GUI programs, up to 10-point touch

connection examples

Connecting to Raspberry Pi 5

Connecting to ESP32-P4-NANO

Connecting to Luckfox-Omni3576 Development Board

* for reference only, the above controller boards or hosts are NOT included

Thinner and more space-saving

Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 10.8mm

10.1inch capacitive touch display, more space-saving

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle

10-Point Capacitive Touch

Gently touch, and see what you get, enjoy multi-point UI interaction via flexible operation.Adapting touch function via I2C signal, supports 10-point touch
