10.85inch e-Paper display, e-ink display, 1360 × 480, Black / White, SPI Interface

33.860 Ft
33.860 Ft 0 Ft
Sale Ausverkauft
Steuer enthalten. Versand wird an der Kasse berechnet.
10.85inch e-Paper display, e-ink display, 1360 × 480, Black / White, SPI Interface
10.85″ e-Paper display

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

10.85inch e-Paper display, front view
Note: the e-Paper Driver HAT is optional, please refer to the Package Content for detailed part list
  • Size10.85″
  • Resolution1360×480
  • Viewing Angle>170°
  • Display ColorBlack/White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • HAT+ StandardImproves interoperability
Version Options
10.85inch e-Paper

10.85inch e-Paperraw display, without driver board

10.85inch e-Paper HAT+

10.85inch e-Paper HAT+ with e-Paper Driver HAT

Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32)
  • Optional for e-Paper Driver HAT:
    • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
    • Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
    • Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32 / ESP32, etc.
    • Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
operating voltageRaw display: 3.3Vdisplay colorBlack/White
with driver HAT: 3.3V/5V
interface3-wire SPI, 4-wire SPIgrey scale2
outline dimensionsRaw display: 270.56 × 105.92 × 1.20 (mm)partial refresh time0.6s
e-Paper Driver HAT: 65.00 × 30.50 (mm)full refresh time3.5s
display size259.76 × 91.68 (mm)refresh power<50mW
DOT PITCH0.191 × 0.191 (mm)standby current<0.01uA (almost none)
RESOLUTION1360 × 480 pixelsviewing angle>170°
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper Driver HAT

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards, Jetson Nano

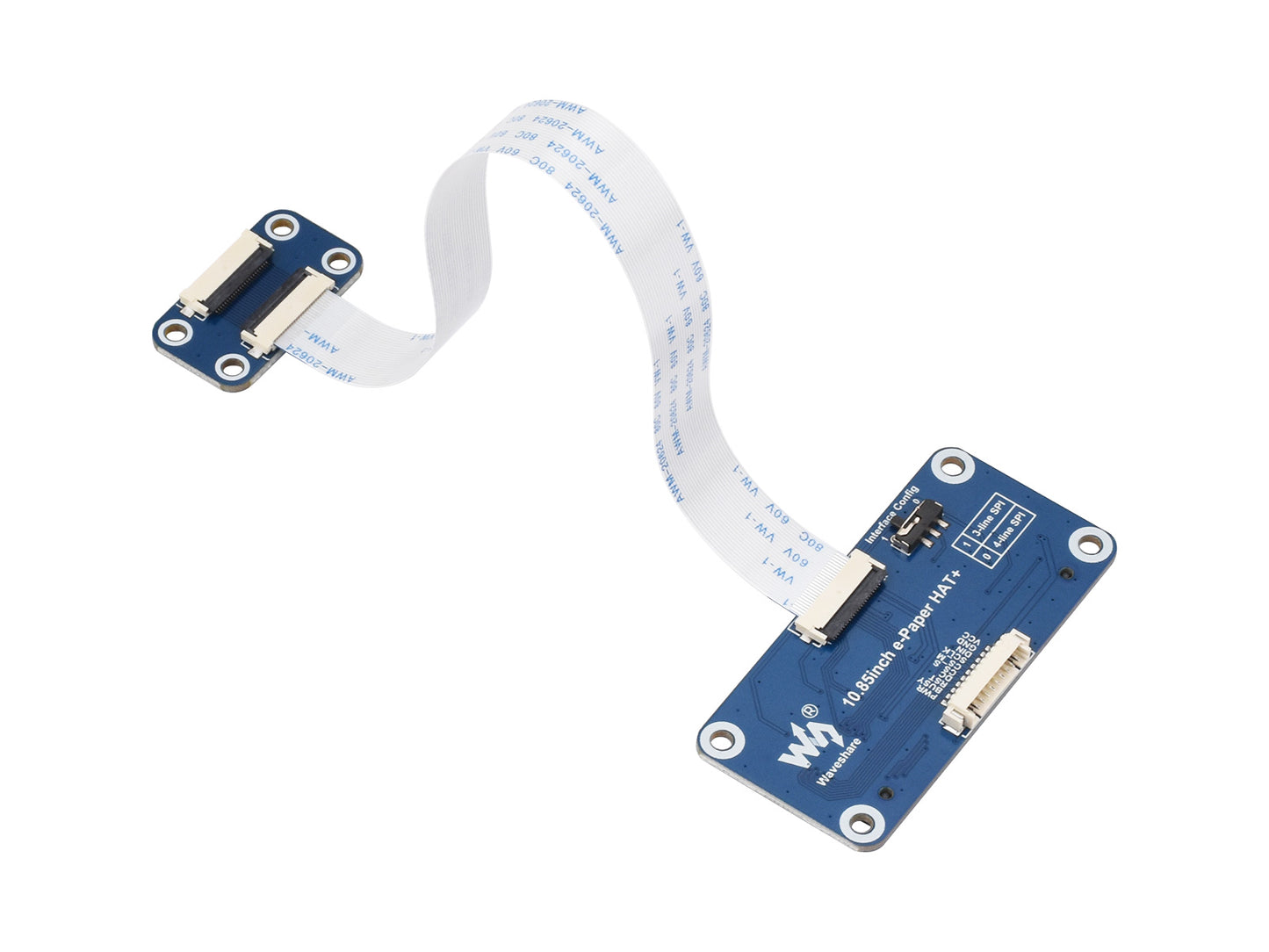

10.85inch e-Paper Driver HAT, standard Raspberry Pi 40PIN GPIO header

* for reference only, the Raspberry Pi in the picture is NOT included

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32

10.85inch e-Paper Driver HAT front view, interface introduction
PWRPower control pin
BUSYBusy status output
RSTExternal reset, low active
DCData / Command selection (high for data, low for command)
CS_Se-paper S area chip selection, low active
CS_Me-paper M area chip selection, low active
SCLKSPI SCK pin
DINSPI MOSI pin
GNDGround
VCC3.3V/5V
Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

10.85inch e-Paper display with driver board, onboard voltage translator
10.85inch e-Paper display with driver board, supports Raspberry Pi HAT+ standard
Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions
10.85inch e-Paper display, outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part NumberColorsGrey ScaleResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial Refresh1Pi Head-er2Flexi-bleInterface
1.02inch e-Paper Moduleblack, white2128×8021.76 × 14.0042.0 × 27.02√SPI
1.54inch e-Paper Moduleblack, white2200×20027.00 × 27.0048.0 × 33.02√SPI
1.54inch e-Paper Module (B)red, black, white2200×20027.00 × 27.0048.0 × 33.014SPI
1.54inch e-Paper Module (G)red, yellow, black, white2200×20027.00 × 27.0048.0 × 33.020SPI
1.64inch e-Paper Module (G)red, yellow, black, white2168×16829.568 × 29.56847 × 3812SPI
2.13inch e-Paper HATblack, white2250×12248.55 × 23.7065.0 × 30.22√√SPI
2.13inch e-Paper HAT+black, white2250×12248.55 × 23.7065.0 × 30.52√√SPI
2.13inch e-Paper HAT (B)red, black, white2250×12248.55 × 23.7065.0 × 30.215√SPI
2.13inch e-Paper HAT (G)red, yellow, black, white2250×12248.55 × 23.7065.0 × 30.216√SPI
2.13inch Touch e-Paper HATblack, white2250×12248.55 × 23.7069.15 × 38.902√√SPI
2.13inch Touch e-Paper HAT (with case)black, white2250×12248.55 × 23.7072.20 × 41.902√√SPI
2.15inch e-Paper HAT+ (B)red, black, white2296×16048.10 × 26.0065.0 × 34.023√SPI
2.15inch e-Paper HAT+ (G)red, yellow, black, white2296×16048.10 × 26.0065.0 × 34.020√SPI
2.36inch e-Paper Module (G)red, yellow, black, white2296×16852.096 × 29.56869.5 × 38.512SPI
2.66inch e-Paper Moduleblack, white2296×15230.704 × 60.08837.0 × 83.56√SPI
2.66inch e-Paper Module (B)red, black, white2296×15230.704 × 60.08837.0 × 83.515SPI
2.66inch e-Paper Module (G)red, yellow, black, white2360×18460.05 × 30.6985.0 × 38.526SPI
2.7inch e-Paper HATblack, white4264×17657.29 × 38.1985.0 × 56.06√√SPI
2.7inch e-Paper HAT (B)red, black, white2264×17657.288 × 38.19273.5 × 56.015√SPI
2.9inch e-Paper Moduleblack, white4296×12866.89 × 29.0589.5 × 38.03√SPI
2.9inch e-Paper Module (B)red, black, white2296×12866.89 × 29.0589.5 × 38.015SPI
2.9inch e-Paper Module (G)red, yellow, black, white2296×12866.89 × 29.0589.5 × 38.016SPI
2.9inch Touch e-Paper HATblack, white4296×12866.89 × 29.0589.10 × 42.703√√SPI
3inch e-Paper Module (G)red, yellow, black, white2400×16870.4 × 29.56888.5 × 4112SPI
3.5inch e-Paper Module (G)red, yellow, black, white2384×18479.68 × 38.1894.00 × 47.5020SPI
3.52inch e-Paper HATblack, white2360×24074.51 × 49.6786.5 × 571.5√SPI
3.52inch e-Paper HAT (B)red, black, white2360×24074.51 × 49.6786.5 × 5716√SPI
3.6inch e-Paper HAT+ (E)E6 full color2600×40076.20 × 50.8089.50 × 59.0015√SPI
3.7inch e-Paper HATblack, white4480×28047.32 × 81.1258.0 × 96.53√√SPI
3.7inch e-Paper HAT+ (G)red, yellow, black, white2416×24081.54 × 47.0496.00 × 57.0020√SPI
3.97inch e-Paper HAT+black, white4800×48086.40 × 51.8499.50 × 60.003.5√√SPI
3.97inch e-Paper HAT+ (G)red, yellow, black, white2800×48086.40 × 51.8499.50 × 60.0021√SPI
4inch e-Paper HAT+ (E)E6 full color2600×40084.6 × 56.40101.00 × 68.0019√SPI
4.2inch e-Paper Moduleblack, white4400×30084.80 × 63.60103.0 × 78.55√SPI
4.2inch e-Paper Module (B)red, black, white2400×30084.80 × 63.60103.0 × 78.515SPI
4.2inch e-Paper Module (G)red, yellow, black, white2400×30084.80 × 63.60103.0 × 78.521SPI
4.26inch e-Paper HATblack, white4800×48092.80 × 55.68107.0 × 64.04√√SPI
4.3inch e-Paper UART Moduleblack, white4800×60088.00 × 66.00118.0 × 75.01.5UART
4.37inch e-Paper Module (G)red, yellow, black, white2512×36890.11 × 64.77101.5 × 81.514SPI
5inch e-Paper HATblack, white2960×552110.59 × 62.65126.38 × 71.191.8√√SPI
5.79inch e-Paper Moduleblack, white4792×272139.00 × 47.74152.50 × 58.503.5√SPI
5.79inch e-Paper Module (B)red, black, white2792×272139.00 × 47.74152.50 × 58.5024SPI
5.79inch e-Paper Module (G)red, yellow, black, white2792×272139.00 × 47.74152.50 × 58.5021SPI
5.83inch e-Paper HATblack, white2648×480119.232 × 88.320125.4 × 99.55√SPI
5.83inch e-Paper HAT (G)red, yellow, black, white2648×480118.78 × 88.22125.40 × 99.5020√SPI
6inch e-Paper HATblack, white16800×600122.4 × 90.6138.4 × 101.8<1√√USB/SPI/ I80
6inch HD e-Paper HATblack, white161448×1072122.4 × 90.6138.4 × 101.8<1√√USB/SPI/ I80
7.3inch E-Paper HAT (E)E6 full color2800×480160 × 96170.2 × 111.212√SPI
7.3inch E-Paper HAT (F)7-Color2800×480160 × 96170.2 × 111.235√SPI
7.5inch e-Paper HATblack, white4800×480163.20 × 97.92170.2 × 111.24√√SPI
7.5inch HD e-Paper HATblack, white2880×528163.24 × 97.94170.2 × 111.25√SPI
7.5inch e-Paper HAT (B)red, black, white2800×480163.20 × 97.92170.2 × 111.226√√SPI
7.5inch e-Paper HAT (H)red, yellow, black, white2800×480163.20 × 97.92170.20 × 111.2022√SPI
7.8inch e-Paper HATblack, white161872×1404158.18 × 118.64173.8 × 127.6<1√√USB/SPI/ I80
9.7inch e-Paper HATblack, white161200×825202.8 × 139.43218.8×156.4<1√√USB/SPI/ I80
10.2inch e-Paper HAT (G)red, yellow, black, white2960 × 640215.52 × 143.68224.00 × 157.0027√SPI
10.3inch e-Paper HATblack, white161872×1404209.66 × 157.25216.7 × 174.4<1√√USB/SPI/ I80
10.3inch e-Paper HAT (D)black, white161872×1404209.66 × 157.25227.7 × 165.8<1√√√USB/SPI/ I80
10.85inch e-Paper HAT+black, white21360 × 480259.76 × 91.68270.56 × 105.923.5√SPI
10.85inch e-Paper HAT+ (G)red, yellow, black, white21360 × 480259.76 × 91.68270.56 × 105.9221√SPI
12.48inch e-Paper Moduleblack, white21304×984252.98 × 190.90280.0 × 229.5<8√SPI
12.48inch e-Paper Module (B)red, black, white21304×984252.98 × 190.90280.0 × 229.537√SPI
13.3inch e-Paper HATblack, white161600×1200270.40 × 202.80285.80 × 213.65<1√√USB/SPI/ I80
13.3inch e-Paper HAT (B)red, black, white2960×680275.52 × 195.16286.32 × 212.2622√√SPI
13.3inch e-Paper HAT (K)black, white4960×680275.52 × 195.16286.32 × 212.265√√SPI
13.3inch e-Paper HAT (E)E6 full color21600×1200270.40 × 202.80284.70 × 208.8019√SPI
  1. It usually takes about 0.3s for partial refresh
  2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
e-Paper panels comparing
