SKU:WSAL22743

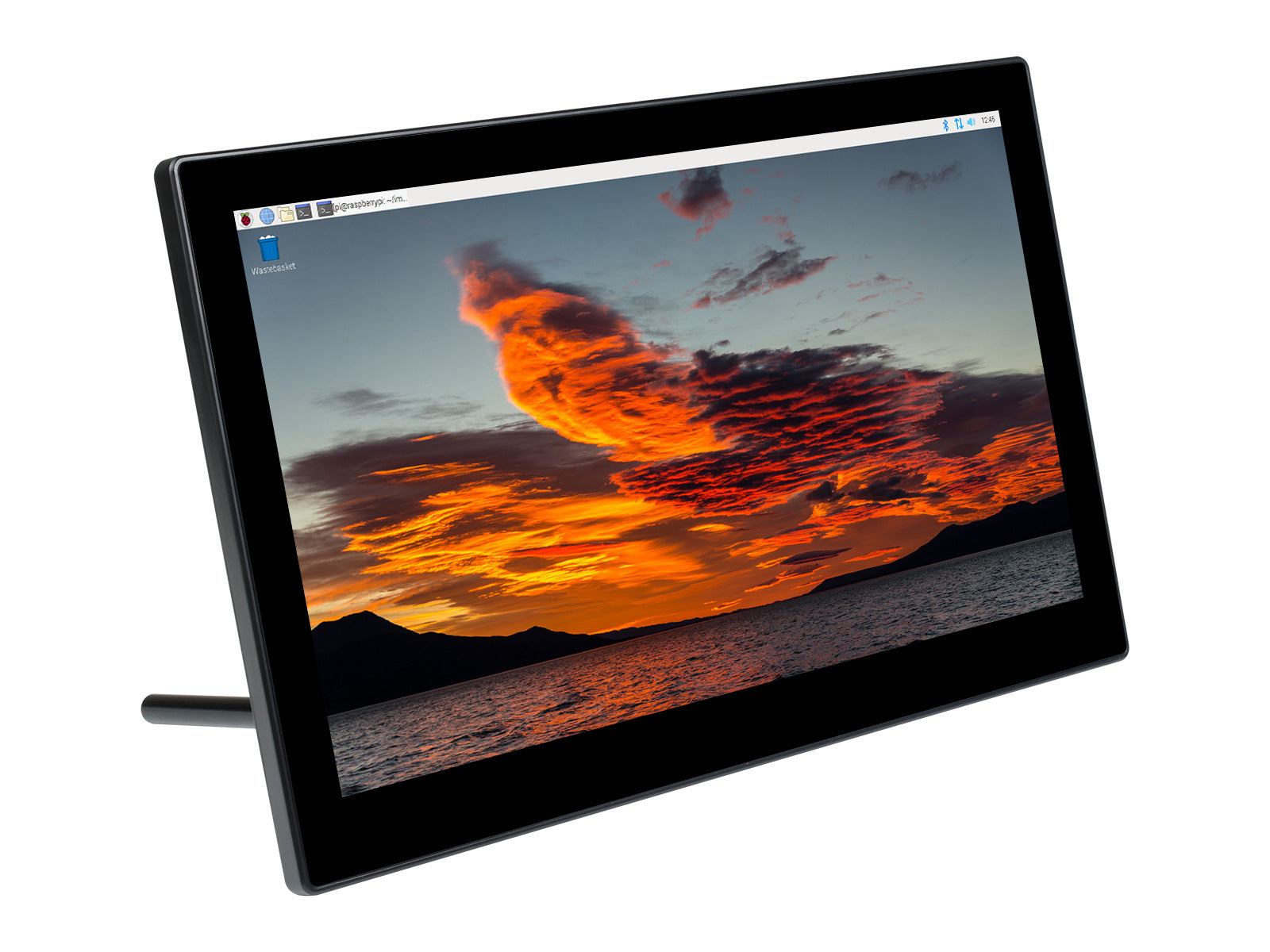

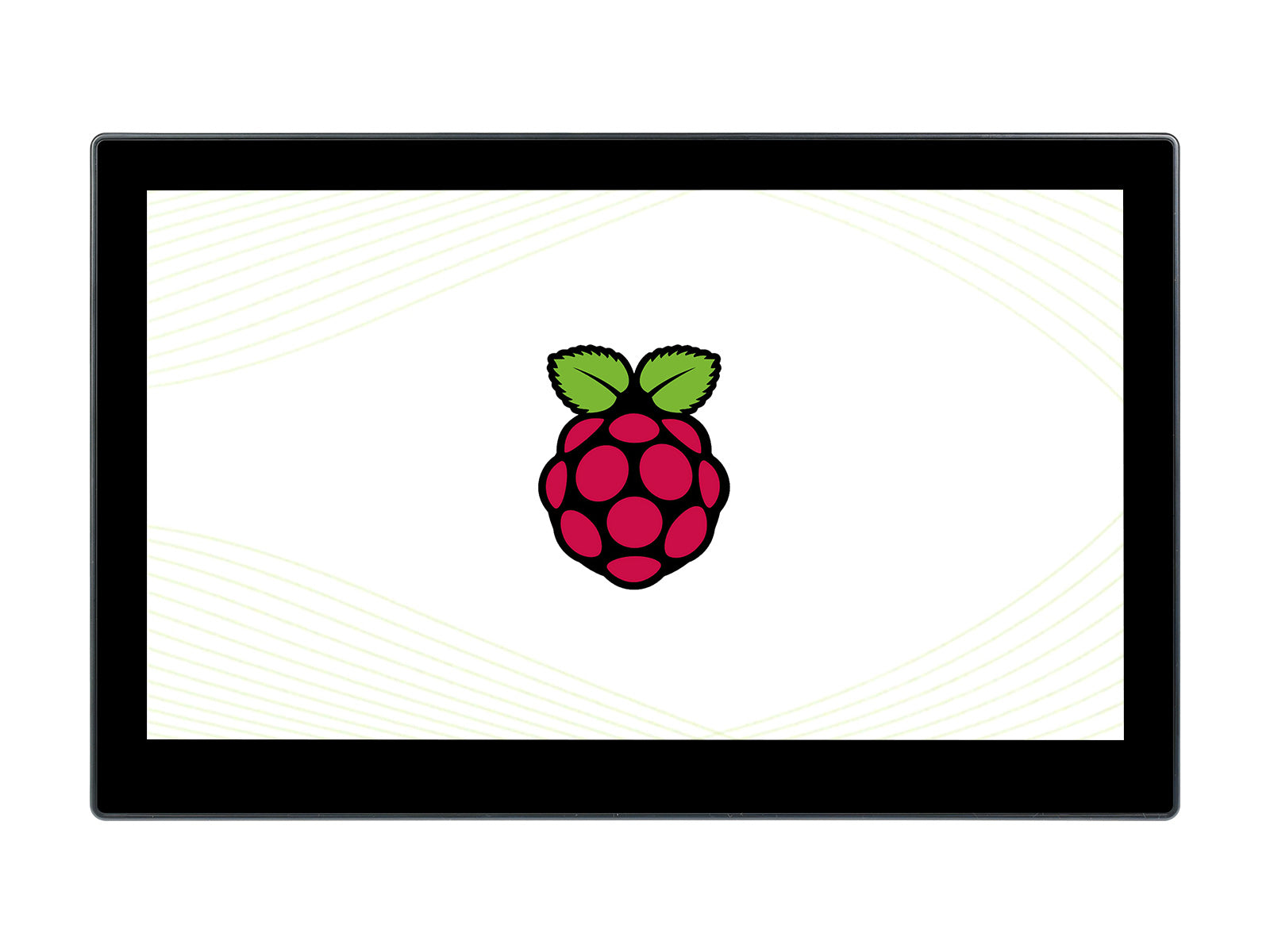

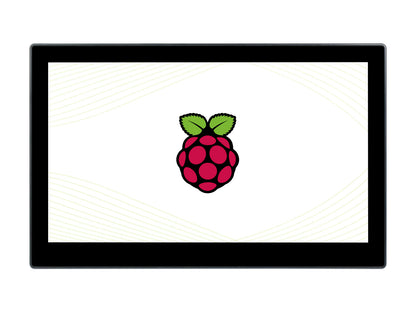

Mini-Computer Powered by Raspberry Pi CM4, 13.3inch HD Touch Screen, USB / ETH Ports

13.3″ CM4 Mini-Computer

• ControllerRaspberry Pi CM4
• Size13.3"
• Resolution1920×1080
• Display PanelIPS
• Viewing Angle178°
• Touch TypeCapacitive
• Touch Points10-Points
• Touch PanelToughened glass
• OSD MenuBrightness/Contrast
• OrientationLandscape/Portrait
• Audio InputMEMS Silicon Mic
• Audio Output3.5mm Jack
• SoundHi-Fi Speaker
• PortsUSB/ETH
• EnclosureABS Material

Selection Guide

PiPad Kit

PiPad Kit with 1GB RAM CM4

PiPad Kit with 4GB RAM CM4

Powerful Controller: Raspberry Pi CM4

Not just a simple display, with powerful Raspberry Pi CM4 inside*

* the CM4 is optional

Multiple OS Support

Raspberry Pi OS / Ubuntu / Kali / WIN10 IoT / Retropie...

Could be a Raspberry Pi tablet

Having Fun With This Raspberry Pi Tablet, Watch Movies, Listen Music

There's no battery inside, please power it with the included power supply

also a desktop mini-computer

Transform To A Mini-Computer In One Second For Study/Work, Just Connect The Wireless Mouse And Keyboard

High speed networking

supports Gigabit Ethernet and 2.4Ghz/5Ghz dual-band WiFi high speed Internet connection, supports Bluetooth5.0

178° viewing angle

IPS display panel, wide viewing angle, clear display effect

Landscape Or Portrait

Display Orientation Is Changeable By Easy Configuration

10-points touch screen

up to 10-points capacitive touch, with 6H hardness toughened glass panel

* the actual touch points depends on the software system

Dual track Hi-Fi speaker

Embedded dual track ferrite Hi-Fi speaker, enjoy the nice sound quality, also a 3.5mm headphone jack

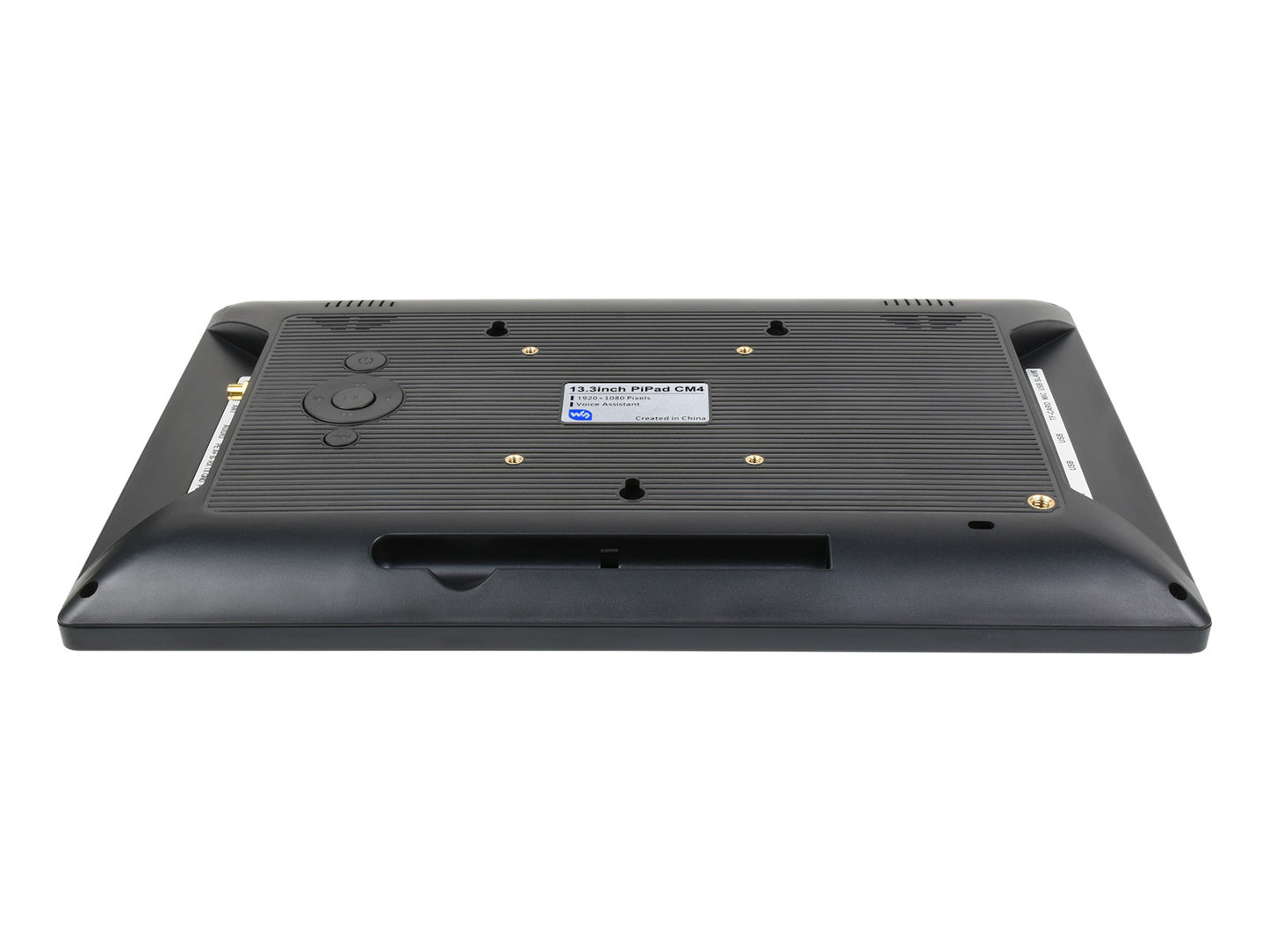

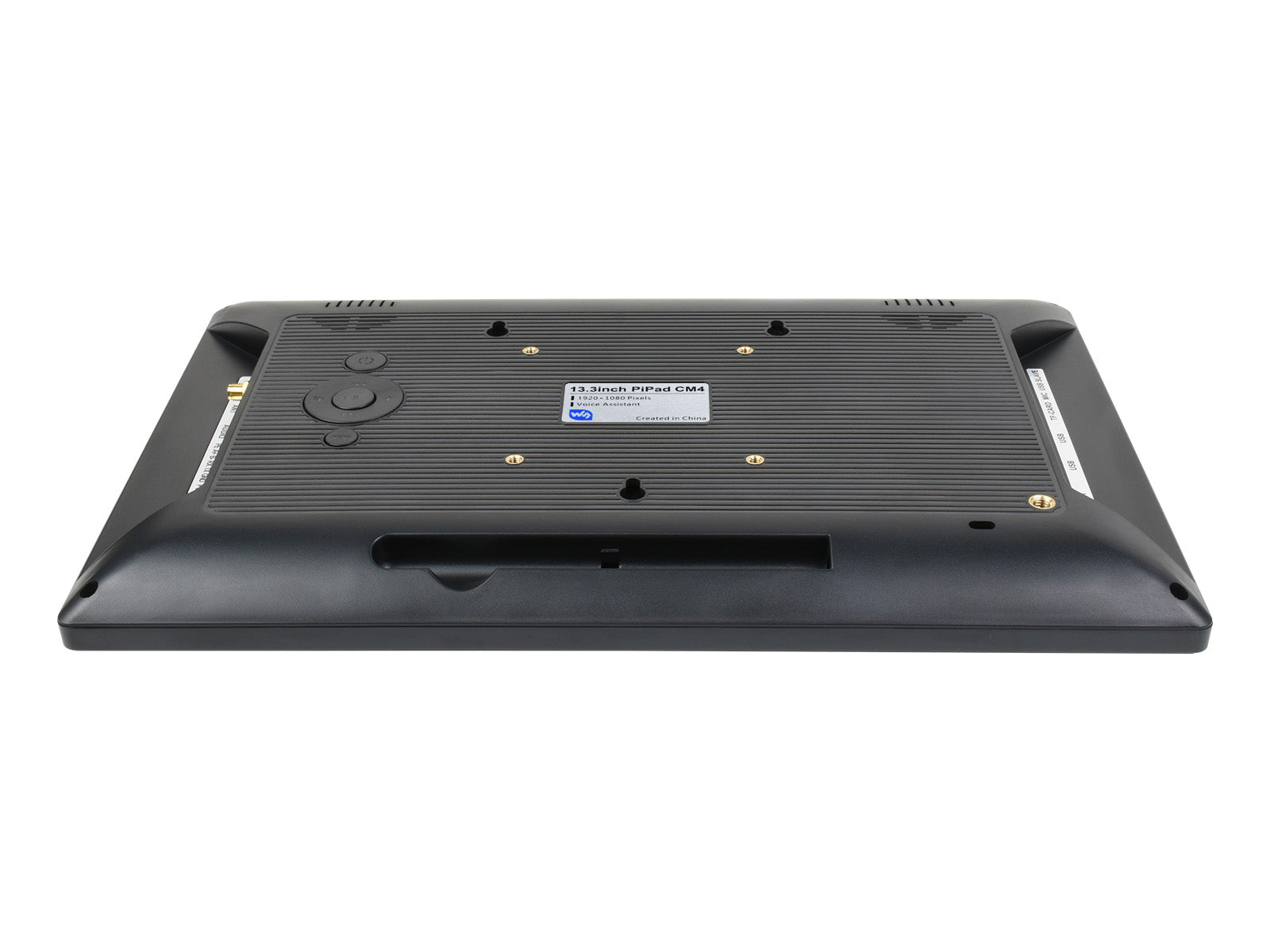

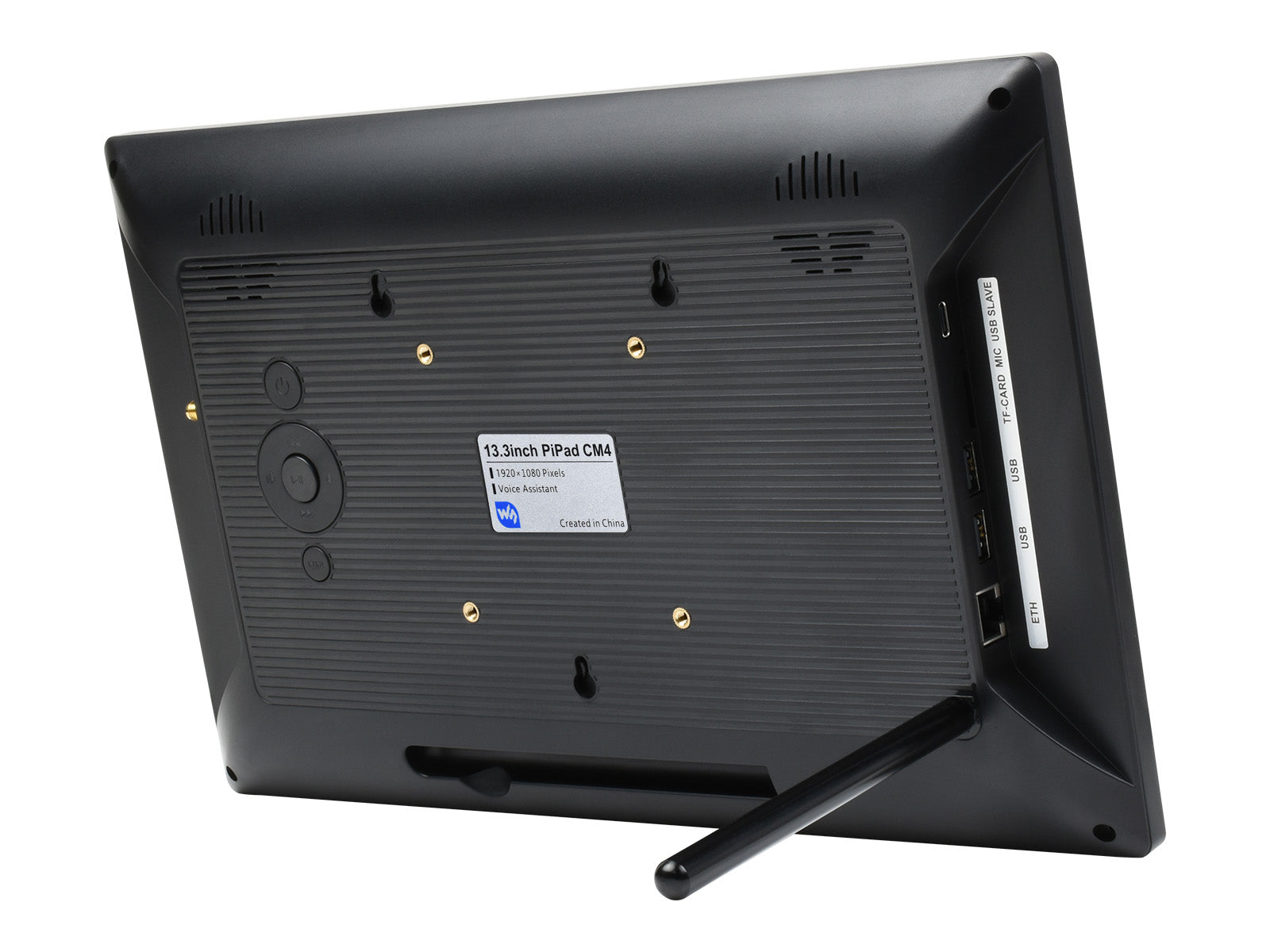

Appearance and Dimensions

Resources & Services

Wiki:13.3inch_PiPad_C4

Selection Guide

Product	Controller	Resolution	Touch control	Ethernet	Wireless2	Features
13.3inch PiPad	Raspberry Pi 3 Model A+	1920 × 1080	10-points capacitive touch	100M	WIFIBluetooth	speaker,audio jack
13.3inch PiPad C4A	Compute Module 4 (4GB RAM)			Gigabit
13.3inch PiPad C4B	Compute Module 4 (1GB RAM)
13.3inch PiPad C4	Compute Module 41
13.3inch Magic Mirror	Raspberry Pi 3 Model A+			100M		speaker,audio jack,speech assistant,one-way mirrormic
13.3inch Magic Mirror C4A	Compute Module 4 (4GB RAM)			Gigabit
13.3inch Magic Mirror C4B	Compute Module 4 (1GB RAM)
13.3inch Magic Mirror C4C	Compute Module 4 (2GB RAM)
13.3inch Magic Mirror C4	Compute Module 41

1. indicating the controller is NOT included
2. the wireless networking function depends on the controller itself

Lieferumfang

1. 13.3inch PiPad C4 x1
2. Back stand x1
3. OPTIONS 12V 1A power supply x1
4. Screwdriver x1
5. OPTIONS Compute Module 4 core module & accessories
   • CM4 Module x1
   • 32GB TF card x1
   • Card reader x1
   • 2.4G/5G WiFi antenna x1
