SKU:WSAL30795

16-Ch Ethernet Relay Module, Modbus RTU / Modbus TCP Protocol, Ethernet Port Communication, Supports PoE Power Supply, With Various Isolation And Protection Circuits, Industrial Grade Rail-Mount Case

16-Ch Ethernet Relay Module

Ethernet Port Communication & Cascade Support, Modbus Protocol, PoE Power Supply

Features At A Glance

This product is a 16-ch relay module designed for industrial environments, featuring dual Ethernet interfaces control. It adopts Modbus RTU / Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case.

The Modbus POE ETH Relay 16CH is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

• Dual Ethernet ports design, supports Ethernet port communication cascade and PoE power supply cascade
• Features flash-on, flash-off function, it is possible to set the delay closing after opening or delay opening after closing
• Supports DC 7~36V wide range power input and PoE power supply
• Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
• Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
• Adopts dedicated relay driver chip, with built-in flyback diode protection, for stronger and more stable driving ability
• Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
• High quality relay, contact rating: ≤10A 250VAC/30VDC
• Rail-mounted ABS plastic enclosure, easy to install, safe to use
• 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status

Primary function

Supports Sending Modbus RTU/TCP Protocol Commands Via Ethernet Port To Control Relay And Various Devices

Supports Multiple Communication Modes, Adopts Modbus Protocol

Supports TCP Server / TCP Client / UDP Mode / UDP Multicast / HTTP / MQTTSupports Modbus RTU protocol/Modbus TCP protocol

Multi Configuration Methods

Supports software and Web Browser Configuration, Obtaining Dynamic IP Via DHCP,connecting to domain name server via DNS protocol

Multi Power Supply Options, Wide Range Power Input

DC Power port: directly uses a power plug for power supply; Screw terminal: DC 7~36V wide range power input; PoE port: IEEE 802.3af PoE compliant

* The external power supply adapter is NOT included by default, it is recommended to purchase 12V power supply if you need it.

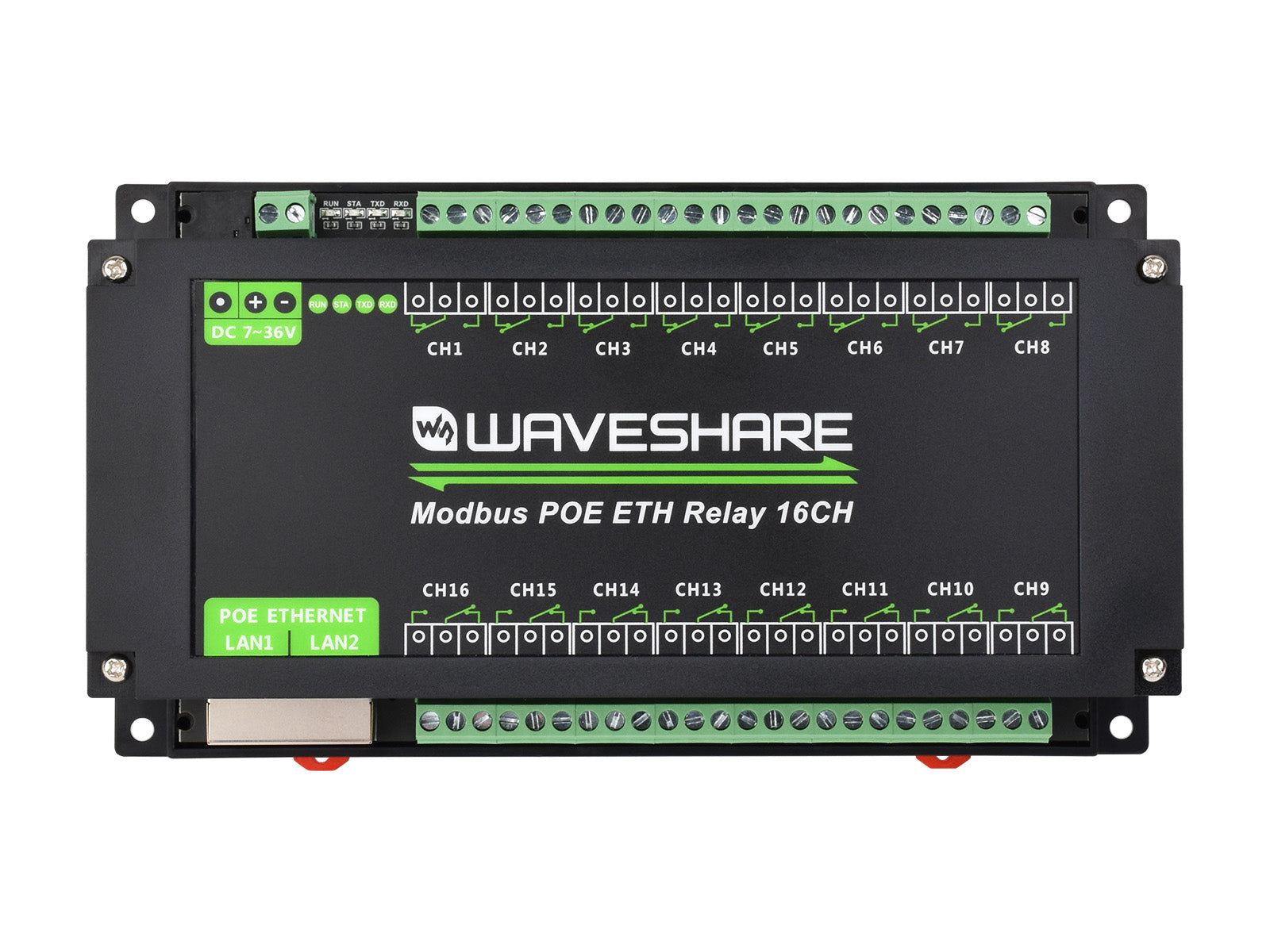

Interfaces & Indicators

With Multiple LED Indicators, Easy To Monitor The Operating Status

RUN	Ethernet port indicator, blinking when Ethernet port normally working
STA	MCU indicator, blinking when the MCU is normally working
TXD	TX indicator, lights up when sending data
RXD	RX indicator, lights up when receiving data
Left Ethernet port Green Indicator	Lights up when the connection of Ethernet Port 1 is established
Right Ethernet port Green Indicator	Lights up when the connection of Ethernet Port 2 is established
Left Ethernet Port Yellow Indicator	Lights up when the TCP connection is established
Right Ethernet Port Yellow Indicator	Data activity indicator, blinking when transmitting data

Supports Ethernet Port Cascade and PoE cascade power supply

Onboard 2-ch Ethernet Ports for communication and cascade Either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices

* Note: Each module in the cascade needs to be powered individually or using PoE cascade power supply. The maximum power consumption of a single module is 7W, please pay attention to the output power of Router when using PoE cascade power supply.

Relay connection

Contact rating of the onboard relay up to 10A 250VAC/30VDC

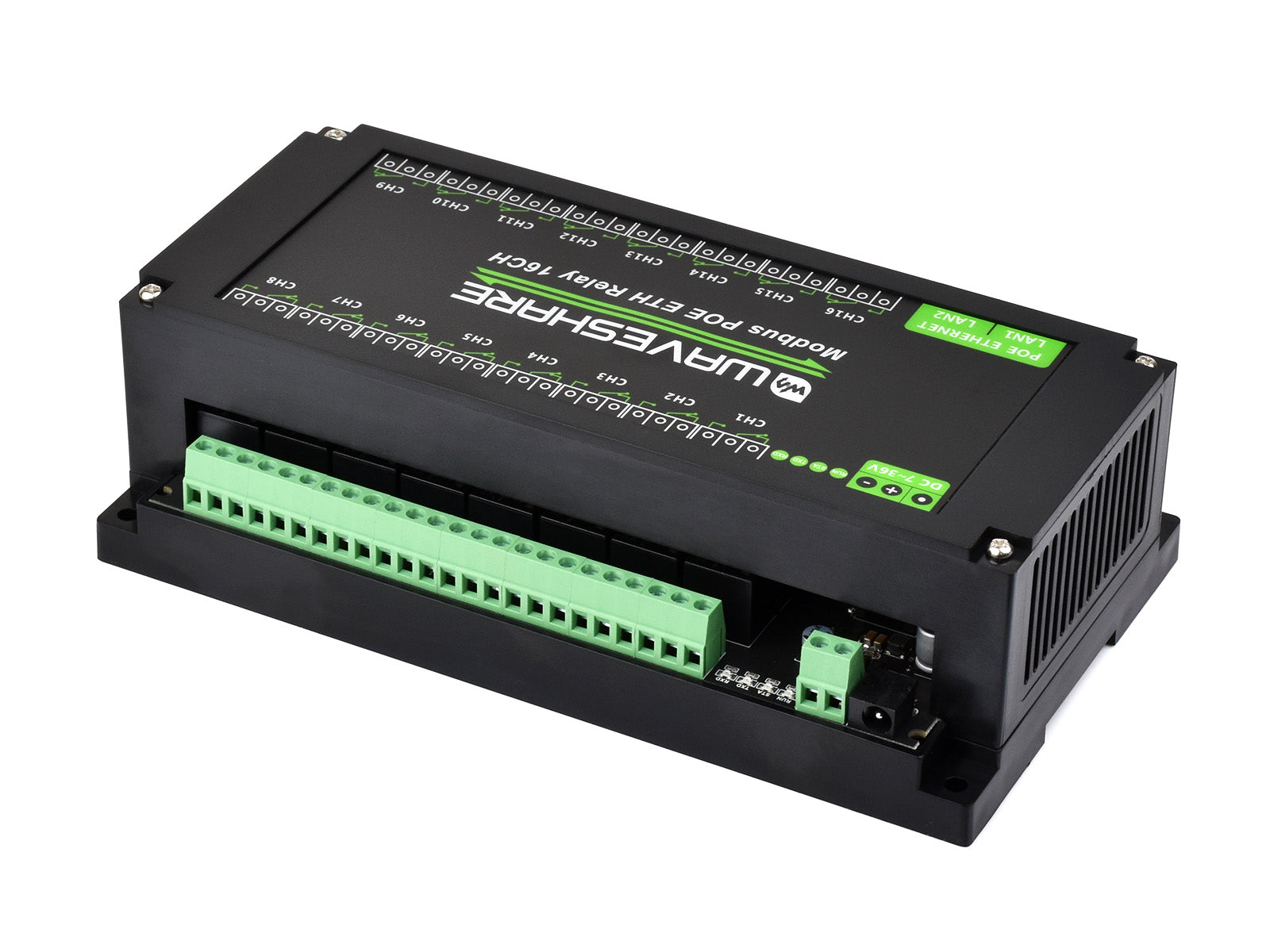

Enclosure Design

Rail-mounted ABS plastic enclosure, easy to install, safe to use

Applications

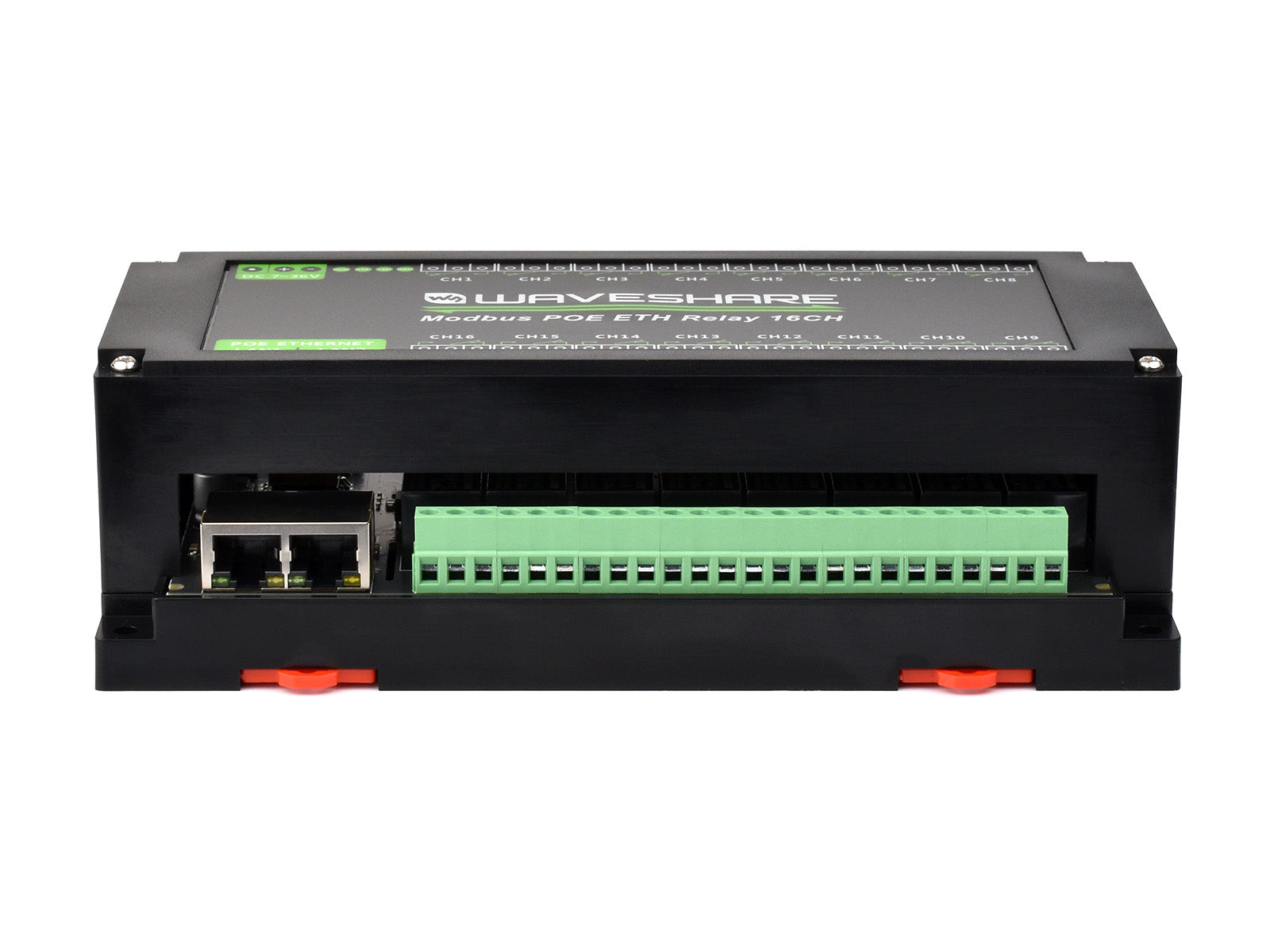

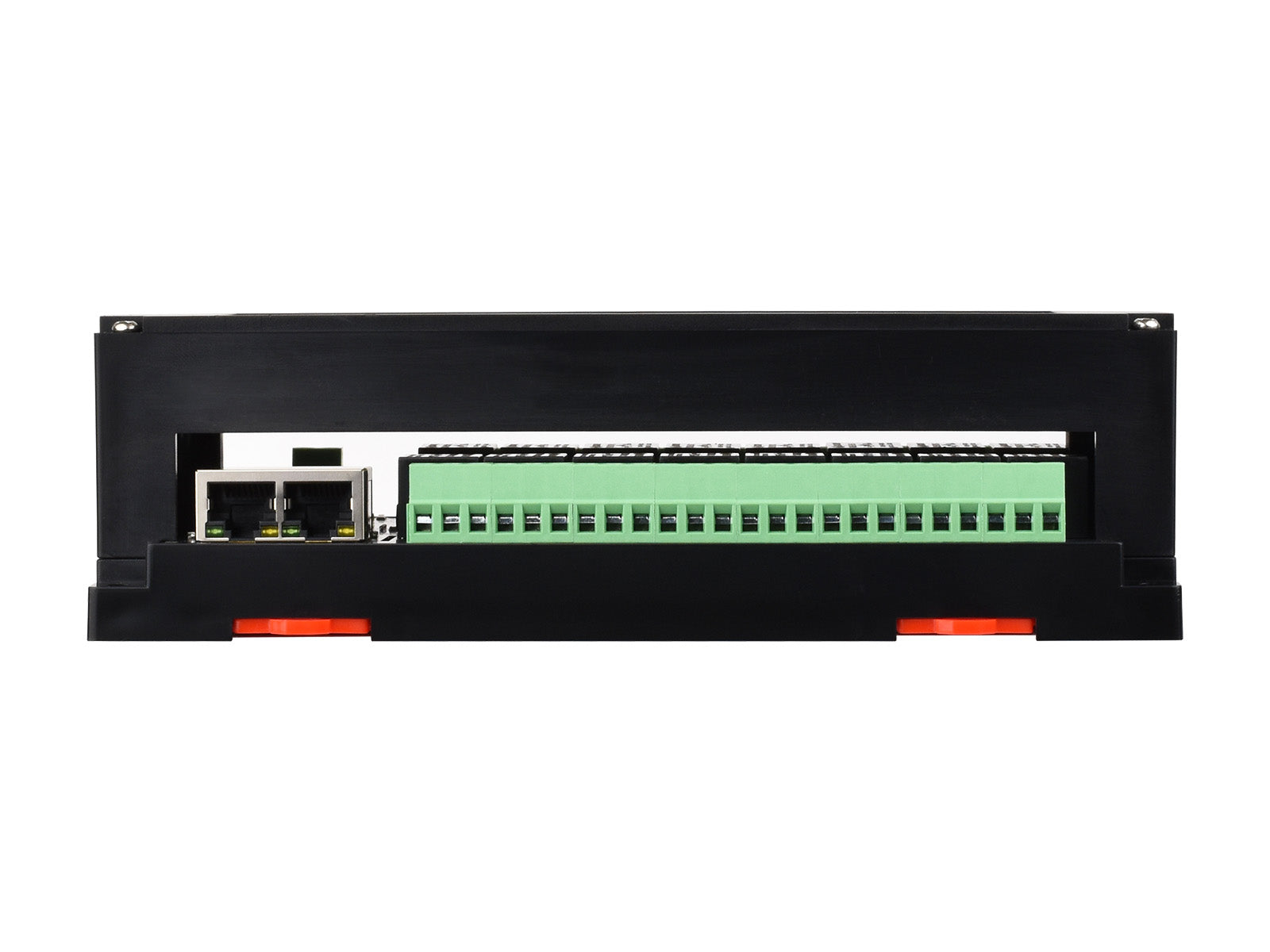

Product show

Outline dimensions

Resources & Services

---

WIKI:www.waveshare.com/wiki/Modbus_POE_ETH_Relay_16CH

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

product	Communication parameters	Relay type	Output control	Input control	Power range	Dimensions
Modbus RTU Relay	RS485 port	10A Universal Relay	8-ch	-	5V	145×90×40mm
Modbus RTU Relay (B)		10A Universal Relay	8-ch	-	7V~36V	175×90×40mm
Modbus RTU Relay (C)		10A Latching Relay	8-ch	-	7V~36V	145×90×40mm
Modbus RTU Relay (D)		10A Universal Relay	8-ch	8-ch	7V~36V	175×90×40mm
Modbus RTU Relay (E)		30A High Current Relay	8-ch	-	7V~36V	200×110×60mm
Modbus RTU Relay 4CH		30A High Current Relay	4-ch	-	7V~36V	145×90×40mm
Modbus RTU Relay 16CH		10A Universal Relay	16-ch	-	5V	200×110×60mm
Modbus RTU Relay 32CH		10A Universal Relay	32-ch	-	7V~36V	300×110×60mm
Modbus POE ETH Relay	Ethernet port (PoE support)	10A Universal Relay	8-ch	-	7V~36V	145×90×40mm
Modbus POE ETH Relay (B)		10A Universal Relay	8-ch	8-ch	7V~36V	175×90×40mm
Modbus POE ETH Relay (C)	Dual Ethernet ports (PoE support)	10A Universal Relay	8-ch	8-ch	7V~36V	175×90×40mm
Modbus POE ETH Relay 16CH	Dual Ethernet ports (PoE support)	10A Universal Relay	16-ch	-	7V~36V	200×110×60mm
Modbus POE ETH Relay 30CH	Ethernet port (PoE support)	10A Universal Relay	30-ch	-	7V~36V	300×110×60mm

Lieferumfang

The power supply of this product is not included, it is recommended to purchase 12V power supply if you need it.

Modbus POE ETH Relay 16CH x1
