2.13inch E-Paper HAT+ For Raspberry Pi, E-Ink Display, 250x122, Immersion Gold Process, SPI Interface, HAT+ Standard, With Online Pwnagotchi Tutorial

7.671 Ft
7.671 Ft 0 Ft
Sale Ausverkauft
Steuer enthalten. Versand wird an der Kasse berechnet.

Kurzbeschreibung: 2.13inch E-Paper HAT+ For Raspberry Pi, E-Ink Display, 250x122, Immersion Gold Process, SPI Interface, HAT+ Standard, With Online Pwnagotchi Tutorial

2.13inch E-Paper HAT+ For Raspberry Pi, E-Ink Display, 250x122, Immersion Gold Process, SPI Interface, HAT+ Standard
2.13″ e-Paper HAT+

partial refresh support, low power, wide viewing angle, paper-like effect

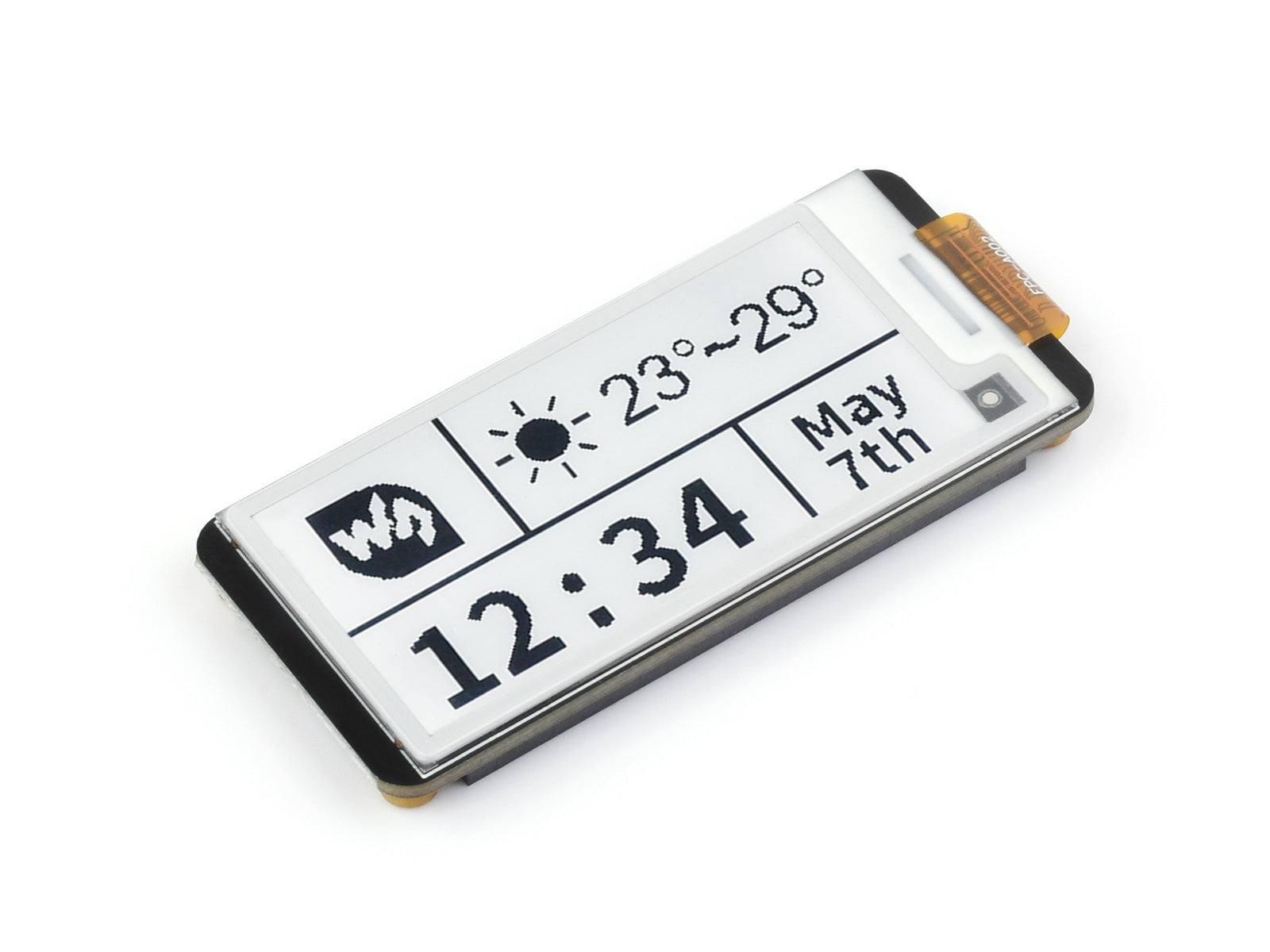

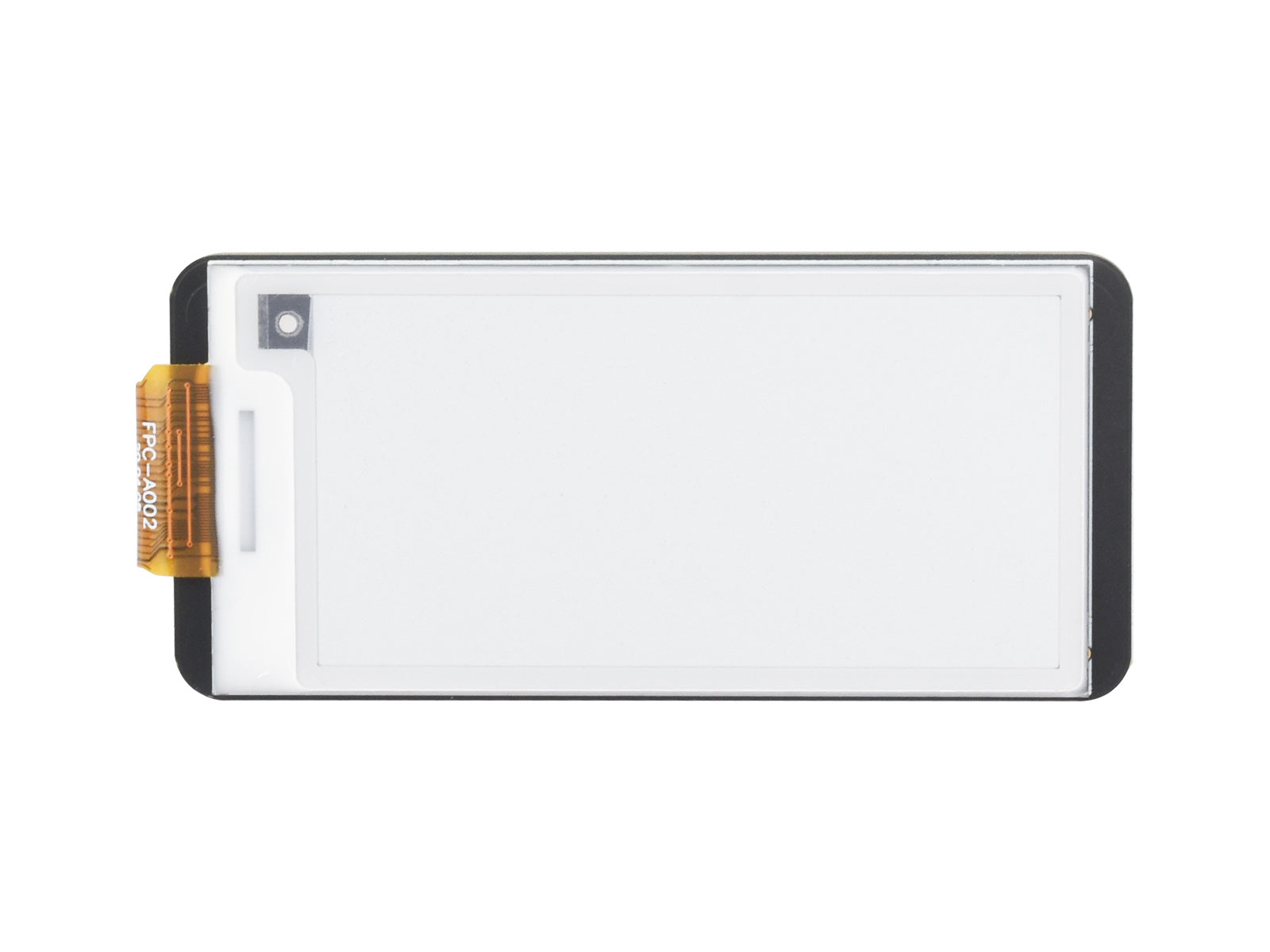

2.13inch e-Paper HAT+ for Raspberry Pi, front view
  • Size2.13"
  • Resolution250×122
  • Viewing Angle>170°
  • Display ColorBlack and White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
  • RefreshingPartial Refresh Support
  • Immersion GoldDurable And Reliable
  • HAT+ StandardImproves interoperability
Features at a glance
  • Onboard high-precision RTC chip for accurate time control
  • Optimized PCB layout with additional mounting holes for fixing screws
  • Adopts Immersion Gold process, anti-oxidation and anti-corrosion, enhances soldering performance and improves electrical properties, with better durability and reliability to meet various applications
  • Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
  • Comes with online development resources and manual
    • driver board circuit diagram
    • examples for Raspberry Pi OS / Jetson Nano / RDK X3, etc. and provides pwnagotchi porting tutorial
  • No backlight, keeps displaying last content for a long time even when power down
Specifications
operating voltage3.3Vgrey scale2
interface3-wire SPI, 4-wire SPIfull refresh time2s
outline dimensions65 × 30.5mmpartial refresh time0.3s
display size48.55 × 23.70mmFAST REFRESH TIME1.8s
dot pitch0.194 × 0.194mmrefresh power10.5mW (typ.)
resolution250 × 122 pixelsstandby power<0.01mW(typ.)
display colorblack, whiteviewing angle>170°
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO header

compatible with Raspberry Pi series boards, Jetson Nano, RDK X3

2.13inch e-Paper HAT+, connecting with Raspberry Pi 5

* for reference only, the Raspberry Pi in the picture is NOT included

Thin and light design

Compact in size, more space-saving

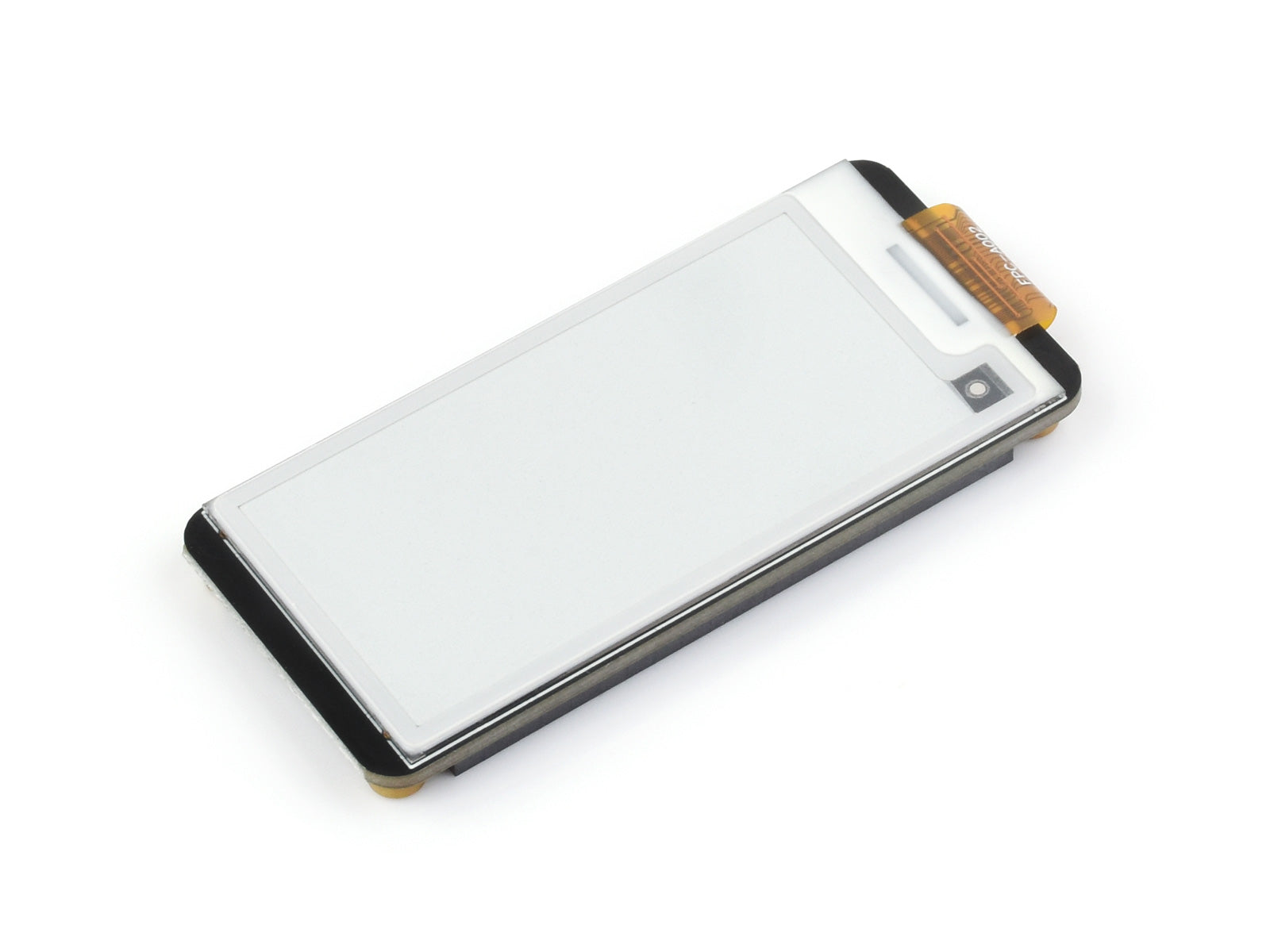

2.13inch e-Paper HAT+, thin and light design
High-Precision RTC chip, adopts immersion gold anti-oxidation process

Adopts Immersion Gold process, anti-oxidation and anti-corrosion, enhances soldering performance and improves electrical properties; Onboard high-precision RTC chip for accurate time control; Adopts Raspberry Pi HAT+ standard to improve interoperability.

2.13inch e-Paper HAT+, onboard high-precision RTC chip
What's On Board

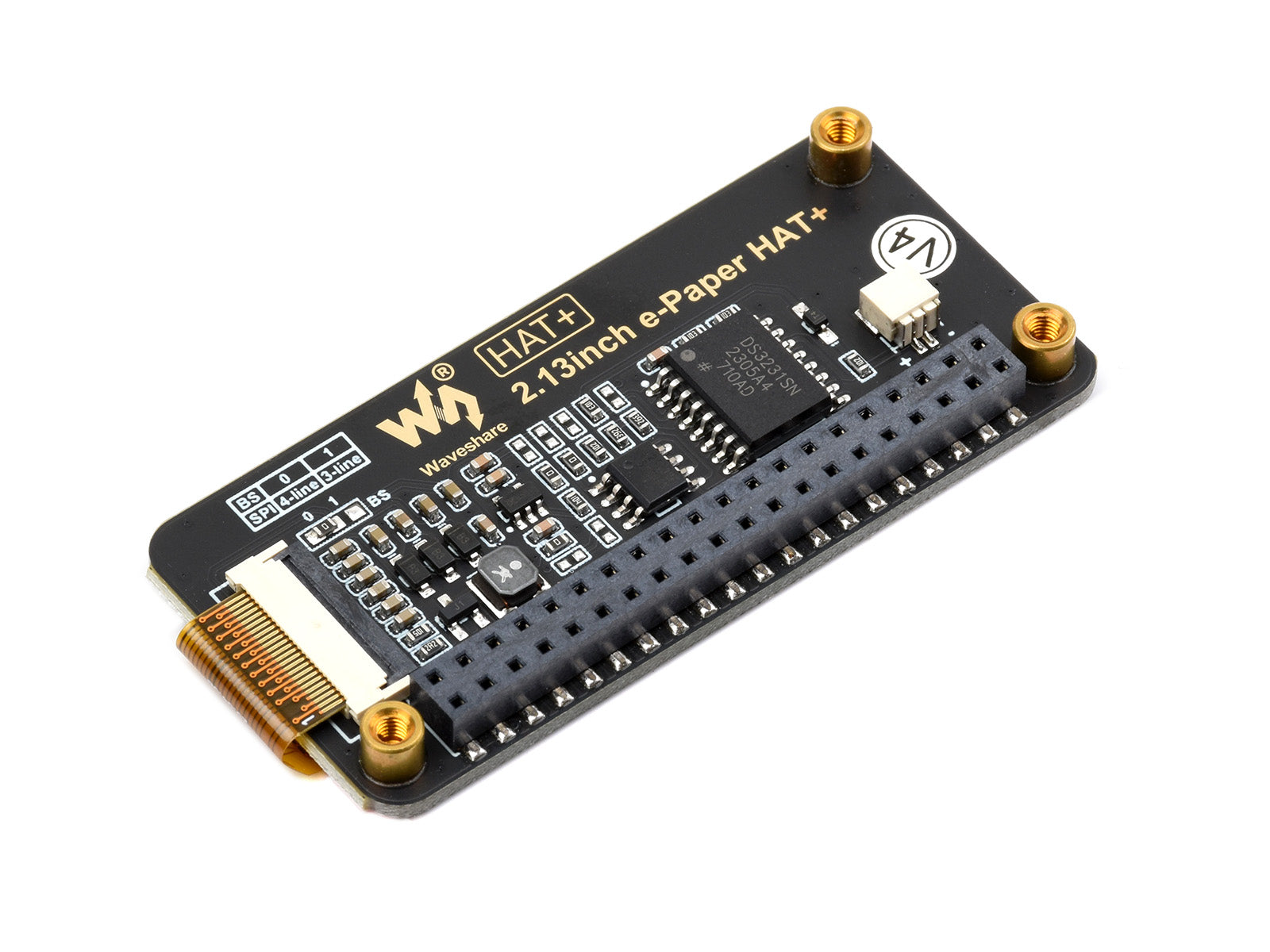

2.13inch e-Paper HAT+, onboard components
  1. E-Paper display connector
  2. Mounting hole
  3. Rechargeable Lithium battery header for connecting rechargeable Lithium battery (3/3.3V) with 2PIN JST connector
  1. EEPROM
  2. DS3231 RTC chip
  3. 40PIN GPIO header
Outline dimensions
2.13inch e-Paper HAT+, outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part NumberColorsGrey ScaleResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial Refresh1Pi Head-er2Flexi-bleInterface
1.02inch e-Paper Moduleblack, white2128×8021.76 × 14.0042.0 × 27.02√SPI
1.54inch e-Paper Moduleblack, white2200×20027.00 × 27.0048.0 × 33.02√SPI
1.54inch e-Paper Module (B)red, black, white2200×20027.00 × 27.0048.0 × 33.014SPI
1.54inch e-Paper Module (G)red, yellow, black, white2200×20027.00 × 27.0048.0 × 33.020SPI
1.64inch e-Paper Module (G)red, yellow, black, white2168×16829.568 × 29.56847 × 3812SPI
2.13inch e-Paper HATblack, white2250×12248.55 × 23.7065.0 × 30.22√√SPI
2.13inch e-Paper HAT+black, white2250×12248.55 × 23.7065.0 × 30.52√√SPI
2.13inch e-Paper HAT (B)red, black, white2250×12248.55 × 23.7065.0 × 30.215√SPI
2.13inch e-Paper HAT (G)red, yellow, black, white2250×12248.55 × 23.7065.0 × 30.216√SPI
2.13inch Touch e-Paper HATblack, white2250×12248.55 × 23.7069.15 × 38.902√√SPI
2.13inch Touch e-Paper HAT (with case)black, white2250×12248.55 × 23.7072.20 × 41.902√√SPI
2.15inch e-Paper HAT+ (B)red, black, white2296×16048.10 × 26.0065.0 × 34.023√SPI
2.15inch e-Paper HAT+ (G)red, yellow, black, white2296×16048.10 × 26.0065.0 × 34.020√SPI
2.36inch e-Paper Module (G)red, yellow, black, white2296×16852.096 × 29.56869.5 × 38.512SPI
2.66inch e-Paper Moduleblack, white2296×15230.704 × 60.08837.0 × 83.56√SPI
2.66inch e-Paper Module (B)red, black, white2296×15230.704 × 60.08837.0 × 83.515SPI
2.66inch e-Paper Module (G)red, yellow, black, white2360×18460.05 × 30.6985.0 × 38.526SPI
2.7inch e-Paper HATblack, white4264×17657.29 × 38.1985.0 × 56.06√√SPI
2.7inch e-Paper HAT (B)red, black, white2264×17657.288 × 38.19273.5 × 56.015√SPI
2.9inch e-Paper Moduleblack, white4296×12866.89 × 29.0589.5 × 38.03√SPI
2.9inch e-Paper Module (B)red, black, white2296×12866.89 × 29.0589.5 × 38.015SPI
2.9inch e-Paper Module (G)red, yellow, black, white2296×12866.89 × 29.0589.5 × 38.016SPI
2.9inch Touch e-Paper HATblack, white4296×12866.89 × 29.0589.10 × 42.703√√SPI
3inch e-Paper Module (G)red, yellow, black, white2400×16870.4 × 29.56888.5 × 4112SPI
3.5inch e-Paper Module (G)red, yellow, black, white2384×18479.68 × 38.1894.00 × 47.5020SPI
3.52inch e-Paper HATblack, white2360×24074.51 × 49.6786.5 × 571.5√SPI
3.52inch e-Paper HAT (B)red, black, white2360×24074.51 × 49.6786.5 × 5716√SPI
3.6inch e-Paper HAT+ (E)E6 full color2600×40076.20 × 50.8089.50 × 59.0015√SPI
3.7inch e-Paper HATblack, white4480×28047.32 × 81.1258.0 × 96.53√√SPI
3.7inch e-Paper HAT+ (G)red, yellow, black, white2416×24081.54 × 47.0496.00 × 57.0020√SPI
3.97inch e-Paper HAT+black, white4800×48086.40 × 51.8499.50 × 60.003.5√√SPI
3.97inch e-Paper HAT+ (G)red, yellow, black, white2800×48086.40 × 51.8499.50 × 60.0021√SPI
4inch e-Paper HAT+ (E)E6 full color2600×40084.6 × 56.40101.00 × 68.0019√SPI
4.2inch e-Paper Moduleblack, white4400×30084.80 × 63.60103.0 × 78.55√SPI
4.2inch e-Paper Module (B)red, black, white2400×30084.80 × 63.60103.0 × 78.515SPI
4.2inch e-Paper Module (G)red, yellow, black, white2400×30084.80 × 63.60103.0 × 78.521SPI
4.26inch e-Paper HATblack, white4800×48092.80 × 55.68107.0 × 64.04√√SPI
4.3inch e-Paper UART Moduleblack, white4800×60088.00 × 66.00118.0 × 75.01.5UART
4.37inch e-Paper Module (G)red, yellow, black, white2512×36890.11 × 64.77101.5 × 81.514SPI
5inch e-Paper HATblack, white2960×552110.59 × 62.65126.38 × 71.191.8√√SPI
5.79inch e-Paper Moduleblack, white4792×272139.00 × 47.74152.50 × 58.503.5√SPI
5.79inch e-Paper Module (B)red, black, white2792×272139.00 × 47.74152.50 × 58.5024SPI
5.79inch e-Paper Module (G)red, yellow, black, white2792×272139.00 × 47.74152.50 × 58.5021SPI
5.83inch e-Paper HATblack, white2648×480119.232 × 88.320125.4 × 99.55√SPI
5.83inch e-Paper HAT (G)red, yellow, black, white2648×480118.78 × 88.22125.40 × 99.5020√SPI
6inch e-Paper HATblack, white16800×600122.4 × 90.6138.4 × 101.8<1√√USB/SPI/ I80
6inch HD e-Paper HATblack, white161448×1072122.4 × 90.6138.4 × 101.8<1√√USB/SPI/ I80
7.3inch E-Paper HAT (E)E6 full color2800×480160 × 96170.2 × 111.212√SPI
7.3inch E-Paper HAT (F)7-Color2800×480160 × 96170.2 × 111.235√SPI
7.5inch e-Paper HATblack, white4800×480163.20 × 97.92170.2 × 111.24√√SPI
7.5inch HD e-Paper HATblack, white2880×528163.24 × 97.94170.2 × 111.25√SPI
7.5inch e-Paper HAT (B)red, black, white2800×480163.20 × 97.92170.2 × 111.226√√SPI
7.5inch e-Paper HAT (H)red, yellow, black, white2800×480163.20 × 97.92170.20 × 111.2022√SPI
7.8inch e-Paper HATblack, white161872×1404158.18 × 118.64173.8 × 127.6<1√√USB/SPI/ I80
9.7inch e-Paper HATblack, white161200×825202.8 × 139.43218.8×156.4<1√√USB/SPI/ I80
10.2inch e-Paper HAT (G)red, yellow, black, white2960 × 640215.52 × 143.68224.00 × 157.0027√SPI
10.3inch e-Paper HATblack, white161872×1404209.66 × 157.25216.7 × 174.4<1√√USB/SPI/ I80
10.3inch e-Paper HAT (D)black, white161872×1404209.66 × 157.25227.7 × 165.8<1√√√USB/SPI/ I80
10.85inch e-Paper HAT+black, white21360 × 480259.76 × 91.68270.56 × 105.923.5√SPI
10.85inch e-Paper HAT+ (G)red, yellow, black, white21360 × 480259.76 × 91.68270.56 × 105.9221√SPI
12.48inch e-Paper Moduleblack, white21304×984252.98 × 190.90280.0 × 229.5<8√SPI
12.48inch e-Paper Module (B)red, black, white21304×984252.98 × 190.90280.0 × 229.537√SPI
13.3inch e-Paper HATblack, white161600×1200270.40 × 202.80285.80 × 213.65<1√√USB/SPI/ I80
13.3inch e-Paper HAT (B)red, black, white2960×680275.52 × 195.16286.32 × 212.2622√√SPI
13.3inch e-Paper HAT (K)black, white4960×680275.52 × 195.16286.32 × 212.265√√SPI
13.3inch e-Paper HAT (E)E6 full color21600×1200270.40 × 202.80284.70 × 208.8019√SPI
  1. It usually takes about 0.3s for partial refresh
  2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
e-Paper panels comparing

Lieferumfang

  1. 2.13inch e-Paper HAT+ x1
  2. Screws pack x1
12.13inch e-Paper HAT+
2
