2.8inch LCD Display Module with Touch panel, Embedded with ST7789T3 Display Driver and CST328 Capacitive Touch Controller, TFT Display, 240×320 Resolution, Faster Response and More Durable
2.8inch Touch LCD Display Module
Embedded ST7789T3 driver and CST328 capacitive touch control chip
Comes with examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino
- Size
2.8" - Resolution
240×320 - Display Color
262K - Display Panel
TFT - Display Driver
ST7789T3 - Display Interface
SPI - Touch Driver
CST328 - Touch Interface
I2C
Features at a glance
- 240×320 resolution, 262K colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime
- Embedded with ST7789T3 driver chip and CST328 capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins

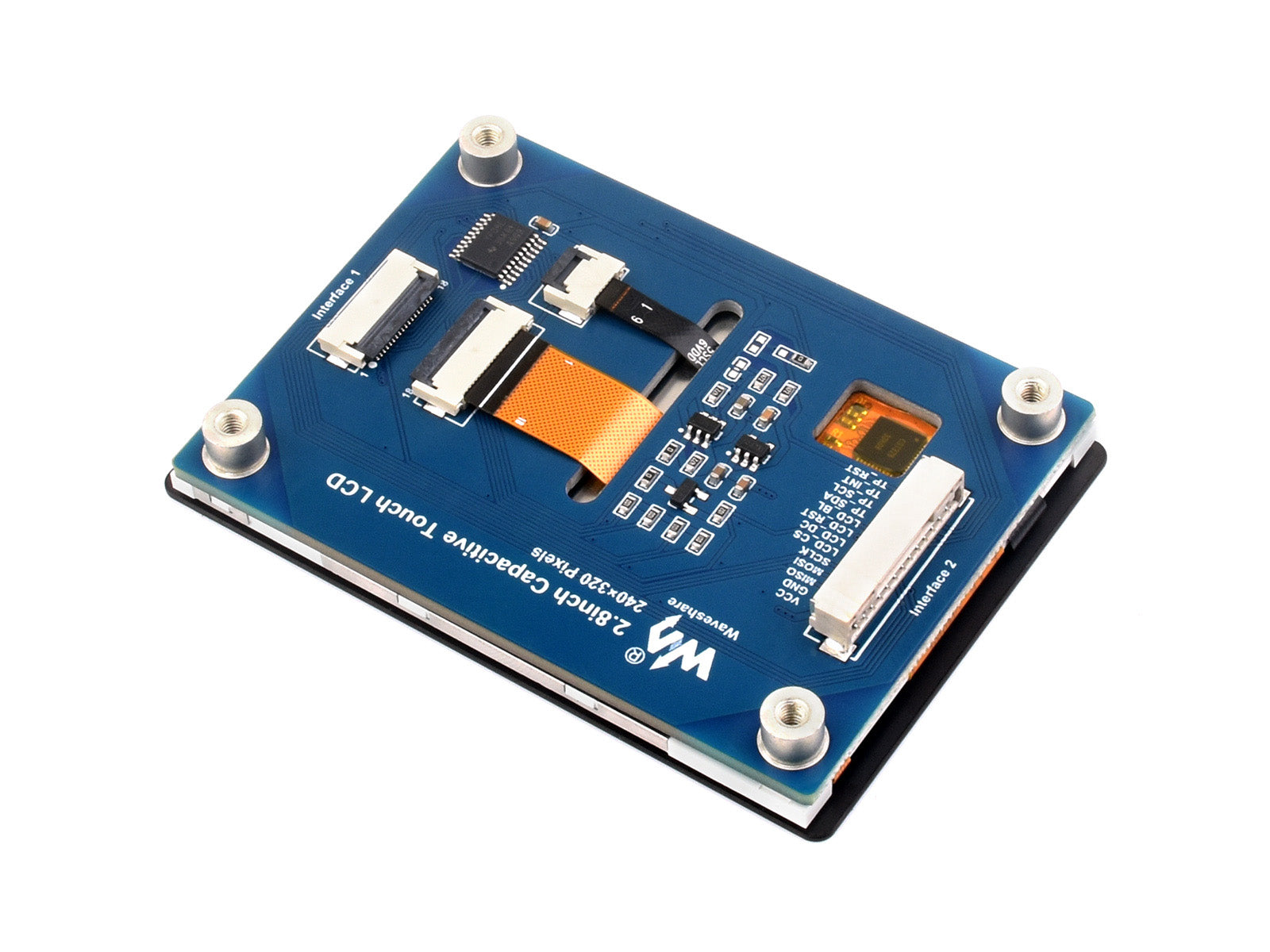

- Adapting 13PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
- Onboard voltage translator, compatible with 3.3V / 5V operating voltage
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino)
Specifications
| Operating Voltage | 3.3V / 5V | Resolution | 240 × 320 pixels |
|---|---|---|---|
| Display Driver | ST7789T3 | Touch Driver | CST328 |
| Display Interface | 4-wire SPI | Touch Interface | I2C |
| Display Panel | TFT | Touch Type | Capacitive |
| Pixel Pitch | 0.18 × 0.18mm | Touch Points | 5-point touch |
| Display Size | 43.20 × 57.60mm | Module Size | 50.54 × 73.06mm |
2.8inch Touch Display
Embedded with ST7789T3 Driver Chip And CST328 Capacitive Touch Control Chip, Supports 5-Point Touch
Onboard Voltage Translator
Compatible With 3.3V / 5V Operating voltage
Suitable For Multiple Programming Platforms
Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino More Convenient For Development And Integration, with High Expansibility
SPI and I2C Control Interfaces
Options For 13PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board
| Pin | Description | 13PIN Pin No. | 18PIN Pin No. |
|---|---|---|---|
| VCC | Power (3.3V / 5V input) | 1 | 1 |
| GND | Ground | 2 | 3 |
| MISO | SPI MISO pin | 3 | 6 |
| MOSI | SPI MOSI pin | 4 | 5 |
| SCLK | SPI CLK pin | 5 | 4 |
| LCD_CS | LCD Chip Selection, low active | 6 | 9 |
| LCD_DC | LCD Data/Command selection (high for data, low for command) | 7 | 7 |
| LCD_RST | LCD Reset pin, low active | 8 | 8 |
| LCD_BL | LCD Backlight pin | 9 | 2 |
| TP_SDA | Touch panel Data pin | 10 | 14 |
| TP_SCL | Touch panel Clock pin | 11 | 13 |
| TP_INT | Touch panel Interrupt pin | 12 | 15 |
| TP_RST | Touch panel Reset pin, low active | 13 | 12 |
Hardware Connection
Connecting with Raspberry Pi 5
Connecting with ESP32S3
* for reference only, the Raspberry Pi 5andESP32S3 driver board are NOT included, please check the Package Content for the detailed part list.
Outline dimensions
Selection Guide
| Part Number | Type | Color | Resolution | Display Size (mm×mm) | Interfaces | Driver | Dimension (mm×mm) | Pinheader |
|---|---|---|---|---|---|---|---|---|
| 0.49inch OLED Module | OLED | White | 64×32 | 14.40×11.50 | I2C | SSD1315 | 15.5×13.0 | MX1.25 connector |
| 0.71inch LCD Module | IPS | 65K colorful | 160×160 | 18×18 | 4-wire SPI | GC9D01 | 20.1×22.3 | SH1.0 connector |
| 0.71inch DualEye LCD Module | IPS | 65K colorful | 160×160 | 18×18 | SPI | GC9D01 | 20.00×51.00 | SH1.0 connector |
| 0.85inch LCD Module | IPS | 65K colorful | 128×128 | 15.21×15.21 | 4-wire SPI | GC9107 | 19.0×22.5 | GH1.25 connector |
| 0.91inch OLED Module | OLED | White | 128×32 | 22.38×5.58 | I2C | SSD1306 | 36.0×12.5 | PH2.0 connector |
| 0.95inch RGB OLED (A) | OLED | 65K colorful | 96×64 | 20.14×13.42 | 4-wire SPI | SSD1331 | 31.7×37.0 | angled/horizontal |
| 0.95inch RGB OLED (B) | OLED | 65K colorful | 96×64 | 20.14×13.42 | 4-wire SPI | SSD1331 | 31.7×37.0 | straight/vertical |
| 0.96inch LCD Module | IPS | 65K colorful | 160×80 | 21.70×10.80 | 4-wire SPI | ST7735S | 32.5×26.0 | PH2.0 connector |
| 0.96inch OLED (A) | OLED | 1/4 yellow section, 3/4 blue section* | 128×64 | 21.70×11.20 | 3/4-wire SPI, I2C | SSD1306 | 33.0×33.5 | angled/horizontal |
| 0.96inch OLED (B) | OLED | 1/4 yellow section, 3/4 blue section* | 128×64 | 21.70×11.20 | 3/4-wire SPI, I2C | SSD1306 | 33.0×33.5 | straight/vertical |
| 0.96inch OLED Module (C) | OLED | 1/4 yellow section, 3/4 blue section* | 128×64 | 21.74×11.18 | 4-wire SPI, I2C | SSD1315 | 26.0×26.0 | straight/vertical |
| 0.96inch OLED Module (D) | OLED | White | 128×64 | 21.74×11.18 | 4-wire SPI, I2C | SSD1315 | 26.0×26.0 | straight/vertical |
| 0.96inch OLED Module (E) | OLED | Blue | 128×64 | 21.74×11.18 | 4-wire SPI, I2C | SSD1315 | 26.0×26.0 | straight/vertical |
| 0.96inch RGB OLED Module | OLED | 65K colorful | 64×128 | 10.862×21.736 | 3/4-wire SPI | SSD1357 | 32.5×26.0 | GH1.25 connector |
| 1.14inch LCD Module | IPS | 65K colorful | 240×135 | 24.91×14.86 | 4-wire SPI | ST7789 | 35.0×32.0 | PH2.0 connector |
| 1.27inch RGB OLED Module | OLED | 262K colorful | 128×96 | 25.708×19.28 | 3/4-wire SPI | SSD1351 | 42.2×29.0 | GH1.25 connector |
| 1.28inch LCD Module | IPS | 65K colorful | 240×240 | Φ32.4mm | 4-wire SPI | GC9A01 | 40.4×37.5 Φ37.5 | PH2.0 connector |
| 1.28inch Touch LCD | IPS (with touch) | 65K colorful | 240×240 | Φ32.4mm | 4-wire SPI, I2C | GC9A01, CST816S | 39.89×38.5 Φ38.5 | GH1.25 connector |
| 1.3inch LCD Module | IPS | 65K colorful | 240×240 | 23.40×23.40 | 4-wire SPI | ST7789 | 45.0×31.0 | PH2.0 connector |
| 1.3inch OLED (A) | OLED | Blue | 128×64 | 29.42×14.70 | 3/4-wire SPI, I2C | SH1106 | 40.5×37.5 | angled/horizontal |
| 1.3inch OLED (B) | OLED | Blue | 128×64 | 29.42×14.70 | 3/4-wire SPI, I2C | SH1106 | 40.5×37.5 | straight/vertical |
| 1.3inch OLED Module (C) | OLED | White | 64×128 | 14.70×29.42 | 4-wire SPI, I2C | SH1107 | 30.0×39.5 | PH2.0 connector |
| 1.32inch OLED Module | OLED | White (16 gray scale) | 128×96 | 26.86×20.14 | 4-wire SPI, I2C | SSD1327 | 34.3×30.5 | GH1.25 connector |
| 1.47inch Touch LCD | IPS | 262K colorful | 172×320 | 17.75×32.93 | 4-wire SPI | JD9853 | 22.05×41.69 | SH1.0 connector, FPC0.5 connector |
| 1.47inch LCD Module | IPS | 262K colorful | 172×320 | 17.39×32.35 | 4-wire SPI | ST7789V3 | 22.0×38.5 | PH2.0 connector |
| 1.5inch LCD Module | IPS | 262K colorful | 240×280 | 24.77×28.90 | 4-wire SPI | NV3030B | 28.5×35.0 | GH1.25 connector |
| 1.5inch OLED Module | OLED | White (16 gray scale) | 128×128 | 26.86×26.86 | 4-wire SPI, I2C | SSD1327 | 44.5×37.0 | PH2.0 connector |
| 1.5inch OLED Module (B) | OLED | White | 128×128 | 26.855×26.855 | 4-wire SPI, I2C | SH1107 | 38.5×44.5 | MX1.25 connector |
| 1.5inch RGB OLED Module | OLED | 65K colorful | 128×128 | 26.86×26.86 | 3/4-wire SPI | SSD1351 | 44.5×37.0 | PH2.0 connector |
| 1.54inch LCD Module | IPS | 65K colorful | 240×240 | 27.72×27.72 | 4-wire SPI | ST7789 | 50.0×35.0 | PH2.0 connector |
| 1.54inch OLED Module | OLED | White | 128×64 | 35.05×17.52 | 4-wire SPI, I2C | SSD1309 | 43.0×37.5 | MX1.25 connector |
| 1.54inch OLED Module (B) | OLED | Blue | 128×64 | 35.05×17.52 | 4-wire SPI, I2C | SSD1309 | 43.0×37.5 | MX1.25 connector |
| 1.69inch LCD Module | IPS | 262K colorful | 240×280 | 27.972×32.634 | 4-wire SPI | ST7789V2 | 31.5×39.0 | MX1.25 connector |
| 1.69inch Touch LCD Module | IPS | 262K colorful | 240×280 | 27.972×32.634 | 4-wire SPI, I2C | ST7789V2 | 33.13×41.13 | GH1.25 connector |
| 1.8inch LCD Module | TFT | 65K colorful | 128×160 | 28.30×34.50 | 4-wire SPI | ST7735S | 56.5×34.0 | PH2.0 connector |
| 1.83inch LCD Module | IPS | 65K colorful | 240×280 | 30.20×35.23 | 4-wire SPI | NV3030B | 33.0×40.0 | MX1.25 connector |
| 1.83inch Touch LCD Module | IPS | 262K colorful | 240×284 | 29.52×34.93 | 4-wire SPI | ST7789P | 35.00×42.00 | GH1.25 connector |
| 1.9inch LCD Module | IPS | 262K colorful | 170×320 | 22.70×42.72 | 4-wire SPI | ST7789V2 | 51.2×27.3 | GH1.25 connector |
| 1.9inch Touch LCD | IPS | 262K colorful | 170×320 | 23.10×43.12 | 4-wire SPI, I2C | ST7789V2 | 52.36×28.80 | SH1.0 connector, FPC0.5 connector |
| 2inch Capacitive Touch LCD | IPS | 262K colorful | 240×320 | 30.60×40.80 | 4-wire SPI, I2C | ST7789T3 | 37.1×58.8 | GH1.25 connector, 18Pin FPC slot |
| 2inch LCD Module | IPS | 262K colorful | 240×320 | 30.60×40.80 | 4-wire SPI | ST7789VW | 58.0×35.0 | PH2.0 connector |
| 2.4inch LCD Module | TFT | 65K colorful | 240×320 | 36.72×48.96 | 4-wire SPI | ILI9341 | 70.5×43.3 | PH2.0 connector |
| 2.42inch OLED Module | OLED | White | 128×64 | 55.01×27.49 | 4-wire SPI, I2C | SSD1309 | 61.50×39.50 | GH1.25 connector |
| 2.42inch OLED Module (C) | OLED | Yellow | 128×64 | 55.01×27.49 | 4-wire SPI, I2C | SSD1309 | 61.50×39.50 | GH1.25 connector |
| 2.8inch Capacitive Touch LCD | TFT | 262K colorful | 240×320 | 43.20×57.60 | 4-wire SPI, I2C | ST7789T3 | 50.54×73.06 | GH1.25 connector, 18Pin FPC slot |
| 3.5inch Capacitive Touch LCD | IPS | 262K colorful | 320×480 | 48.96×73.44 | 4-wire SPI, I2C | ST7796S | 61.00×92.44 | GH1.25 connector, 18Pin FPC slot |
*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.
Lieferumfang
- 2.8inch Capacitive Touch LCD x1
- GH1.25 13Pin cable x1
- FPC cable (same sides) x1
