2030 Cavity Speaker, 8Ω 2W, High-quality Sound, Compact Size, 4PIN PH1.25 Connector

1.350 Ft
1.350 Ft 0 Ft
Sale Ausverkauft
Steuer enthalten. Versand wird an der Kasse berechnet.
2030 Cavity Speaker, 8Ω 2W, High-quality Sound, Compact Size, 4PIN PH1.25 Connector
2030 8Ω 2W cavity speaker

compact size | high-quality sound | built-in Sound Cavity

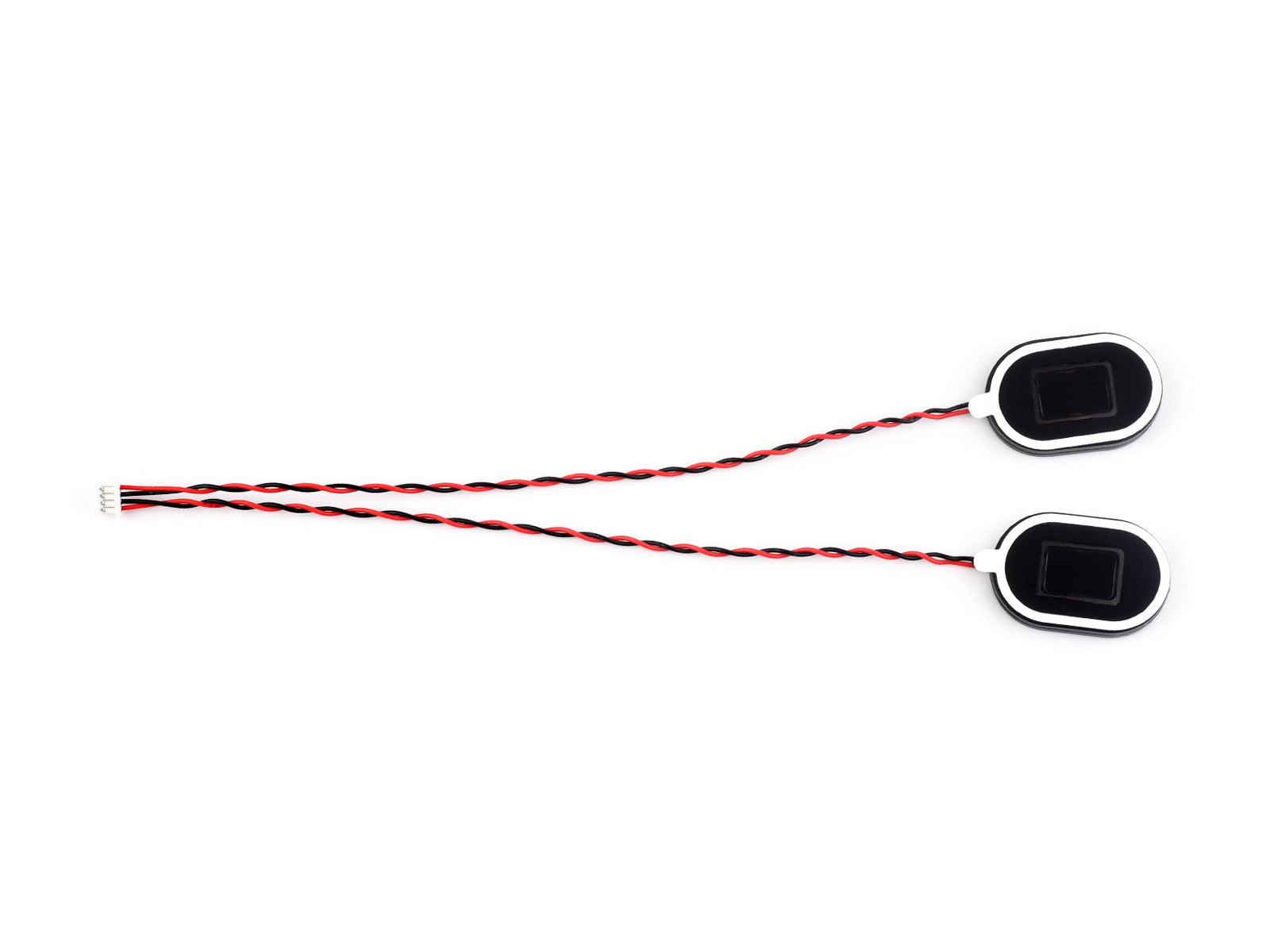

8Ω 2W Speaker, front view
Specifications
Frequency band0 ~ 20KHz
impedance8 ± 15%Ω
power2W
operating temperature-20 ~ 55℃
Wire Spec4PIN PH1.25 connector, approx. 150mm cable length
size20 × 30 × 5.5mm
Waveshare products supportIncluding but not limited to:8DP-CAPLCD8inch 768x1024 LCD9.3inch 1600x600 LCD9.7inch 768x1024 LCD10.1DP-CAPLCD10.4HP-CAPQLED
compact size, high-quality sound

Similar in size to a coin, thin design for easy integration

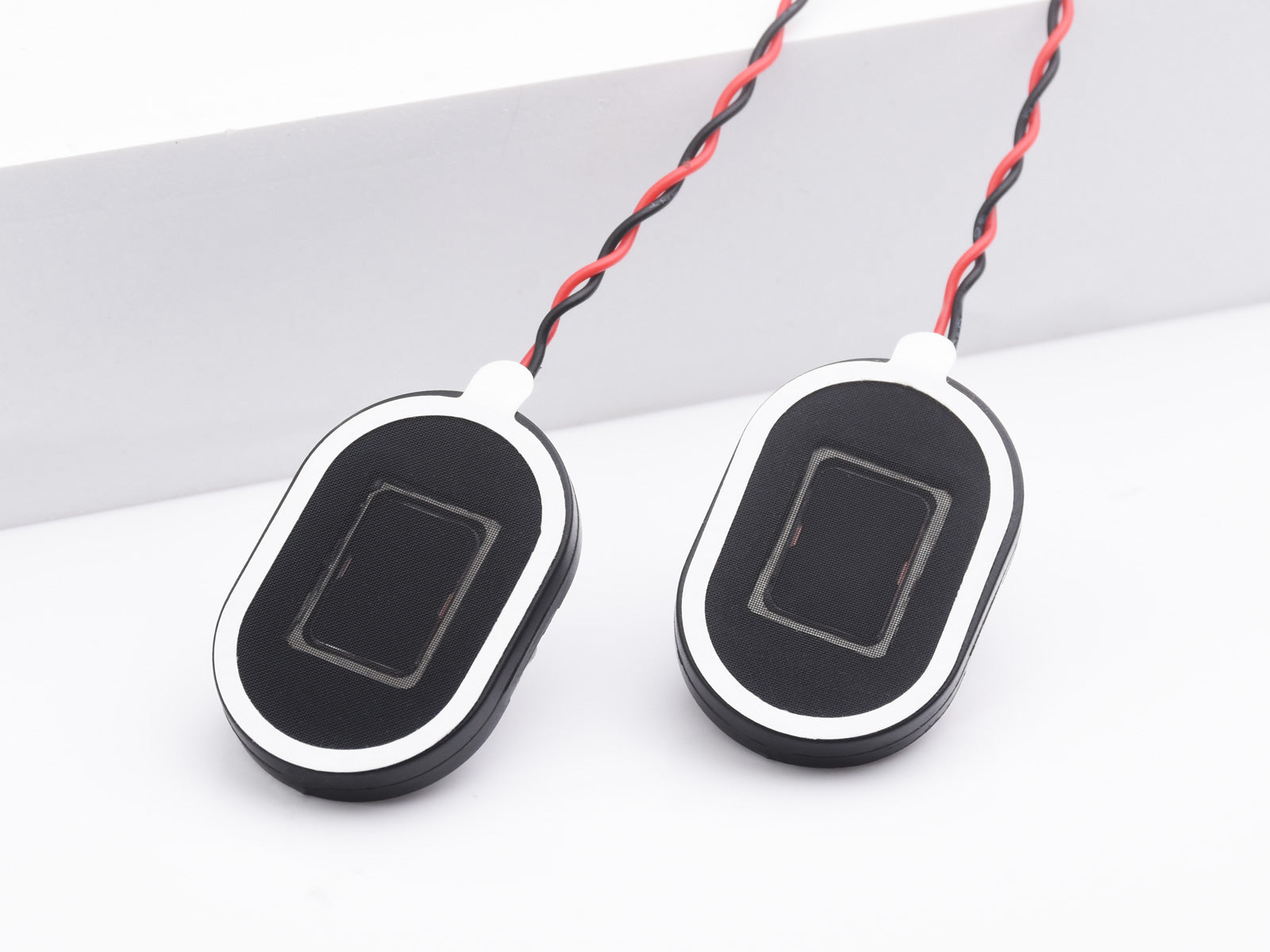

8Ω 2W Speaker, thin design
Frequency Response Curve
8Ω 2W Speaker, frequency response curve
Connecting to an HDMI Display
8Ω 2W Speaker, example of connecting to an HDMI display
Product Details

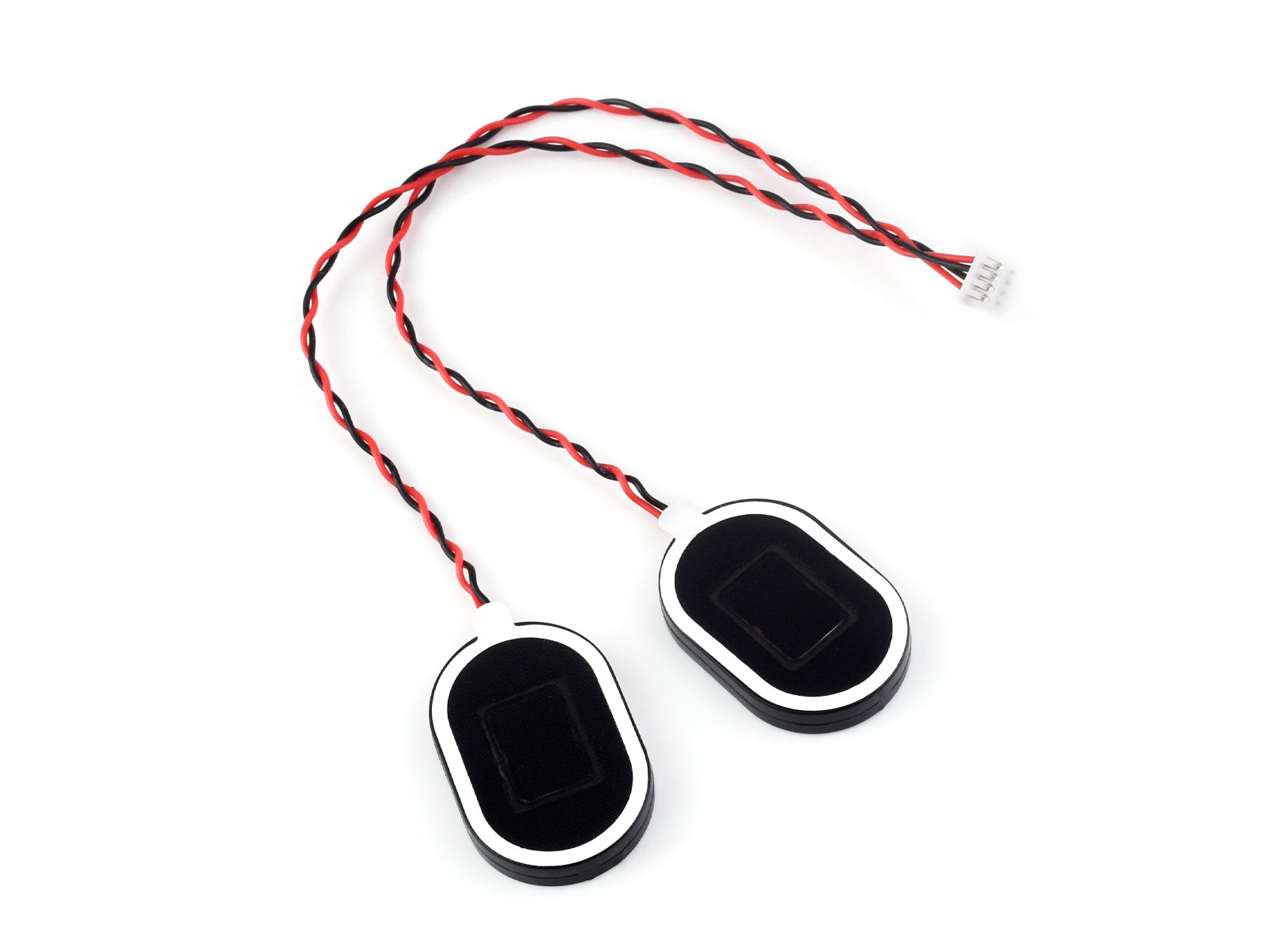

8Ω 2W Speaker, product details
Outline Dimensions
8Ω 2W Speaker, outline dimensions

Lieferumfang

Package Contains

8Ω 2W Speaker x1

8Ω 2W Speaker
