2D Codes Scanner Module (C), Supports High Accuracy Barcode Scanning, Barcode/QR code Reader
2D Codes Scanner Module
1D/2D Codes Recognition | High Accuracy | Screen scanning
TheBarcode Scanner Module (C) is a Barcode/QR codes scanner module, by using the intelligent image recognition algorithm, it can decode the 1D or 2D code on paper or screen fastly and accurately. Supports a variety of barcode formats and high accuracy, high speed and high contrast barcode scanning. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.
Comparison
| Model |  Barcode Scanner Module (C) |  Barcode Scanner Module | |
|---|---|---|---|
| Resolution | 640 × 480 | 640 × 980 | |
| Scan angles | pitch ±60°, skew ±60°, roll 360° | pitch ±60°, skew ±65°, roll 360° | |
| Scan mode | Sensing, Continuous, Manual (default) | ||
| Accuracy | 1D Codes 3mil2D Codes 5mil | - | |
| Communication Interface | USB keyboard mode (default), USB virtual port, UART port | ||
| Light source | White (Lighting) + Green (Aiming), both are visible light | White (Lighting) + Red (Aiming), both are visible light | |
| Power Supply | 5V | ||
| Current | Operating | 250mA | 210mA |
| Standby | 20mA | ≤25mA | |
| Boot | 258mA | - | |
| Temperature | Operating | -20 ~ +60°C | |
| Storage | -40 ~ +70°C | -30 ~ +70°C | |
Decoding Capability
| Code type | BARCODE | Barcode Scanner Module (C) | Barcode Scanner Module | ||
|---|---|---|---|---|---|
| READABLE | DEFAULT READABLE | READABLE | DEFAULT READABLE | ||
| 2D | QR Code | √ | √ | √ | √ |
| Micro QR | √ | ||||
| DataMatrix | √ | √ | |||
| PDF417 | √ | √ | √ | ||
| Micro PDF417 | √ | ||||
| Aztec | √ | ||||
| 1D | EAN-13 | √ | √ | √ | |
| EAN-8 | √ | √ | √ | ||
| UPC-A | √ | √ | √ | ||
| UPC-E | √ | √ | √ | ||
| ISSN | √ | ||||
| ISBN | √ | ||||
| Codabar | √ | √ | |||
| Code 128 | √ | √ | √ | ||
| Code 93 | √ | √ | |||
| Code 39 | √ | √ | √ | ||
| Code 11 | √ | √ | |||
| ITF-14 | √ | ||||
| ITF-6 | √ | ||||
| Interleaved 2 of 5 | √ | √ | |||
| Industrial 2 of 5 | √ | ||||
| Matrix 2 of 5 | √ | √ | |||
| CS Databar(RSS) | √ | √ | |||
| MSI-Plessey | √ | √ | |||
* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it

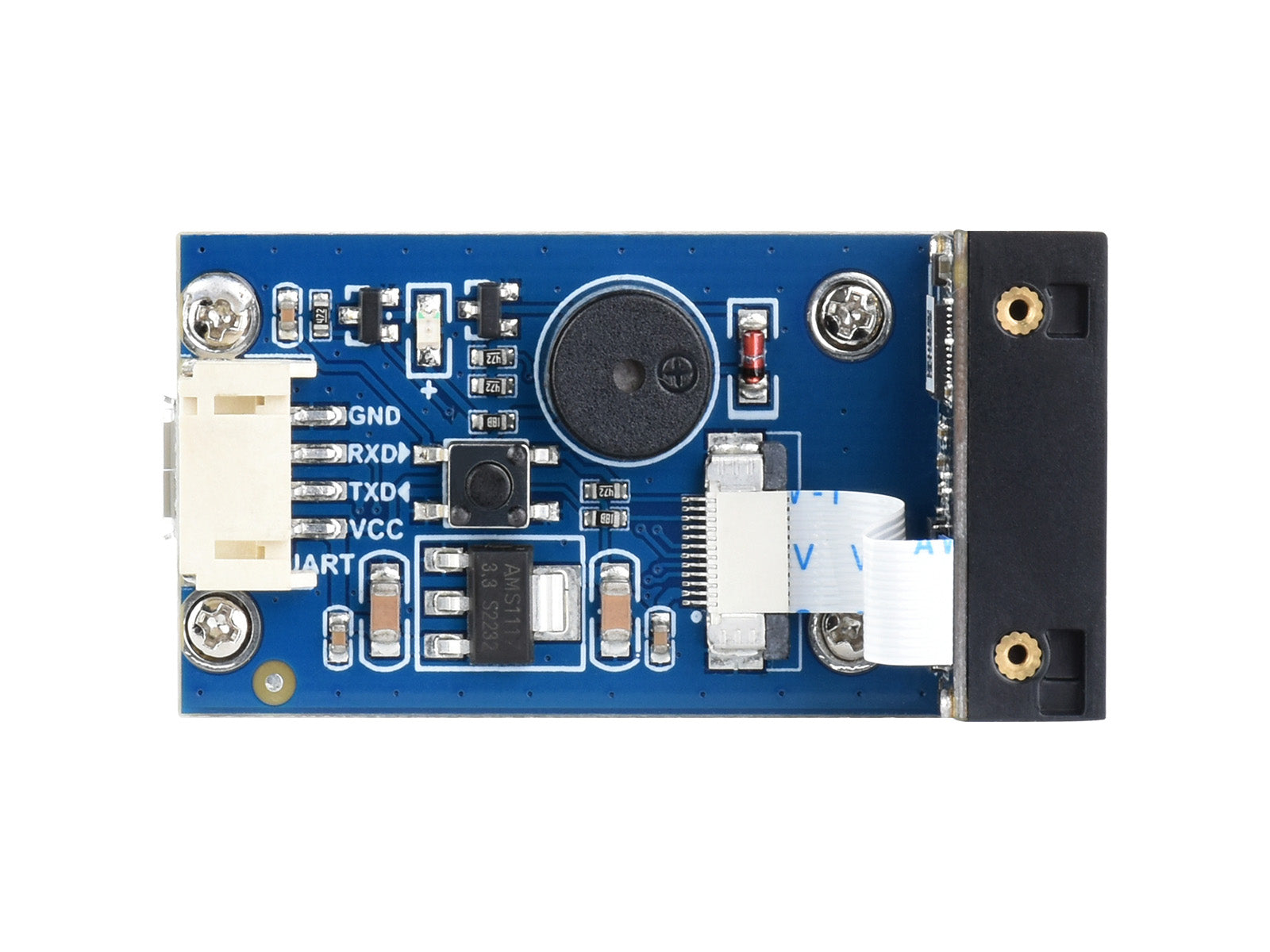

Onboard resource

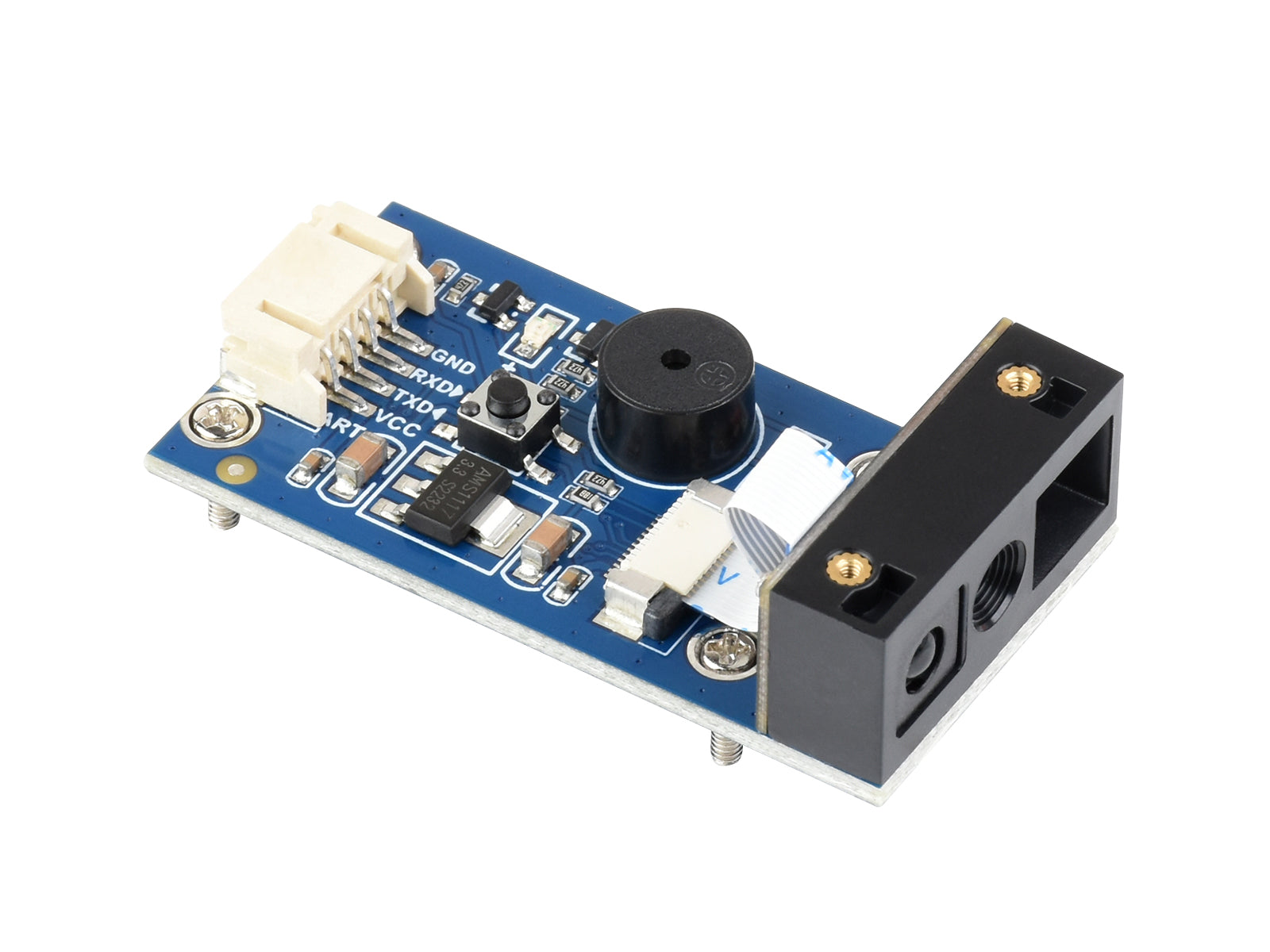

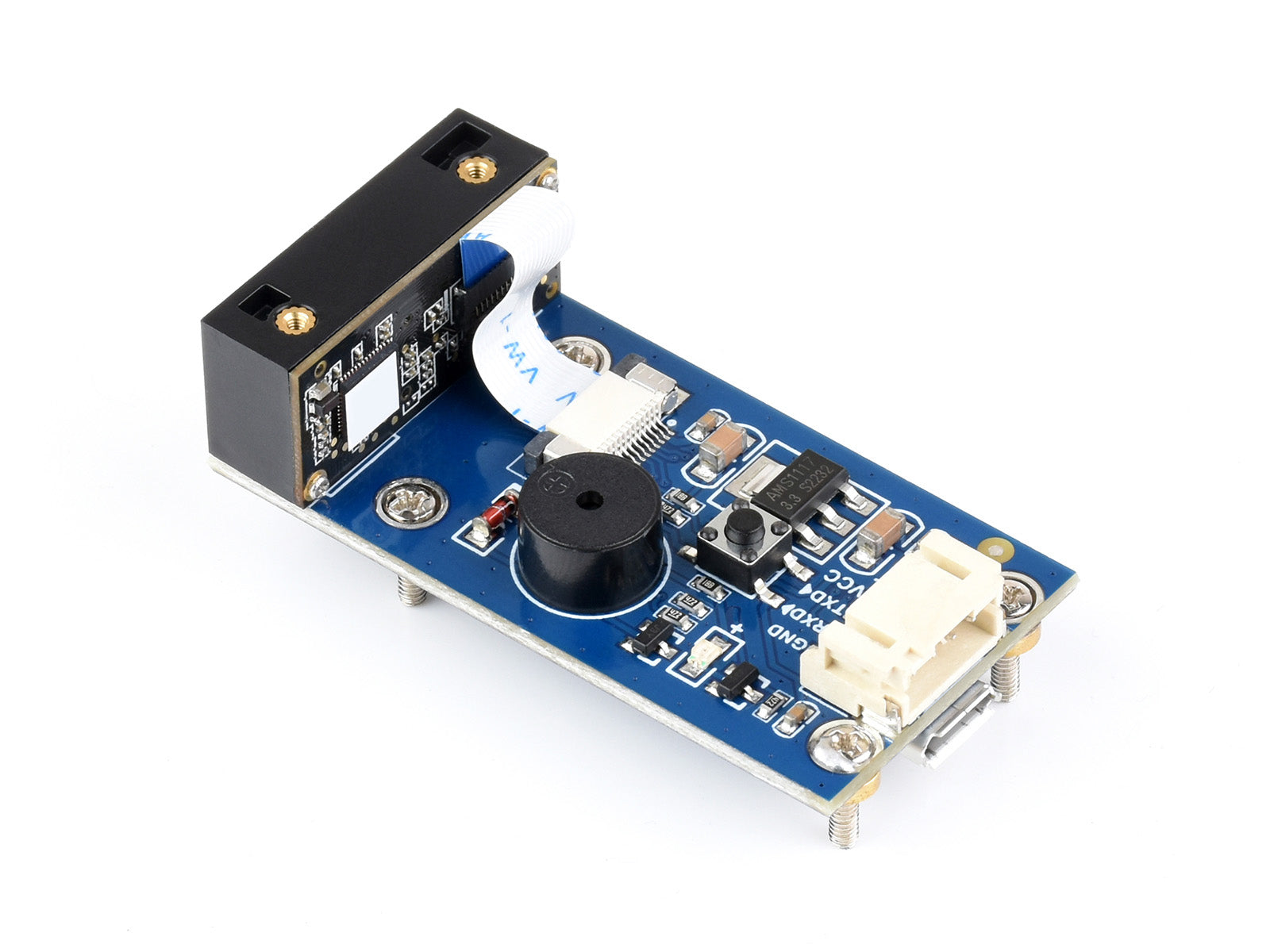

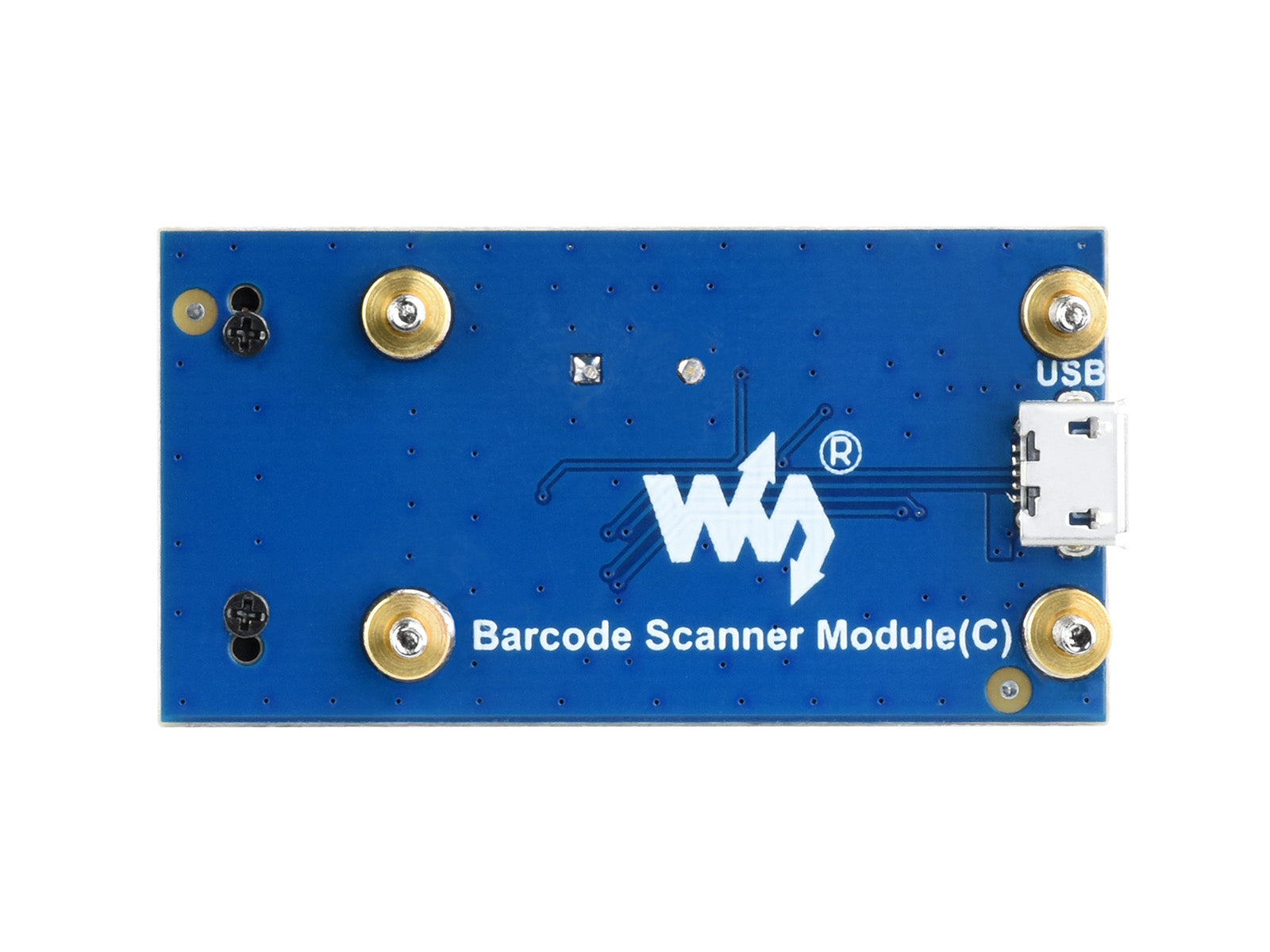

Product Show
Outline Dimensions
Lieferumfang
- Barcode Scanner Module (C) x1
- USB type A plug to micro B plug cable x1
- PH2.0 4Pin cable x1
