2D Codes Scanner Module (E), Barcode / 2D Code Scanner Module, Supports Metal DPM Code Recognition, Compatible With Multiple Barcode Formats Including DotCode And DM, supports multi-barcode simultaneous recognition, Onboard USB And UART Interfaces

2D Codes Scanner Module

1D/2D Codes Recognition | DPM Code Recognition | long-Range Scanning

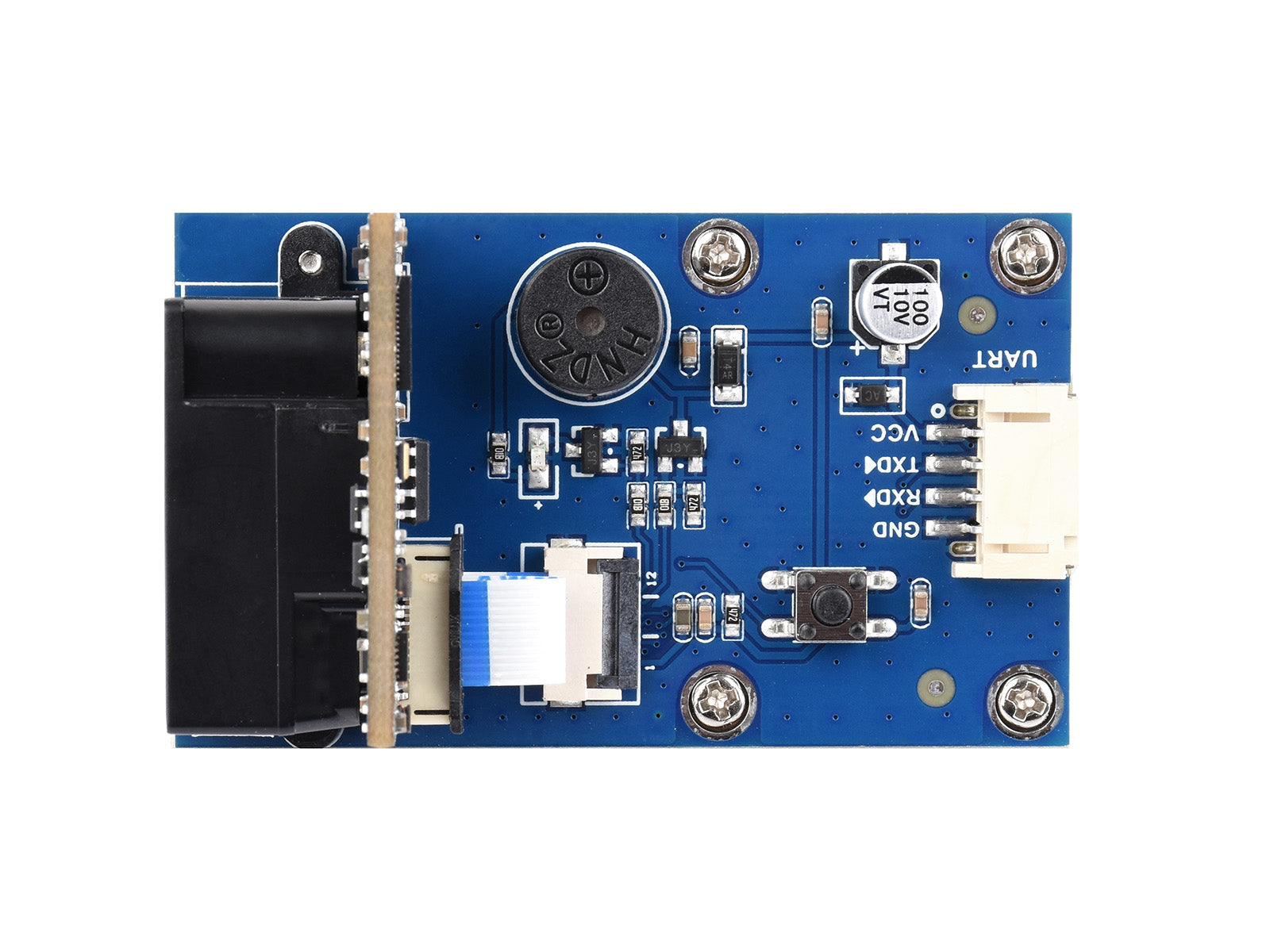

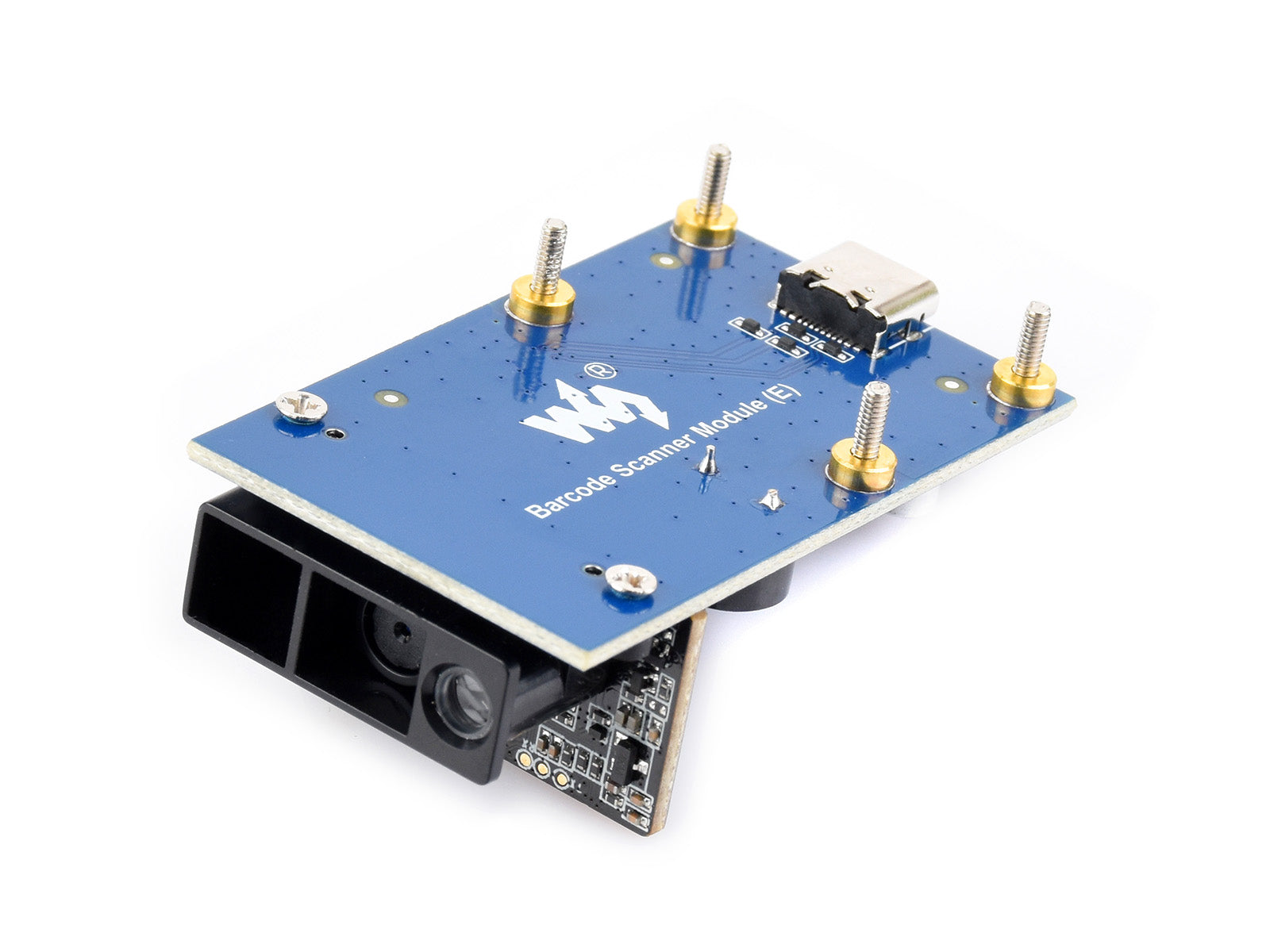

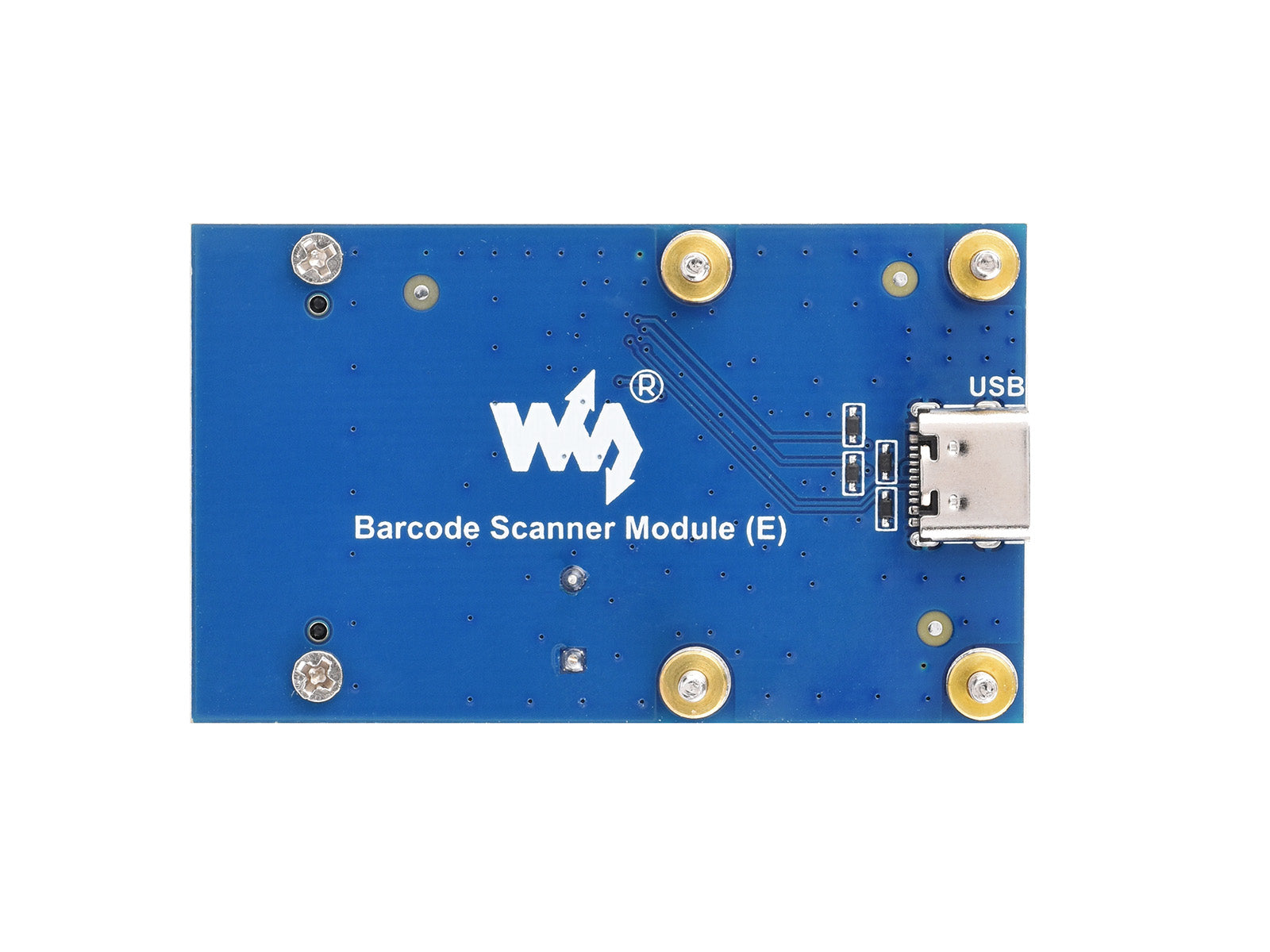

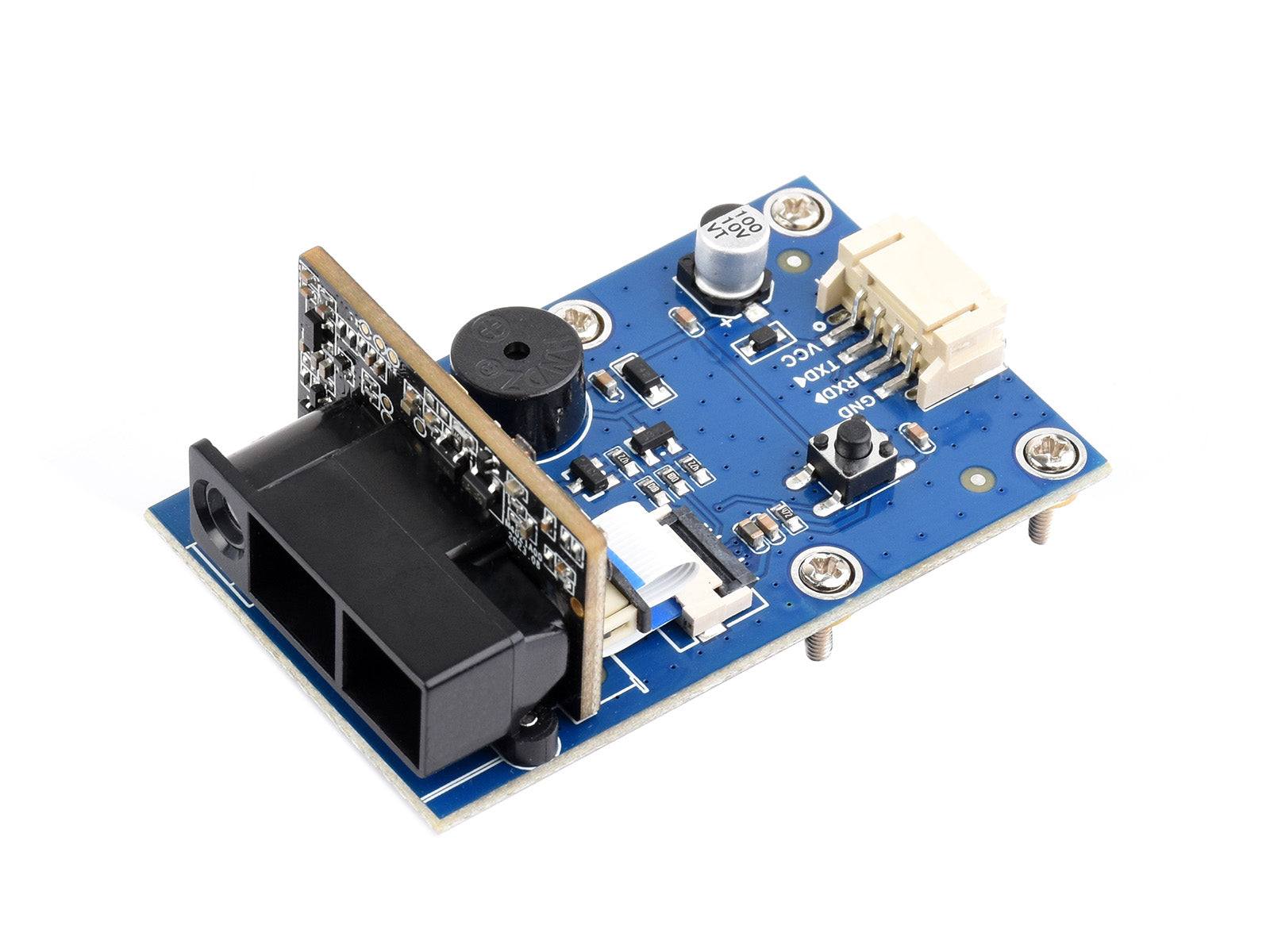

TheBarcode Scanner Module (E) is a Barcode/2D code scanner module, by using the intelligent image recognition algorithm, it can decode the 1D / 2D and DPM code on paper or PCB board quickly and accurately, compatible with multiple barcode formats including DotCode and DM, supports high accuracy, high speed and high contrast barcode scanning, supports multi-barcode simultaneous recognition. Onboard USB and UART interfaces, can be directly plugged into a computer, or be easily integrated into kinds of embedded devices.

Comparison

Model		Barcode Scanner Module (E)	Barcode Scanner Module (C)	Barcode Scanner Module
Resolution		1080 × 1280	640 × 480	640 × 980
Scan angles		pitch ±55° skew ±70° roll 360°	pitch ±60° skew ±60° roll 360°	pitch ±60° skew ±65° roll 360°
Scan mode		Sensing, Continuous, Manual (default)
Accuracy		-	1D Codes 3MIL2D Codes 5MIL	-
Communication Interface		USB keyboard mode (default), USB virtual port, UART port
Light source		White (Lighting) + Green (Aiming) (both are visible light)		White (Lighting) + Red (Aiming) (both are visible light)
Power Supply		5V
Current	Operating	270mA	250mA	210mA
	Standby	140mA	20mA	≤25mA
	Boot	-	258mA	-
Temperature	Operating	-30°C ~ +60°C	-20 ~ +60°C
	Storage	-40°C ~ +70°C	-40 ~ +70°C	-30 ~ +70°C

Decoding Capability

Code type	BARCODE	Barcode Scanner Module (E)		Barcode Scanner Module (C)		Barcode Scanner Module
		READABLE	DEFAULT READABLE	READABLE	DEFAULT READABLE	READABLE	DEFAULT READABLE
2D	QR Code	√	√	√	√	√	√
	Micro QR	√		√
	rMQR	√
	DataMatrix	√	√	√	√
	PDF417	√	√	√	√	√
	Micro PDF417	√		√
	Aztec	√		√
	Han Xin	√
	DotCode	√
	GridMatrix	√
	MaxiCode	√
	CodablockA	√
	CodablockF	√
1D	EAN-13	√	√	√	√	√
	EAN-8	√	√	√	√	√
	UPC-A	√	√	√	√	√
	UPC-E	√	√	√	√	√
	ISSN			√
	ISBN			√
	Codabar	√	√	√	√
	Code 128	√	√	√	√		√
	Code 93	√		√	√
	Code 39	√	√	√	√	√
	Code 11	√		√		√
	ITF-14			√
	ITF-6			√
	Interleaved 2 of 5	√	√	√		√
	Industrial 2 of 5	√	√	√
	Matrix 2 of 5	√		√		√
	CS Databar(RSS)			√		√
	MSI-Plessey	√		√		√

* Note: some supported barcode formats are disabled by default, you can scan 'configuration code' to enable it. This list only includes common Barcodes, for more supported Barcodes please refer to the product wiki.

Onboard resource

Multiple Barcode Types Support

Compatible with various industrial carriers such as metal-engraved codes and PCB-engraved codes, enabling easy scanning of industrial barcodes including DotCode and DataMatrix (DM)

Supports Multiple Codes Scanning

Supports Multiple recognition modes

Supports three modes including manual recognition, automatic continuous scanning recognition, and automatic sensing & scanning recognition

Supports multi-barcode simultaneous recognition

Supports simultaneous recognition of up to four barcodes with the same format

Two communication interfaces

Equipped with TTL and USB interfaces, can be configured with three output modes of USB virtual serial port, USB keyboard mode, and TTL serial port

Outline Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/Barcode_Scanner_Module_(E)

Lieferumfang

1. Barcode Scanner Module (E) x1
2. PH2.0 4PIN cable x1
