2GT 60 Teeth Aluminum Timing Pulley, 19mm Center Bore Diameter, with 4 Flat Holes
Regulärer Preis
2.705 Ft
Verkaufspreis
2.705 Ft
Regulärer Preis
0 Ft
Einzelpreis
pro
Sale
Ausverkauft
Steuer enthalten.
Versand wird an der Kasse berechnet.
Abholverfügbarkeit konnte nicht geladen werden
Kurzbeschreibung: 2GT 60 Teeth Aluminum Timing Pulley, 19mm Center Bore Diameter, with 4 Flat Holes | PT-AF-2GT-60T-19B-6-A

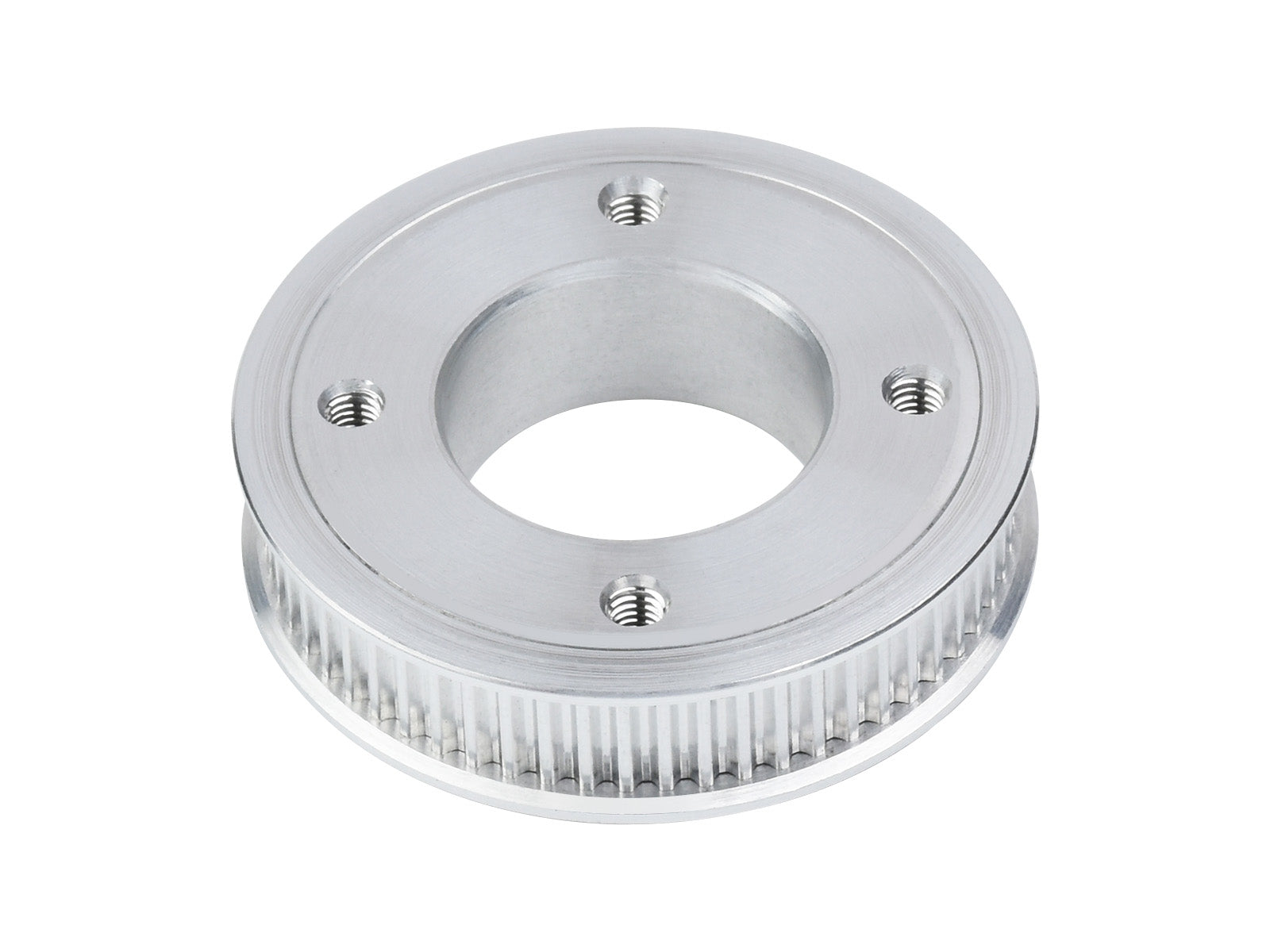

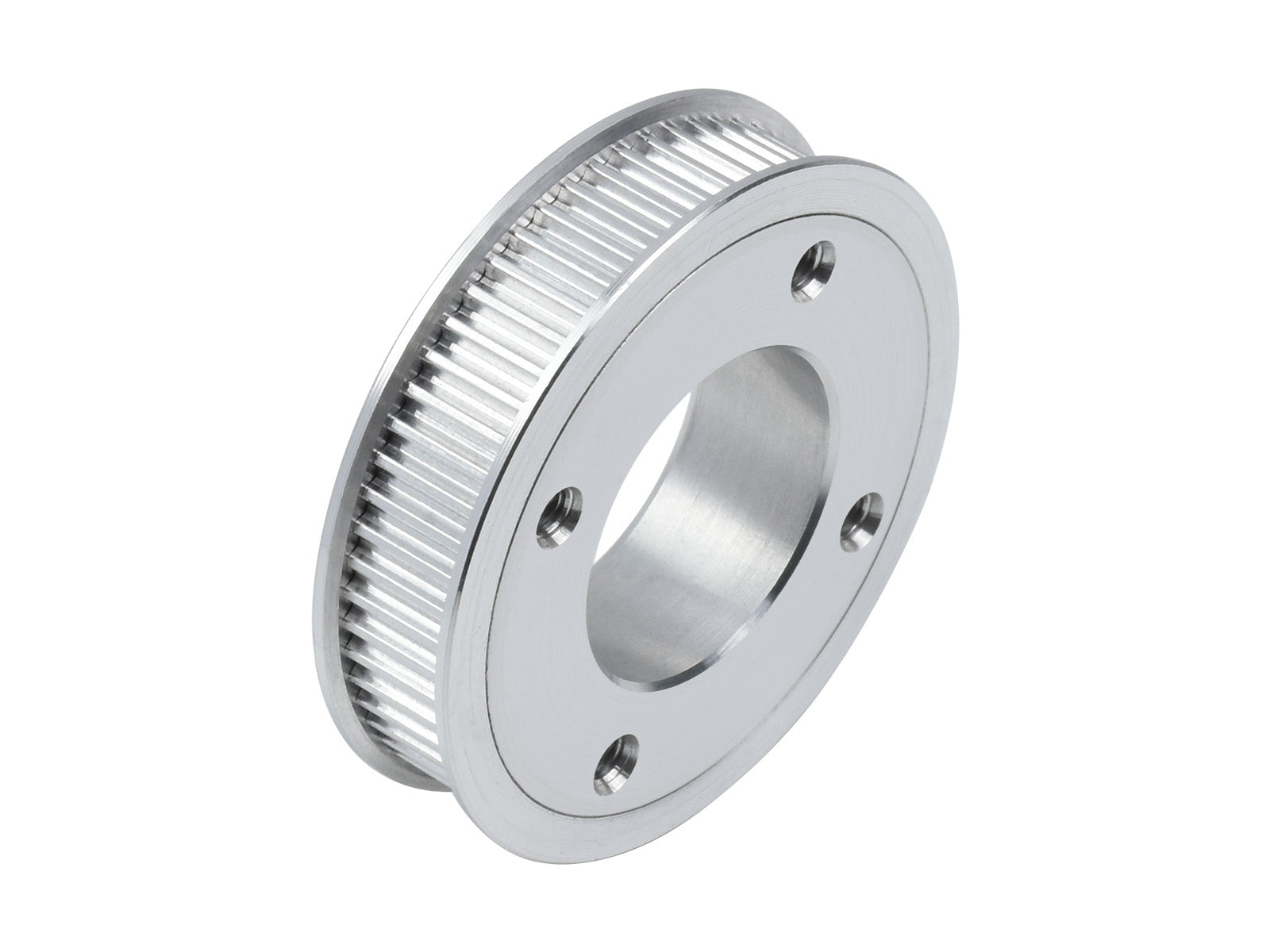

2GT 60 Teeth Aluminum Timing Pulley, 19mm Center Bore Diameter, with 4 Flat Holes
Aluminum Timing Pulley
Lubrication-free, Low Noise, Wear Resisting, Precise Tooth Pitch
Specifications
| Material | Aluminum |
|---|---|
| Teeth Type | 2GT |
| Teeth Numbers | 60 |
| Applicable Belt width | 6 mm |
| Flange Outer Diameter | 40.12 mm |
| Teeth Outer Diameter | 37.68 mm |
| Timing Pulley Thickness | 10 mm |
| Center Bore Diameter | 19 mm |
| Flat Holes Specifications | M3, 28mm diameter, four holes |
Aluminum Alloy Material
Strong Anti-corrosion performance, Lighter Weight
19mm Center Bore Diameter
Can install two F6800ZZ flange bearings to share radial force Rotates under heavy load

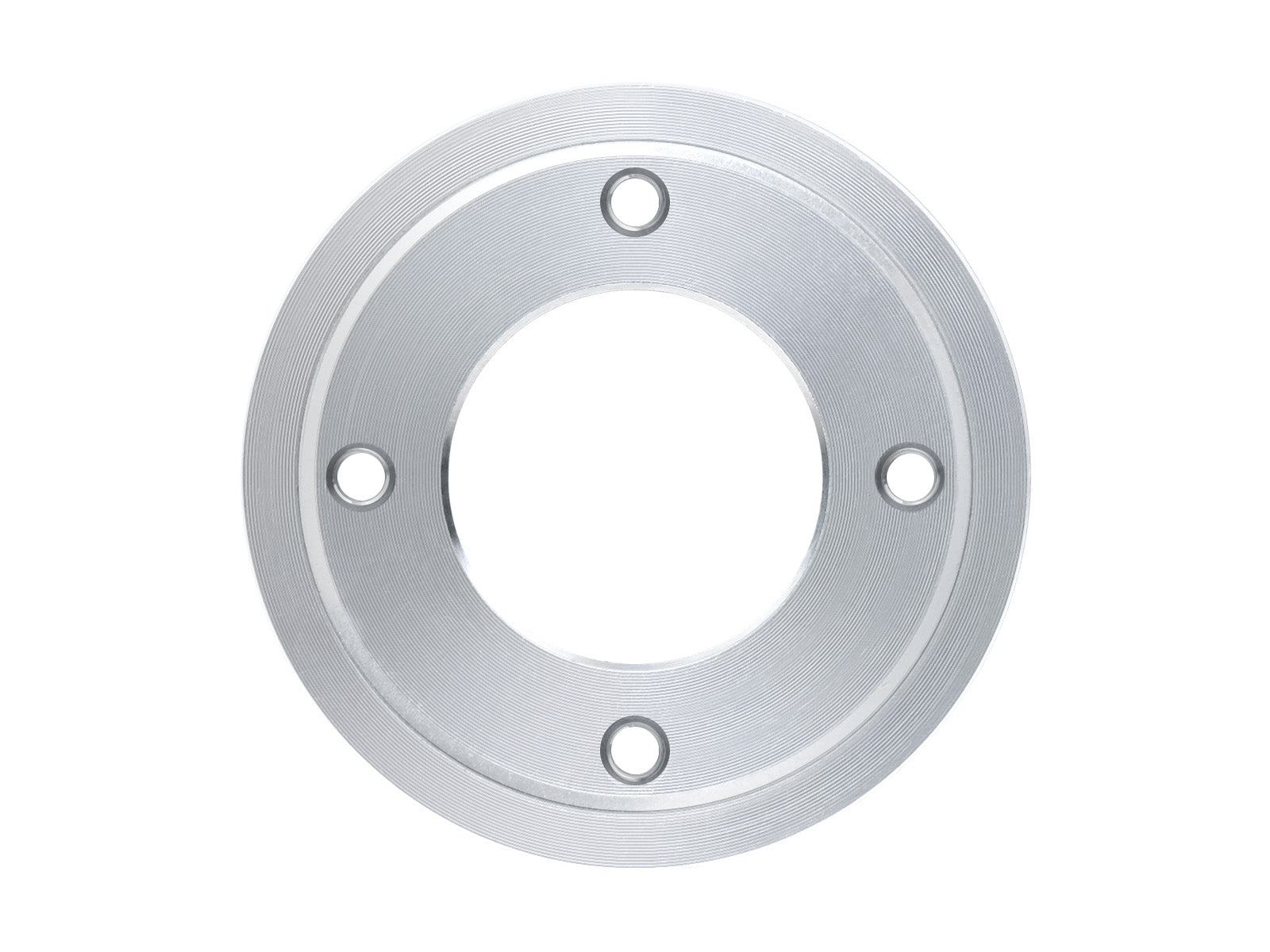

With Four Flat Holes
Four M3 Tapping flat holes for Installing Other Parts
for reference only, the black part is NOT included.
Used with Other Timing Pulleys Combine into Different Reduction Groups
Center Distance D (MM) Data Reference
| Timing belt circumference | Timing Pulley Teeth ratio | ||
|---|---|---|---|
| 30T:60T | 20T:60T | 16T:60T | |
| 140 mm | - | - | 29.5 |
| 160 mm | 34.5 | 38.7 | 40.4 |
| 200 mm | 55.0 * | 59.5 | 61.2 |
| 280 mm | 95.3 | 100.0 | 101.9 |
| 500 mm | 205.6 | 210.4 | 212.4 |
| * Example: This value means using 30-tooth and 60-tooth timing pulley group with 200mm timing belt, then the center distance D is 55.0mm. | |||
Applications
Automation Equipment
Plastics Machinery
Woodworking Machinery
Reduction Drive Group
Dimensions
Resources & Services
Lieferumfang
PT-AF-2GT-60T-19B-6-A x1
