SKU:WSAL29063

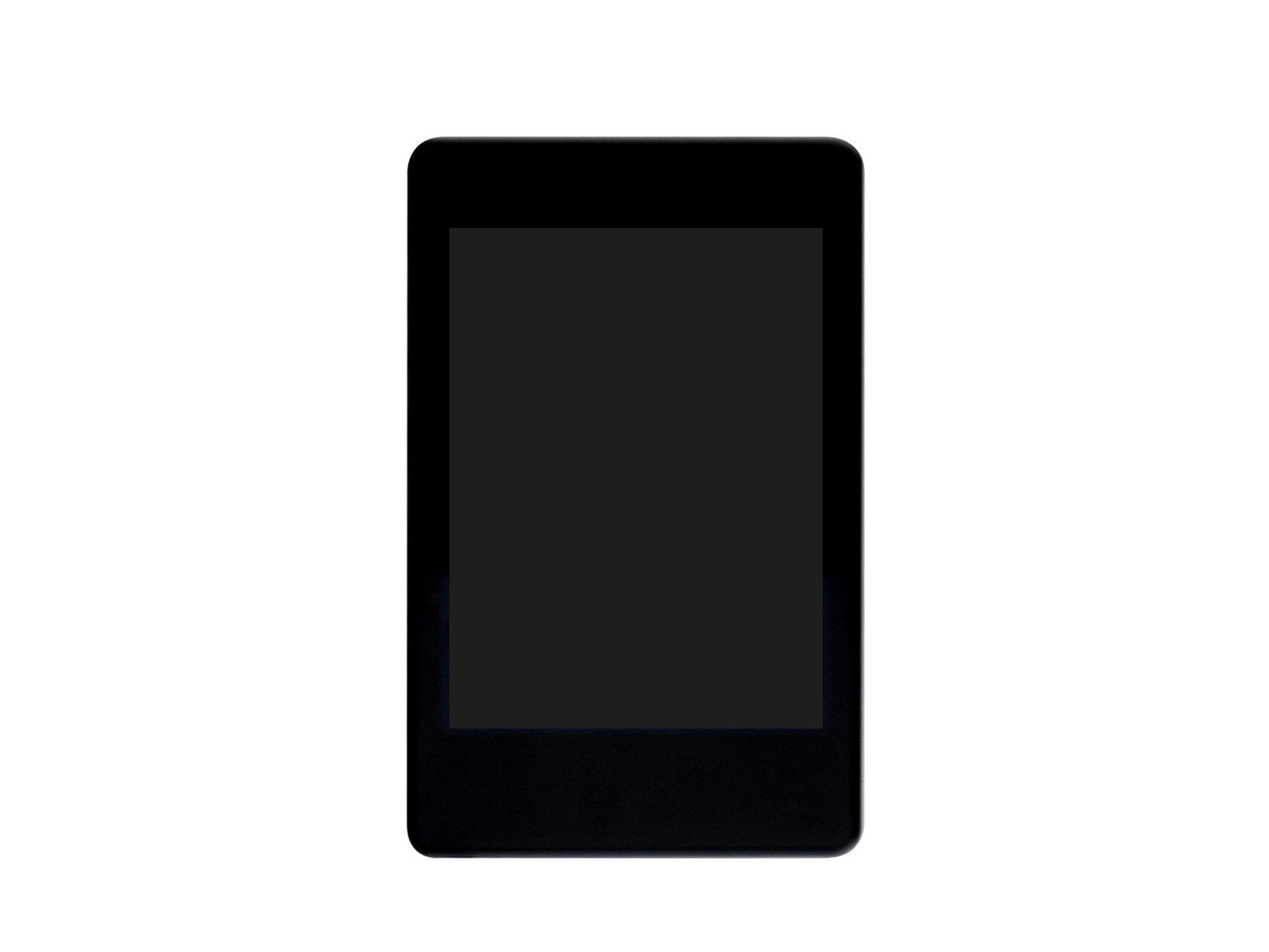

2inch Capacitive Touch Display Module, Embedded with ST7789T3 Display Driver and CST816D Capacitive Touch Controller, IPS Display, 262K Colors, 240×320 Resolution, Faster Response and More Durable

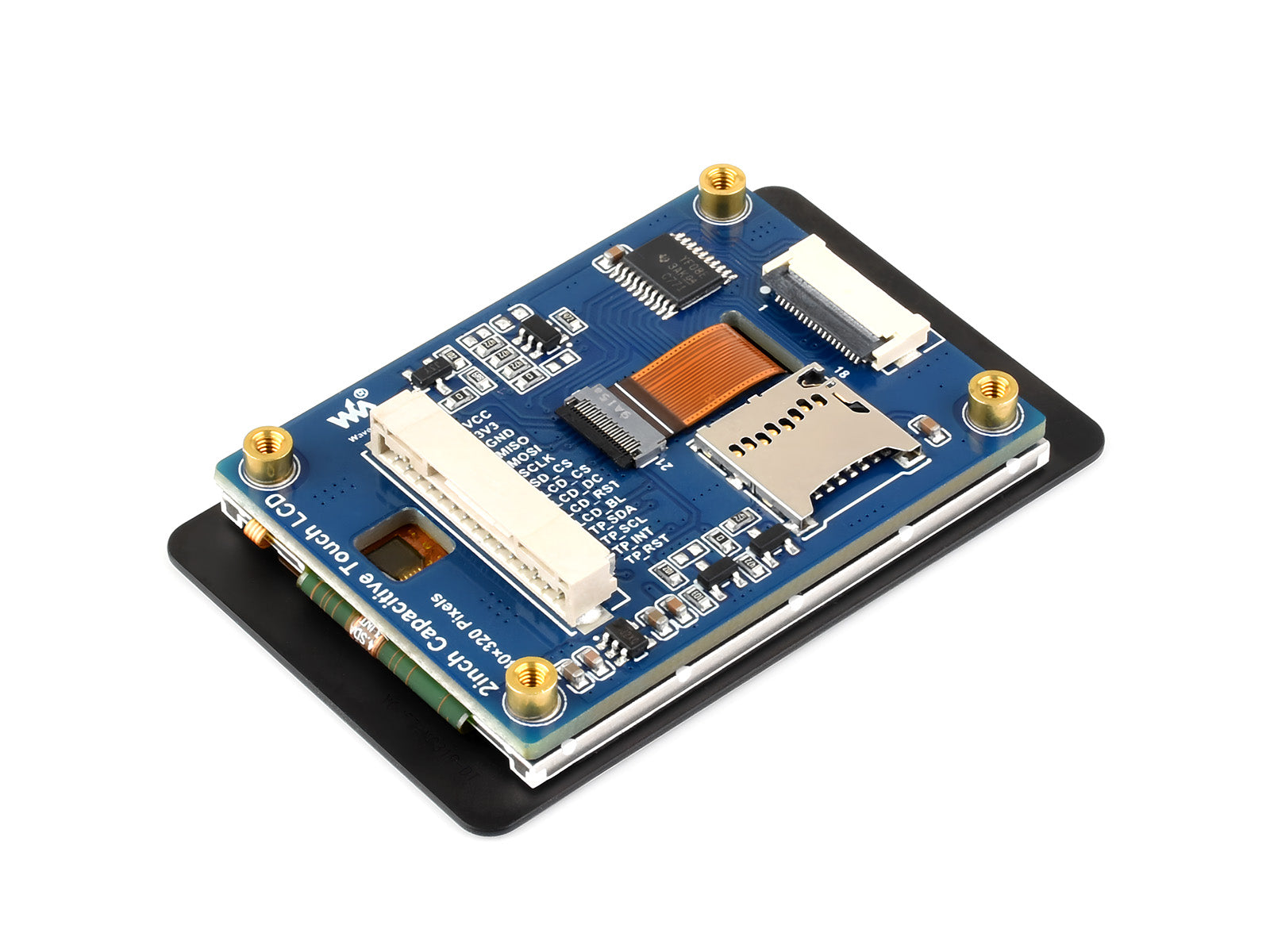

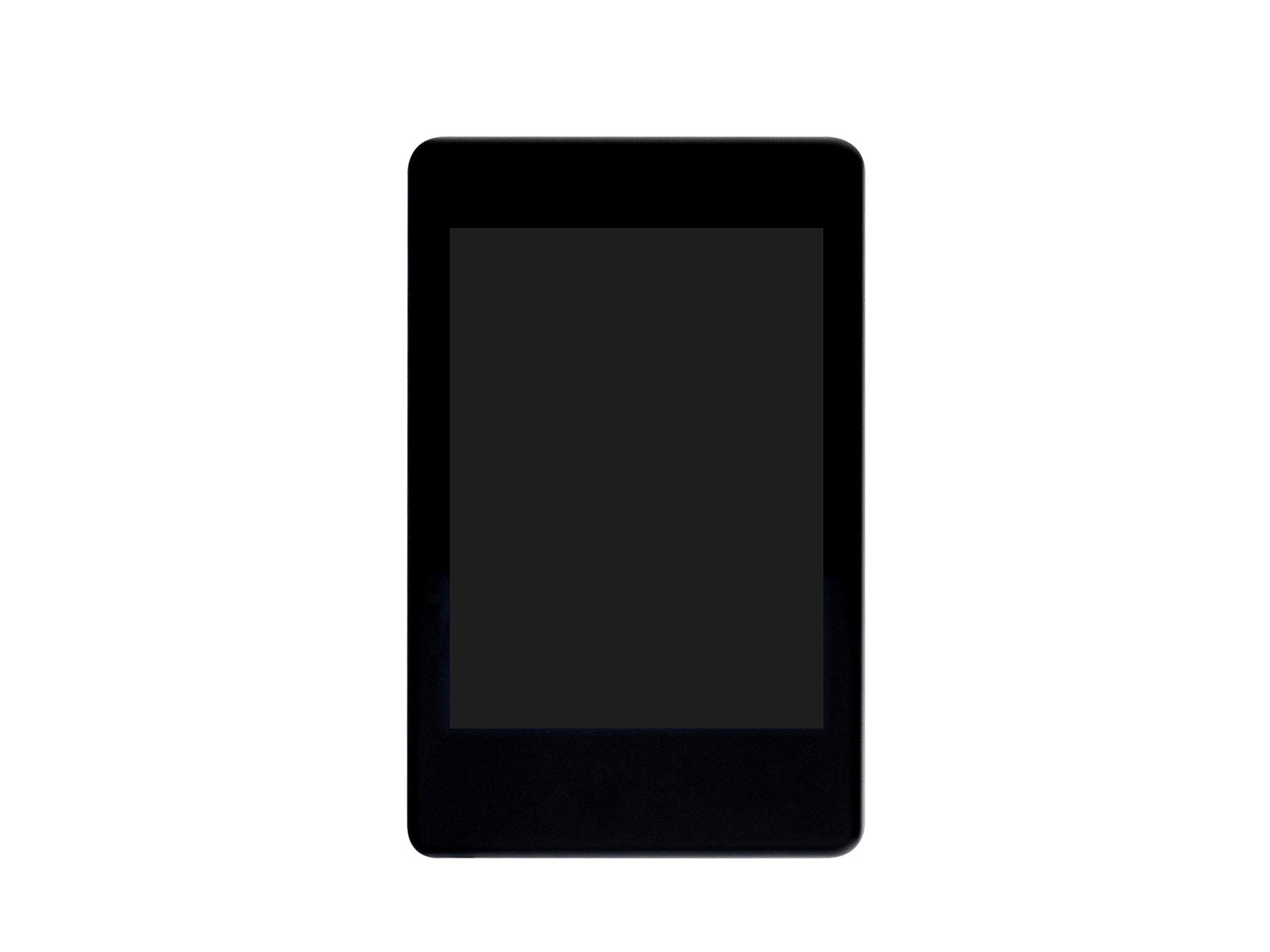

2inch Capacitive Touch LCD Module

Embedded ST7789T3 driver and CST816D capacitive touch control chip

Comes with examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino

• Size2"
• Resolution240×320
• Display Color262K
• Display PanelIPS
• Display DriverST7789T3
• Display InterfaceSPI
• Touch DriverCST816D
• Touch InterfaceI2C

Features at a glance

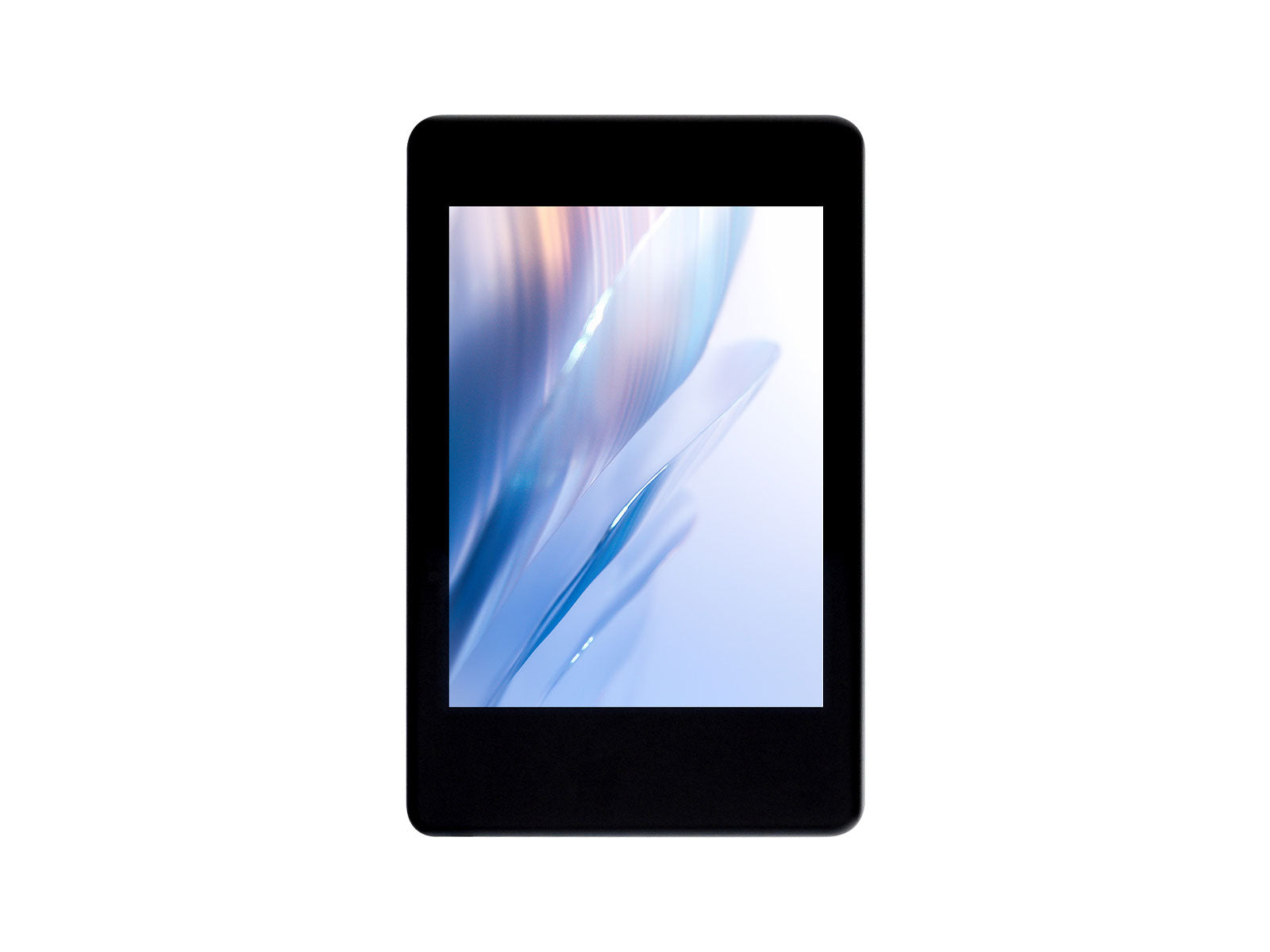

• 240×320 resolution, 262K colors, clear and colorful displaying effect
• High touch screen transmittance, fast response and long lifetime
• Embedded with ST7789T3 driver chip and CST816D capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
• Adapting 15PIN connector and 18PIN FPC slot for connecting the LCD module to the host board
• Onboard voltage translator, compatible with 3.3V / 5V operating voltage
• Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)

Specifications

Operating Voltage	3.3V / 5V	Resolution	240 × 320 pixels
Display Driver	ST7789T3	Touch Driver	CST816D
Display Interface	4-wire SPI	Touch Interface	I2C
Display Panel	IPS	Touch Type	Capacitive
Pixel Pitch	0.1275 × 0.1275 (mm)	Touch Points	single point touch
Display Size	30.6 × 40.8 (mm)	Module Size	37.1 × 58.8 (mm)

Onboard Voltage Translator

Compatible With 3.3V / 5V Operating voltage

Onboard TF Card Slot

For storing more pictures or files

Suitable For Multiple Programming Platforms

Comes With Demos And Manuals For Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino More Convenient For Development And Integration, with High Expansibility

Raspberry Pi

Raspberry Pi Pico

ESP32

Arduino Boards

SPI and I2C Control Interfaces

Options For 15PIN Connector Or 18PIN FPC Slot For Connecting The LCD To The Host Board

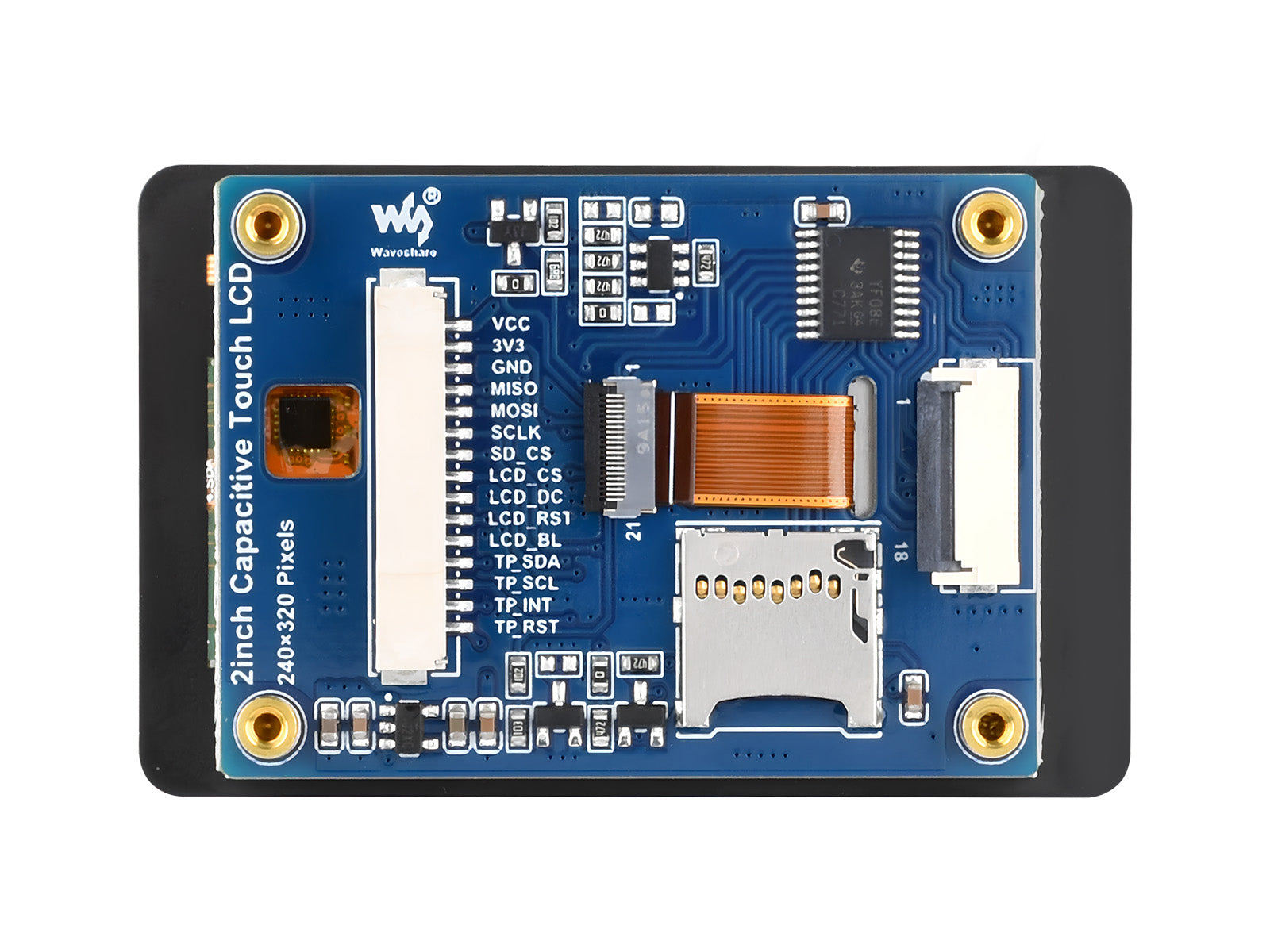

Pin	Description	15PIN Pin No.	18PIN Pin No.
VCC	Power (3.3V / 5V input)	1	1
3V3	Power (3.3V input)	2	NC
GND	Ground	3	3
MISO	SPI MISO pin	4	6
MOSI	SPI MOSI pin	5	5
SCLK	SPI CLK pin	6	4
SD_CS	TF card chip selection, low active	7	10
LCD_CS	LCD chip selection, low active	8	9
LCD_DC	LCD data/command selection (high for data, low for command)	9	7
LCD_RST	LCD reset pin, low active	10	8
LCD_BL	LCD backlight pin	11	2
TP_SDA	Touch panel data pin	12	14
TP_SCL	Touch panel clock pin	13	13
TP_INT	Touch panel interrupt pin	14	15
TP_RST	Touch panel reset pin, low active	15	12

Hardware Connection

Connecting with Raspberry Pi 5

Connecting with ESP32-S3

* for reference only, the Raspberry Pi 5andESP32-S3 driver board are NOT included, please check the Package Content for the detailed part list.

Outline dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/2inch_Capacitive_Touch_LCD

Selection Guide

Part Number	Type	Color	Resolution	Display Size (mm×mm)	Interfaces	Driver	Dimension (mm×mm)	Pinheader
0.49inch OLED Module	OLED	White	64×32	14.40×11.50	I2C	SSD1315	15.5×13.0	MX1.25 connector
0.71inch LCD Module	IPS	65K colorful	160×160	18×18	4-wire SPI	GC9D01	20.1×22.3	SH1.0 connector
0.71inch DualEye LCD Module	IPS	65K colorful	160×160	18×18	SPI	GC9D01	20.00×51.00	SH1.0 connector
0.85inch LCD Module	IPS	65K colorful	128×128	15.21×15.21	4-wire SPI	GC9107	19.0×22.5	GH1.25 connector
0.91inch OLED Module	OLED	White	128×32	22.38×5.58	I2C	SSD1306	36.0×12.5	PH2.0 connector
0.95inch RGB OLED (A)	OLED	65K colorful	96×64	20.14×13.42	4-wire SPI	SSD1331	31.7×37.0	angled/horizontal
0.95inch RGB OLED (B)	OLED	65K colorful	96×64	20.14×13.42	4-wire SPI	SSD1331	31.7×37.0	straight/vertical
0.96inch LCD Module	IPS	65K colorful	160×80	21.70×10.80	4-wire SPI	ST7735S	32.5×26.0	PH2.0 connector
0.96inch OLED (A)	OLED	1/4 yellow section, 3/4 blue section*	128×64	21.70×11.20	3/4-wire SPI, I2C	SSD1306	33.0×33.5	angled/horizontal
0.96inch OLED (B)	OLED	1/4 yellow section, 3/4 blue section*	128×64	21.70×11.20	3/4-wire SPI, I2C	SSD1306	33.0×33.5	straight/vertical
0.96inch OLED Module (C)	OLED	1/4 yellow section, 3/4 blue section*	128×64	21.74×11.18	4-wire SPI, I2C	SSD1315	26.0×26.0	straight/vertical
0.96inch OLED Module (D)	OLED	White	128×64	21.74×11.18	4-wire SPI, I2C	SSD1315	26.0×26.0	straight/vertical
0.96inch OLED Module (E)	OLED	Blue	128×64	21.74×11.18	4-wire SPI, I2C	SSD1315	26.0×26.0	straight/vertical
0.96inch RGB OLED Module	OLED	65K colorful	64×128	10.862×21.736	3/4-wire SPI	SSD1357	32.5×26.0	GH1.25 connector
1.14inch LCD Module	IPS	65K colorful	240×135	24.91×14.86	4-wire SPI	ST7789	35.0×32.0	PH2.0 connector
1.27inch RGB OLED Module	OLED	262K colorful	128×96	25.708×19.28	3/4-wire SPI	SSD1351	42.2×29.0	GH1.25 connector
1.28inch LCD Module	IPS	65K colorful	240×240	Φ32.4mm	4-wire SPI	GC9A01	40.4×37.5 Φ37.5	PH2.0 connector
1.28inch Touch LCD	IPS (with touch)	65K colorful	240×240	Φ32.4mm	4-wire SPI, I2C	GC9A01, CST816S	39.89×38.5 Φ38.5	GH1.25 connector
1.3inch LCD Module	IPS	65K colorful	240×240	23.40×23.40	4-wire SPI	ST7789	45.0×31.0	PH2.0 connector
1.3inch OLED (A)	OLED	Blue	128×64	29.42×14.70	3/4-wire SPI, I2C	SH1106	40.5×37.5	angled/horizontal
1.3inch OLED (B)	OLED	Blue	128×64	29.42×14.70	3/4-wire SPI, I2C	SH1106	40.5×37.5	straight/vertical
1.3inch OLED Module (C)	OLED	White	64×128	14.70×29.42	4-wire SPI, I2C	SH1107	30.0×39.5	PH2.0 connector
1.32inch OLED Module	OLED	White (16 gray scale)	128×96	26.86×20.14	4-wire SPI, I2C	SSD1327	34.3×30.5	GH1.25 connector
1.47inch Touch LCD	IPS	262K colorful	172×320	17.75×32.93	4-wire SPI	JD9853	22.05×41.69	SH1.0 connector, FPC0.5 connector
1.47inch LCD Module	IPS	262K colorful	172×320	17.39×32.35	4-wire SPI	ST7789V3	22.0×38.5	PH2.0 connector
1.5inch LCD Module	IPS	262K colorful	240×280	24.77×28.90	4-wire SPI	NV3030B	28.5×35.0	GH1.25 connector
1.5inch OLED Module	OLED	White (16 gray scale)	128×128	26.86×26.86	4-wire SPI, I2C	SSD1327	44.5×37.0	PH2.0 connector
1.5inch OLED Module (B)	OLED	White	128×128	26.855×26.855	4-wire SPI, I2C	SH1107	38.5×44.5	MX1.25 connector
1.5inch RGB OLED Module	OLED	65K colorful	128×128	26.86×26.86	3/4-wire SPI	SSD1351	44.5×37.0	PH2.0 connector
1.54inch LCD Module	IPS	65K colorful	240×240	27.72×27.72	4-wire SPI	ST7789	50.0×35.0	PH2.0 connector
1.54inch OLED Module	OLED	White	128×64	35.05×17.52	4-wire SPI, I2C	SSD1309	43.0×37.5	MX1.25 connector
1.54inch OLED Module (B)	OLED	Blue	128×64	35.05×17.52	4-wire SPI, I2C	SSD1309	43.0×37.5	MX1.25 connector
1.69inch LCD Module	IPS	262K colorful	240×280	27.972×32.634	4-wire SPI	ST7789V2	31.5×39.0	MX1.25 connector
1.69inch Touch LCD Module	IPS	262K colorful	240×280	27.972×32.634	4-wire SPI, I2C	ST7789V2	33.13×41.13	GH1.25 connector
1.8inch LCD Module	TFT	65K colorful	128×160	28.30×34.50	4-wire SPI	ST7735S	56.5×34.0	PH2.0 connector
1.83inch LCD Module	IPS	65K colorful	240×280	30.20×35.23	4-wire SPI	NV3030B	33.0×40.0	MX1.25 connector
1.83inch Touch LCD Module	IPS	262K colorful	240×284	29.52×34.93	4-wire SPI	ST7789P	35.00×42.00	GH1.25 connector
1.9inch LCD Module	IPS	262K colorful	170×320	22.70×42.72	4-wire SPI	ST7789V2	51.2×27.3	GH1.25 connector
1.9inch Touch LCD	IPS	262K colorful	170×320	23.10×43.12	4-wire SPI, I2C	ST7789V2	52.36×28.80	SH1.0 connector, FPC0.5 connector
2inch Capacitive Touch LCD	IPS	262K colorful	240×320	30.60×40.80	4-wire SPI, I2C	ST7789T3	37.1×58.8	GH1.25 connector, 18Pin FPC slot
2inch LCD Module	IPS	262K colorful	240×320	30.60×40.80	4-wire SPI	ST7789VW	58.0×35.0	PH2.0 connector
2.4inch LCD Module	TFT	65K colorful	240×320	36.72×48.96	4-wire SPI	ILI9341	70.5×43.3	PH2.0 connector
2.42inch OLED Module	OLED	White	128×64	55.01×27.49	4-wire SPI, I2C	SSD1309	61.50×39.50	GH1.25 connector
2.42inch OLED Module (C)	OLED	Yellow	128×64	55.01×27.49	4-wire SPI, I2C	SSD1309	61.50×39.50	GH1.25 connector
2.8inch Capacitive Touch LCD	TFT	262K colorful	240×320	43.20×57.60	4-wire SPI, I2C	ST7789T3	50.54×73.06	GH1.25 connector, 18Pin FPC slot
3.5inch Capacitive Touch LCD	IPS	262K colorful	320×480	48.96×73.44	4-wire SPI, I2C	ST7796S	61.00×92.44	GH1.25 connector, 18Pin FPC slot

*Note: the 0.96inch OLED consists of 1/4 yellow upper section and 3/4 blue lower section, not a regular dual-color display.

Lieferumfang

1. 2inch Capacitive Touch LCD x1
2. GH1.25 15Pin cable x1
3. FPC cable x1

1

2

3
