3.6inch E Ink Spectra 6 (E6) Full color E-Paper Display, 600×400 Pixels, SPI Communication, Optional For HAT+ Standard Driver Board, E-ink Display

Name: 3.6inch E Ink Spectra 6 (E6) Full color E-Paper Display, 600×400 Pixels, SPI Communication, Optional For HAT+ Standard Driver Board, E-ink Display
Brand: WaveShare
SKU: WSAL32651
Price: 14895.64 HUF
Availability: InStock

14.896 Ft

14.896 Ft 0 Ft

Sale Ausverkauft

Steuer enthalten. Versand wird an der Kasse berechnet.

Menge

3.6inch E Ink Spectra 6 (E6) Full color E-Paper Display, 600×400 Pixels, SPI Communication, Optional For HAT+ Standard Driver Board, E-ink Display

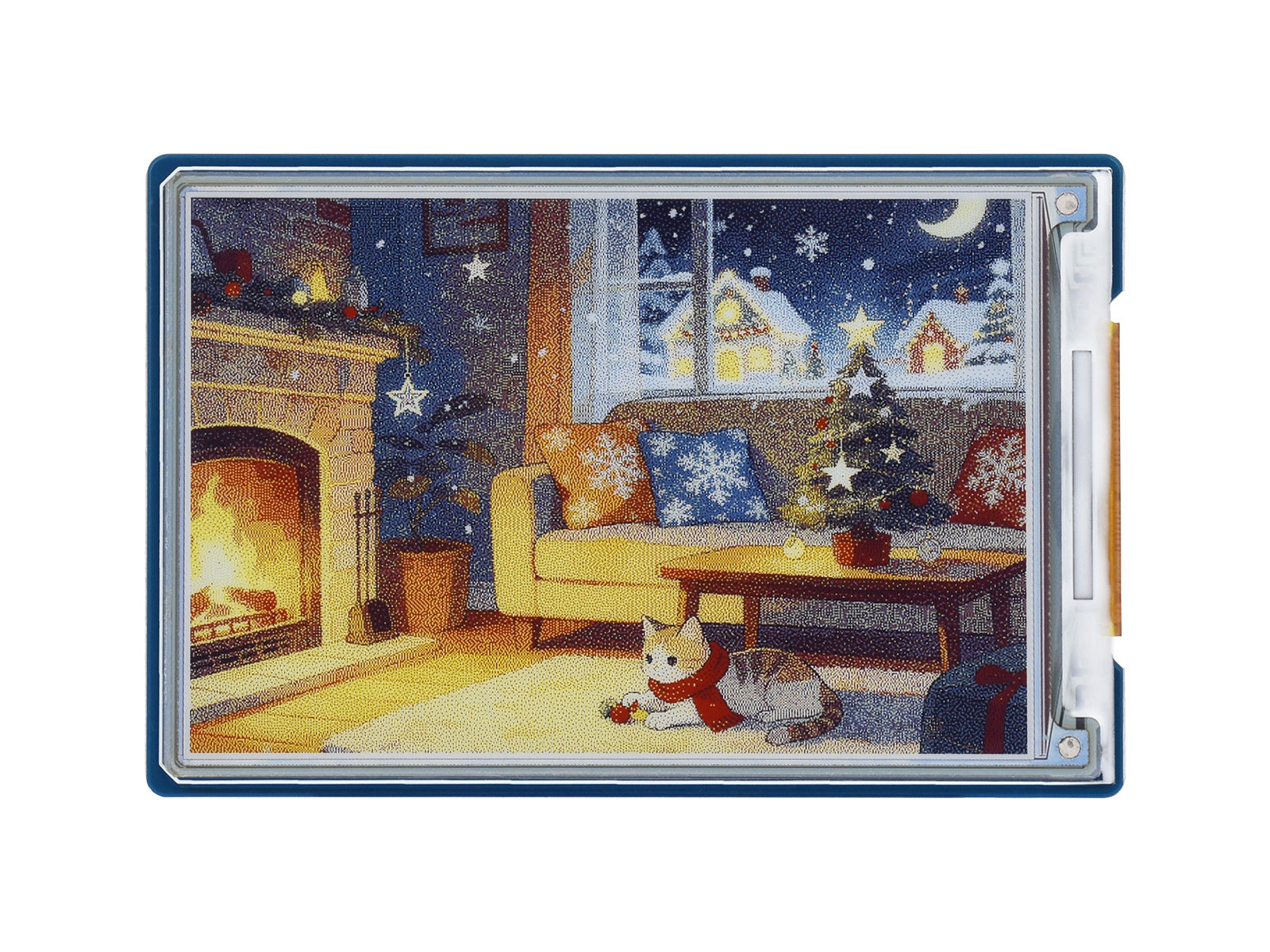

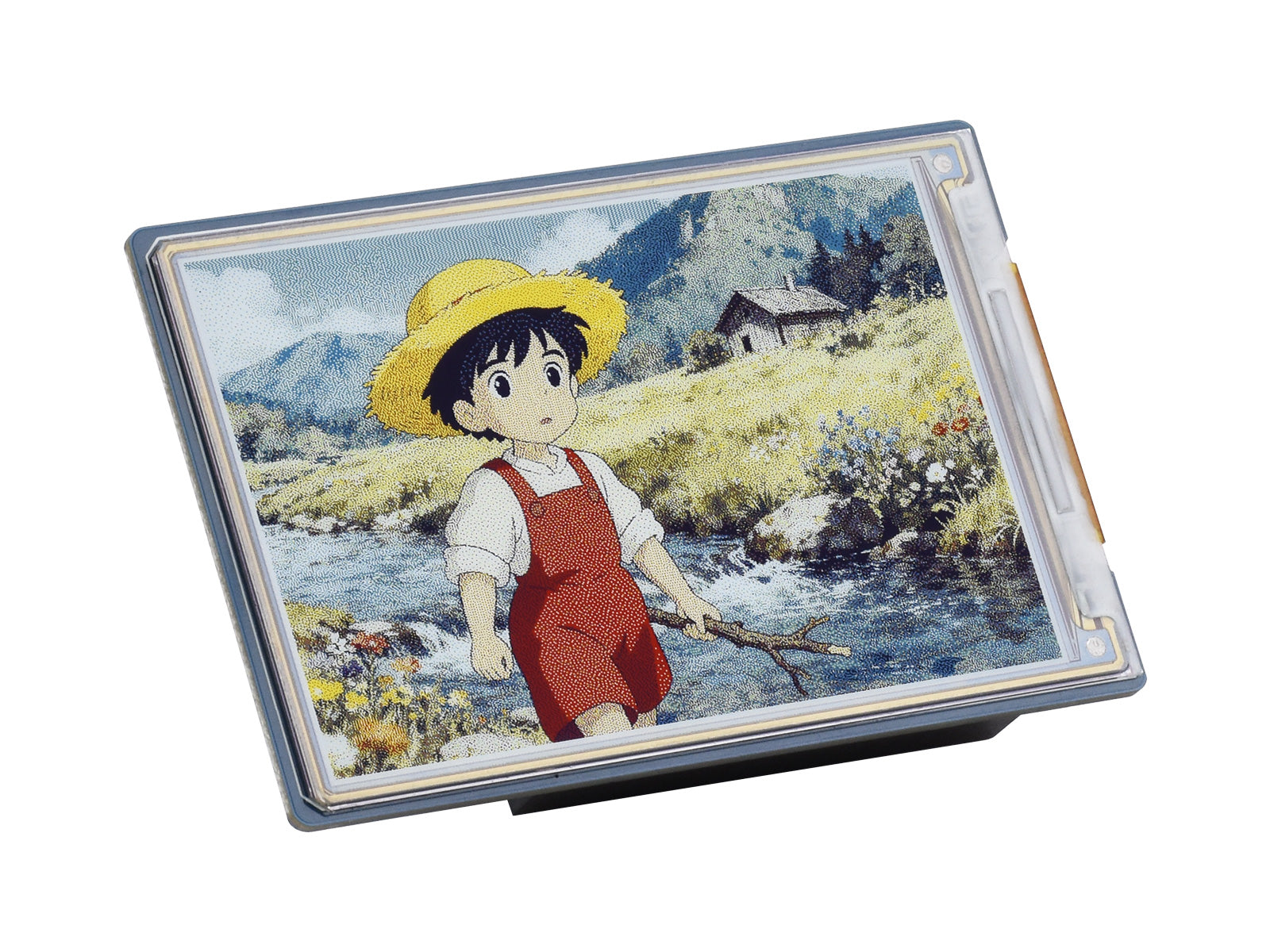

3.6″ full color e-Paper display

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

Note: the driver board is optional, please refer to the Package Content for detailed part list

Size3.6″
Resolution600×400
Viewing Angle>170°
Display ColorE6 full color
Grey Scale2

CommunicationSPI
Display PanelE-paper
ExperiencePaper-like
EnvironmentAmbient Light Required
Display TypePassively Reflective

HAT+ StandardImproves interoperability

Version Options

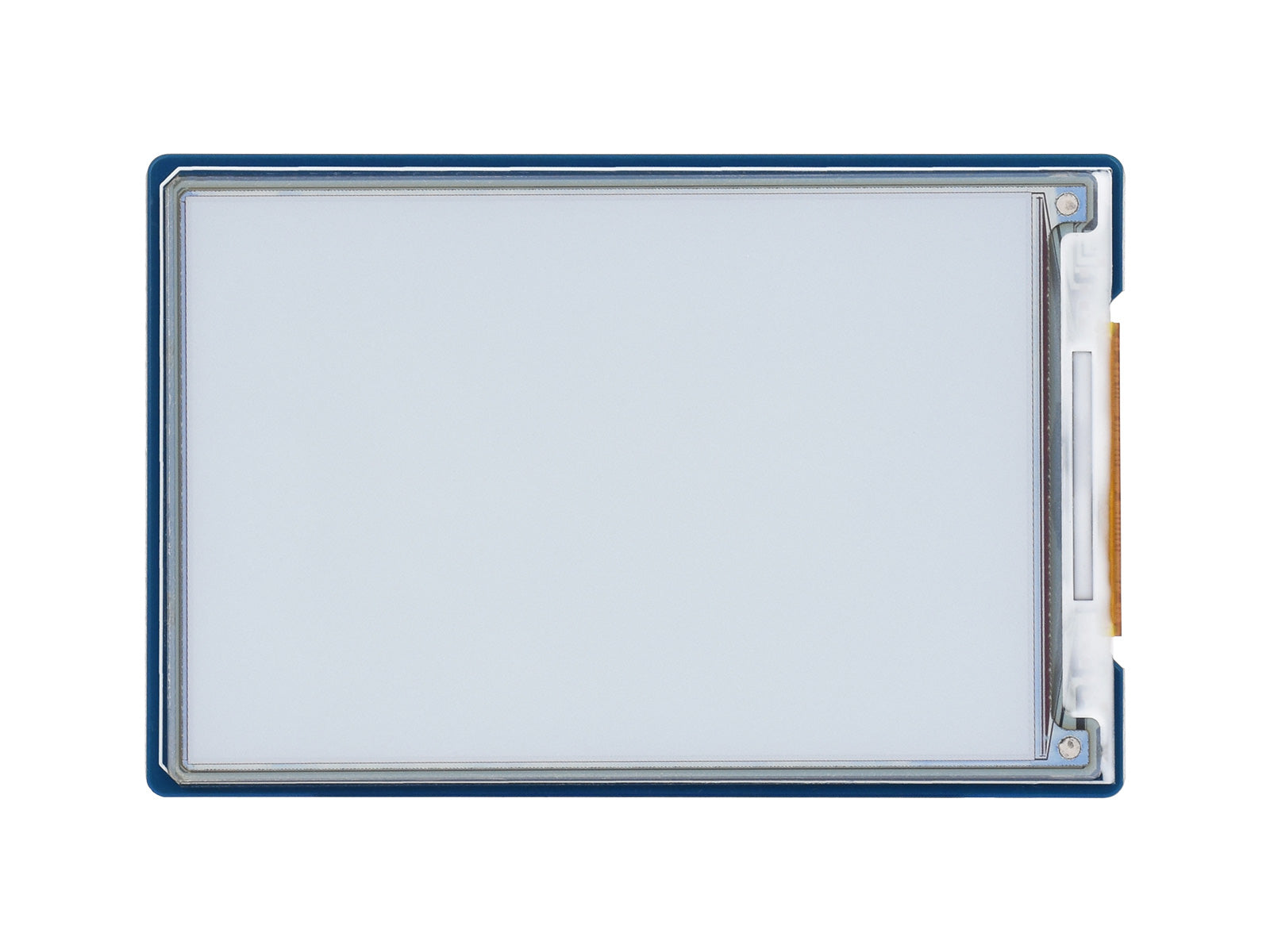

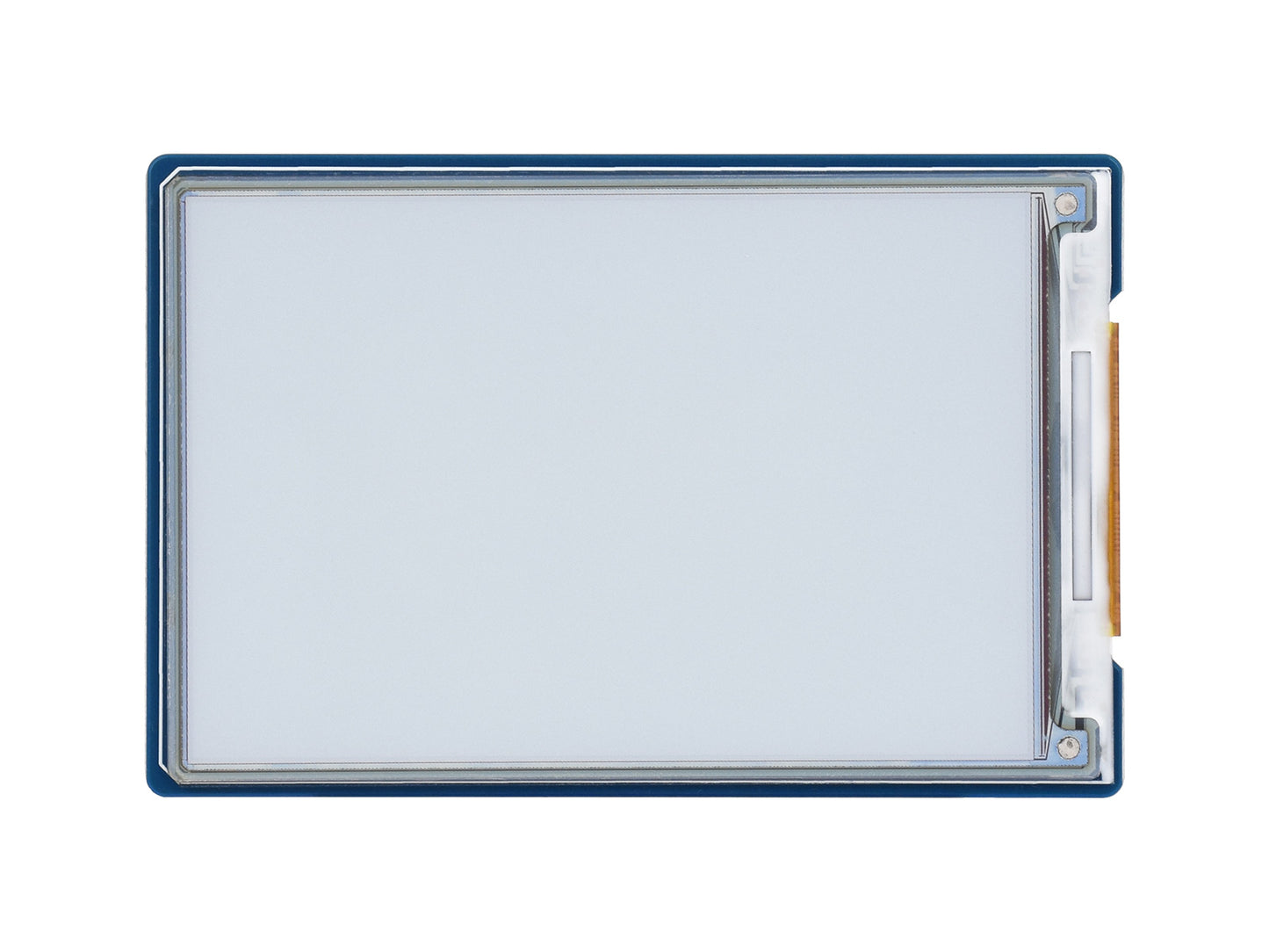

3.6inch e-Paper (E)raw display, without driver board

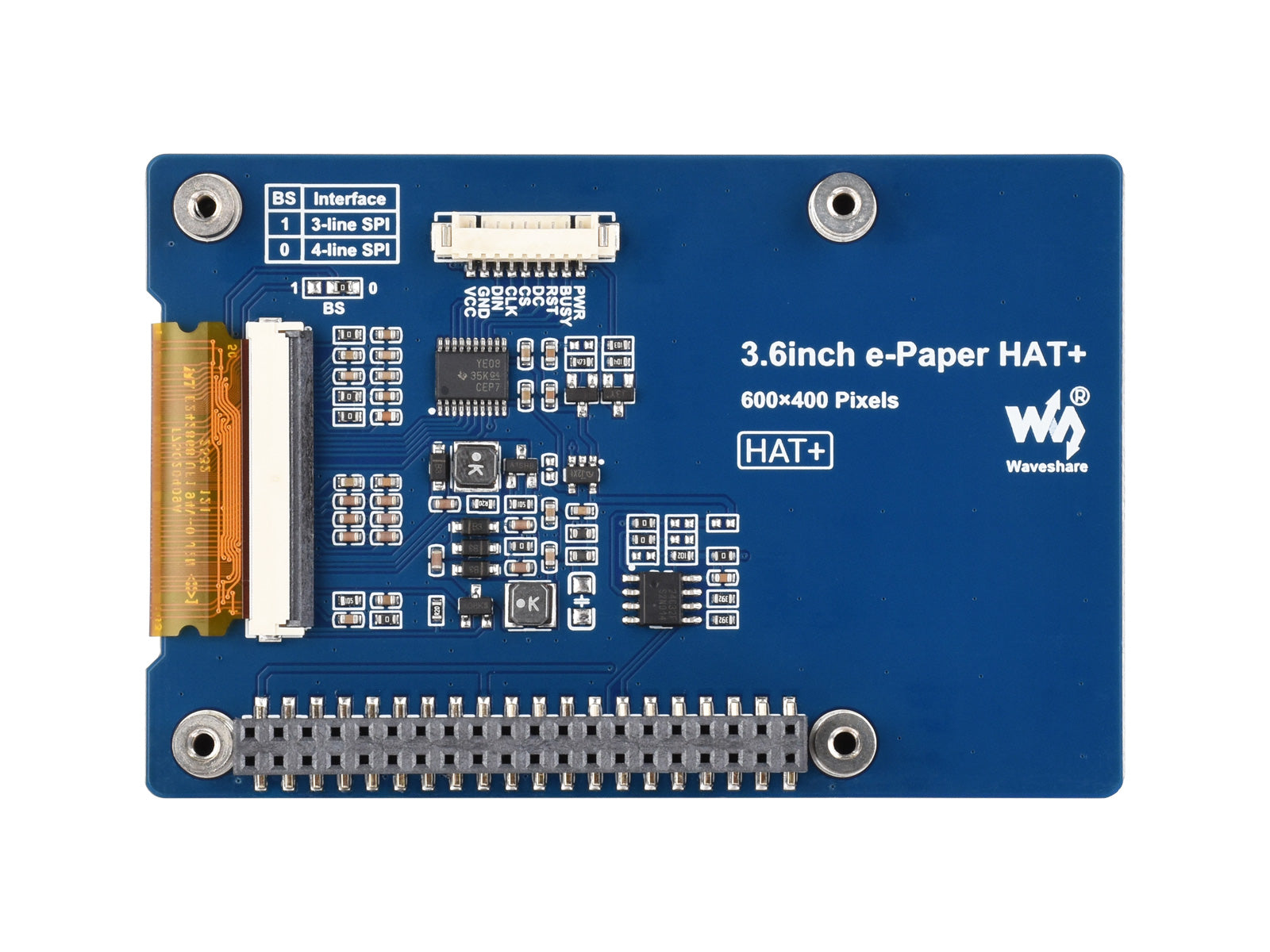

3.6inch e-Paper HAT+ (E) with driver board

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32)
Optional for e-Paper driver board:
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi series boards and Jetson Nano
- Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32 / ESP32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage	Raw display: 3.3V	display color	E6 full color(E Ink Spectra 6)
operating voltage	with driver board: 3.3V/5V	display color	E6 full color(E Ink Spectra 6)
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	Raw display: 86.60 × 56.00 × 0.78 (mm)	full refresh time	15s
outline dimensions	with driver board: 89.50 × 59.00 (mm)	full refresh time	15s
display size	76.20 × 50.80 (mm)	refresh power	<100mW
DOT PITCH	0.127 × 0.127 (mm)	standby current of Raw display	<0.01uA (almost none)
RESOLUTION	600 × 400 pixels	viewing angle	>170°

E Ink Spectra 6 technology

E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.

Spectra displays are made of millions of Microcups which suspend the four different colored particles in clear fluid.

E Ink Spectra 6 technology introduction 2

By applying a negative charge the red particles rise to the top and become visible

E Ink Spectra 6 technology introduction 3

A split charge raises blue particles to the top and become visible

More advanced performance

The resolution is up to 200ppi, features a wider range of operating temperature and faster screen refresh time. And it is more power-saving, aligning with ESG trends for energy efficiency and carbon reduction

Comparison of e-Paper display technologies

Innovative microcup full color technology platform

Using blue charged particles to produce six primary colors, and employing dithering technology to create vivid and saturated full color images.

3.6inch E Ink Spectra 6 (E6) Full-color E-Paper Display, supports full-color image display

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper driver board

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards, Jetson Nano

3.6inch E Ink Spectra 6 (E6) Full-color E-Paper Display with 40PIN GPIO header

* for reference only, the Raspberry Pi is NOT included.

Onboard SPI control interface

for use with controller boards like Raspberry Pi / Arduino / STM32 / ESP32

PWR	Power on/off control
BUSY	Busy status output pin
RST	External reset, low active
DC	Data/Command selection (high for data, low for command)
CS	SPI chip selection, low active
CLK	SPI CLK pin
DIN	SPI MOSI pin
GND	Ground
VCC	Power (3.3V / 5V input)

Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions

3.6inch e-Paper (E)

3.6inch e-Paper HAT+ (E)

3.6inch e-Paper (E) and driver board, outline dimensions

Resources & Services

WIKI:www.waveshare.com/wiki/3.6inch_e-Paper_HAT+_(E)

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part Number	Colors	Grey Scale	Resolution	Display size (mm)	Outline Dimension (mm)	Full Refresh Time (s)	Partial Refresh¹	Pi Head-er²	Flexi-ble	Interface
1.02inch e-Paper Module	black, white	2	128×80	21.76 × 14.00	42.0 × 27.0	2	√			SPI
1.54inch e-Paper Module	black, white	2	200×200	27.00 × 27.00	48.0 × 33.0	2	√			SPI
1.54inch e-Paper Module (B)	red, black, white	2	200×200	27.00 × 27.00	48.0 × 33.0	14				SPI
1.54inch e-Paper Module (G)	red, yellow, black, white	2	200×200	27.00 × 27.00	48.0 × 33.0	20				SPI
1.64inch e-Paper Module (G)	red, yellow, black, white	2	168×168	29.568 × 29.568	47 × 38	12				SPI
2.13inch e-Paper HAT	black, white	2	250×122	48.55 × 23.70	65.0 × 30.2	2	√	√		SPI
2.13inch e-Paper HAT+	black, white	2	250×122	48.55 × 23.70	65.0 × 30.5	2	√	√		SPI
2.13inch e-Paper HAT (B)	red, black, white	2	250×122	48.55 × 23.70	65.0 × 30.2	15		√		SPI
2.13inch e-Paper HAT (G)	red, yellow, black, white	2	250×122	48.55 × 23.70	65.0 × 30.2	16		√		SPI
2.13inch Touch e-Paper HAT	black, white	2	250×122	48.55 × 23.70	69.15 × 38.90	2	√	√		SPI
2.13inch Touch e-Paper HAT (with case)	black, white	2	250×122	48.55 × 23.70	72.20 × 41.90	2	√	√		SPI
2.15inch e-Paper HAT+ (B)	red, black, white	2	296×160	48.10 × 26.00	65.0 × 34.0	23		√		SPI
2.15inch e-Paper HAT+ (G)	red, yellow, black, white	2	296×160	48.10 × 26.00	65.0 × 34.0	20		√		SPI
2.36inch e-Paper Module (G)	red, yellow, black, white	2	296×168	52.096 × 29.568	69.5 × 38.5	12				SPI
2.66inch e-Paper Module	black, white	2	296×152	30.704 × 60.088	37.0 × 83.5	6	√			SPI
2.66inch e-Paper Module (B)	red, black, white	2	296×152	30.704 × 60.088	37.0 × 83.5	15				SPI
2.66inch e-Paper Module (G)	red, yellow, black, white	2	360×184	60.05 × 30.69	85.0 × 38.5	26				SPI
2.7inch e-Paper HAT	black, white	4	264×176	57.29 × 38.19	85.0 × 56.0	6	√	√		SPI
2.7inch e-Paper HAT (B)	red, black, white	2	264×176	57.288 × 38.192	73.5 × 56.0	15		√		SPI
2.9inch e-Paper Module	black, white	4	296×128	66.89 × 29.05	89.5 × 38.0	3	√			SPI
2.9inch e-Paper Module (B)	red, black, white	2	296×128	66.89 × 29.05	89.5 × 38.0	15				SPI
2.9inch e-Paper Module (G)	red, yellow, black, white	2	296×128	66.89 × 29.05	89.5 × 38.0	16				SPI
2.9inch Touch e-Paper HAT	black, white	4	296×128	66.89 × 29.05	89.10 × 42.70	3	√	√		SPI
3inch e-Paper Module (G)	red, yellow, black, white	2	400×168	70.4 × 29.568	88.5 × 41	12				SPI
3.5inch e-Paper Module (G)	red, yellow, black, white	2	384×184	79.68 × 38.18	94.00 × 47.50	20				SPI
3.52inch e-Paper HAT	black, white	2	360×240	74.51 × 49.67	86.5 × 57	1.5		√		SPI
3.52inch e-Paper HAT (B)	red, black, white	2	360×240	74.51 × 49.67	86.5 × 57	16		√		SPI
3.6inch e-Paper HAT+ (E)	E6 full color	2	600×400	76.20 × 50.80	89.50 × 59.00	15		√		SPI
3.7inch e-Paper HAT	black, white	4	480×280	47.32 × 81.12	58.0 × 96.5	3	√	√		SPI
3.7inch e-Paper HAT+ (G)	red, yellow, black, white	2	416×240	81.54 × 47.04	96.00 × 57.00	20		√		SPI
3.97inch e-Paper HAT+	black, white	4	800×480	86.40 × 51.84	99.50 × 60.00	3.5	√	√		SPI
3.97inch e-Paper HAT+ (G)	red, yellow, black, white	2	800×480	86.40 × 51.84	99.50 × 60.00	21		√		SPI
4inch e-Paper HAT+ (E)	E6 full color	2	600×400	84.6 × 56.40	101.00 × 68.00	19		√		SPI
4.2inch e-Paper Module	black, white	4	400×300	84.80 × 63.60	103.0 × 78.5	5	√			SPI
4.2inch e-Paper Module (B)	red, black, white	2	400×300	84.80 × 63.60	103.0 × 78.5	15				SPI
4.2inch e-Paper Module (G)	red, yellow, black, white	2	400×300	84.80 × 63.60	103.0 × 78.5	21				SPI
4.26inch e-Paper HAT	black, white	4	800×480	92.80 × 55.68	107.0 × 64.0	4	√	√		SPI
4.3inch e-Paper UART Module	black, white	4	800×600	88.00 × 66.00	118.0 × 75.0	1.5				UART
4.37inch e-Paper Module (G)	red, yellow, black, white	2	512×368	90.11 × 64.77	101.5 × 81.5	14				SPI
5inch e-Paper HAT	black, white	2	960×552	110.59 × 62.65	126.38 × 71.19	1.8	√	√		SPI
5.79inch e-Paper Module	black, white	4	792×272	139.00 × 47.74	152.50 × 58.50	3.5	√			SPI
5.79inch e-Paper Module (B)	red, black, white	2	792×272	139.00 × 47.74	152.50 × 58.50	24				SPI
5.79inch e-Paper Module (G)	red, yellow, black, white	2	792×272	139.00 × 47.74	152.50 × 58.50	21				SPI
5.83inch e-Paper HAT	black, white	2	648×480	119.232 × 88.320	125.4 × 99.5	5		√		SPI
5.83inch e-Paper HAT (G)	red, yellow, black, white	2	648×480	118.78 × 88.22	125.40 × 99.50	20		√		SPI
6inch e-Paper HAT	black, white	16	800×600	122.4 × 90.6	138.4 × 101.8	<1	√	√		USB/SPI/ I80
6inch HD e-Paper HAT	black, white	16	1448×1072	122.4 × 90.6	138.4 × 101.8	<1	√	√		USB/SPI/ I80
7.3inch E-Paper HAT (E)	E6 full color	2	800×480	160 × 96	170.2 × 111.2	12		√		SPI
7.3inch E-Paper HAT (F)	7-Color	2	800×480	160 × 96	170.2 × 111.2	35		√		SPI
7.5inch e-Paper HAT	black, white	4	800×480	163.20 × 97.92	170.2 × 111.2	4	√	√		SPI
7.5inch HD e-Paper HAT	black, white	2	880×528	163.24 × 97.94	170.2 × 111.2	5		√		SPI
7.5inch e-Paper HAT (B)	red, black, white	2	800×480	163.20 × 97.92	170.2 × 111.2	26	√	√		SPI
7.5inch e-Paper HAT (H)	red, yellow, black, white	2	800×480	163.20 × 97.92	170.20 × 111.20	22		√		SPI
7.8inch e-Paper HAT	black, white	16	1872×1404	158.18 × 118.64	173.8 × 127.6	<1	√	√		USB/SPI/ I80
9.7inch e-Paper HAT	black, white	16	1200×825	202.8 × 139.43	218.8×156.4	<1	√	√		USB/SPI/ I80
10.2inch e-Paper HAT (G)	red, yellow, black, white	2	960 × 640	215.52 × 143.68	224.00 × 157.00	27		√		SPI
10.3inch e-Paper HAT	black, white	16	1872×1404	209.66 × 157.25	216.7 × 174.4	<1	√	√		USB/SPI/ I80
10.3inch e-Paper HAT (D)	black, white	16	1872×1404	209.66 × 157.25	227.7 × 165.8	<1	√	√	√	USB/SPI/ I80
10.85inch e-Paper HAT+	black, white	2	1360 × 480	259.76 × 91.68	270.56 × 105.92	3.5		√		SPI
10.85inch e-Paper HAT+ (G)	red, yellow, black, white	2	1360 × 480	259.76 × 91.68	270.56 × 105.92	21		√		SPI
12.48inch e-Paper Module	black, white	2	1304×984	252.98 × 190.90	280.0 × 229.5	<8		√		SPI
12.48inch e-Paper Module (B)	red, black, white	2	1304×984	252.98 × 190.90	280.0 × 229.5	37		√		SPI
13.3inch e-Paper HAT	black, white	16	1600×1200	270.40 × 202.80	285.80 × 213.65	<1	√	√		USB/SPI/ I80
13.3inch e-Paper HAT (B)	red, black, white	2	960×680	275.52 × 195.16	286.32 × 212.26	22	√	√		SPI
13.3inch e-Paper HAT (K)	black, white	4	960×680	275.52 × 195.16	286.32 × 212.26	5	√	√		SPI
13.3inch e-Paper HAT (E)	E6 full color	2	1600×1200	270.40 × 202.80	284.70 × 208.80	19		√		SPI

It usually takes about 0.3s for partial refresh
Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
