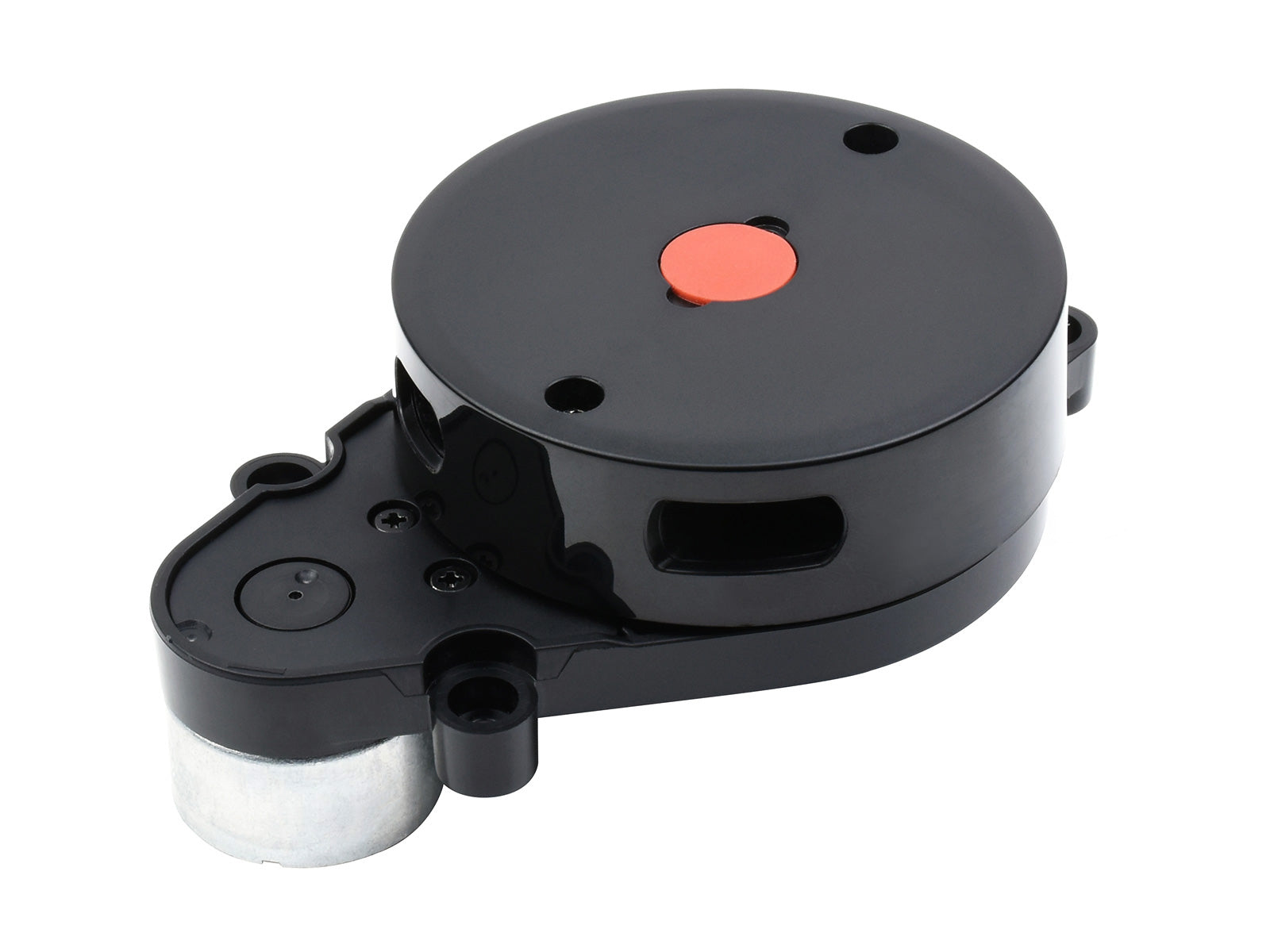

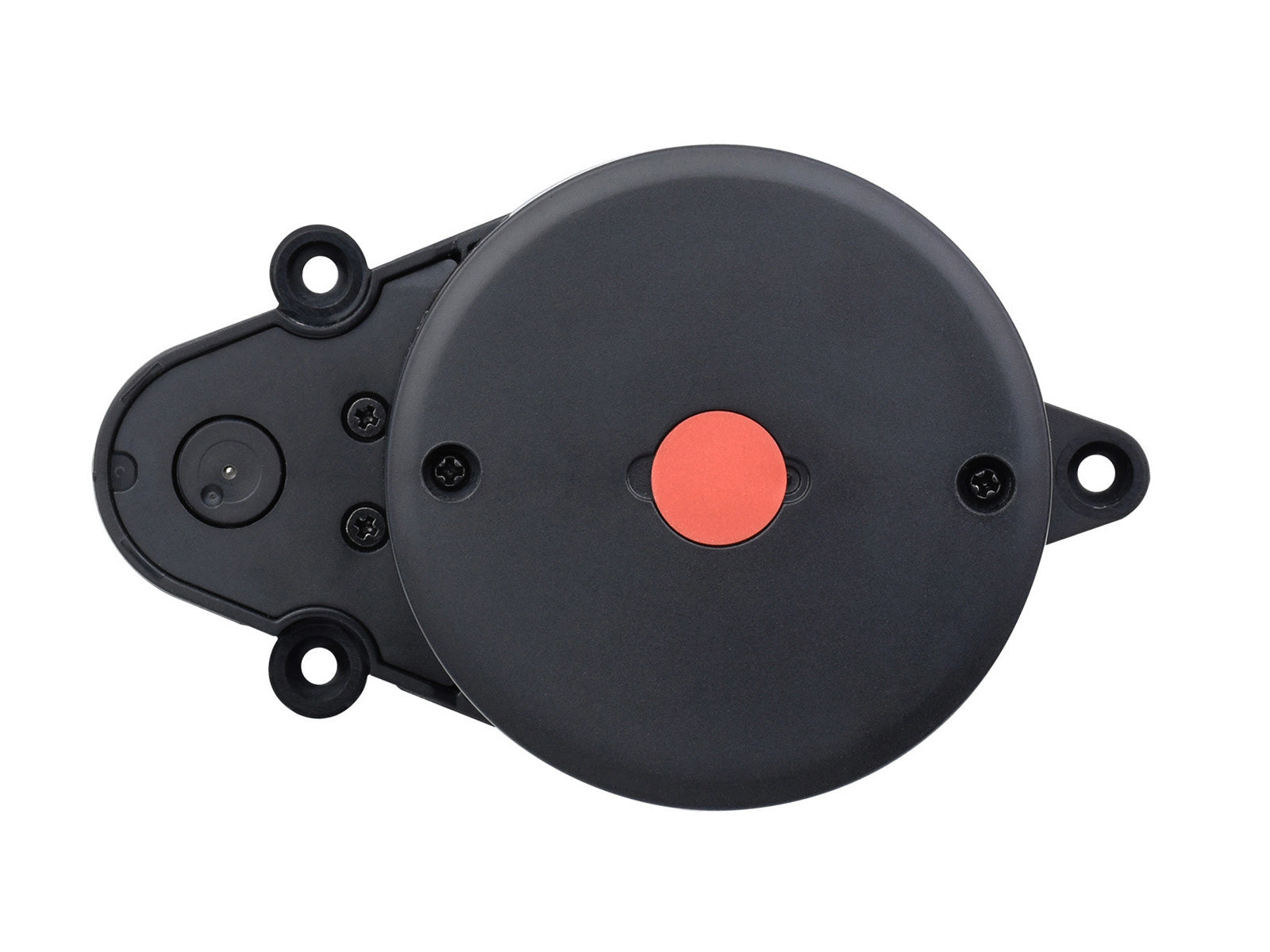

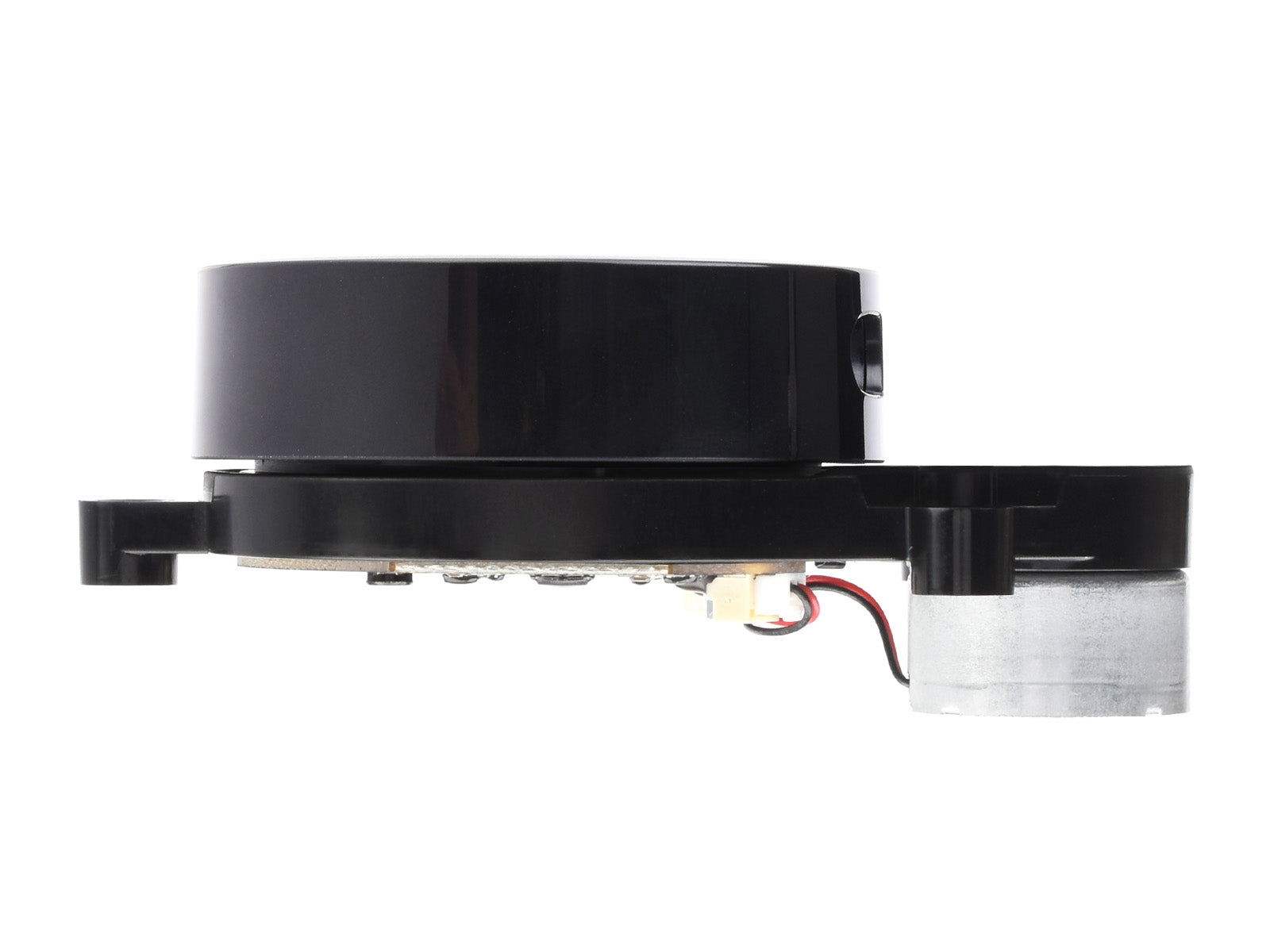

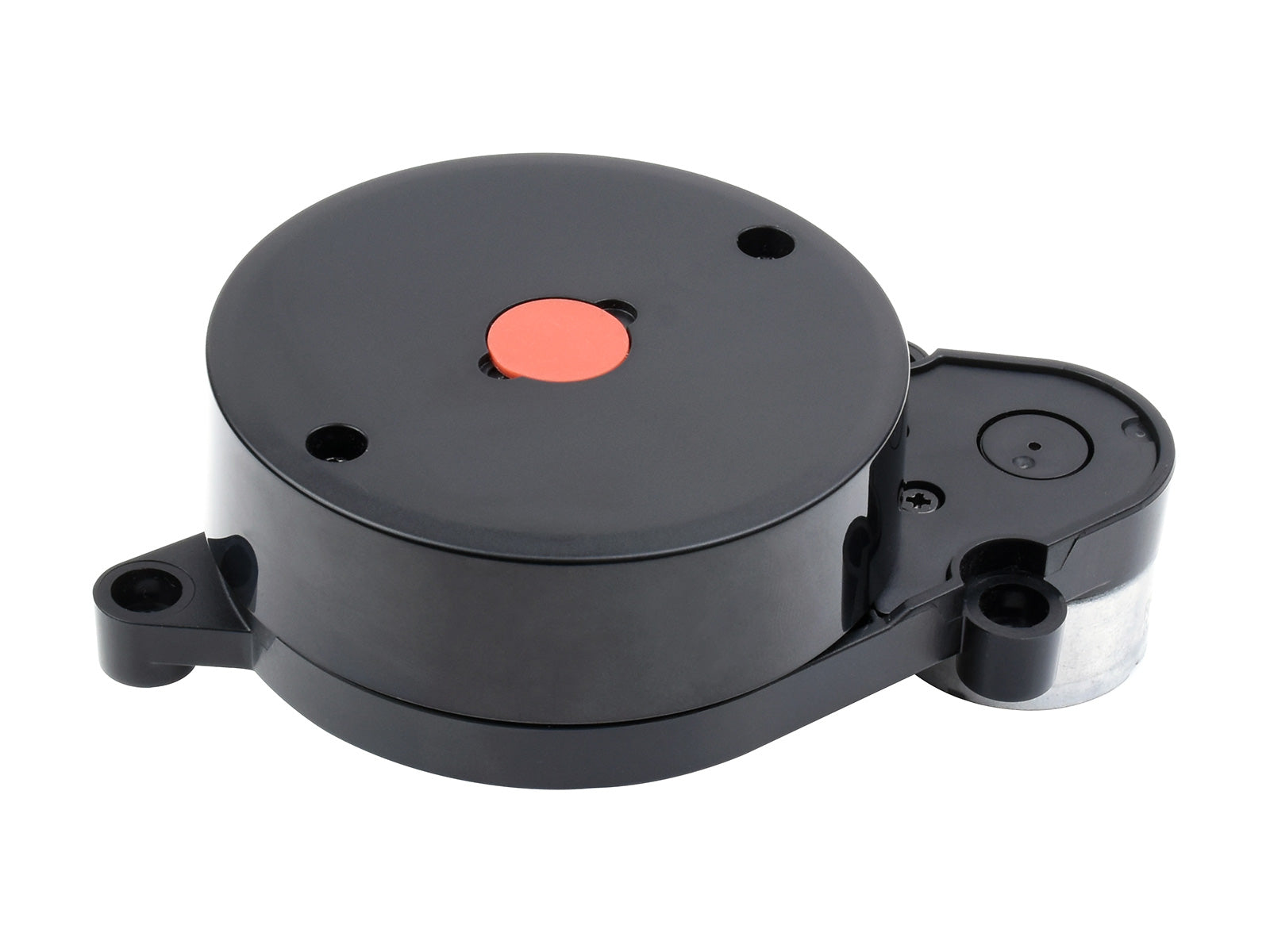

360° Omni-directional Triangulation Lidar, 8m Radius Ranging, Software Start-stop Control, D200 Developer Kit with LD14P Lidar

Supports controlling Lidar start/stop by sending corresponding commands via serial port, effectively prolonging its lifetime

LD14P can sense the environment information in a longer range, which ensures the robot’s ability to cruise and build maps in a larger area and obtain more environmental profile information

Supports glass wall detection at specific angles, reducing collisions during robot operation, extending the lifetime of the whole machine, and increasing safety

LD14P rotates clockwise in the ranging core to achieve 360° scanning of the surrounding environment, thus obtaining the information of the plane point cloud of the space where it is located.

Better filter processing technology, supports using in the 80000 Lux strong light environment, suitable for a variety of indoor and outdoor environments

 4000Hz ranging frequency which can easily scan the outline of the scene within the ranging range and realize fast and accurate mapping

The LD14P in the D200 Developer Kit is based on triangulation radar technology to achieve independent mapping and obstacle detection for the robot

With a thin and light structure design, while ensuring performance, it features smaller size, lower power consumption, and easier installation, can be adapted to more robot types

To ensure the safety for humans and pets, a low power infrared laser emitter is used as the light source and is driven by modulated pulses, the laser completes the emitting action in a very short period of time, complying with the FDA Class 1 human eye safety rating

LD14P adopts high-performance light-sensitive CMOS, higher efficiency, more stable performance, more dense collecting points, and more accurate mapping
