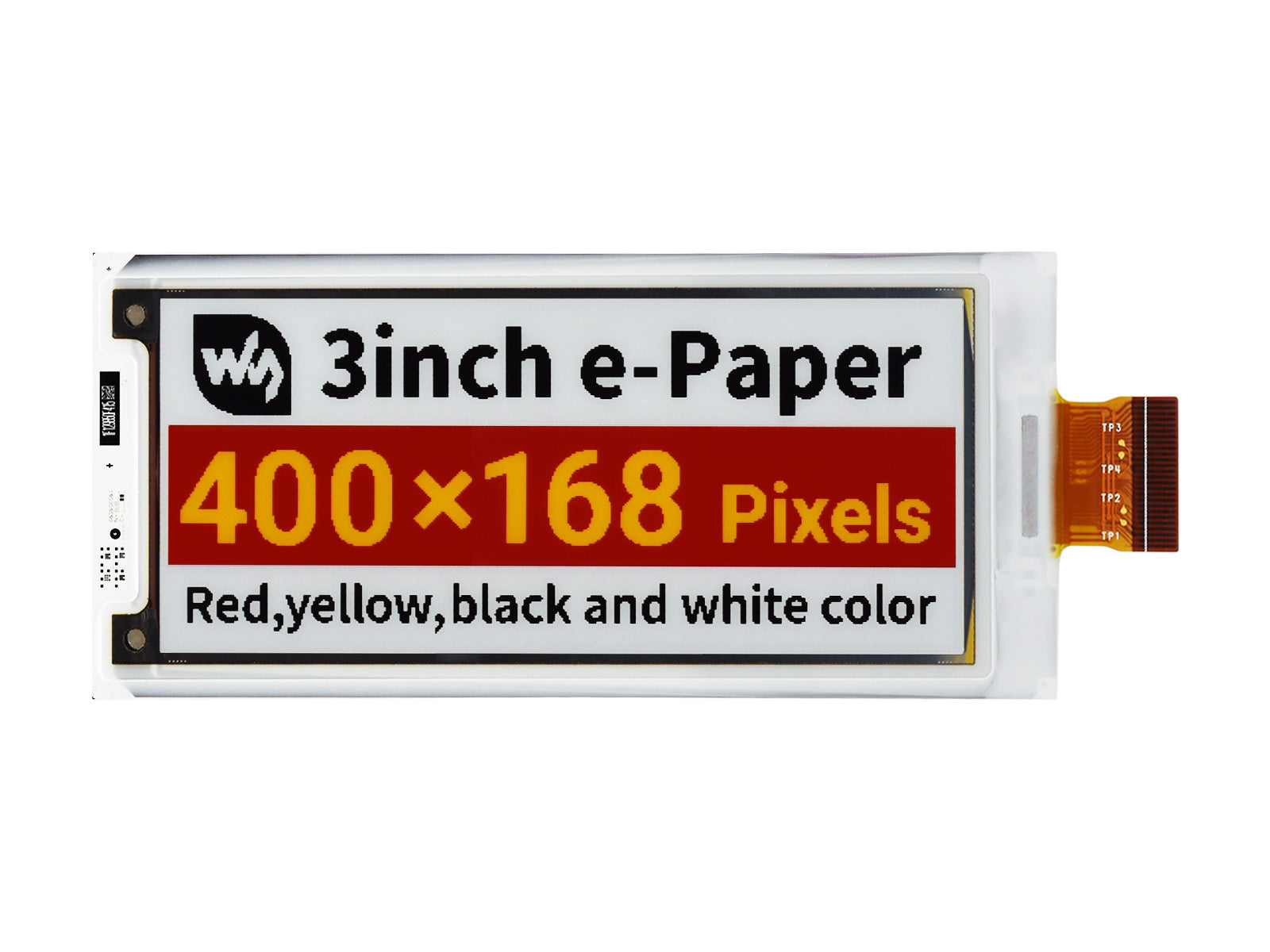

3inch e-Paper (G) raw display, 400 × 168, SPI Interface

4.511 Ft
4.511 Ft 0 Ft
Sale Ausverkauft
Steuer enthalten. Versand wird an der Kasse berechnet.

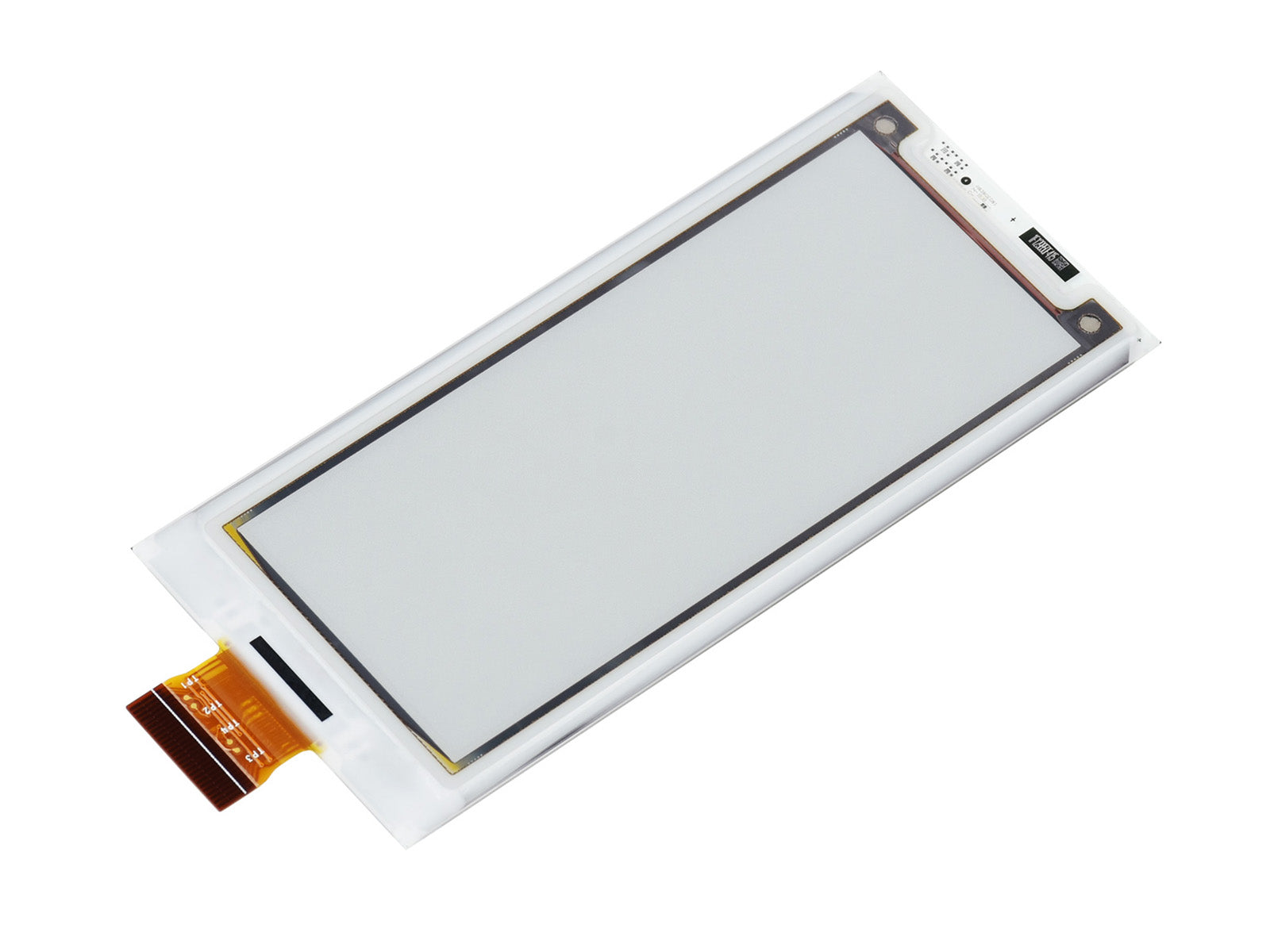

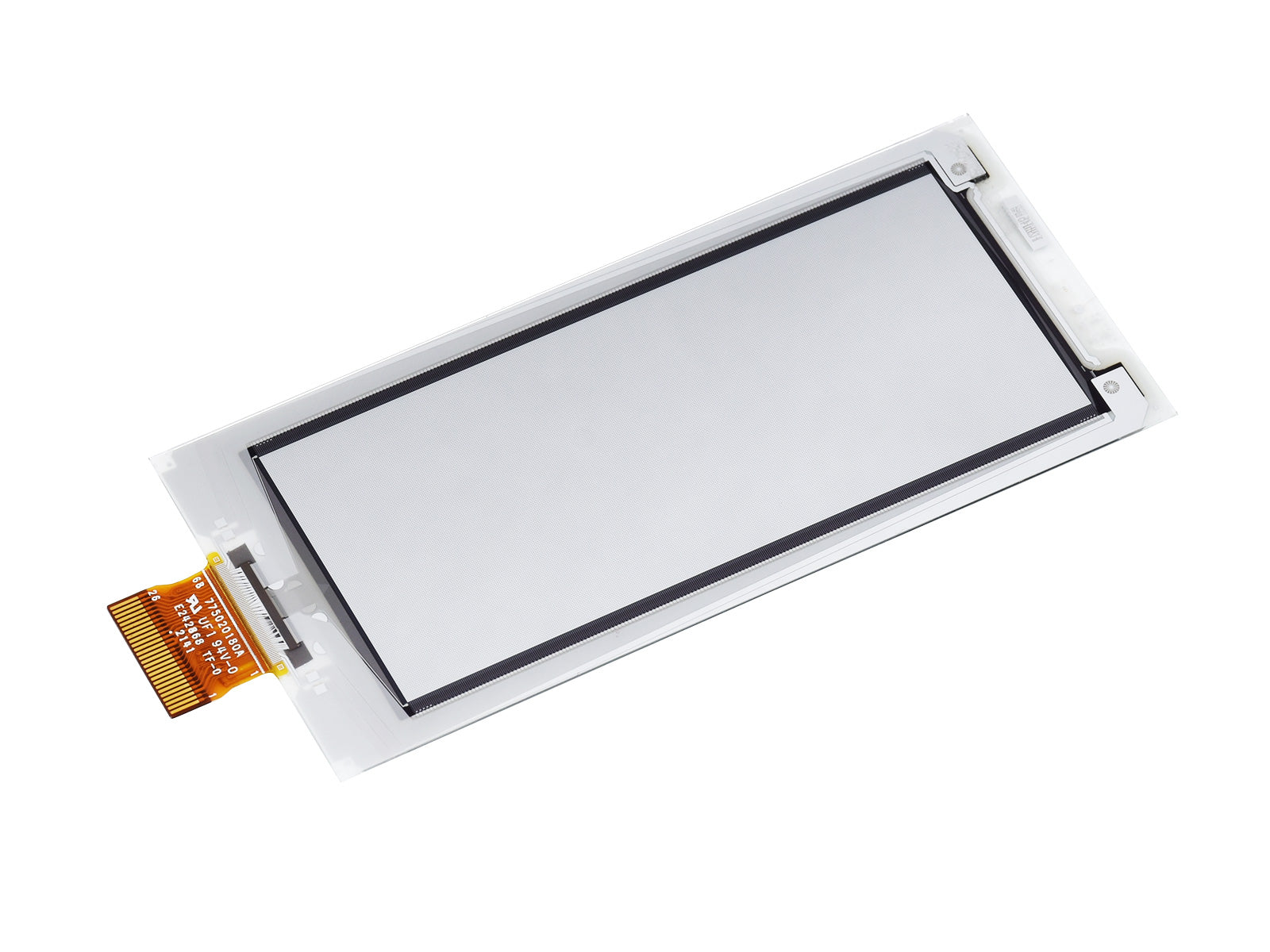

3inch e-Paper (G) raw display, 400 × 168, SPI Interface
3″ e-Paper (G)

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

  • Size3″
  • Resolution400×168
  • Viewing Angle>170°
  • Display ColorRed/Yellow/Black/White
  • Grey Scale2
  • CommunicationSPI
  • Display PanelE-paper
  • ExperiencePaper-like
  • EnvironmentAmbient Light Required
  • Display TypePassively Reflective
Features at a glance
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)
Specifications
operating voltage3.3Vdisplay colorRed/Yellow/Black/White
interface3-wire SPI, 4-wire SPIgrey scale2
outline dimensions86.4 × 39.2 × 0.85mmfull refresh time12s
display size70.4 × 29.568mmrefresh power<60mW (typ.)
DOT PITCH0.176 × 0.176mmstandby current<0.01uA (almost none)
RESOLUTION400×168 pixelsviewing angle>170°
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper. E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Application examples

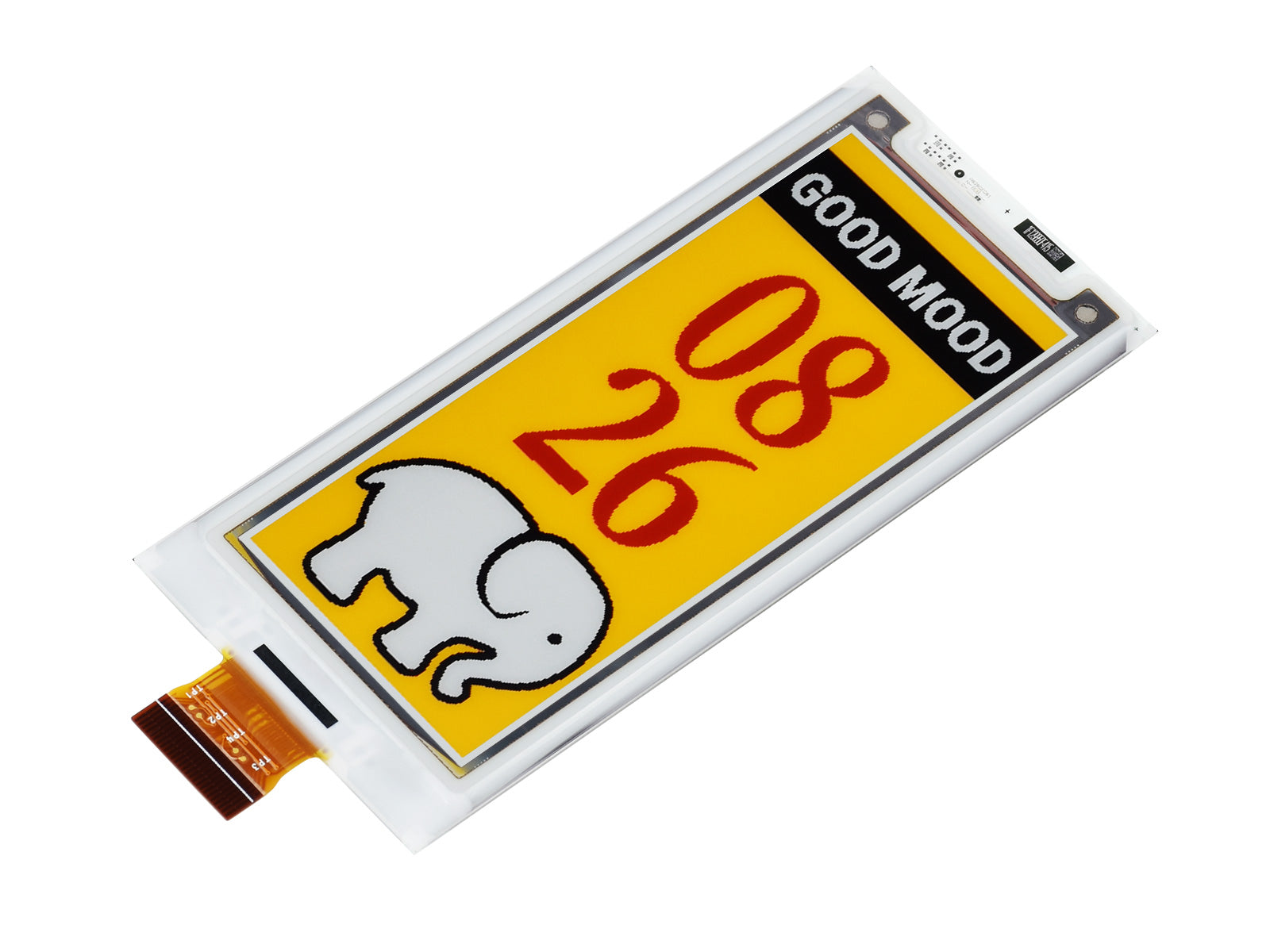

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions
Resources & Services

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection Guide

Part NumberColorsGrey ScaleResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial RefreshFlexibleInterface
1.02inch e-Paperblack, white2128×8021.76 × 14.0032.57 × 18.60 × 0.982√SPI
1.54inch e-Paperblack, white2200×20027.60 × 27.6037.32 × 31.80 × 1.052√SPI
1.54inch e-Paper (B)red, black, white2200×20027.60 × 27.6037.32 × 31.80 × 1.0514SPI
1.54inch e-Paper (G)red, yellow, black, white2200×20027.00 × 27.0037.32 × 31.8 × 1.0020SPI
1.64inch e-Paper (G)red, yellow, black, white2168×16829.568 × 29.56845.5 × 36.4 × 0.9112SPI
2.13inch e-Paperblack, white2250×12248.55 × 23.7159.20 × 29.20 × 1.052√SPI
2.13inch e-Paper (B)red, black, white2250×12248.55 × 23.7059.20 × 29.20 × 0.9815SPI
2.13inch e-Paper (G)red, yellow, black, white2250×12248.55 × 23.7059.20 × 29.20 × 1.0016SPI
2.15inch e-Paper (B)red, black, white2296×16048.10 × 26.0060.8 × 31.8 × 1.0023SPI
2.15inch e-Paper (G)red, yellow, black, white2296×16048.10 × 26.0060.8 × 31.8 × 1.0020SPI
2.36inch e-Paper (G)red, yellow, black, white2296×16852.096 × 29.56868.1 × 37.9 × 0.8512SPI
2.66inch e-Paperblack, white2296×15230.704 × 60.08836.304 × 71.820 × 1.006√SPI
2.66inch e-Paper (B)red, black, white2296×15230.704 × 60.08836.304 × 71.820 × 1.0015SPI
2.66inch e-Paper (G)red, yellow, black, white2360×18460.05 × 30.6972.59 × 37.11 × 1.0026SPI
2.7inch e-Paperblack, white4264×17657.29 × 38.1970.42 × 45.80 × 0.986√SPI
2.7inch e-Paper (B)red, black, white2264×17657.29 × 38.1970.42 × 45.80 × 0.9815SPI
2.9inch e-Paperblack, white4296×12866.89 × 29.0579.00 × 36.70 × 1.053√SPI
2.9inch e-Paper (B)red, black, white2296×12866.90 × 29.0679.00 × 36.70 × 1.2014√SPI
2.9inch e-Paper (G)red, yellow, black, white2296×12866.89 × 29.0579.00 × 36.70 × 1.2016SPI
3inch e-Paper (G)red, yellow, black, white2400×16870.4 × 29.56886.4 × 39.2 × 0.8512SPI
3.5inch e-Paper (G)red, yellow, black, white2384×18479.68 × 38.1891.75 × 45.03 × 1.0020SPI
3.52inch e-Paperblack, white2360×24074.51 × 49.6784.70 × 54.41 × 1.181.5SPI
3.52inch e-Paper (B)red, black, white2360×24074.51 × 49.6784.70 × 54.41 × 0.8516SPI
3.6inch e-Paper (E)E6 full color2600×40076.20 × 50.8086.60 × 56.00 × 0.7815SPI
3.7inch e-Paperblack, white4480×28047.32 × 81.1254.90 × 93.30 × 0.783√SPI
3.7inch e-Paper (G)red, yellow, black, white2416×24081.54 × 47.0792.99 × 53.00 × 1.0020SPI
3.97inch e-Paperblack, white4800×48099.50 × 60.0096.62 × 56.24 × 0.923.5√SPI
3.97inch e-Paper (G)red, yellow, black, white2800×48099.50 × 60.0096.62 × 56.24 × 0.9221SPI
4inch e-Paper (E)E6 full color2600×40084.6 × 56.499.00 × 66.00 × 0.8519SPI
4.2inch e-Paperblack, white4400×30084.80 × 63.6091.00 × 77.00 × 1.185√SPI
4.2inch e-Paper (B)red, black, white2400×30084.80 × 63.6091.00 × 77.00 × 1.0515SPI
4.2inch e-Paper (G)red, yellow, black, white2400×30084.80 × 63.6091.00 × 77.00 × 1.0021SPI
4.26inch e-Paperblack, white4800×48092.8 × 55.68129.33 × 62.37 × 0.934√SPI
4.37inch e-Paper (G)red, yellow, black, white2512×36890.11 × 64.7799.5 × 79.5 × 0.8514SPI
5inch e-Paperblack, white2960×552110.59 × 62.65126.38 × 71.19 × 0.791.8√SPI
5.65inch e-Paper (F)7-Color2600×448114.9 × 85.8125.4 × 99.5 × 0.91<35SPI
5.79inch e-Paperblack, white4792×272139.00 × 47.74150.92 × 56.94 × 1.003.5√SPI
5.79inch e-Paper (B)red, black, white2792×272139.00 × 47.74150.92 × 56.94 × 1.0024SPI
5.79inch e-Paper (G)red, yellow, black, white2792×272139.00 × 47.74150.92 × 56.94 × 1.0021SPI
5.83inch e-Paperblack, white2648×480119.232 × 88.320125.40 × 99.50 × 1.185SPI
5.83inch e-Paper (G)red, yellow, black, white2648×480118.78 × 88.22125.40 × 99.50 × 1.2020SPI
6inch HD e-Paperblack, white161448×1072122.356 × 90.60138.40 × 101.80 × 0.67<1√Parallel port
7.3inch e-Paper (E)E6 full color2800×480160 × 96170.2 × 111.2 × 0.9112SPI
7.3inch e-Paper (F)7-Color2800×480160 × 96170.2 × 111.2 × 0.9135SPI
7.5inch e-Paperblack, white4800×480163.20 × 97.92170.20 × 111.20 × 1.184√SPI
7.5inch e-Paper (B)red, black, white2800×480163.20 × 97.92170.20 × 111.20 × 1.1826√SPI
7.5inch e-Paper (G)black, white2800×480163.20 × 97.92177.20 × 118.20 × 2.005√SPI
7.5inch e-Paper (H)red, yellow, black, white2800×480163.20 × 97.92170.20 × 111.20 × 1.2022SPI
7.8inch e-Paperblack, white161872×1404158.18 × 118.64173.80 × 127.60 × 0.78<1√Parallel port
9.7inch e-Paperblack, white161200×825202.8 × 139.43218.80 × 156.425 × 1.15<1√Parallel port
10.2inch e-Paper (G)red, yellow, black, white2960×640215.52 × 143.68224.00 × 157.00 × 1.0027SPI
10.3inch e-Paperblack, white161872×1404209.66 × 157.25216.70 × 174.40 × 0.78<1√Parallel port
10.3inch e-Paper (D)black, white161872×1404209.66 × 157.25227.70 × 165.80 × 0.647<1√√Parallel port
10.85inch e-Paperblack, white21360×480259.76 × 91.68270.56 × 105.92 × 1.203.5SPI
10.85inch e-Paper (G)red, yellow, black, white21360×480259.76 × 91.68270.56 × 105.92 × 1.2021SPI
12.48inch e-Paperblack, white21304×984252.98 × 190.90261.50 × 211.00 × 0.30<8SPI
12.48inch e-Paper (B)red, black, white21304×984252.98 × 190.90261.40 × 211.00 × 1.2037SPI
13.3inch e-Paperblack, white161600×1200270.40 × 202.80285.80 × 213.65 × 0.78<1√Parallel port
13.3inch e-Paper (B)red, black, white2960×680275.52 × 195.16286.32 × 212.26 × 1.2022√SPI
13.3inch e-Paper (E)E6 full color21600×1200270.40 × 202.80284.70 × 208.80 × 0.85019SPI
13.3inch e-Paper (K)black, white4960×680275.52 × 195.16286.32 × 212.26 × 1.205√SPI
e-Paper raw panels comparing

Lieferumfang

3inch e-Paper (G) x1
