SKU:WSAL32257

Kurzbeschreibung: 4G Module Expansion Board Designed For Jetson Orin, Includes SIM7600G-H-M.2 4G Module, Supports 4G / 3G / 2G Communications And GNSS Positioning, Global Coverage

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.

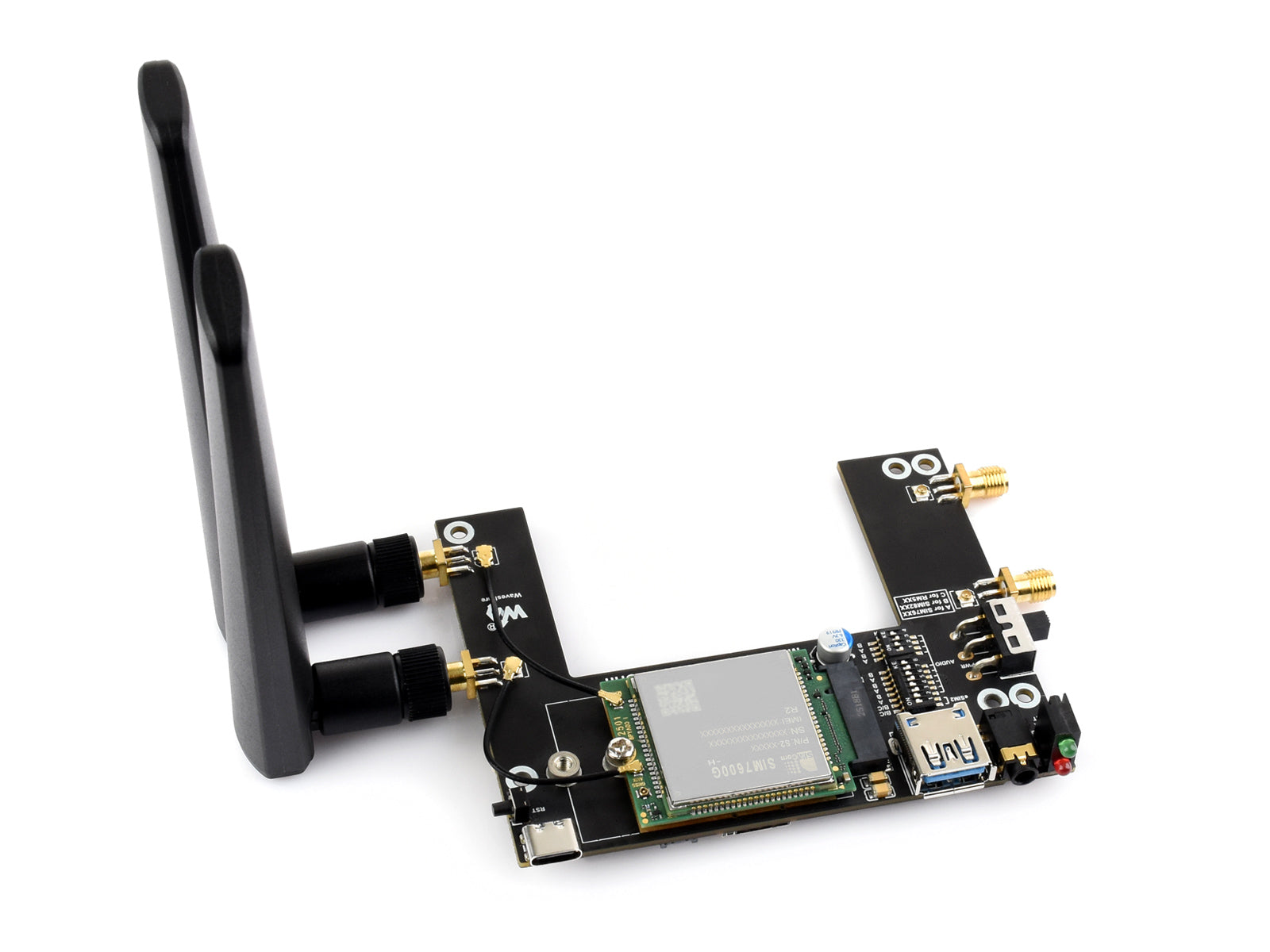

4G Module Expansion Board Designed For Jetson Orin, Includes SIM7600G-H-M.2 4G Module, Supports 4G / 3G / 2G Communication And GNSS Positioning, Global Coverage

4G module for Jetson Orin

Equipped with a high-performance SIM7600G-H-M.2 4G global module

Supports 4G / 3G / 2G communication and GNSS positioning, global band support

Features at a glance

• Supports dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S), and so on
• GNSS positioning: GPS, Beidou, Glonass, Galileo, QZSS, LBS base station
• USB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi to enable high speed 4G network
• Onboard standard M.2 B KEY slot and module selection switches, compatible with SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 modules
• 4 x SMA antenna connectors, easy to install the antennas
• Reserved UART solder pads for convenient data transmission and other functions with certain modules
• Onboard audio interface and audio decoding chip, enabling voice operations such as making calls on SIMXXX series modules
• Onboard power switch, reset button, and LED indicator for convenient power control and status monitoring
• Onboard high-efficiency power supply circuit, up to 3A output current

Specifications

5G / 4G module	SIM8260G-M2	SIM8262E-M2	RM520N-GL	SIM7600G-H-M.2
Images
5G standard	3GPP R16			-
Chip Solution	Qualcomm Snapdragon X62			Qualcomm MDM9607
Applicable regions	Global	Except Americas	Global
Dimensions (mm)	30.0 × 52.0 × 2.3	30.0 × 42.0 × 2.3	30.0 × 52.0 × 2.3	42.0 × 31.4 × 3.8
Frequency band
5G SA	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79	n1, n3, n5, n7, n8, n18, n20, n26, n28, n38, n40, n41, n48, n66, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	-
5G NSA	n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n48, n66, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	-
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B46, B48	B38, B39, B40, B41, B42, B43	B34, B38, B39, B40, B41, B42, B43, B48	B34, B38, B39, B40, B41
WCDMA	B1, B2, B4, B5, B8, B19	B1, B5, B8	B1, B2, B4, B5, B8, B19	B1, B2, B4, B5, B6, B8, B19
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G SA	2.5Gbps (DL) / 0.9Gbps (UL)	2.4Gbps (DL) / 1Gbps (UL)	2.4Gbps (DL) / 900Mbps (UL)	-
Sub-6G NSA	3.47Gbps (DL) / 460Mbps (UL)	3.4Gbps (DL) / 600Mbps (UL)	3.4Gbps (DL) / 550Mbps (UL)	-
LTE	1.6Gbps (DL)  /  200Mbps (UL)			150Mbps (DL) / 50Mbps (UL)
HSPA+	42Mbps (DL)  /  5.76Mbps (UL)
Note: The above are the supported modules after testing; If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility.

Global band 4G/3G/2G support

LTE Cat-4: up to 150Mbps (downlink) / 50Mbps (uplink)3G (HSPA+): up to 42Mbps (downlink) / 5.76Mbps (uplink)2G (GPRS/EDGE): up to 236.8Kbps (downlink) / 236.8Kbps (uplink)

Multi system support, easy to use

Supports Windows 7 / 8 / 10 / 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port and simple configuration, the high speed 4G network connection would be ready to use

Connection examples

for Jetson Orin Nano and Jetson Orin NX, use the purpose-made USB adapter;for Windows PC, Jetson Nano series, Raspberry Pi 5 / 4B / 3B+, and CM5 / CM4 series, use the USB dual-plug cable

Connecting with Jetson Nano

Connecting with Raspberry Pi 5

Connecting with CM5

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, host performance, base station condition, etc. for reference only, the Raspberry Pi 5,CM5 Module,CM5,Jetson Nano Kit, and Jetson Orin Kit are not included, please refer to the package content for detailed part list.

Multi Positioning support

Supports GPS, GLONASS, BeiDou, Galileo, QZSS, and LBS base station positioning

Cloud Communication

Phone Call & SMS support

allows using AT commands to make phone call via Audio jack or send SMS

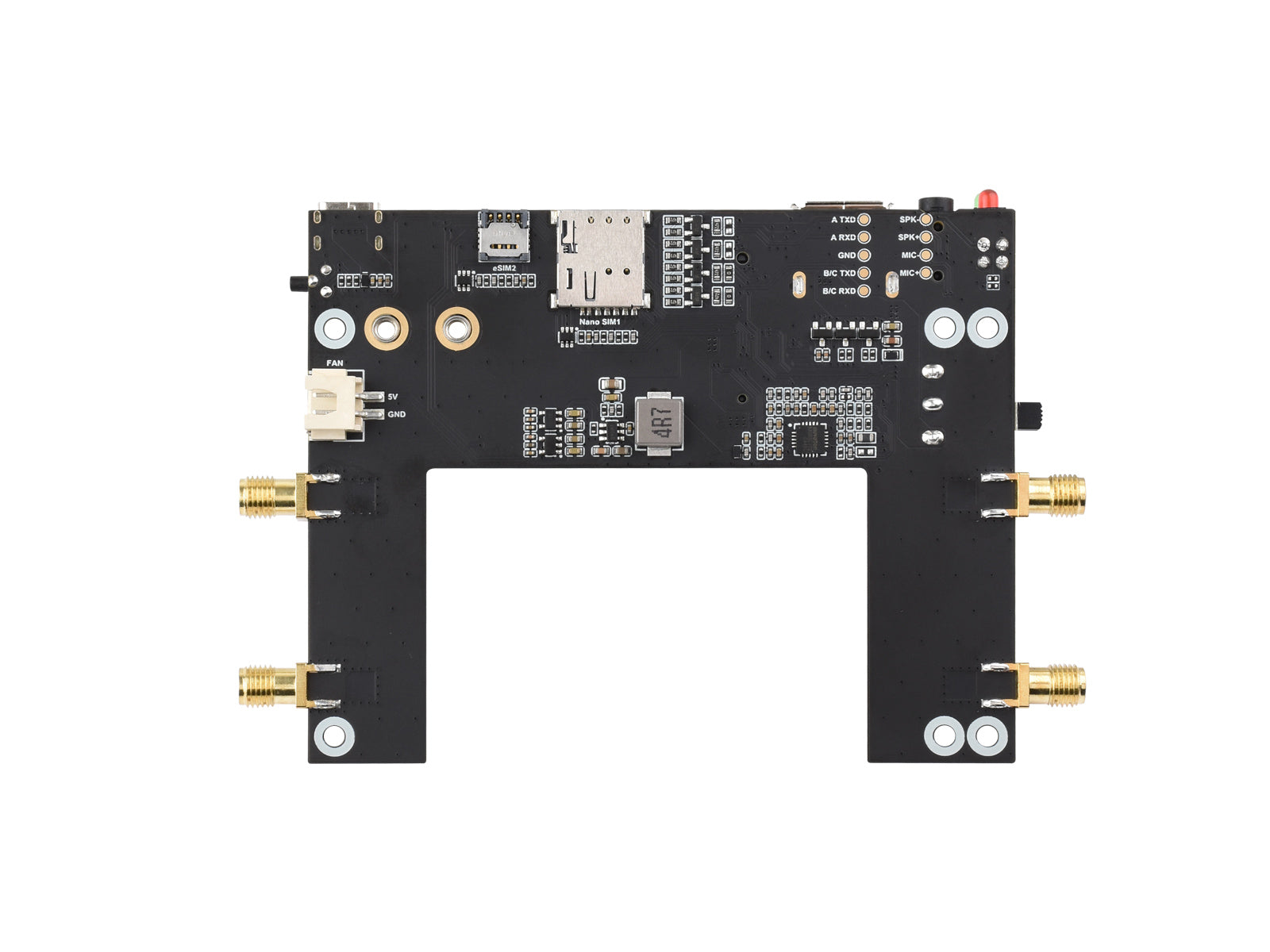

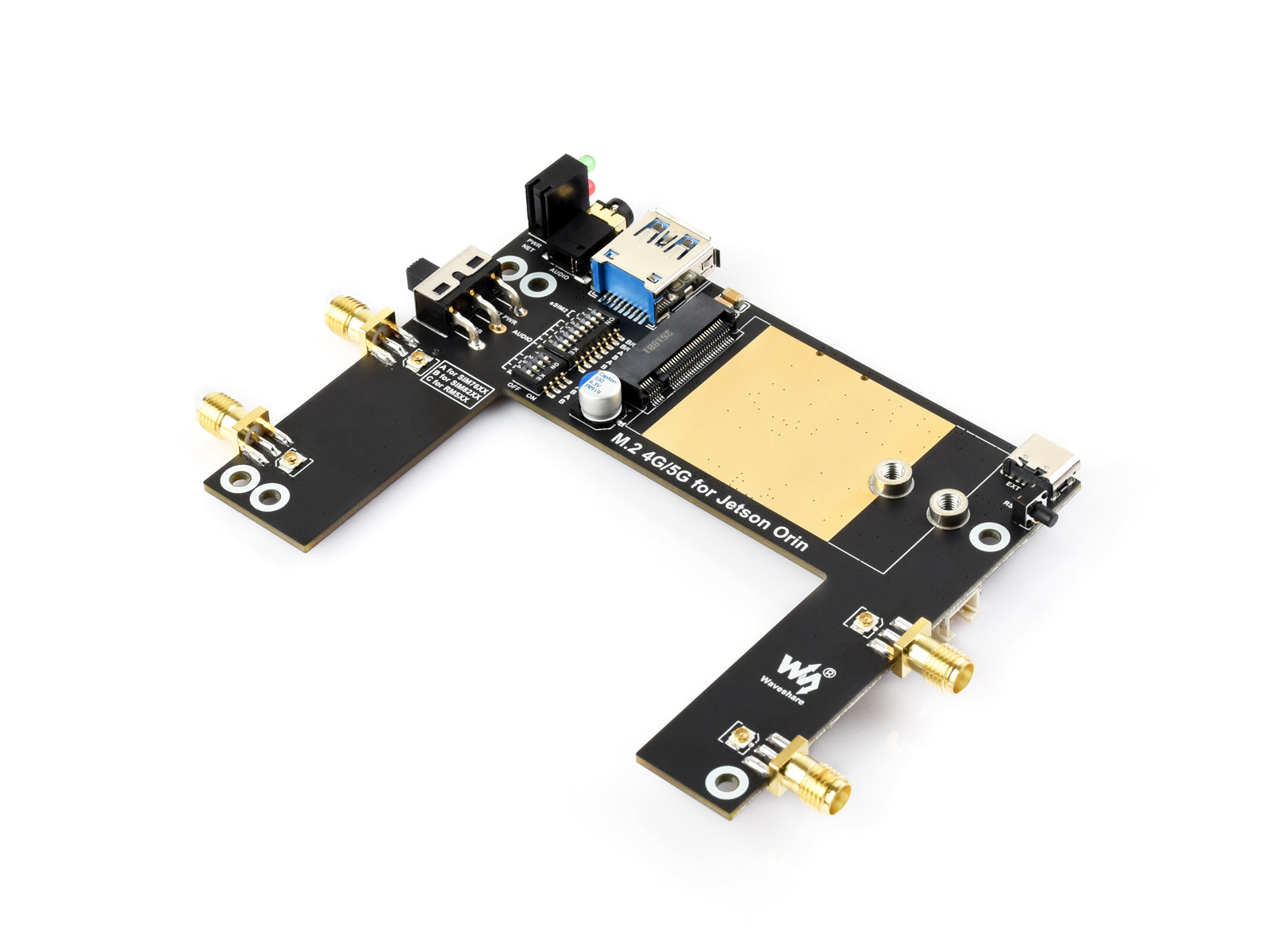

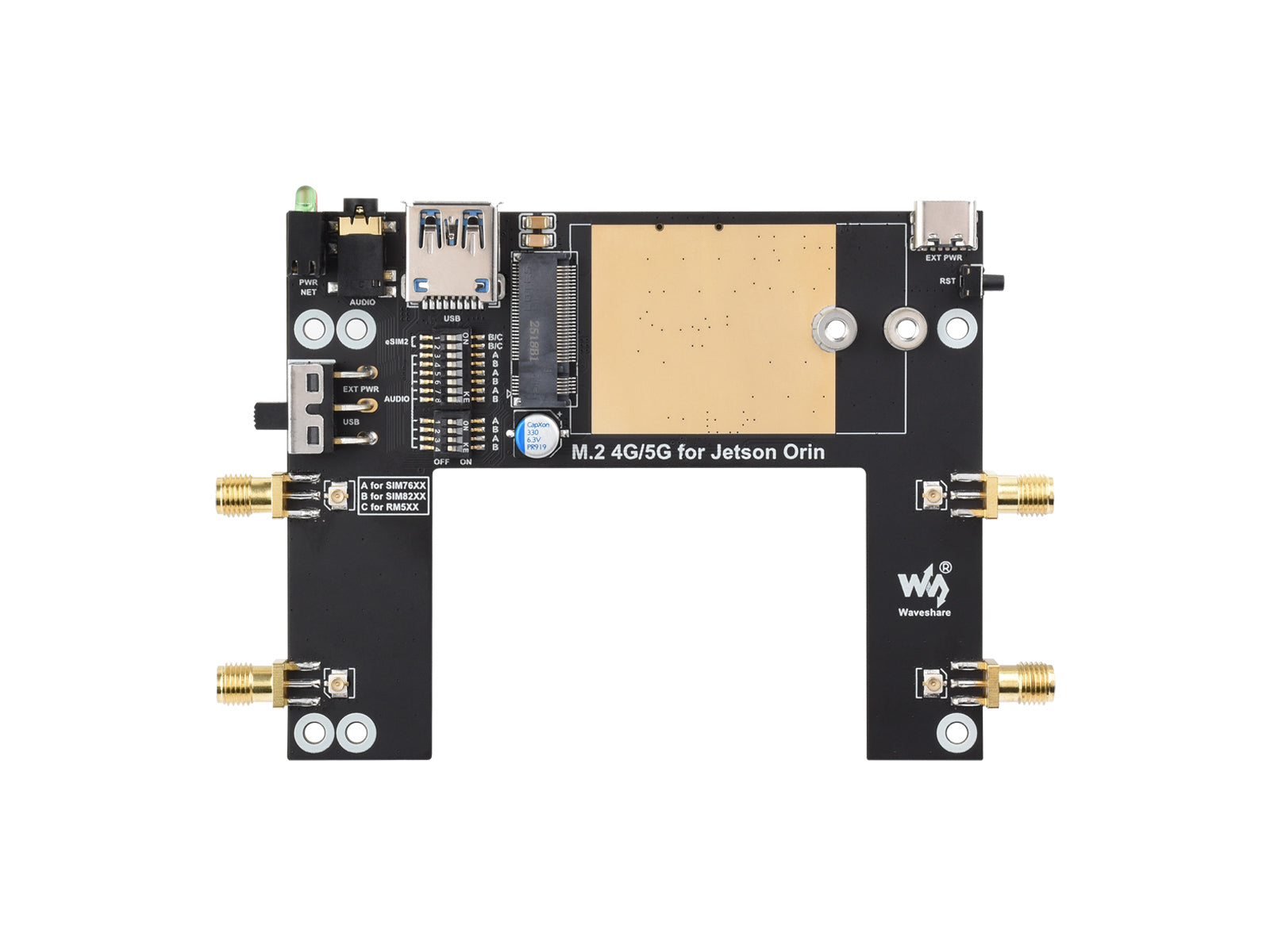

What's On Board

1. USB3.1 portUSB 2.0 compatible, for connecting with different hosts
2. M.2 slotcompatible with most SIMCom and QUECTEL 4G / 5G modules in M.2 form factor
3. USB Type-C port5V 3A power input, stable and flexible power supply
4. Reset button
5. Module fixing holessupports 3042 / 3052 package modules
6. Antenna connectorsSupports quad antennas
7. Module settings switchSwitch A to ON for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules;Switch B to ON for SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules;Switch C to ON for RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules

8. Power supply switchSwitch the power supply mode: When set to USB, the module is powered via the "1. USB3.1 port"When set to EXT PWR, the module is powered by the external power supply via the "3. USB Type-C port"
9. IndicatorEasy to monitor the operating status of module
10. Audio jackSIM82XX / SIM7600X series supports audio function, but RM5XX series temporarily does not support this function
11. eSIM card slotconfigured via AT commands, suitable for SIM8XXX / RM5XX / EM06XX series modules, SIM7600X series modules are not supported
12. Nano SIM card slotplease turn off the power before installing or removing the SIM card.
13. Level conversion circuit
14. Reserved UART and audio interface pads
15. Mounting holesfor installing this module onto the Jetson Orin board via screws
16. Audio drive circuit
17. Power supply circuit
18. Fan headerfor 5V cooling fan

Installation Introduction

* for reference only, please refer to the package content for detailed part list

Outline Dimensions

Resources & Services

Wiki:www.waveshare.com/wiki/SIM7600G-H-M.2_4G_for_Jetson_Orin

Lieferumfang

1. Jetson Orin M.2 4G / 5G expansion board x1
2. SIM7600G-H-M.2 x1
3. 4G antenna x2
4. SMA protective cap (5PCS) x1
5. IPEX1 to SMA adapter cable ~10cm x1
6. IPEX1 to IPEX4 adapter cable ~5cm (2PCS) x1
7. Screws pack x1
8. GPS External Antenna (C) x1
9. Dual plug USB3.0 Type-A cable x1
10. Heatsink x1
11. USB 3.0 Adapter (C) x1
12. Screwdriver x1
