SKU:WSAL27738

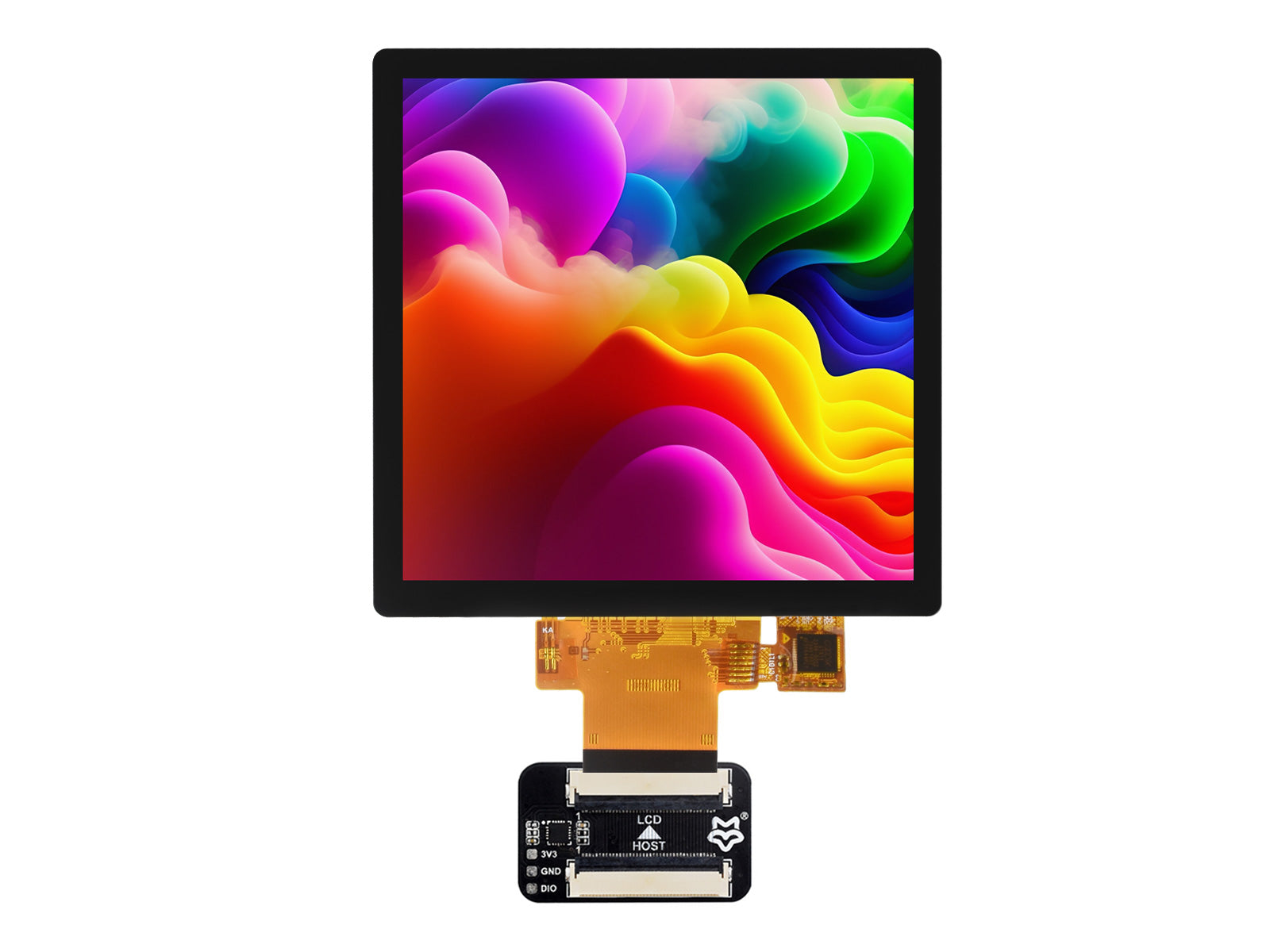

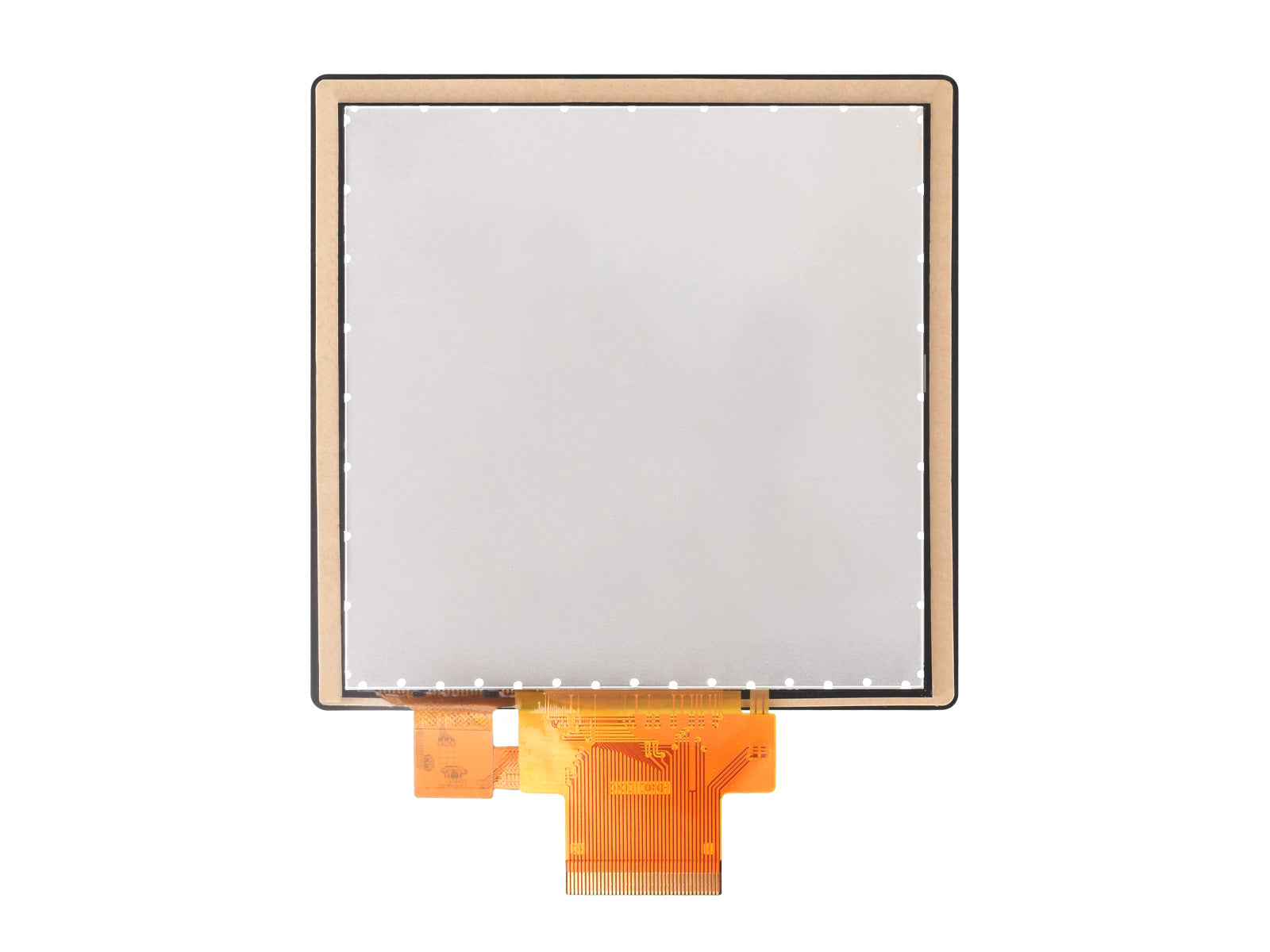

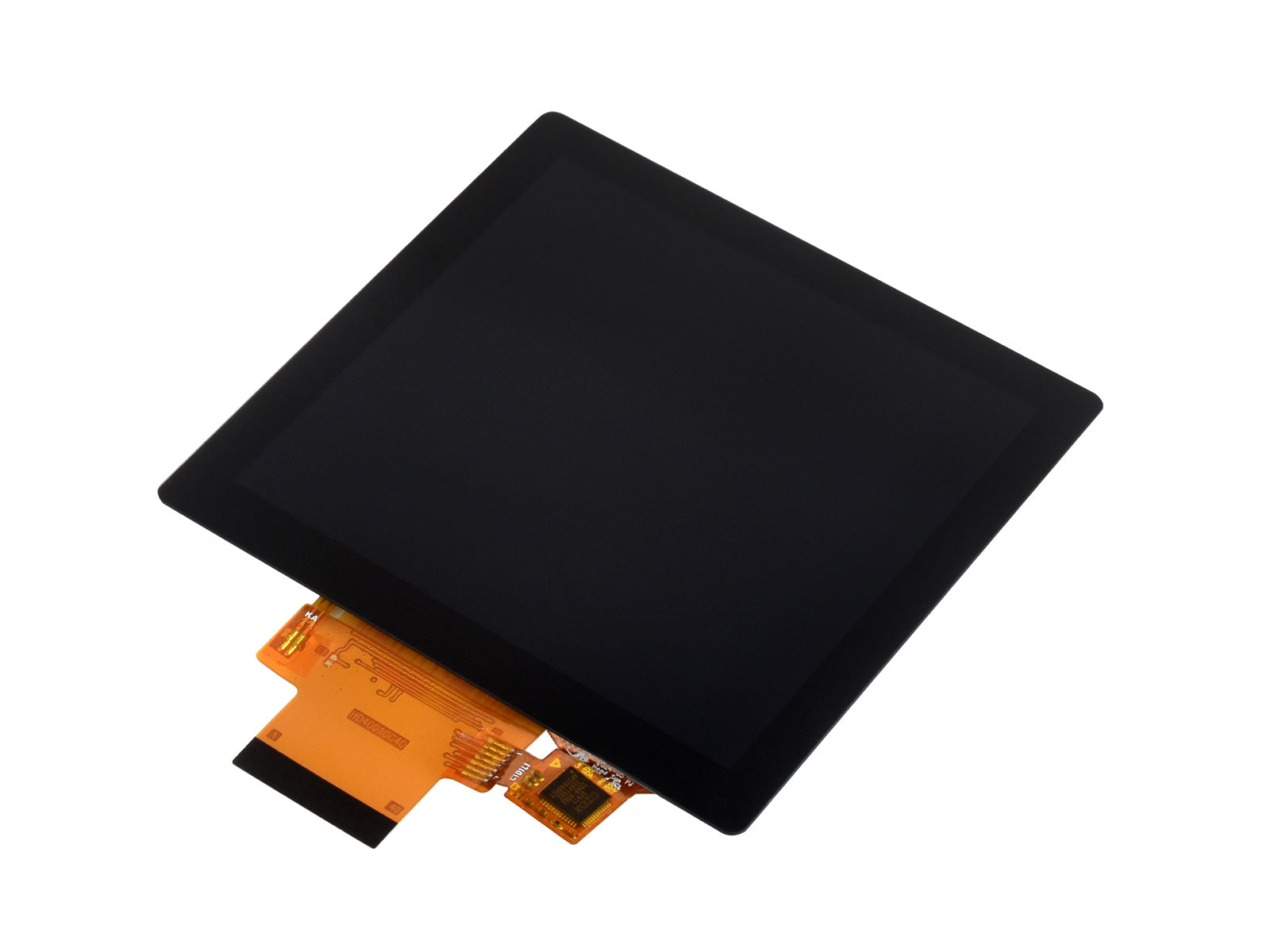

4inch IPS Capacitive Touch Display, 480x480 Pixels, RGB Communication Interface, Compatible With Luckfox Pico Ultra Development Board

Product Specifications

Size	4"	Resolution	480×480
Display Panel	IPS	Viewing Angle	160°
Touch Type	Capacitive	Touch Chip	GT911
Brightness	400cd/m²	Contrast ratio	380:1
Outline Dimension	84.2×84.2mm (H×V)	Display area	71.86×70.18mm (H×V)
Pixel pitch	0.1497×0.1462mm (H×V)	Operation temperature	-20~70°C
Communication Interface	RGB666	-	-

Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

Usage example

* for reference only, the Luckfox Pico Ultra W is NOT included

Outline dimensions

Selection Guide

PRODUCT	SIZE	RESOLUTION	DISPLAY PANEL	DISPLAY COLOR GAMUT	BRIGHTNESS	CONTRAST RATIO	OUTLINE DIMENSION (mm)	DISPLAY AREA (mm)	COMMUNICATION INTERFACE
LF40-480480-ARK	4"	480×480	IPS	-	400cd/m²	380:1	84.2×84.2	71.86×70.18	RGB666
LF40-720720-ARK	4"	720×720	IPS	68% NTSC	400cd/m²	1000:1	84.0×84.0	71.93×71.93	RGB666

Resources & Services

Wiki:https://wiki.luckfox.com/Luckfox-Pico-Ultra/RGB-Screen/

Lieferumfang

LF40-480480-ARK ×1
