4inch IPS Capacitive Touch Display, 720×720 Pixels, RGB Communication Interface, Compatible With Luckfox Pico Ultra Development Board

13.541 Ft
13.541 Ft 0 Ft
Sale Ausverkauft
Steuer enthalten. Versand wird an der Kasse berechnet.
4inch IPS Capacitive Touch Display, 720×720 Pixels, RGB Communication Interface, Compatible With Luckfox Pico Ultra Development Board

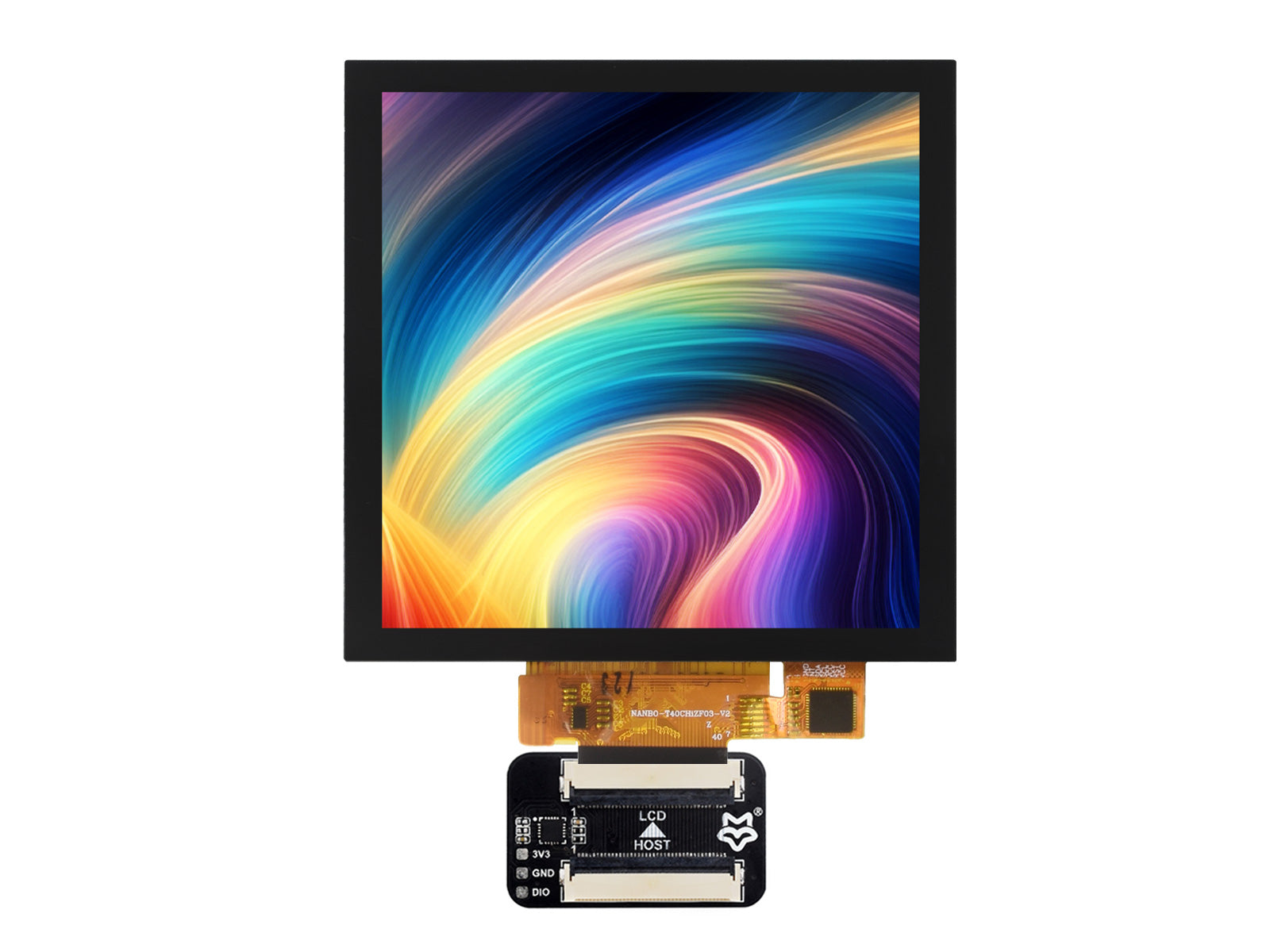

LF40 720720 ARK, front viewLF40 720720 ARK, features
Product Specifications
Size4"Resolution720×720
Display PanelIPSViewing Angle170°
Touch TypeCapacitiveTouch ChipGT911
Brightness400cd/m²Contrast ratio1000:1
Outline Dimension84.0×84.0mm (H×V)Display area71.93×71.93mm (H×V)
Pixel pitch0.0999×0.0999mm (H×V)Operation temperature-20~70°C
Communication InterfaceRGB666Display colour gamut68% NTSC
Capacitive Touch

Supports flexible and responsive touch operation to make development more convenient

LF40 720720 ARK, capacitive touch
Usage example

* for reference only, the Luckfox Pico Ultra W is NOT included

LF40 720720 ARK, usage example
Outline dimensions
LF40 720720 ARK, dimensions
Selection Guide
PRODUCTSIZERESOLUTIONDISPLAY PANELDISPLAY COLOR GAMUTBRIGHTNESSCONTRAST RATIOOUTLINE DIMENSION (mm)DISPLAY AREA (mm)COMMUNICATION INTERFACE
LF40-480480-ARKLF40-480480-ARK4"480×480IPS-400cd/m²380:184.2×84.271.86×70.18RGB666
LF40-720720-ARKLF40-720720-ARK4"720×720IPS68% NTSC400cd/m²1000:184.0×84.071.93×71.93RGB666
Resources & Services
resources and services
Wiki:https://wiki.luckfox.com/Luckfox-Pico-Ultra/RGB-Screen/

Lieferumfang

LF40-720720-ARK ×1

LF40 720720 ARK
